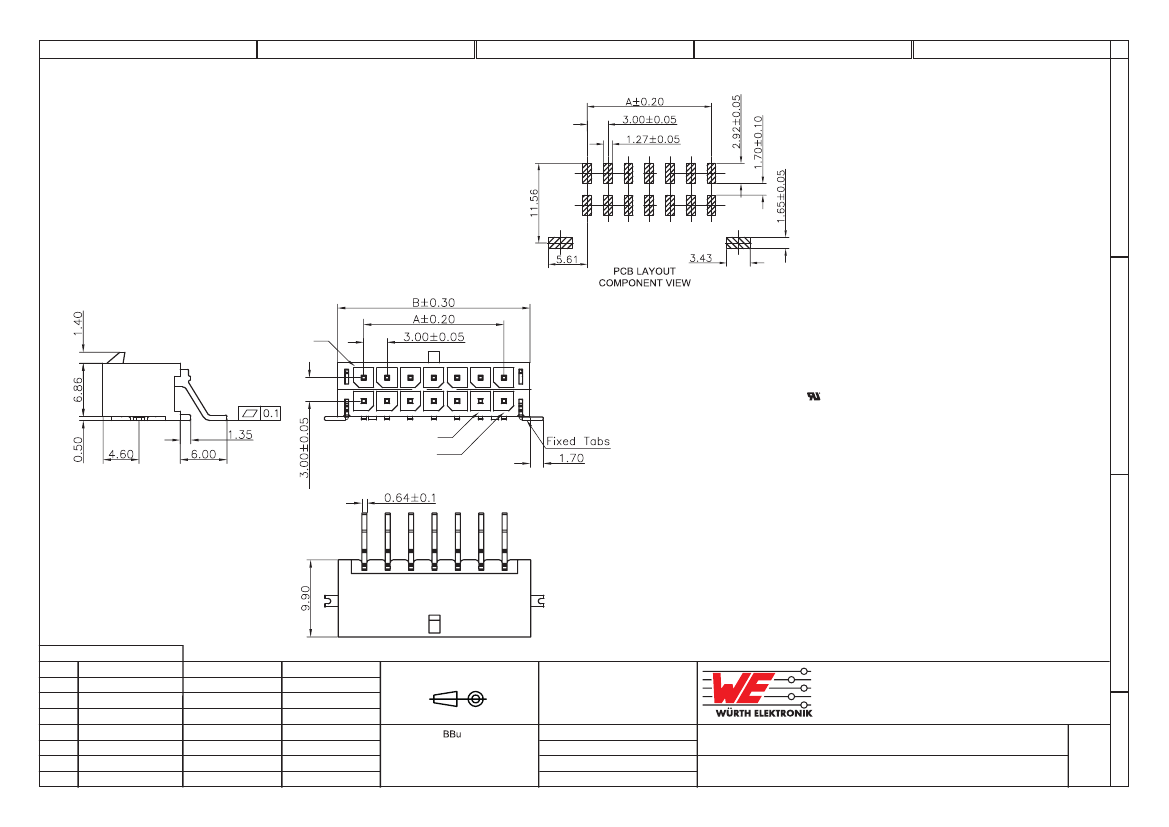

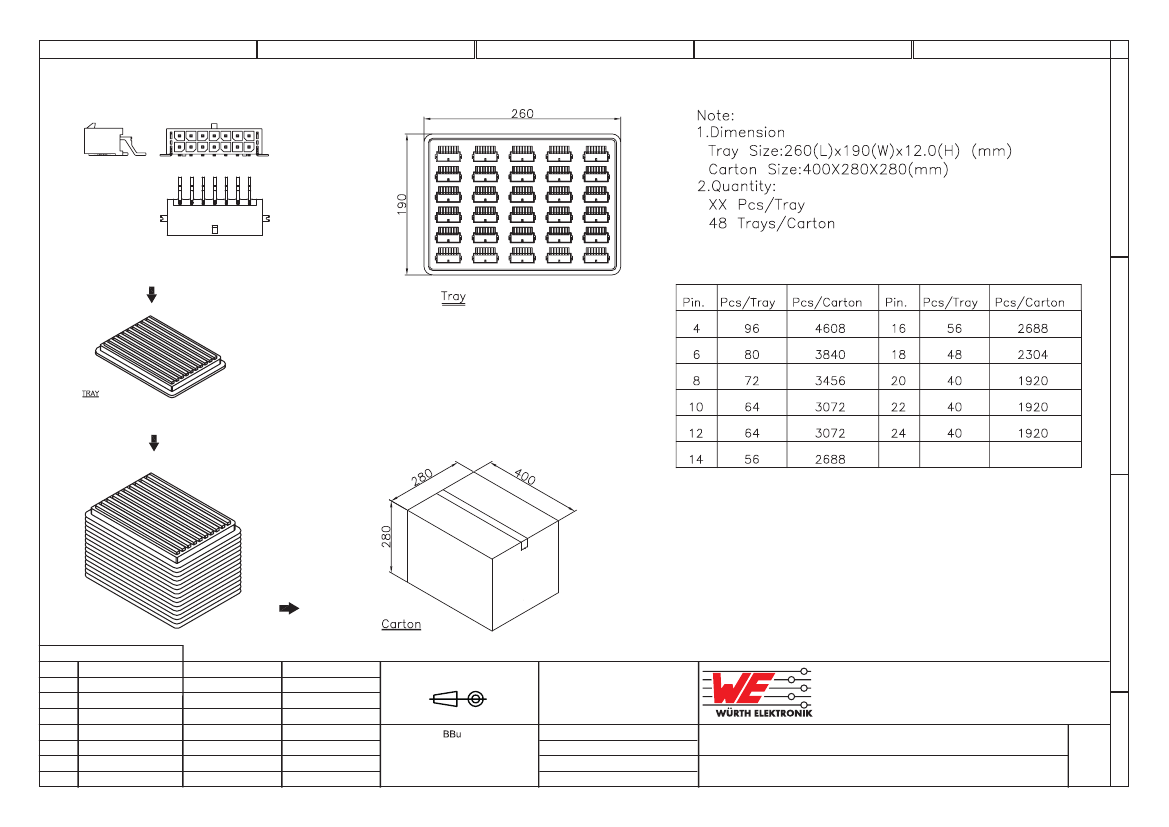

Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, 0.118 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT
| Parameter Name | Attribute value |
| Brand Name | Wurth Electronik |
| Is it Rohs certified? | conform to |
| Maker | Wurth Elektronik |
| package instruction | ROHS COMPLIANT |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | ROHS COMPLIANT |
| Board mount options | LOCATING POSTS |
| body width | 0.345 inch |
| subject depth | 0.626 inch |
| body length | 0.854 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | TIN |
| Contact completed and terminated | Tin (Sn) |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1500VAC V |
| Durability | 25 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | NYLON |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Plug contact pitch | 0.118 inch |
| Match contact row spacing | 0.118 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 4.6228 mm |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 3 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 12 |
| UL Flammability Code | 94V-0 |
| 662012231722 | 662016231722 | 662014231722 | 662018231722 | 662008231722 | |
|---|---|---|---|---|---|
| Description | Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, 0.118 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT | Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.118 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT | Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.118 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT | Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.118 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT | Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.118 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT |
| Brand Name | Wurth Electronik | Wurth Electronik | Wurth Electronik | Wurth Electronik | Wurth Electronik |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to |
| package instruction | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| Board mount options | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS |
| body width | 0.345 inch | 0.345 inch | 0.345 inch | 0.345 inch | 0.345 inch |
| subject depth | 0.626 inch | 0.626 inch | 0.626 inch | 0.626 inch | 0.626 inch |
| body length | 0.854 inch | 1.091 inch | 0.972 inch | 1.209 inch | 0.618 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | TIN | TIN | TIN | TIN | TIN |
| Contact completed and terminated | Tin (Sn) | Tin (Sn) | Tin (Sn) | Tin (Sn) | Tin (Sn) |
| Contact point gender | MALE | MALE | MALE | MALE | MALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 1500VAC V | 1500VAC V | 1500VAC V | 1500VAC V | 1500VAC V |
| Durability | 25 Cycles | 25 Cycles | 25 Cycles | 25 Cycles | 25 Cycles |
| Filter function | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK | BLACK |
| insulator material | NYLON | NYLON | NYLON | NYLON | NYLON |
| JESD-609 code | e3 | e3 | e3 | e3 | e3 |
| MIL compliance | NO | NO | NO | NO | NO |
| Plug contact pitch | 0.118 inch | 0.118 inch | 0.118 inch | 0.118 inch | 0.118 inch |
| Match contact row spacing | 0.118 inch | 0.118 inch | 0.118 inch | 0.118 inch | 0.118 inch |
| Mixed contacts | NO | NO | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 4.6228 mm | 4.6228 mm | 4.6228 mm | 4.6228 mm | 4.6228 mm |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 5 A | 5 A | 5 A | 5 A | 5 A |
| Guideline | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 3 mm | 3 mm | 3 mm | 3 mm | 3 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 12 | 16 | 14 | 18 | 8 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Maker | Wurth Elektronik | Wurth Elektronik | - | Wurth Elektronik | Wurth Elektronik |
| Samacsys Description | - | Wurth Elektronik WR-MPC3 Series, Series Number 6620, 3mm Pitch 16 Way 2 Row Right Angle PCB Header, Solder Termination | - | Wurth Elektronik WR-MPC3 Series, Series Number 6620, 3mm Pitch 18 Way 2 Row Right Angle PCB Header, Solder Termination | Wurth Elektronik WR-MPC3 Series, Series Number 6620, 3mm Pitch 8 Way 2 Row Right Angle PCB Header, Solder Termination |
