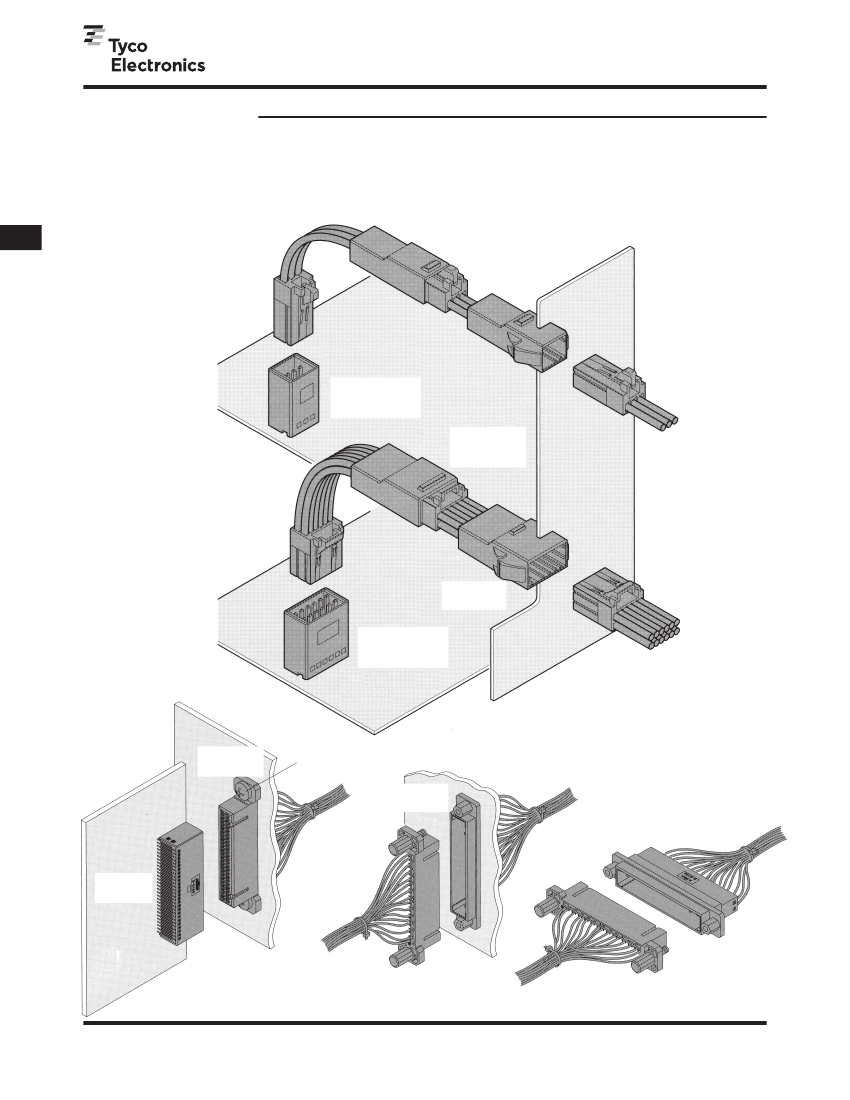

AMP Dynamic Series Connectors
D-2000 Series (Wire-to-Board, Wire-to-Panel and Wire-to-Wire)
List of Products by
Application
D-2000 Series connectors are
the next smallest in Dynamic
Series, yet they can meet
requirements of connectors
for most industrial applica-
tions. They can be used
mainly for signal applications.
Signal lines under 250 V are
of 2.5 mm pitch, which can
accept 18 AWG wires. (5 A
max. per position)
D-2000 Series have several
unique characteristics such as
center-lock method for effec-
tive use of PCB properties,
contact-entrance method for
low profile shapes, and others.
D-2100S
Free-Hanging Type
D-2000 Series
D-2100S
Panel Type
D-2100S
1-Row Type
D-2100S
Board-Mounting
Vertical Type
D-2100D
Free-Hanging
Type
D-2100S
Receptacle Housing
D-2100D
2-Row Type
D-2100D
Board-Mounting
Vertical Type
D-2100D
Panel Type
D-2100D
Receptacle Housing
D-2100M
Drawer Type
Receptacle
Housing
Panel Mounting
Screw
Tab
Housing
Tab
Assembly
(with screw)
Header
Assembly
Receptacle
Assembly
(with screw)
Receptacle
Assembly
(with screw)
16
Catalog 1242132
Revised 5-07
www.tycoelectronics.com
Dimensions are in millimeters
unless otherwise specified.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
AMP Dynamic Series Connectors
D-2000 Series
(Continued)
Performance Specifications
Item
Voltage Rating
Pitch
2.5mm
250 VAC
1-position : 5A
3-position : 5A
6-position : 5A
8-position : 4.5A
12-position : 4A
20-position : 3.2A
(when using #18 AWG wire)
10 mΩ max.
1,500 V (1minute)
-55˚~+105˚C
Current Rating
D-2000 Series
Contact Resistance
Dielectric Withstanding Voltage
Operating Temperature
*
When connectors are used singly.
Material and Finish
Description
Receptacle contact
Tab contact
Tab post
Material
Copper alloy
Finish
Contact area 0.38 µm min. gold
plating underplated nickel
Contact area 0.38 µm min. gold
plating — Contact tail tin plated
underplated nickel
Copper alloy
Housing
UL94V-0 rated glass filled polyester (PBT)
17
Catalog 1242132
Revised 5-07
www.tycoelectronics.com
Dimensions are in millimeters
unless otherwise specified.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
AMP Dynamic Series Connectors
D-2000 Series
(Continued)
Performance Specifications
(Continued)
Specifications and
Instruction Sheet
Specifications and Instruction Sheet
Product Specification
Testing Report
Application Specification
Instruction Sheet-Extraction Tool
108-5619, 108-5659 (Drawer Type)
501-5261
114-5258
411-5900
D-2000 Series
Instruction Sheet-
Hand Tools
Instruction Sheet-Manual Tool
Tool Part No.
91576-1
91595-1
IS No.
408-8547
408-8547
*
Remember to obtain Instruction Sheets when you choose to use these tools.
Extraction Tool
Part Number: 1276716-1 (411-5900)
Keying Plug
Part Number: 641994-1
Tab Contact Cutting Tool
Part Number: 919041-2
Safety Specifications
The safety specifications listed below are approved on specific part numbers. Contact our Sales
Department to check if the part numbers you use are approved or not. Keep in mind that there are
instances where values differ from those given by Tyco Electronics Specifications.
Series
Specifications
Specifications
108-5619 (Standard)
108-5659 (Drawer Type)
UL File No. E28476
Voltage
Rating
250 V
D-2100 Series
Current
Rating
5A
(1 position)
Temperature
Rating
Voltage
Rating
250 V
D-2100M Drawer Type
Current
Rating
Temperature
Rating
-55° to +105˚C
(
2.6A
with #20 AWG
50 position
)
-55° to +105˚C
Determined by
Determined by
requirements
requirements
of equipment in use. of equipment in use.
250 V
#24~28 AWG : 3.3A
#18~22 AWG : 5A
—
CSA Report No.
LR7189
TÜV License No.
R 9950679
—
125 V
5A
-55° to +105˚C
18
Catalog 1242132
Revised 5-07
www.tycoelectronics.com
Dimensions are in millimeters
unless otherwise specified.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
AMP Dynamic Series Connectors
D-2000 Series
(Continued)

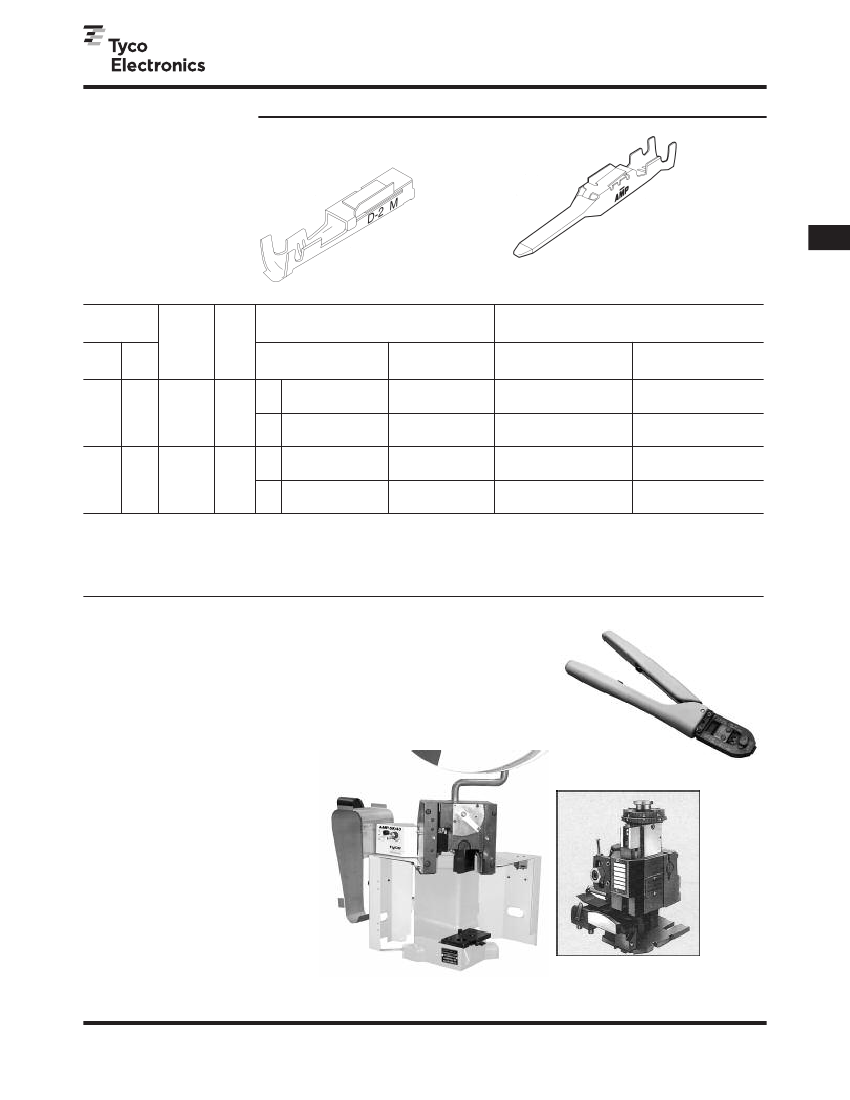

D-2 Contact and
Application Tooling
Crimp Type
(Gold plating : 0.38 µm)
Receptacle Contact
(Used on Receptacle Housing)
Tab Contact
(Used on Tab Housing)
D-2000 Series
Wire Range Wire
Wire
Ins.
Range
AWG mm
2
Diameter Mark
28
26
24
22
20
18
0.08
0.12
0.20
0.30
0.50 1.11~1.87
0.85
M
0.88~1.5
S
Contact Part Number*
Receptacle Contact
ST.
LP.
ST.
LP.
1318106-1
1318108-1
1318105-1
1318107-1
Tab Contact
1318110-1
1318112-1
1318109-1
1318111-1
Application Tooling Part Number
Mini-Applicator**
**
**
**
**
Hand Tool
—
91576-1
—
91595-1
(automachines) and Loose-Piece contacts
*
Strip Form contacts are for use with Mini-Applicators part numbers, contact Technical Support.) are for Hand Tools.
**
Mini-Applicators are for use with automachines. (For
Application Tooling
AMP-3K/40 and AMP-5K/40
Terminating Machines
The AMP-3K/40 and AMP-5K/40 Terminators
are designed for customers that require the
increased output and quality of a semiautomatic
machine at a competitive price. By incorporat-
ing the most commonly requested features as
standard and offering a long list of optional
equipment, these terminators offer flexibility to
meet the specific needs of various applications
at the lowest possible cost.
• 3,000 lb. [1361 kg] max. crimp force
(AMP-3K/40)
5,000 lb. [2268 kg] max. crimp force
(AMP-5K/40)
• Toolless removal of applicators and guards
• Jog capability
• Quiet, fast operation — 80/76 dBA and cycle
time less than 0.400 seconds
• Accepts Heavy Duty Mini style applicators
• Wide range of optional equipment such as
toolless precision crimp height adjust, batch
counter, CQM capability and work light
• Order Catalog 1654856 for specifications
and part numbers
Hand Tool
The crimping section incorporates
Straight Action construction for
improved reliability as with
automachine.
Part No. :
See the chart above.
Minimum order quantity :
1
Mini-Applicator
Part Number :
Contact Technical Support
Minimum order quantity :
1
19
Catalog 1242132
Revised 5-07
www.tycoelectronics.com
Dimensions are in millimeters
unless otherwise specified.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
AMP Dynamic Series Connectors
D-2000 Series
(Continued)

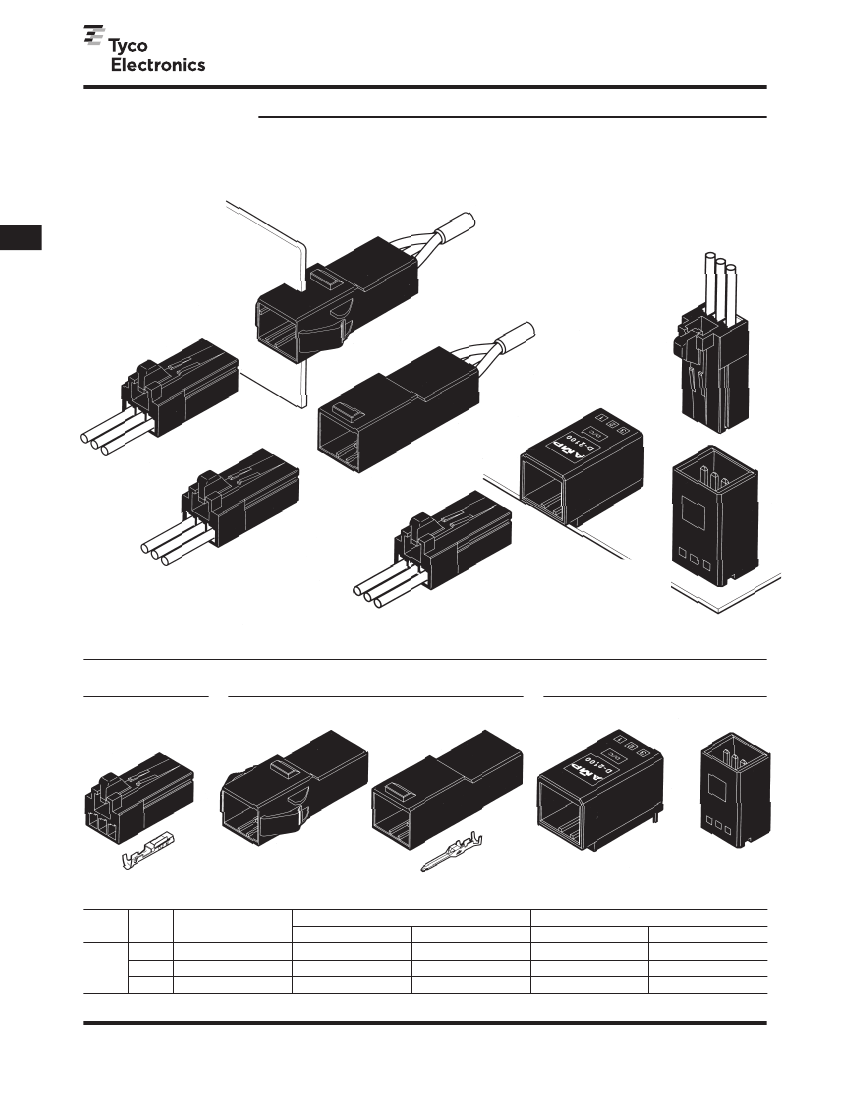

D-2100S
Appearance
Board mounting pitch: 2.5mm
Dielectric Withstanding Voltage: 1,500V (for one minute)
Voltage Rating: 250 VAC
D-2000 Series
Tab Housing
(Panel Type)
Receptacle
Housing
Receptacle
Housing
Board-mounting
Tab Header
(Horizontal Type)
Tab Housing
(Free-hanging Type)
Receptacle
Housing
Receptacle
Housing
Board-mounting
Tab Header
(Vertical Type)
Receptacle Housing
(Panel Type)
Tab Housing
(Free-hanging Type)
Board-mounting Tab Header
(Horizontal Type)
(Vertical Type)
Receptacle Contact
Tab Contact······For each line of contacts, refer to the appropriate pages.
No. of
Keying Receptacle Housing
Pos.
3
X
Y
X
1-1318120-3
2-1318120-3
1-1473074-3*
Tab Housing
Free-hanging Type
Panel Type
1-1318117-3
1-1318116-3
2-1318116-3
—
2-1318117-3
—
Board-mounting Tab Header
Horizontal Type
Vertical Type
1376135-1
1318123-1
1376135-2
—
1318123-2
—
*
Drawer Type
20
Catalog 1242132
Revised 5-07
www.tycoelectronics.com
Dimensions are in millimeters
unless otherwise specified.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
