UPC494G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> UPC494G

UPC494G: DescriptionSwitching Controller, Current/voltage-mode, 0.25A, 300kHz Switching Freq-Max, BIPolar, PDSO16, 0.375 INCH, PLASTIC, SOP-16; CategoryPower/power management The power supply circuit; File Size1MB，16 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPC494G Overview

Switching Controller, Current/voltage-mode, 0.25A, 300kHz Switching Freq-Max, BIPolar, PDSO16, 0.375 INCH, PLASTIC, SOP-16

UPC494G Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	CURRENT/VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	40 V
Minimum input voltage	7 V
Nominal input voltage	15 V
JESD-30 code	R-PDSO-G16
JESD-609 code	e6
length	10 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Maximum output current	0.25 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2.77 mm
surface mount	YES
Switch configuration	PUSH-PULL
Maximum switching frequency	300 kHz
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	7.2 mm

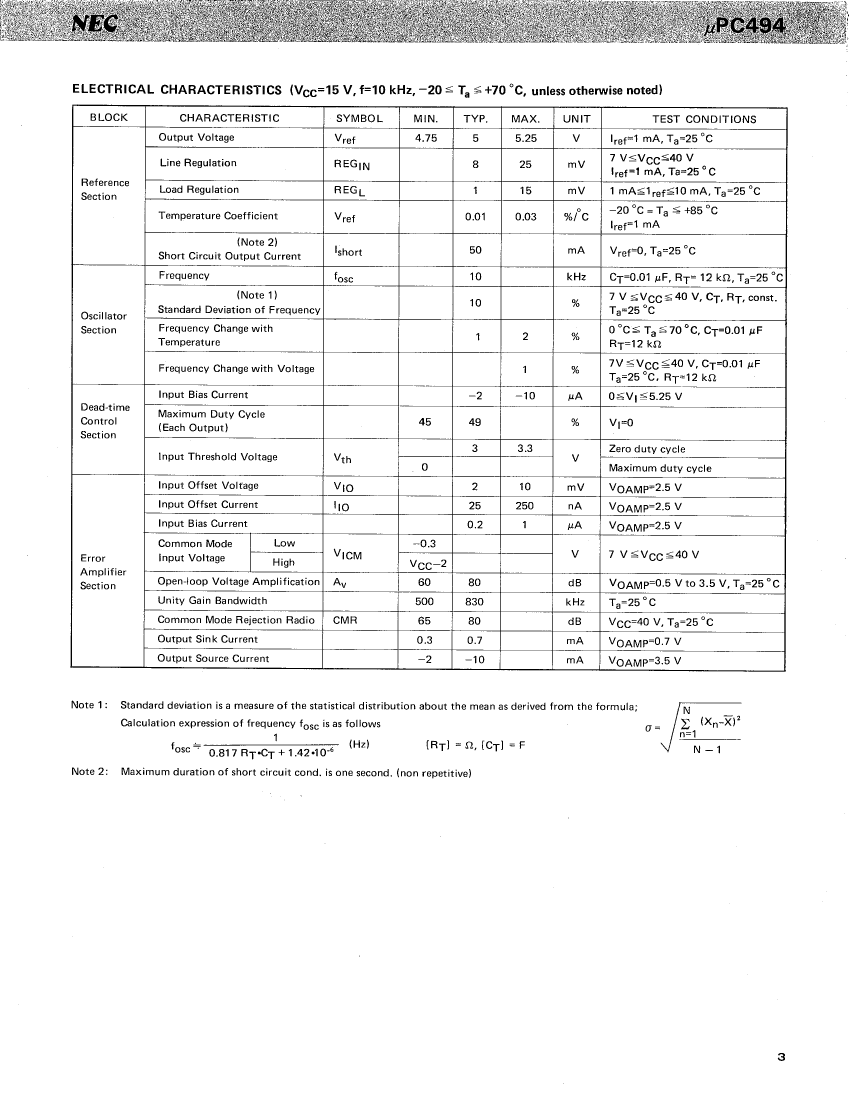

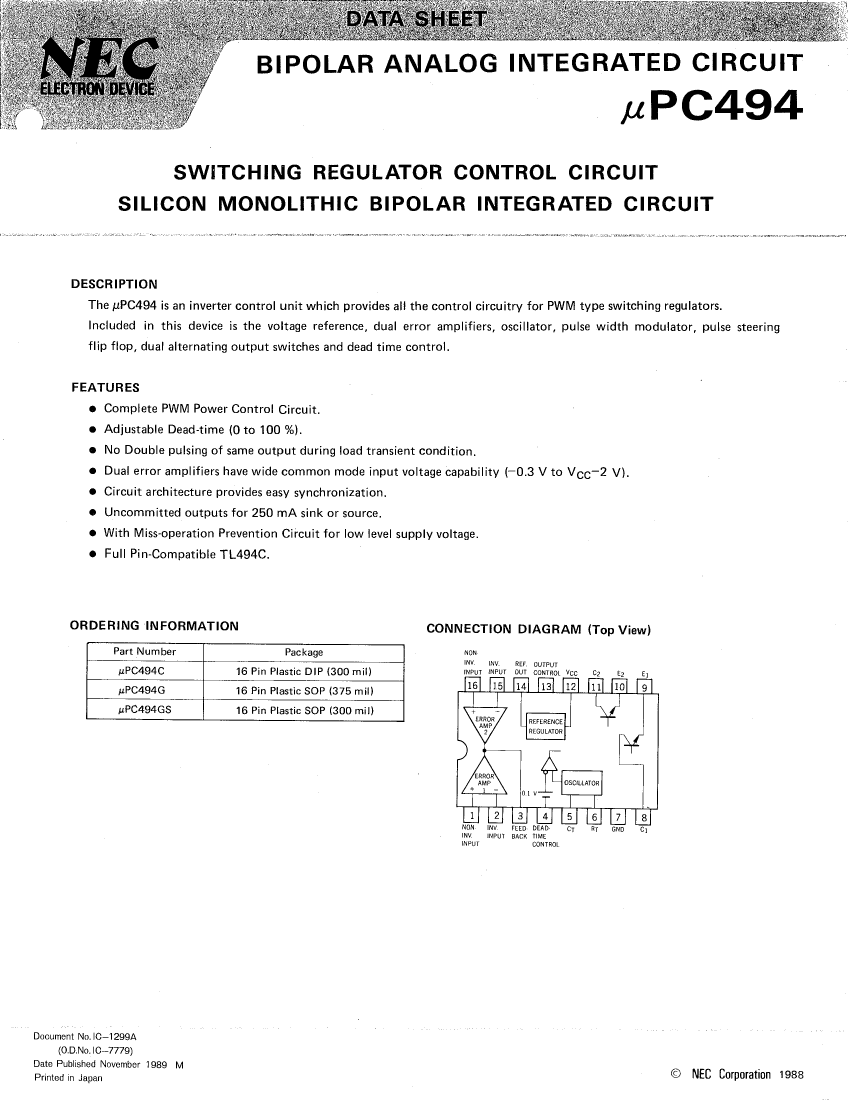

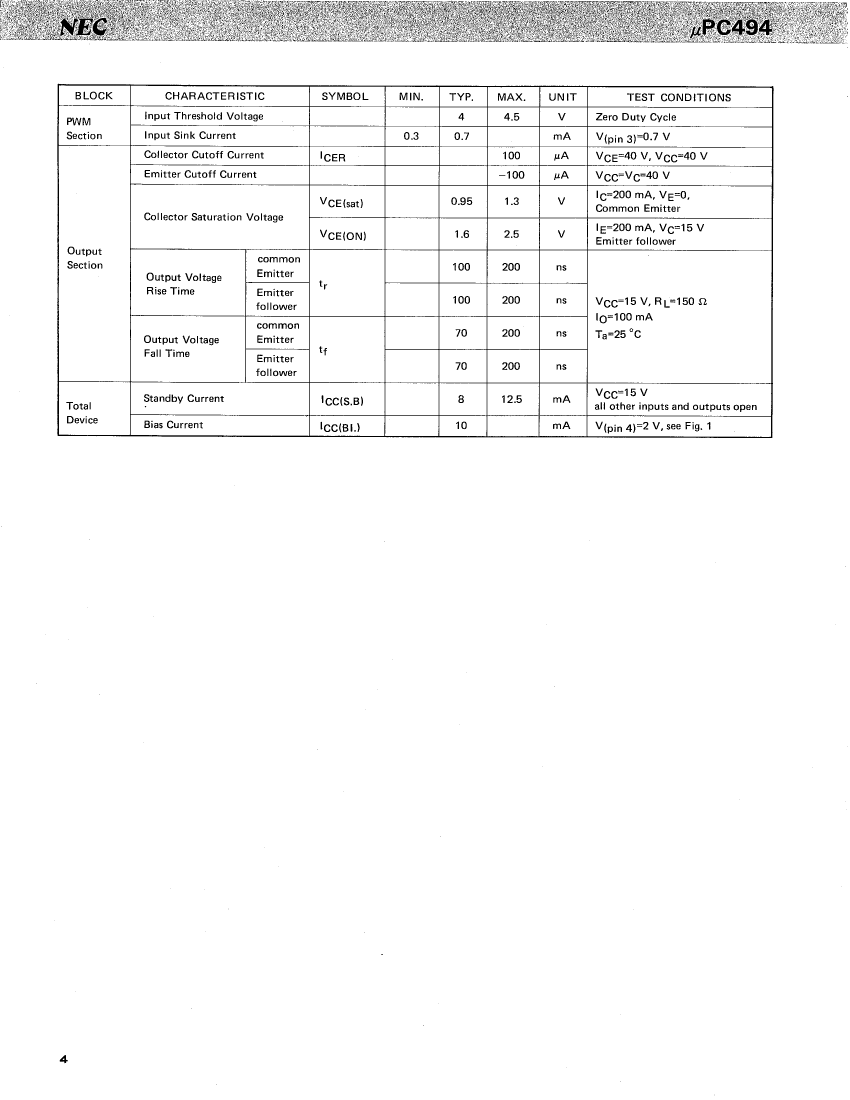

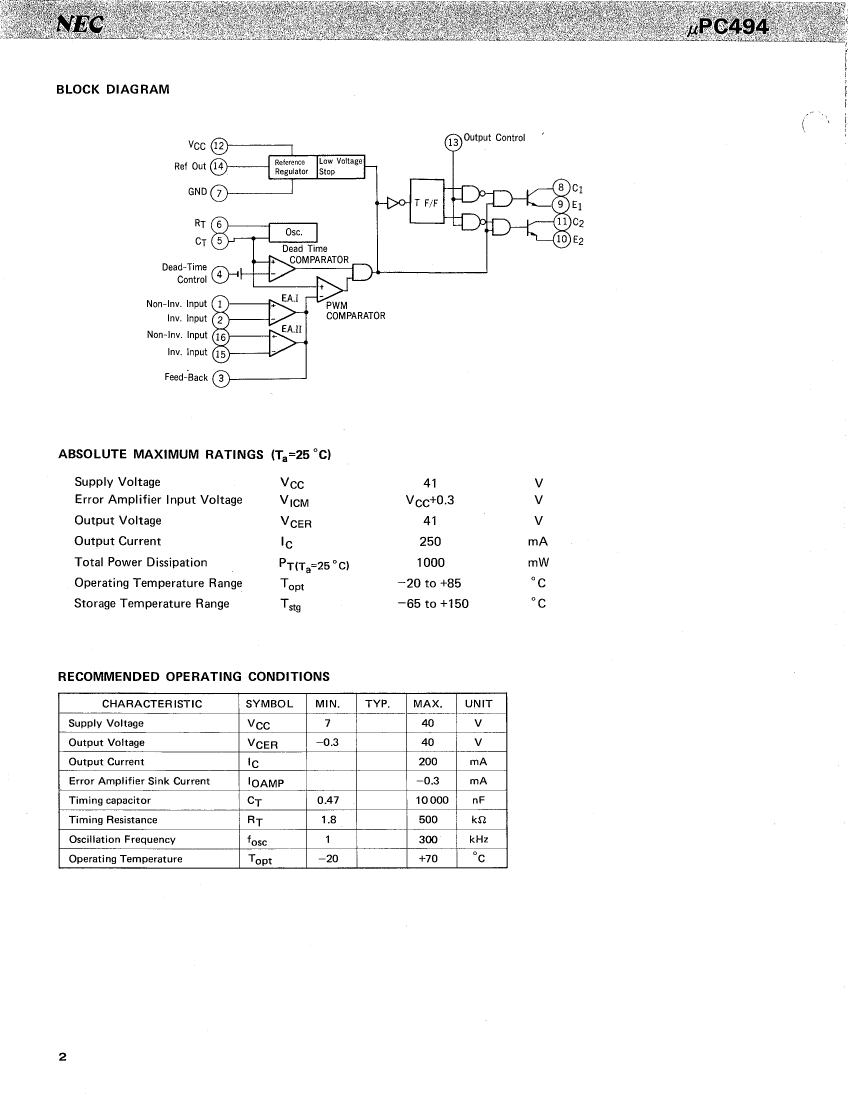

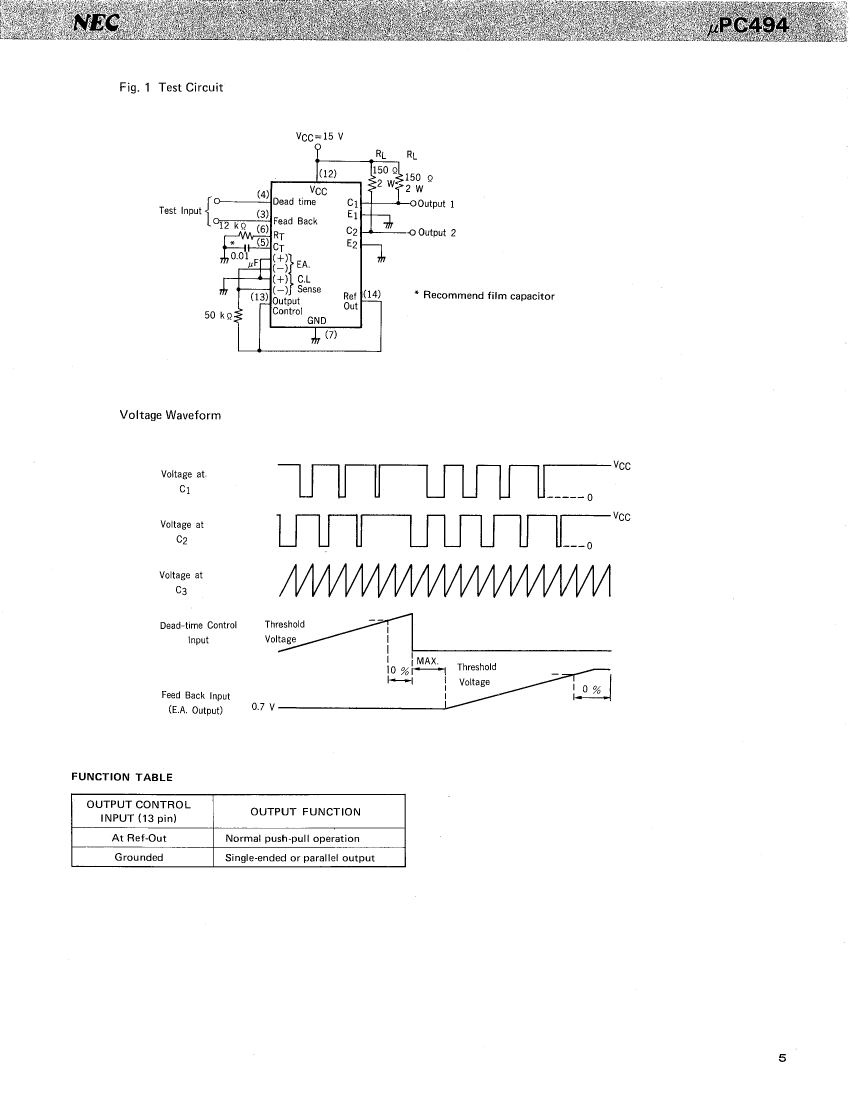

UPC494G Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
