CBR35-080PW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> CBR35-080PW

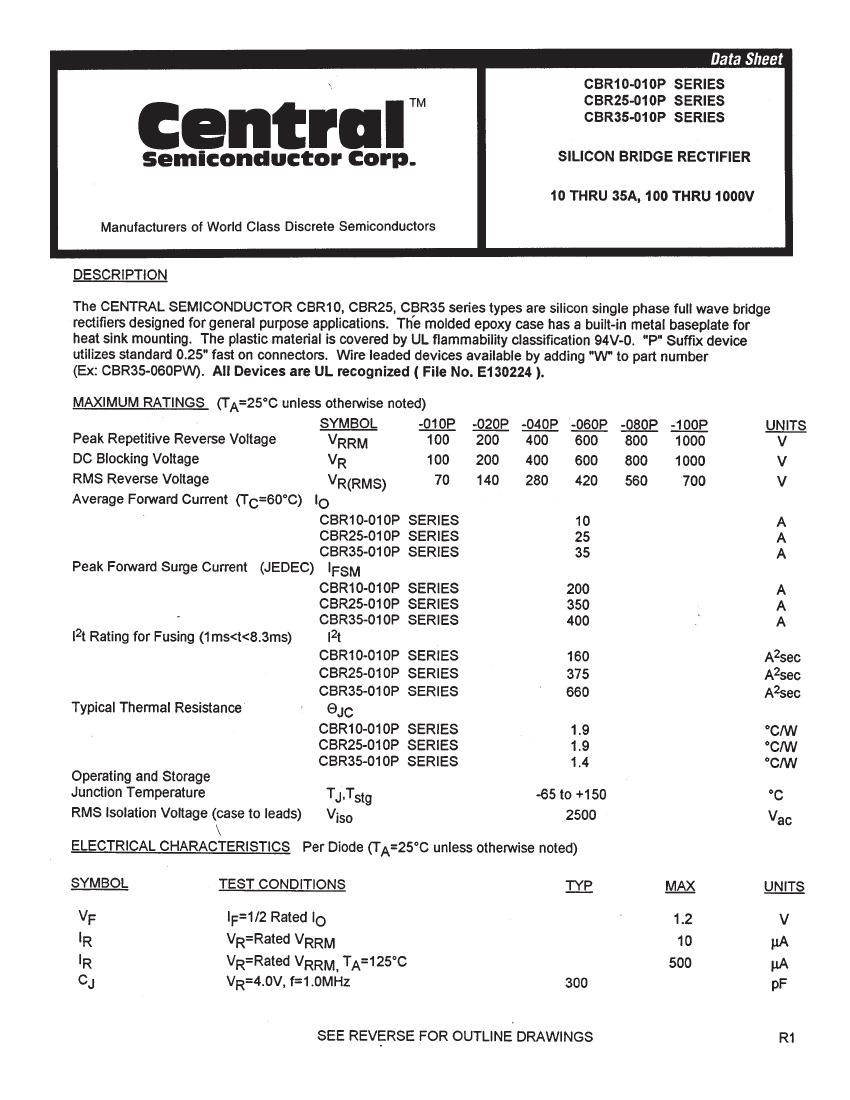

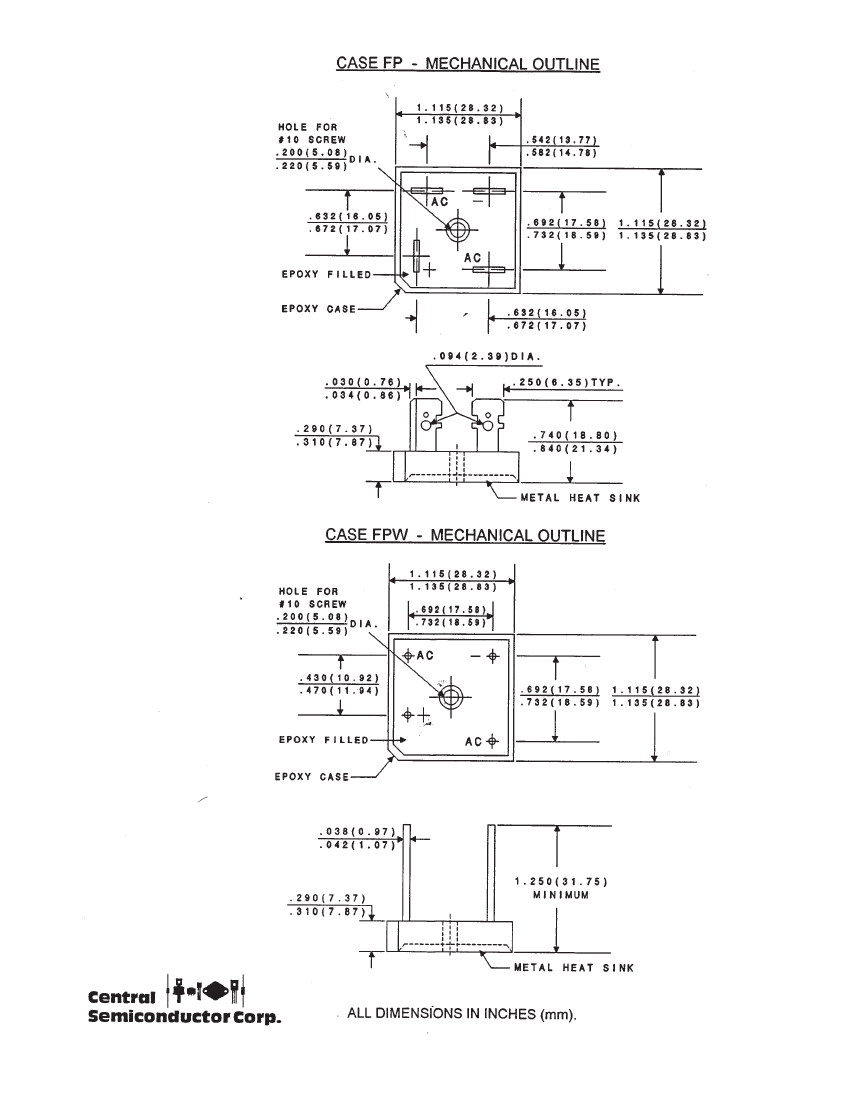

CBR35-080PW: DescriptionBridge Rectifier Diode, 1 Phase, 35A, 800V V(RRM), Silicon, PLASTIC, CASE FPW, 4 PIN; CategoryDiscrete semiconductor diode; File Size81KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CBR35-080PW Overview

Bridge Rectifier Diode, 1 Phase, 35A, 800V V(RRM), Silicon, PLASTIC, CASE FPW, 4 PIN

CBR35-080PW Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
package instruction	PLASTIC, CASE FPW, 4 PIN
Contacts	4
Manufacturer packaging code	CASE FPW
Reach Compliance Code	unknown
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JESD-30 code	S-PUFM-W4
JESD-609 code	e0
Maximum non-repetitive peak forward current	400 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	35 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

145 Adams Avenue, Hauppauge, NY 11788 USA

Tel: (631) 435-1110 • Fax: (631) 435-1824

CBR35-080PW Related Products

	CBR35-080PW	CBR25-020PW	CBR25-040PW	CBR25-100PW	CBR10-040PW	CBR25-060PW	CBR10-100PW	CBR35-040PW	CBR25-080PW	CBR10-080PW
Description	Bridge Rectifier Diode, 1 Phase, 35A, 800V V(RRM), Silicon, PLASTIC, CASE FPW, 4 PIN	Bridge Rectifier Diode, 1 Phase, 25A, 200V V(RRM), Silicon, PLASTIC, CASE FPW, 4 PIN	Bridge Rectifier Diode, 1 Phase, 25A, 400V V(RRM), Silicon, PLASTIC, CASE FPW, 4 PIN	Bridge Rectifier Diode, 1 Phase, 25A, 1000V V(RRM), Silicon, PLASTIC, CASE FPW, 4 PIN	Bridge Rectifier Diode, 1 Phase, 10A, 400V V(RRM), Silicon, PLASTIC, CASE FPW, 4 PIN	Bridge Rectifier Diode, 1 Phase, 25A, 600V V(RRM), Silicon, PLASTIC, CASE FPW, 4 PIN	Bridge Rectifier Diode, 1 Phase, 10A, 1000V V(RRM), Silicon, PLASTIC, CASE FPW, 4 PIN	Bridge Rectifier Diode, 1 Phase, 35A, 400V V(RRM), Silicon, PLASTIC, CASE FPW, 4 PIN	Bridge Rectifier Diode, 1 Phase, 25A, 800V V(RRM), Silicon, PLASTIC, CASE FPW, 4 PIN	Bridge Rectifier Diode, 1 Phase, 10A, 800V V(RRM), Silicon, PLASTIC, CASE FPW, 4 PIN
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	PLASTIC, CASE FPW, 4 PIN	PLASTIC, CASE FPW, 4 PIN	PLASTIC, CASE FPW, 4 PIN	PLASTIC, CASE FPW, 4 PIN	PLASTIC, CASE FPW, 4 PIN	PLASTIC, CASE FPW, 4 PIN	PLASTIC, CASE FPW, 4 PIN	PLASTIC, CASE FPW, 4 PIN	PLASTIC, CASE FPW, 4 PIN	PLASTIC, CASE FPW, 4 PIN
Contacts	4	4	4	4	4	4	4	4	4	4
Manufacturer packaging code	CASE FPW	CASE FPW	CASE FPW	CASE FPW	CASE FPW	CASE FPW	CASE FPW	CASE FPW	CASE FPW	CASE FPW
Reach Compliance Code	unknown	not_compliant	unknown	unknown	not_compliant	not_compliant	unknown	unknown	unknown	unknown
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V
JESD-30 code	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	400 A	350 A	350 A	350 A	200 A	350 A	200 A	400 A	350 A	200 A
Number of components	4	4	4	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	35 A	25 A	25 A	25 A	10 A	25 A	10 A	35 A	25 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	800 V	200 V	400 V	1000 V	400 V	600 V	1000 V	400 V	800 V	800 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Central Semiconductor	-	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor
