SZMMSZ4680ET1

Description
DIODE VOLTAGE REGULATOR DIODE, Voltage Regulator Diode
CategoryDiscrete semiconductor    diode
File Size163KB，5 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

SZMMSZ4680ET1 Overview

DIODE VOLTAGE REGULATOR DIODE, Voltage Regulator Diode

SZMMSZ4680ET1 Parametric

Parameter NameAttribute value
MakerON Semiconductor
Reach Compliance Codeunknown
ECCN codeEAR99
Diode typeZENER DIODE

SZMMSZ4680ET1 Preview

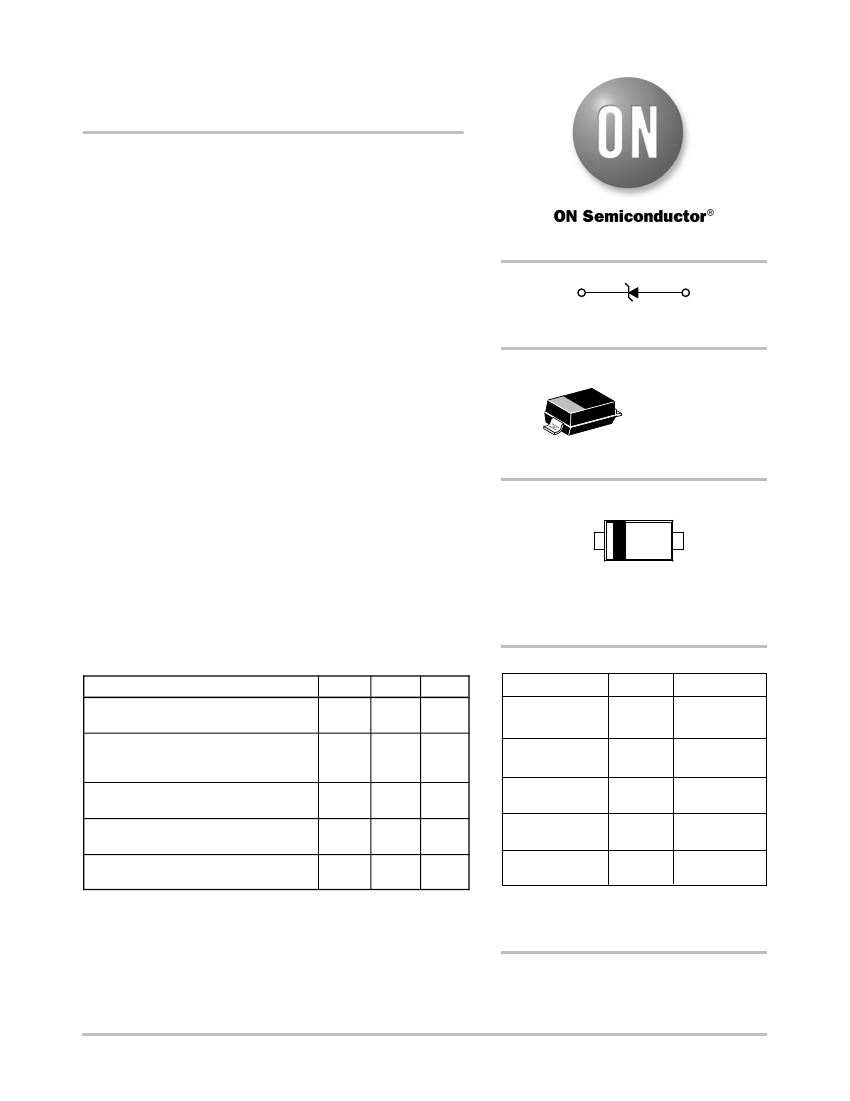

MMSZ4xxxET1 Series,
SZMMSZ4xxxET1G Series
Zener Voltage Regulators
500 mW SOD−123 Surface Mount
Three complete series of Zener diodes are offered in the convenient,
surface mount plastic SOD−123 package. These devices provide a
convenient alternative to the leadless 34−package style.
Features
http://onsemi.com
•
•
•
•
•
•
•
•
500 mW Rating on FR−4 or FR−5 Board
Wide Zener Reverse Voltage Range
−
1.8 V to 43 V
Package Designed for Optimal Automated Board Assembly
Small Package Size for High Density Applications
ESD Rating of Class 3 (>16 kV) per Human Body Model
Peak Power
−
225 W (8 x 20
ms)
AEC−Q101 Qualified and PPAP Capable
SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements
•
Pb−Free Packages are Available
Mechanical Characteristics:
CASE:
Void-free, transfer-molded, thermosetting plastic case
FINISH:
Corrosion resistant finish, easily solderable
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:
1
Cathode
2
Anode
2
1
SOD−123
CASE 425
STYLE 1
MARKING DIAGRAM
1
xxx M
G
G
260°C for 10 Seconds
POLARITY:
Cathode indicated by polarity band
FLAMMABILITY RATING:
UL 94 V−0
MAXIMUM RATINGS
Rating
Peak Power Dissipation @ 20
ms
(Note 1)
@ T
L
≤
25°C
Total Power Dissipation on FR−5 Board,
(Note 2) @ T
L
= 75°C
Derated above 75°C
Thermal Resistance, (Note 3)
Junction−to−Ambient
Thermal Resistance, (Note 3)
Junction−to−Lead
Junction and Storage Temperature Range
Symbol
P
pk
P
D
Max
225
Unit
W
xxx = Device Code (Refer to page 2)
M
= Date Code
G
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
Device
MMSZ4xxxET1
Package
SOD−123
Shipping
†
3000 / Tape &
Reel
3000 / Tape &
Reel
3000 / Tape &
Reel
10000 / Tape &
Reel
10000 / Tape &
Reel
500
6.7
340
150
−55
to
+150
mW
mW/°C
°C/W
°C/W
°C
MMSZ4xxxET1G
SZMMSZ4xxxET1G
MMSZ4xxxET3
MMSZ4xxxET3G
SOD−123
(Pb−Free)
SOD−123
(Pb−Free)
SOD−123
SOD−123
(Pb−Free)
R
qJA
R
qJL
T
J
, T
stg
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. Nonrepetitive current pulse per Figure 11.
2. FR−5 = 3.5 x 1.5 inches, using the minimum recommended footprint.
3. Thermal Resistance measurement obtained via infrared Scan Method.
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
DEVICE MARKING INFORMATION
See specific marking information in the device marking
column of the Electrical Characteristics table on page 2 of
this data sheet.
©
Semiconductor Components Industries, LLC, 2011
November, 2011
−
Rev. 5
1
Publication Order Number:
MMSZ4678ET1/D
MMSZ4xxxET1 Series, SZMMSZ4xxxET1G Series
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless
otherwise noted, V
F
= 0.95 V Max. @ I
F
= 10 mA)
Symbol
V
Z
I
ZT
I
R
V
R
I
F
V
F
Parameter
Reverse Zener Voltage @ I
ZT
Reverse Current
Reverse Leakage Current @ V
R
Reverse Voltage
Forward Current
Forward Voltage @ I
F
V
Z
V
R
I
R
V
F
I
ZT
V
I
F
I
Zener Voltage Regulator
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted, V
F
= 0.9 V Max. @ I
F
= 10 mA)
Zener Voltage
(Note 1)
Device
Marking
CF8
CG3
CG7
CG8
CG9
CH1
CH2
CH3
CH7
CH9
CJ2
CJ3
CJ4
CJ6
CK1
CK3
CK9
V
Z
(V)
Min
2.09
3.13
4.47
4.85
5.32
5.89
6.46
7.13
9.50
11.40
13.3
14.25
15.20
17.10
22.80
25.65
40.85
Nom
2.2
3.3
4.7
5.1
5.6
6.2
6.8
7.5
10
12
14
15
16
18
24
27
43
Max
2.31
3.47
4.94
5.36
5.88
6.51
7.14
7.88
10.50
12.60
14.7
15.75
16.80
18.90
25.20
28.35
45.15
@ I
ZT
mA
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
mA
4
7.5
10
10
10
10
10
10
1
0.05
0.05
0.05
0.05
0.05
0.01
0.01
0.01
Leakage Current
I
R
@ V
R
V
1
1.5
3
3
4
5
5.1
5.7
7.6
9.1
10.6
11.4
12.1
13.6
18.2
20.4
32.6
Device*
SZ/MMSZ4680ET1, G
MMSZ4684ET1
MMSZ4688ET1, G
SZ/MMSZ4689ET1, G
MMSZ4690ET1
MMSZ4691ET1
MMSZ4692ET1
MMSZ4693ET1
MMSZ4697ET1
MMSZ4699ET1
SZ/MMSZ4701ET1, G
MMSZ4702ET1, G
MMSZ4703ET1
MMSZ4705ET1
MMSZ4709ET1
MMSZ4711ET1
MMSZ4717ET1
1. Nominal Zener voltage is measured with the device junction in thermal equilibrium at T
L
= 30°C
±1°C.
*The “G’’ suffix indicates Pb−Free package available.
http://onsemi.com
2
MMSZ4xxxET1 Series, SZMMSZ4xxxET1G Series

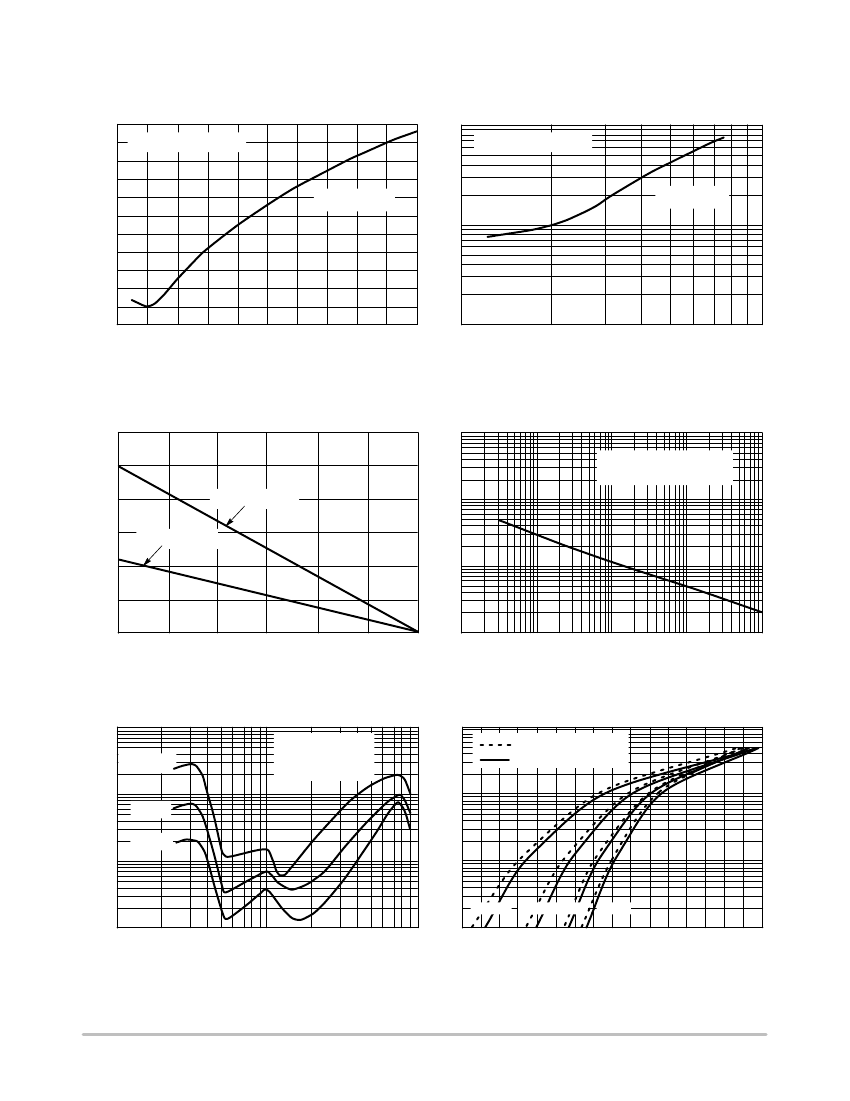

TYPICAL CHARACTERISTICS
8
7
6
5
4
3
2
1
0
−1
−2
−3
V
Z
@ I
ZT
TYPICAL T
C
VALUES
100
TYPICAL T
C
VALUES
θ
VZ, TEMPERATURE COEFFICIENT (mV/
°
C)
θ
VZ, TEMPERATURE COEFFICIENT (mV/
°
C)
V
Z
@ I
ZT
10
2
3
4
5
6
7
8
9
10
11
12
1
10
V
Z
, NOMINAL ZENER VOLTAGE (V)
100
V
Z
, NOMINAL ZENER VOLTAGE (V)
Figure 1. Temperature Coefficients
(Temperature Range
−
55°C to +150°C)
1.2
P
D
, POWER DISSIPATION (WATTS)
1.0
0.8
0.6
0.4
0.2
0
P
D
versus T
A
P
D
versus T
L
1000
Ppk , PEAK SURGE POWER (WATTS)
Figure 2. Temperature Coefficients
(Temperature Range
−
55°C to +150°C)
RECTANGULAR
WAVEFORM, T
A
= 25°C
100
10
0
25
50
75
100
T, TEMPERATURE (°C)
125
150
1
0.1
1
10
100
PW, PULSE WIDTH (ms)
1000
Figure 3. Steady State Power Derating
Figure 4. Maximum Nonrepetitive Surge Power
1000
Z ZT, DYNAMIC IMPEDANCE (
Ω
)
I
Z
= 1 mA
T
J
= 25°C
I
Z(AC)
= 0.1 I
Z(DC)
f = 1 kHz
1000
IF, FORWARD CURRENT (mA)
75 V (MMSZ5267BT1)
91 V (MMSZ5270BT1)
100
5 mA
20 mA
10
100
10
150°C
1
1
10
V
Z
, NOMINAL ZENER VOLTAGE
100
1
0.4
0.5
75°C 25°C
0°C
1.1
1.2
0.6
0.7
0.8
0.9
1.0
V
F
, FORWARD VOLTAGE (V)
Figure 5. Effect of Zener Voltage on
Zener Impedance
Figure 6. Typical Forward Voltage
http://onsemi.com
3
MMSZ4xxxET1 Series, SZMMSZ4xxxET1G Series
TYPICAL CHARACTERISTICS
1000
C, CAPACITANCE (pF)
0 V BIAS
1 V BIAS
100
BIAS AT
50% OF V
Z
NOM
10
T
A
= 25°C
1000
I R , LEAKAGE CURRENT (
m
A)
100
10
1
0.1
0.01
+ 25°C
−55°C
0
10
20
30
40
50
60
70
V
Z
, NOMINAL ZENER VOLTAGE (V)
80
90
+150°C
0.001
0.0001
1
1
10
V
Z
, NOMINAL ZENER VOLTAGE (V)
100
0.00001
Figure 7. Typical Capacitance
100
I Z, ZENER CURRENT (mA)
100
I Z, ZENER CURRENT (mA)
T
A
= 25°C
Figure 8. Typical Leakage Current
T
A
= 25°C
10
10
1
1
0.1
0.1
0.01
0
2
4
6
8
V
Z
, ZENER VOLTAGE (V)
10
12
0.01
10
30
50
70
V
Z
, ZENER VOLTAGE (V)
90
Figure 9. Zener Voltage versus Zener Current
(V
Z
Up to 12 V)
100
% OF PEAK PULSE CURRENT
90
80
70
60
50
40
30
20
10
0
0
20
40
t
P
Figure 10. Zener Voltage versus Zener Current
(12 V to 91 V)
t
r
PEAK VALUE I
RSM
@ 8
ms
PULSE WIDTH (t
P
) IS DEFINED
AS THAT POINT WHERE THE
PEAK CURRENT DECAY = 8
ms
HALF VALUE I
RSM
/2 @ 20
ms
60
80
t, TIME (ms)
Figure 11. 8
×
20
ms
Pulse Waveform
http://onsemi.com
4
MMSZ4xxxET1 Series, SZMMSZ4xxxET1G Series
PACKAGE DIMENSIONS
SOD−123
CASE 425−04
ISSUE G
D
A
A1
1
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
DIM
A
A1
b
c
D
E
H
E
L
q
MILLIMETERS
MIN
NOM
MAX
0.94
1.17
1.35
0.00
0.05
0.10
0.51
0.61
0.71
---
---
0.15
1.40
1.60
1.80
2.54
2.69
2.84
3.56
3.68
3.86
---
---
0.25
---
10
°
0
°
MIN
0.037
0.000
0.020
---
0.055
0.100
0.140
0.010
0
°
INCHES
NOM
0.046
0.002
0.024
---
0.063
0.106
0.145
---
---
MAX
0.053
0.004
0.028
0.006
0.071
0.112
0.152
---
10
°
H
E
2.36
0.093
4.19
0.165
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
ON Semiconductor
and
are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice
to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
“Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All
operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights
nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications
intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should
Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates,
and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal
Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA
Phone:
303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax:
303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email:
orderlit@onsemi.com
N. American Technical Support:
800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
ON Semiconductor Website: www.onsemi.com
Order Literature:
http://www.onsemi.com/orderlit
For additional information, please contact your local
Sales Representative
http://onsemi.com
5
ÉÉ
ÉÉ
ÉÉ
ÉÉ
ÉÉ
ÉÉ
ÂÂÂÂ
ÂÂÂÂ
2
E
q
b
C
L
STYLE 1:
PIN 1. CATHODE
2. ANODE
SOLDERING FOOTPRINT*
0.91
0.036
1.22
0.048
SCALE 10:1
mm
inches
MMSZ4678ET1/D
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

SZMMSZ4680ET1 Related Products

SZMMSZ4680ET1 SZMMSZ4689ET1 SZMMSZ4701ET1
Description DIODE VOLTAGE REGULATOR DIODE, Voltage Regulator Diode DIODE VOLTAGE REGULATOR DIODE, Voltage Regulator Diode DIODE VOLTAGE REGULATOR DIODE, Voltage Regulator Diode
Maker ON Semiconductor ON Semiconductor ON Semiconductor
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Diode type ZENER DIODE ZENER DIODE ZENER DIODE

Recommended Resources

Ultrasonic remote control detector circuit

STK437 audio IC circuit diagram

Radio with additional colored light controller circuit

Fuli BC-3E luxury electronic dimming desk lamp circuit diagram

Automotive glass bezel condensation control circuit

+12V, 0.5A monolithic switching regulated power supply circuit

Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. 801-025-BB6Z16-7PA-12
  2. DR-11525FX-485Q
  3. 322710B01
  4. 8331LGMAB20RXN7E
  5. CX12AZ-A1B1C4100-28.0D16-3
  6. PEA1-4812ZLF
  7. 749DX566X0025C0P
  8. RMM02HRYI
  9. BD10200CS_T0_00001
  10. P4SMA120CT/R13
  11. A3961WVA-8P-V0-BK-C3261D381
  12. CR1812F120RE04Z

Popular Articles

  1. Freescale Kinetis 60 (K60) clock system analysis
  2. From the first tree to the flourishing silicon forest, don’t forget the tree planter while enjoying the shade
  3. The changes and development roots of AI in the era of big models
  4. Design of eight-way buzzer-beater based on 51 single-chip microcomputer
  5. ATmega168 calibrated on-chip RC oscillator
  6. GaN Systems Launches 3kW AC/DC PSU Reference Design to Reduce Size and Cost
  7. Chapter 10, Tiny4412 U-BOOT transplantation 10 DDR working timing and principle 2
  8. Electric vehicles have a range of over 1,000 kilometers: Has silicon negative electrode surpassed solid-state?
  9. Autoliv equips Nuro's self-driving cars with external airbags to protect vulnerable road users
  10. China's AI chip market size may reach 174 billion yuan in 2025, with prominent bottlenecks in chip manufacturing

Technical ResourceMore

  1. Digital Electronic Technology Premium Course Electronic Lesson Plan
  2. Fuji IGBT Module Application Manual
  3. ULN2803 Chinese information.pdf
  4. 0603 Resistor Code Table
  5. Class D amplifier principle and design
  6. Yellow River Digital Basin Model
  7. Capacitive load stability
  8. Wire bonding technology in integrated circuit packaging
  9. LED drive solution that does not require electrolytic capacitors
  10. Shuangou brand spray double barrel washing machine circuit diagram XPB20-1S

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2413  906  1218  1541  2927  49  19  25  32  59
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
