MMSZ5246B-7

Description
Zener Diode, 16V V(Z), 5%, 0.5W, Silicon, Unidirectional, PLASTIC, SOD-123, 2 PIN
CategoryDiscrete semiconductor    diode
File Size95KB，5 Pages
ManufacturerDiodes Incorporated
Download Datasheet Parametric Compare View All

MMSZ5246B-7 Online Shopping

Suppliers Part Number Price MOQ In stock
MMSZ5246B-7 - - View Buy Now

MMSZ5246B-7 Overview

Zener Diode, 16V V(Z), 5%, 0.5W, Silicon, Unidirectional, PLASTIC, SOD-123, 2 PIN

MMSZ5246B-7 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerDiodes Incorporated
Parts packaging codeSOD
package instructionR-PDSO-G2
Contacts2
Manufacturer packaging codeSOD-123
Reach Compliance Codenot_compliant
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
Maximum dynamic impedance17 Ω
JESD-30 codeR-PDSO-G2
JESD-609 codee0
Humidity sensitivity level1
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)235
polarityUNIDIRECTIONAL
Maximum power dissipation0.5 W
Certification statusNot Qualified
Nominal reference voltage16 V
surface mountYES
technologyZENER
Terminal surfaceTin/Lead (Sn80Pb20)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperature10
Maximum voltage tolerance5%
Working test current7.8 mA

MMSZ5246B-7 Preview

MMSZ5221B - MMSZ5259B
500mW SURFACE MOUNT ZENER DIODE
Features
•
•
•
•
•
•
500mW Power Dissipation
General Purpose, Medium Current
Ideally Suited for Automated Assembly Processes
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
•
Case: SOD123
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.01 grams (approximate)
SOD123
Top View
Ordering Information
(Note 5)
Part Number
(Type Number)-7-F*
(Type Number)Q-7-F*
(Type Number)-13-F*
(Type Number)Q-13-F*
Notes:
Qualification
Commercial
Automotive
Commercial
Automotive
Case
SOD123
SOD123
SOD123
SOD123
Packaging
3000/Tape & Reel
3000/Tape & Reel
10000/Tape & Reel
10000/Tape & Reel
*For (Type Number), please see the Electrical Characteristics Table. Example: 6.2V Zener = MMSZ5234B-7-F.
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Product manufactured with Date Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
5. For packaging details, go to our website at http://www.diodes.com.
Marking Information
xx = Product Type Marking Code
(See Electrical Characteristics Table)
YM = Date Code Marking
Y = Year (ex: N = 2002)
M = Month (ex: 9 = September)
XX
Date Code Key
Year
Code
Month
Code
1998
J
Jan
1
1999
K
2000
L
Feb
2
2001
M
Mar
3
2002
N
YM
2003
P
2004
R
May
5
…
…
Jun
6
2010
X
2011
Y
Jul
7
2012
Z
Aug
8
2013
A
2014
B
2015
C
Oct
O
2016
D
Nov
N
2017
E
2018
F
Dec
D
Apr
4
Sep
9
MMSZ5221B - MMSZ5259B
Document number: DS18010 Rev. 27 - 2
1 of 5
www.diodes.com
September 2012
© Diodes Incorporated
MMSZ5221B - MMSZ5259B
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Forward Voltage
@ I
F
= 10mA
Symbol
V
F
Value
0.9
Unit
V
Thermal Characteristics
Characteristic
Power Dissipation (Note 4) @T
L
= +75°C
Power Dissipation (Note 5) @T
A
= +25°C
Thermal Resistance, Junction to Ambient Air (Note 5)
Operating and Storage Temperature Range
Symbol
P
D
P
D
R
θ
JA
T
J,
T
STG
Value
500
370
338
-65 to +150
Unit
mW
mW
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Zener Voltage Range (Note 6)
Type
Number
Type
Code
Nom (V)
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.0
6.2
6.8
7.5
8.2
8.7
9.1
10
11
12
13
15
16
18
20
22
24
27
28
30
33
36
39
V
Z
@ I
ZT
Min (V)
2.28
2.57
2.85
3.14
3.42
3.71
4.09
4.47
4.85
5.32
5.70
5.89
6.46
7.13
7.79
8.27
8.65
9.50
10.45
11.40
12.35
14.25
15.20
17.10
19.00
20.90
22.80
25.65
26.60
28.50
31.35
34.20
37.05
Max (V)
2.52
2.84
3.15
3.47
3.78
4.10
4.52
4.94
5.36
5.88
6.30
6.51
7.14
7.88
8.61
9.14
9.56
10.50
11.55
12.60
13.65
15.75
16.80
18.90
21.00
23.10
25.20
28.35
29.40
31.50
34.65
37.80
40.95
Test
Current
I
ZT
mA
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
9.5
8.5
7.8
7.0
6.2
5.6
5.2
5.0
4.5
4.2
3.8
3.4
3.2
Maximum Zener
Impedance
f = 1KHz
Z
ZK
@ I
ZK
Z
ZT
@ I
ZT
= 0.25mA
Ω
30
1200
30
1300
30
1600
28
1600
24
1700
23
1900
22
2000
19
1900
17
1600
11
1600
7
1600
7
1000
5
750
6
500
8
500
8
600
10
600
17
600
22
600
30
600
13
600
16
600
17
600
21
600
25
600
29
600
33
600
41
600
44
600
49
600
58
700
70
700
80
800
Maximum Reverse
Leakage Current (Note 6)
I
R
μA
100
75
50
25
15
10
5.0
5.0
5.0
5.0
5.0
5.0
3.0
3.0
3.0
3.0
3.0
3.0
2.0
1.0
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
@ V
R
V
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
3.0
3.5
4.0
5.0
6.0
6.5
6.5
7.0
8.0
8.4
9.1
9.9
11
12
14
15
17
18
21
21
23
25
27
30
MMSZ5221B
MMSZ5223B
MMSZ5225B
MMSZ5226B
MMSZ5227B
MMSZ5228B
MMSZ5229B
MMSZ5230B
MMSZ5231B
MMSZ5232B
MMSZ5233B
MMSZ5234B
MMSZ5235B
MMSZ5236B
MMSZ5237B
MMSZ5238B
MMSZ5239B
MMSZ5240B
MMSZ5241B
MMSZ5242B
MMSZ5243B
MMSZ5245B
MMSZ5246B
MMSZ5248B
MMSZ5250B
MMSZ5251B
MMSZ5252B
MMSZ5254B
MMSZ5255B
MMSZ5256B
MMSZ5257B
MMSZ5258B
MMSZ5259B
Notes:
C1
C3
C5
G1
G2
G3
G4
G5
E1
E2
E3
E4
E5
F1
F2
F3
F4
F5
H1
H2
H3
H5
J1
J3
J5
K1
K2
K4
K5
M1
M2
M3
M4
4. R
ΘJL
= 132°C/W
5. Device mounted on ceramic PCB with copper pad areas 40mm
2
.
6. Short duration pulse test used to minimize self-heating effect.
MMSZ5221B - MMSZ5259B
Document number: DS18010 Rev. 27 - 2
2 of 5
www.diodes.com
September 2012
© Diodes Incorporated
MMSZ5221B - MMSZ5259B
0.6
Note 5
50
0.5
P
D
, POWER DISSIPATION (W)
0.4
I
Z
, ZENER CURRENT (mA)
150
P
D
vs.T
L
40
30
0.3
P
D
vs.T
A
20
0.2
10
0.1
0
0
25
75
50
100
125
T, TEMPERATURE (
°
C)

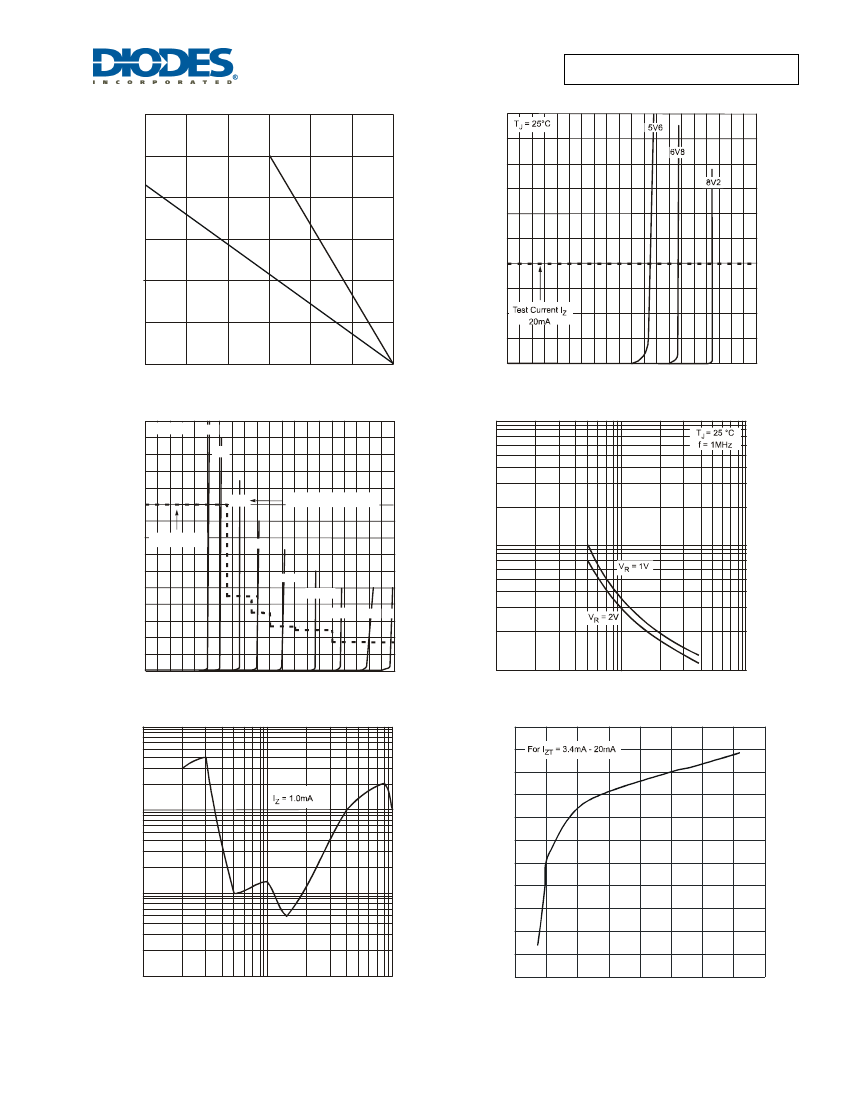

Figure 1 Power Derating Curve
10
12
0
0
3
4
5
6
8
9 10
7
V
Z
, ZENER VOLTAGE (V)
Figure 2 Typical Zener Breakdown Characteristics
1
2
30
T
J
= 25°C
1,000
20
Test current I
Z
15
Nominal Zener Voltage
C
T
, TOTAL CAPACITANCE (pF)
I
Z
, ZENER CURRENT (mA)
18
100
10
22
27
33
36
39
0
0
10
20
30
40
V
Z
, ZENER VOLTAGE (V)
Figure 3 Typical Zener Breakdown Characteristics
10
10
100
V
Z
, NOMINAL ZENER VOLTAGE (V)
Figure 4 Typical Total Capacitance vs. Nominal Zener Voltage
1
1,000
TC OF V
Z
, TEMPERATURE COEFFICIENT
OF ZENER VOLTAGE (%/°C)
0.14
0.12
0.10
0.08
0.06
0.04
0.02
0
-0.02
-0.04
-0.06
-0.08
10
15
20
25
30
35 40
V
Z
, ZENER VOLTAGE (V)
Figure 6 Typical Temperature Coefficient of Zener Voltage
vs. Zener Voltage (MMSZ5227B - MMSZ5258B)
0
5
Z
Z
, ZENER IMPEDANCE (
Ω
)
100
10
1
1
10
100
V
Z
, ZENER VOLTAGE (V)
Figure 5 Typical Zener Impedance Characteristics
MMSZ5221B - MMSZ5259B
Document number: DS18010 Rev. 27 - 2
3 of 5
www.diodes.com
September 2012
© Diodes Incorporated
MMSZ5221B - MMSZ5259B
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
C
H
B
A
M
L
K
SOD123
Dim
Min
Max
A
0.55 Typ
B
1.40
1.70
C
3.55
3.85
H
2.55
2.85
J
0.00
0.10
K
1.00
1.35
L
0.25
0.40
M
0.10
0.15
0
8°
α
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
C
X
Y
G
Z
Dimensions Value (in mm)
Z
4.9
G
2.5
X
0.7
Y
1.2
C
3.7
MMSZ5221B - MMSZ5259B
Document number: DS18010 Rev. 27 - 2
4 of 5
www.diodes.com
September 2012
© Diodes Incorporated
MMSZ5221B - MMSZ5259B
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B.
A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2012, Diodes Incorporated
www.diodes.com
MMSZ5221B - MMSZ5259B
Document number: DS18010 Rev. 27 - 2
5 of 5
www.diodes.com
September 2012
© Diodes Incorporated
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

MMSZ5246B-7 Related Products

MMSZ5246B-7 MMSZ5230B-7 MMSZ5227B-7 MMSZ5240B-7 MMSZ5248B-7 MMSZ5223B-7 MMSZ5229B-7 MMSZ5232B-7
Description Zener Diode, 16V V(Z), 5%, 0.5W, Silicon, Unidirectional, PLASTIC, SOD-123, 2 PIN Zener Diode, 4.7V V(Z), 4.99%, 0.5W, Silicon, Unidirectional, PLASTIC, SOD-123, 2 PIN Zener Diode, 3.6V V(Z), 5%, 0.5W, Silicon, Unidirectional, PLASTIC, SOD-123, 2 PIN Zener Diode, 10V V(Z), 5%, 0.5W, Silicon, Unidirectional, PLASTIC, SOD-123, 2 PIN Zener Diode, 18V V(Z), 5%, 0.5W, Silicon, Unidirectional, PLASTIC, SOD-123, 2 PIN Zener Diode, 2.7V V(Z), 4.99%, 0.5W, Silicon, Unidirectional, PLASTIC, SOD-123, 2 PIN Zener Diode, 4.3V V(Z), 4.99%, 0.5W, Silicon, Unidirectional, PLASTIC, SOD-123, 2 PIN Zener Diode, 5.6V V(Z), 5%, 0.5W, Silicon, Unidirectional, PLASTIC, SOD-123, 2 PIN
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Maker Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated
Parts packaging code SOD SOD SOD SOD SOD SOD SOD SOD
package instruction R-PDSO-G2 PLASTIC, SOD-123, 2 PIN PLASTIC, SOD-123, 2 PIN PLASTIC, SOD-123, 2 PIN PLASTIC, SOD-123, 2 PIN R-PDSO-G2 PLASTIC, SOD-123, 2 PIN R-PDSO-G2
Contacts 2 2 2 2 2 2 2 2
Manufacturer packaging code SOD-123 SOD-123 SOD-123 SOD-123 SOD-123 SOD-123 SOD-123 SOD-123
Reach Compliance Code not_compliant not_compliant not_compliant not_compliant not_compliant not_compliant not_compliant not_compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON
Diode type ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE
Maximum dynamic impedance 17 Ω 19 Ω 24 Ω 17 Ω 21 Ω 30 Ω 22 Ω 11 Ω
JESD-30 code R-PDSO-G2 R-PDSO-G2 R-PDSO-G2 R-PDSO-G2 R-PDSO-G2 R-PDSO-G2 R-PDSO-G2 R-PDSO-G2
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0
Number of components 1 1 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2 2 2
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Minimum operating temperature -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 235 235 235 235 235 235 235 235
polarity UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL
Maximum power dissipation 0.5 W 0.5 W 0.5 W 0.5 W 0.5 W 0.5 W 0.5 W 0.5 W
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Nominal reference voltage 16 V 4.7 V 3.6 V 10 V 18 V 2.7 V 4.3 V 5.6 V
surface mount YES YES YES YES YES YES YES YES
technology ZENER ZENER ZENER ZENER ZENER ZENER ZENER ZENER
Terminal surface Tin/Lead (Sn80Pb20) Tin/Lead (Sn80Pb20) Tin/Lead (Sn80Pb20) Tin/Lead (Sn80Pb20) Tin/Lead (Sn80Pb20) Tin/Lead (Sn80Pb20) Tin/Lead (Sn80Pb20) Tin/Lead (Sn80Pb20)
Terminal form GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature 10 10 10 10 10 10 10 10
Maximum voltage tolerance 5% 4.99% 5% 5% 5% 4.99% 4.99% 5%
Working test current 7.8 mA 20 mA 20 mA 20 mA 7 mA 20 mA 20 mA 20 mA
Humidity sensitivity level 1 - 1 1 - 1 1 1

Recommended Resources

Design of wireless transmitting and receiving circuit based on Bluetooth

One of the button-controlled Y-△ step-down starting circuits

Smoke alarm circuit (1)

Use 1.2V battery as power inverter power supply circuit diagram

Circuit after breakdown of selenium rectifier in current cut-off link

Metal detection circuit

Schematic diagram of various download lines
[i=s]This post was last edited by paulhyde on 2014-9-15 04:25[/i] What are the schematic diagrams of the download cables? They are in the screenshots. If you need them, you can download them and have ...
open82977352 Electronics Design Contest
Display characteristics and button design methods in consumer electronics products
This is an old work from many years ago, I'll put it here....
clj2004000 Automotive Electronics
LSM6DSL cannot generate interrupts, WAKE_UP_SRC is always 0; changing CTRL1_XL doubles the Z-axis reading
I want to use the wakeup interrupt of LSM6DSL to detect the acceleration of the z-axis. The general idea is: set the WAKE_UP_THS interrupt threshold. When the z-axis acceleration exceeds the threshold...
夏某某 MEMS sensors
Guess the Pair
[font=宋体][size=13.5pt]A boy hits tung nuts, the nuts fall, the boy is happy. [/size][/font] [font=宋体][size=13.5pt]A girl nibbles a duck head, the duck head is salty, the girl hates it. [/size][/font] ...
jiakun260 Talking
PIC16F1824 internal oscillator program code
Question: When using PIC16F1824, how do I enable the internal oscillator and how do I write the program code?...
holly0022 Microchip MCU
Find someone to do PROJECT with salary
I need to make a software to make phone calls using a MODEM. If you know how to do it, please contact QQ 6998932. Please specify the MODEM...
鹏行天下 Embedded System
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. L17HTNESAB4F4C
  2. 357-001-X5U0-102M
  3. 9842NH 0601000
  4. JTPQ00RE-14-35PD(004LC)
  5. LCS2-2C-J/E
  6. MFR100FBD52-243R
  7. M83723/96S22554
  8. WSFM04054902D
  9. SMF16A
  10. 1SMA4746
  11. BZQ5251C
  12. TR2010B5900P

Popular Articles

  1. Tesla's laser windshield wiper patent is authorized. Can you use laser to "wash your car"?
  2. Google launches new private computing service to improve Android security
  3. The past and present of 5G RF front-end modules
  4. How did Apple design AirPods 3?
  5. How to expand the range of AC voltmeter?
  6. The world's first Snapdragon 8 Plus flagship confirmed
  7. An in-depth review of Log4j vulnerabilities
  8. Working principle of three-phase asynchronous motor
  9. Using a near-field probe to troubleshoot EMI interference
  10. STC15F104W running water lamp program

Technical ResourceMore

  1. Modern Design Theory and Methods Edited by Zhang E.pdf
  2. Grounding Authoritative Textbook-Grounds for Grounding A Circuit to System Handbook (2)
  3. Home Assistant-based customized home systems and smart device design
  4. Electromagnetic Theory in Microwave and Optoelectronics 649 pages 22.5M pdf version
  5. Review of GR-1089 6th Edition and Littelfuse\'s corresponding solutions
  6. Schematic diagram and PCB of 1K pure sine wave inverter power supply
  7. [Computer Systems: A Programmer\'s Perspective (2nd Edition)]. By Bryant and O\'Hara. Scanned version.
  8. A demo using ESP32S3 with SHT45 and LTR390 chips to collect temperature, humidity, and illuminance data.
  9. MF40 multimeter circuit diagram
  10. Me and LabVIEW.pdf

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 637  227  448  2473  2795  13  5  10  50  57
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
