LH530800A-YM-50 datasheet, PDF

Datasheet> All Categories > storage> storage> LH530800A-YM-50

LH530800A-YM-50: DescriptionMASK ROM, 128KX8, 50ns, CMOS, PQFP44, 10 X 10 MM, PLASTIC, QFP-44; Categorystorage storage; File Size76KB，3 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH530800A-YM-50 Overview

MASK ROM, 128KX8, 50ns, CMOS, PQFP44, 10 X 10 MM, PLASTIC, QFP-44

LH530800A-YM-50 Parametric

Parameter Name	Attribute value
Maker	SHARP
package instruction	10 X 10 MM, PLASTIC, QFP-44
Reach Compliance Code	unknown
Maximum access time	50 ns
JESD-30 code	S-PQFP-G44
length	10 mm
memory density	1048576 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	44
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	1.85 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.6 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm

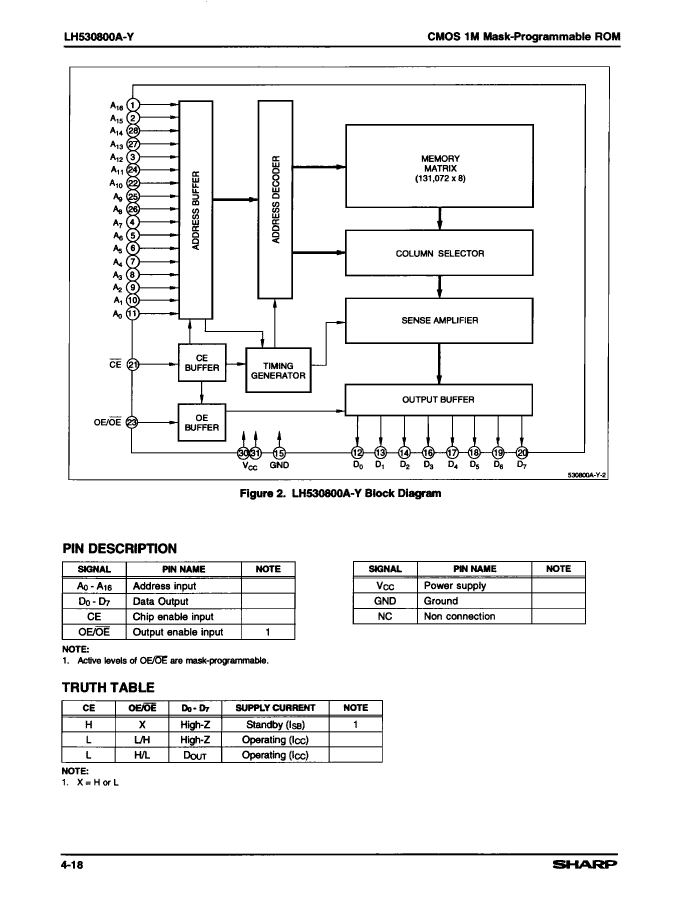

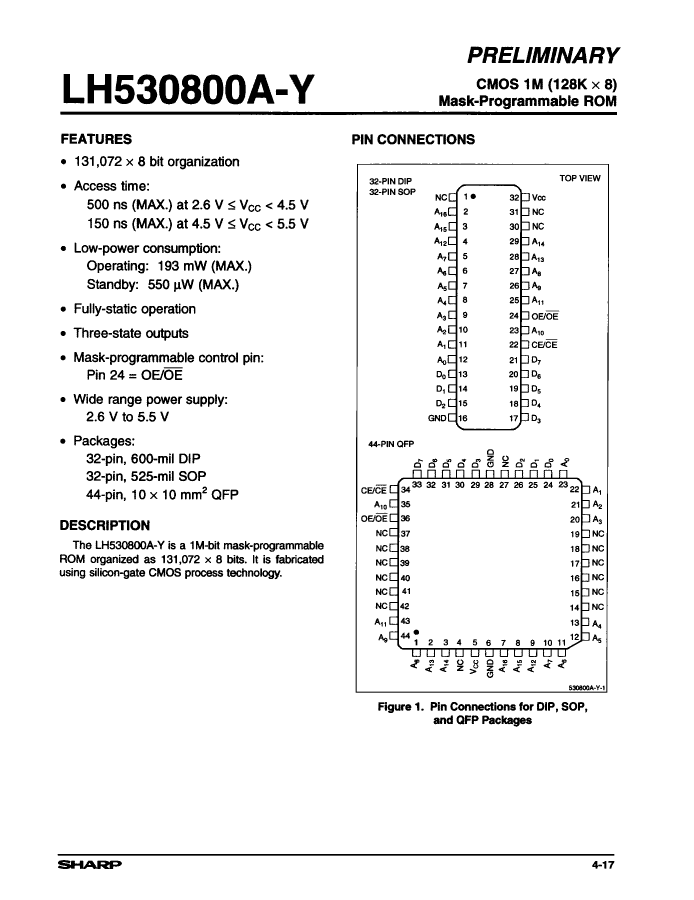

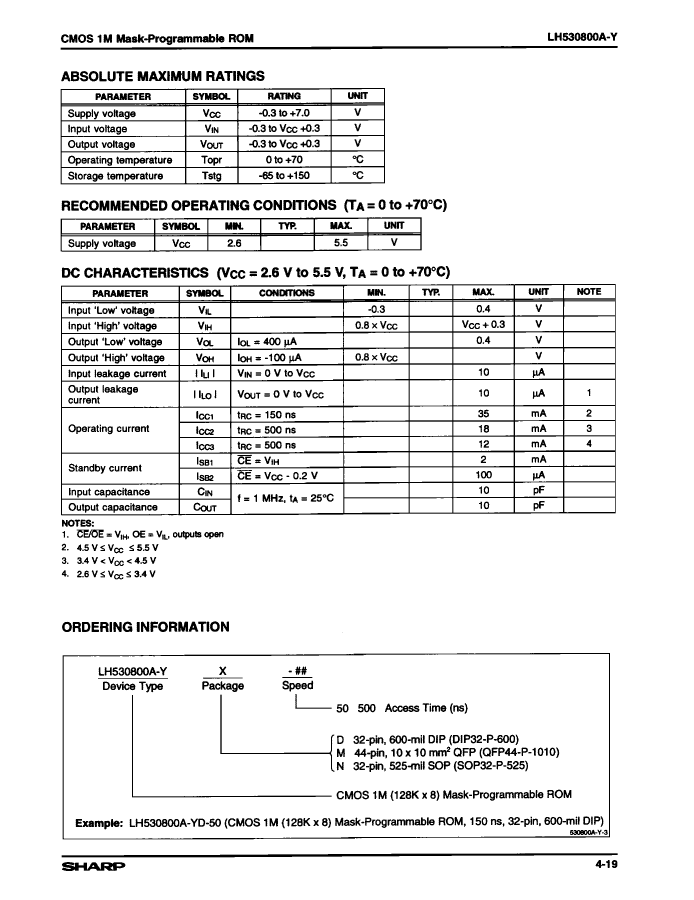

Preview

Download Datasheet

View All

LH530800A-YM-50 Related Products

	LH530800A-YM-50	LH530800A-YD-50	LH530800A-YD-500	LH530800A-YN-50	LH530800A-YN-500	LH530800A-YM-500
Description	MASK ROM, 128KX8, 50ns, CMOS, PQFP44, 10 X 10 MM, PLASTIC, QFP-44	MASK ROM, 128KX8, 50ns, CMOS, PDIP32, 0.600 INCH, PLASTIC, DIP-32	MASK ROM, PDIP32, 0.600 INCH, PLASTIC, DIP-32	MASK ROM, 128KX8, 50ns, CMOS, PDSO32, 0.525 INCH, PLASTIC, SOP-32	MASK ROM, PDSO32, 0.525 INCH, PLASTIC, SOP-32	MASK ROM, PQFP44, 10 X 10 MM, PLASTIC, QFP-44
Maker	SHARP	SHARP	SHARP	SHARP	SHARP	SHARP
package instruction	10 X 10 MM, PLASTIC, QFP-44	0.600 INCH, PLASTIC, DIP-32	DIP,	0.525 INCH, PLASTIC, SOP-32	SOP,	QFP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	S-PQFP-G44	R-PDIP-T32	R-PDIP-T32	R-PDSO-G32	R-PDSO-G32	S-PQFP-G44
length	10 mm	41 mm	41 mm	20.6 mm	20.6 mm	10 mm
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM
Number of terminals	44	32	32	32	32	44
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	DIP	DIP	SOP	SOP	QFP
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.85 mm	5.2 mm	5.2 mm	3.1 mm	3.1 mm	1.85 mm
surface mount	YES	NO	NO	YES	YES	YES
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	0.8 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	QUAD
width	10 mm	15.24 mm	15.24 mm	11.3 mm	11.3 mm	10 mm
