LH53C16P00N datasheet, PDF - EEWORLD Datasheet

LH53C16P00N: DescriptionMASK ROM, 2MX8, 120ns, CMOS, PDSO44, SOP-44; Categorystorage storage; File Size102KB，2 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

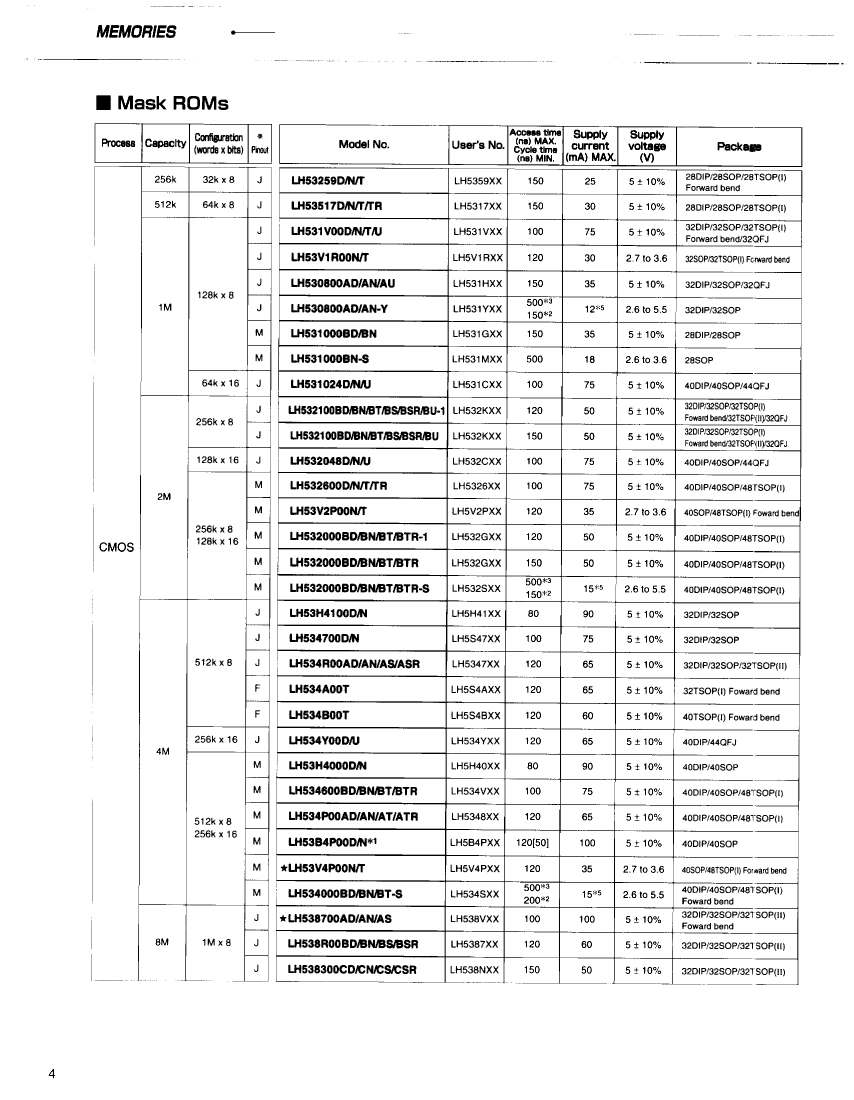

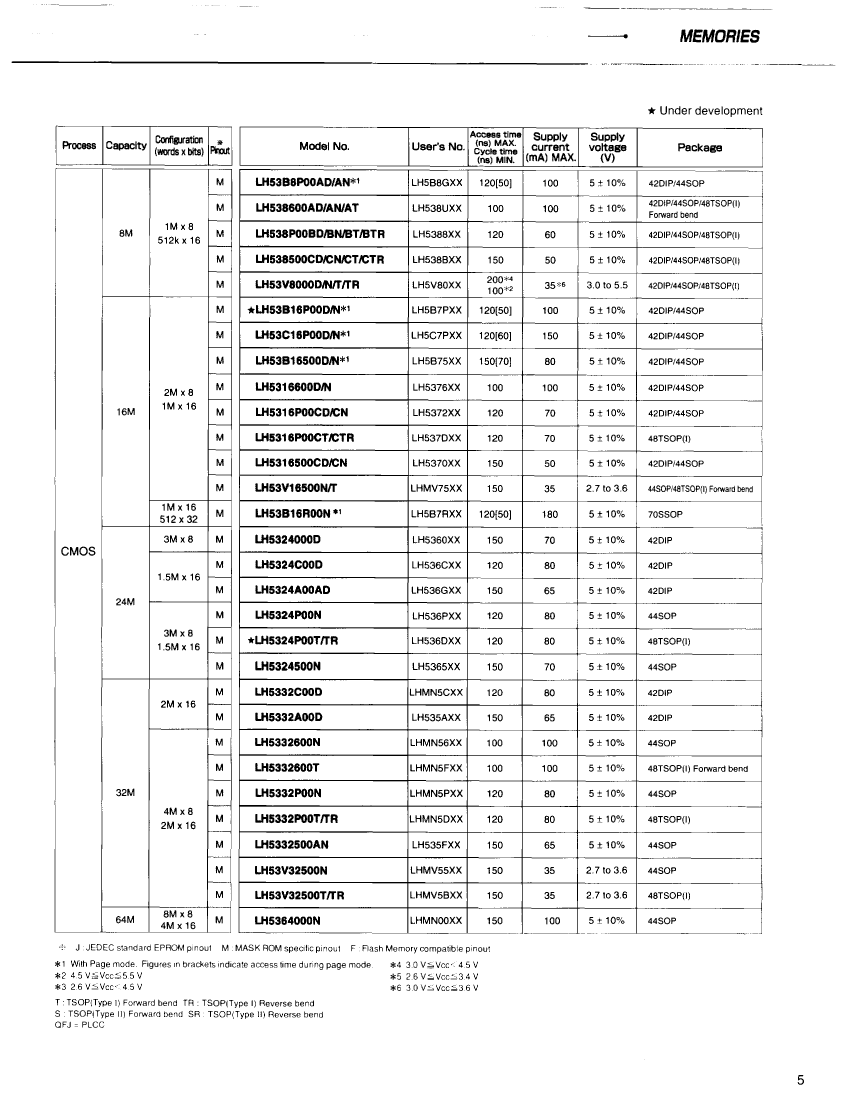

LH53C16P00N Overview

MASK ROM, 2MX8, 120ns, CMOS, PDSO44, SOP-44

	LH53C16P00N	LH5332500AN	LH5332A00D	LH53C16P00D
Description	MASK ROM, 2MX8, 120ns, CMOS, PDSO44, SOP-44	MASK ROM, 4MX8, 150ns, CMOS, PDSO44, SOP-44	MASK ROM, 2MX16, 150ns, CMOS, PDIP42, DIP-42	MASK ROM, 2MX8, 120ns, CMOS, PDIP42, DIP-42
Maker	SHARP	SHARP	SHARP	SHARP
package instruction	SOP-44	SOP-44	DIP-42	DIP-42
Reach Compliance Code	unknown	unknown	unknown	unknow
Maximum access time	120 ns	150 ns	150 ns	120 ns
JESD-30 code	R-PDSO-G44	R-PDSO-G44	R-PDIP-T42	R-PDIP-T42
memory density	16777216 bit	33554432 bit	33554432 bit	16777216 bi
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	16	8
Number of functions	1	1	1	1
Number of terminals	44	44	42	42
word count	2097152 words	4194304 words	2097152 words	2097152 words
character code	2000000	4000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
organize	2MX8	4MX8	2MX16	2MX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
Spare memory width	16	16	-	16
