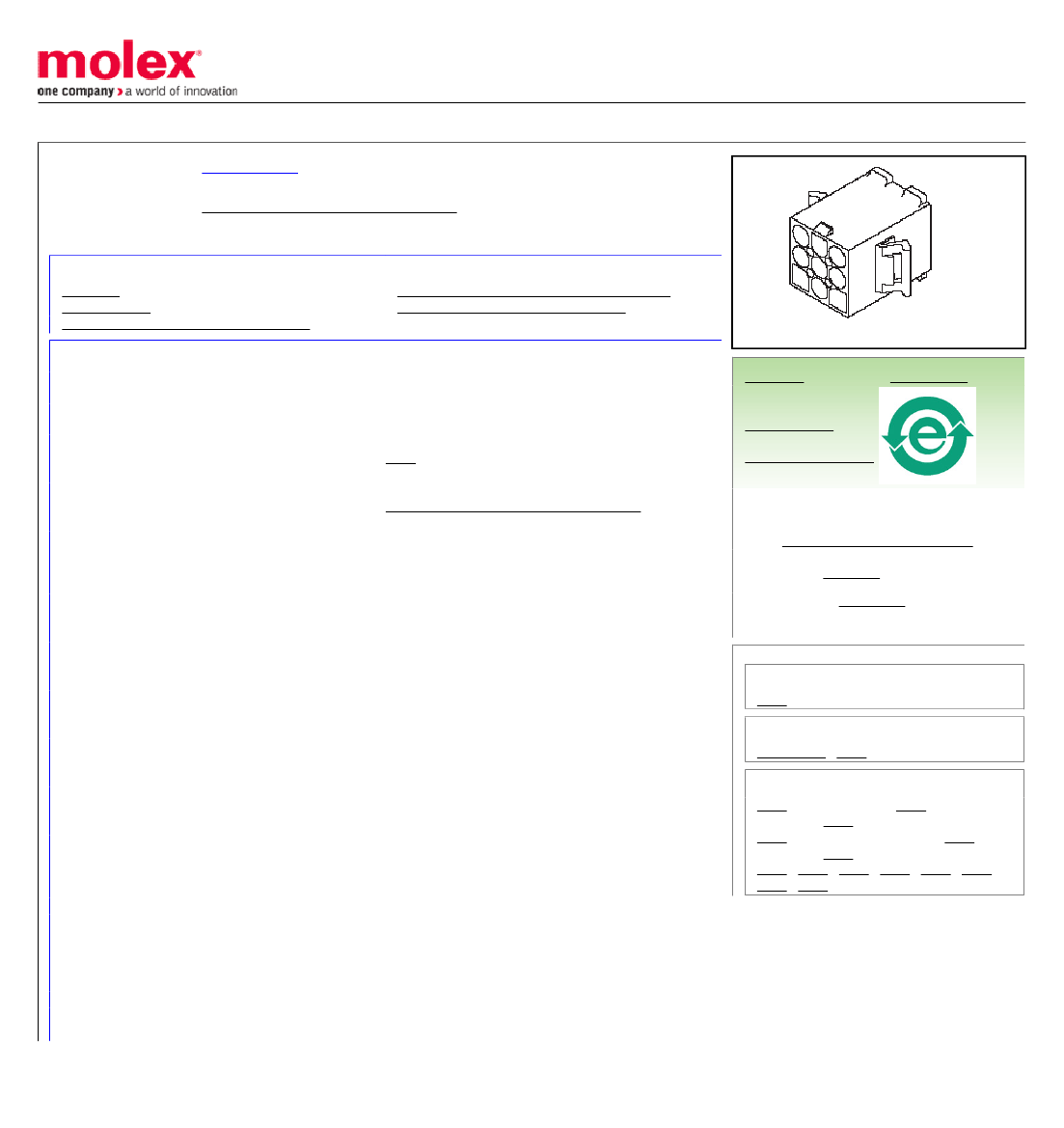

This document was generated on 04/15/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

39-03-6152

Active

Standard .093" Pin and Socket Connectors

2.36mm Diameter Standard .093" Pin and Socket Plug Housing with Positive Latch, UL

94V-2, without Panel Mount, 15 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-3191-001 (PDF)

Packaging Specification SPK-3191-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Agency Certification

CSA

LR19980

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

Crimp Housings

3191

Power, Wire-to-Board, Wire-to-Wire

Polarized to Mating Part

Standard .093" Pin and Socket Connectors

Standard .093"

800753756397

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (maximum)

Circuits Detail

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

3x5

Natural

94V-2

Plug

None

Yes

Nylon

14649.000/mg

Bag

6.70mm

Yes

-40°C to +105°C

Search Parts in this Series

3191Series

Mates With

39-03-6154 , 5219

Use With

1189 Crimp Terminals, 1190 Crimp

Terminals, 1380 Male Crimp Terminals,

1381 Female Crimp Terminals, 1433 Crimp

Terminals, 1434 Male Crimp Terminals,

2605 , 2606 , 1973 , 2151 , 2273 , 2870 ,

2871 , 4272

Electrical

Current - Maximum per Contact

Material Info

Old Part Number

3191-15P1

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

SPK-3191-001

PS-3191-001, RPS-3191-001

SD-3191-025
