FS055C183KAZ2A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.018uF, Surface Mount, 0805, CHIP; CategoryPassive components capacitor; File Size53KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

FS055C183KAZ2A Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.018uF, Surface Mount, 0805, CHIP

FS055C183KAZ2A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1890778255
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.85
capacitance	0.018 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.94 mm
JESD-609 code	e3
length	2.01 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
size code	0805
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	MATTE TIN OVER NICKEL
Terminal shape	WRAPAROUND
width	1.25 mm

Preview

Download Datasheet

View All

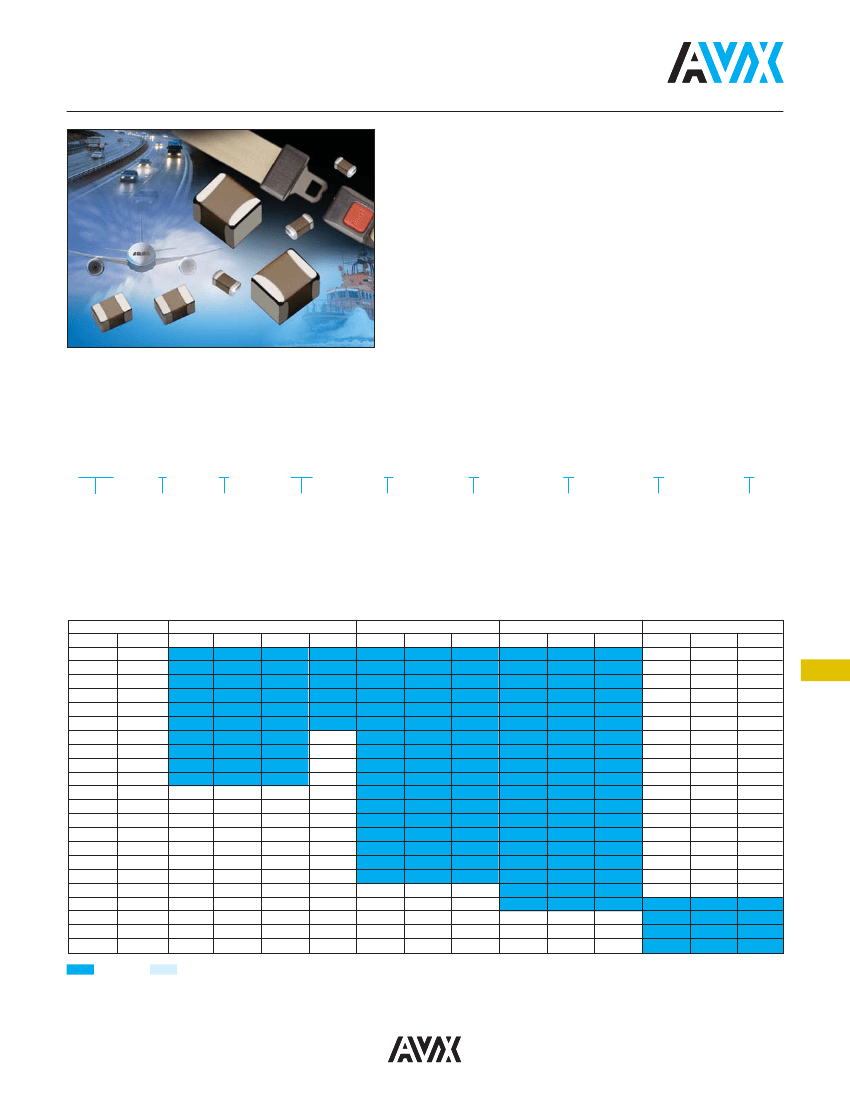

FLEXISAFE MLC Chips

For Ultra Safety Critical Applications

AVX have developed a range of components specifically for safety

critical applications.

Utilizing the award-winning FLEXITERM™ layer in conjunction with

the cascade design previously used for high voltage MLCCs, a

range of ceramic capacitors is now available for customers who

require components designed with an industry leading set of

safety features.

The FLEXITERM™ layer protects the component from any

damage to the ceramic resulting from mechanical stress during

PCB assembly or use with end customers. Board flexure type

mechanical damage accounts for the majority of MLCC failures.

The addition of the cascade structure protects the component

from low insulation resistance failure resulting from other common

causes for failure; thermal stress damage, repetitive strike ESD

damage and placement damage. With the inclusion of the

cascade design structure to complement the FLEXITERM™ layer,

the FLEXISAFE range of capacitors has unbeatable safety

features.

HOW TO ORDER

FS03

Size

FS03 = 0603

FS05 = 0805

FS06 = 1206

FS10 = 1210

Voltage

16V = Y

25V = 3

50V = 5

100V = 1

Dielectric

X7R = C

104

Capacitance

Code (In pF)

2 Sig. Digits +

Number of

Zeros

e.g. 10μF =106

Capacitance

Tolerance

J = ±5%

K = ±10%

M = ±20%

Failure

Rate

A = Commercial

4 = Automotive

Q = APS

Terminations

Z = FLEXITERM

X = FLEXITERM

with 5%

min lead

Packaging

2 = 7" Reel

4 = 13" Reel

Special

Code

A = Std. Product

FLEXISAFE X7R RANGE

Capacitance

Code

102

182

1.8

222

2.2

332

3.3

472

4.7

103

123

153

183

223

273

333

473

563

683

823

104

100

124

120

154

150

224

220

334

330

474

470

Qualified

0603

100

0805

1206

1210

In Qualification
