PBL404 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> PBL404

PBL404: DescriptionBridge Rectifier Diode, 1 Phase, 4A, 400V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size121KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

PBL404 Overview

Bridge Rectifier Diode, 1 Phase, 4A, 400V V(RRM), Silicon,

PBL404 Parametric

Parameter Name	Attribute value
Maker	Vishay
package instruction	R-PSIP-W4
Reach Compliance Code	unknown
Other features	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSIP-W4
Maximum non-repetitive peak forward current	150 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	4 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Terminal form	WIRE
Terminal location	SINGLE

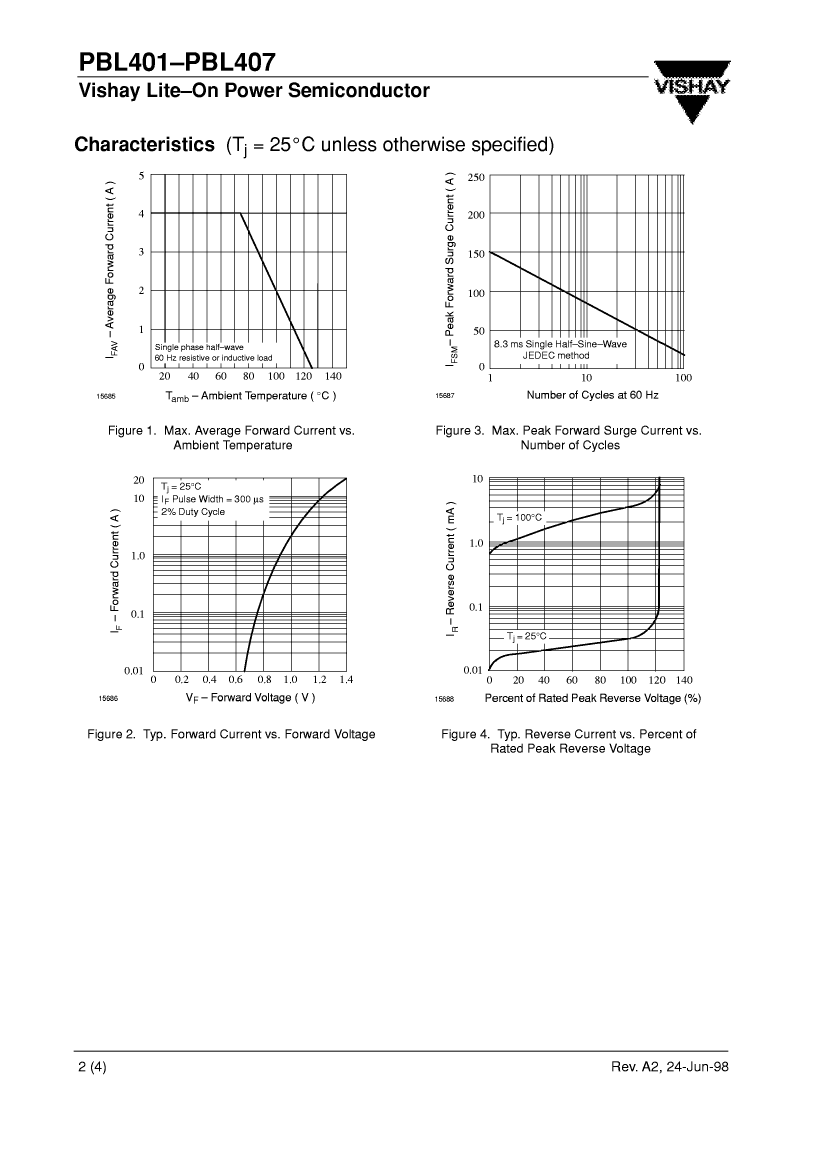

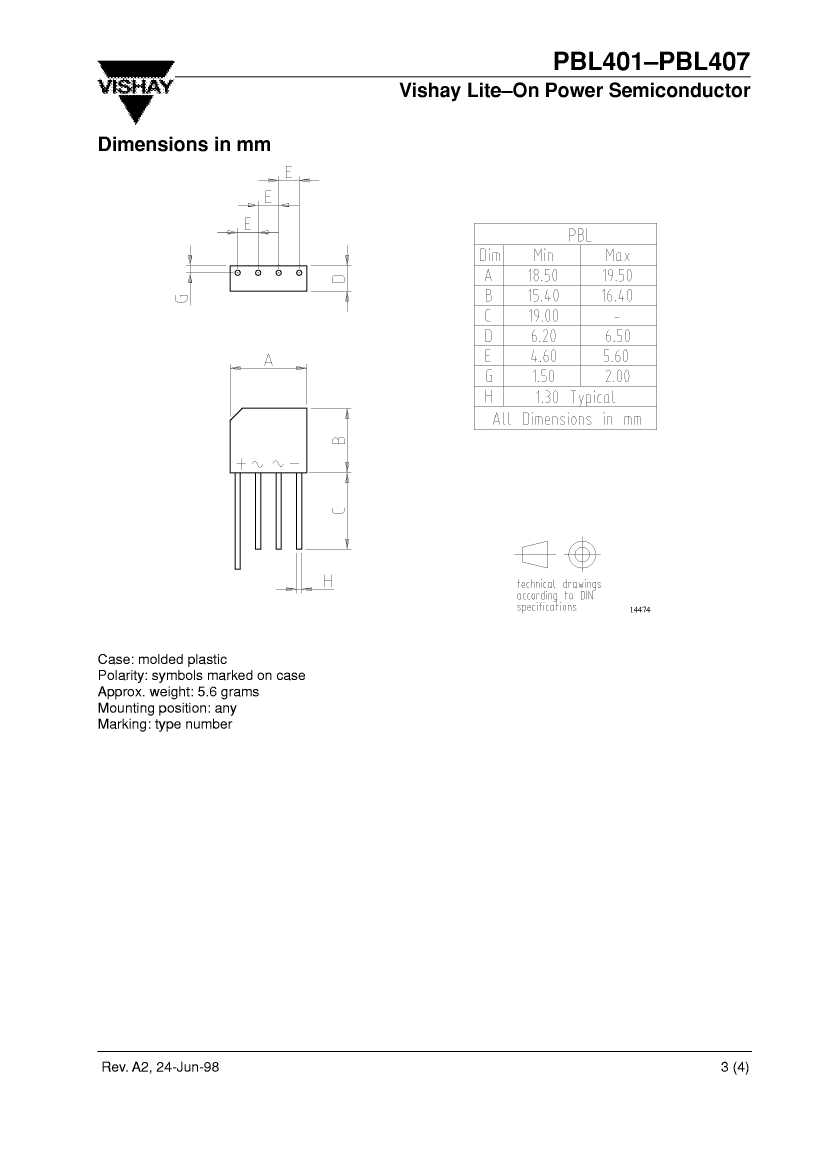

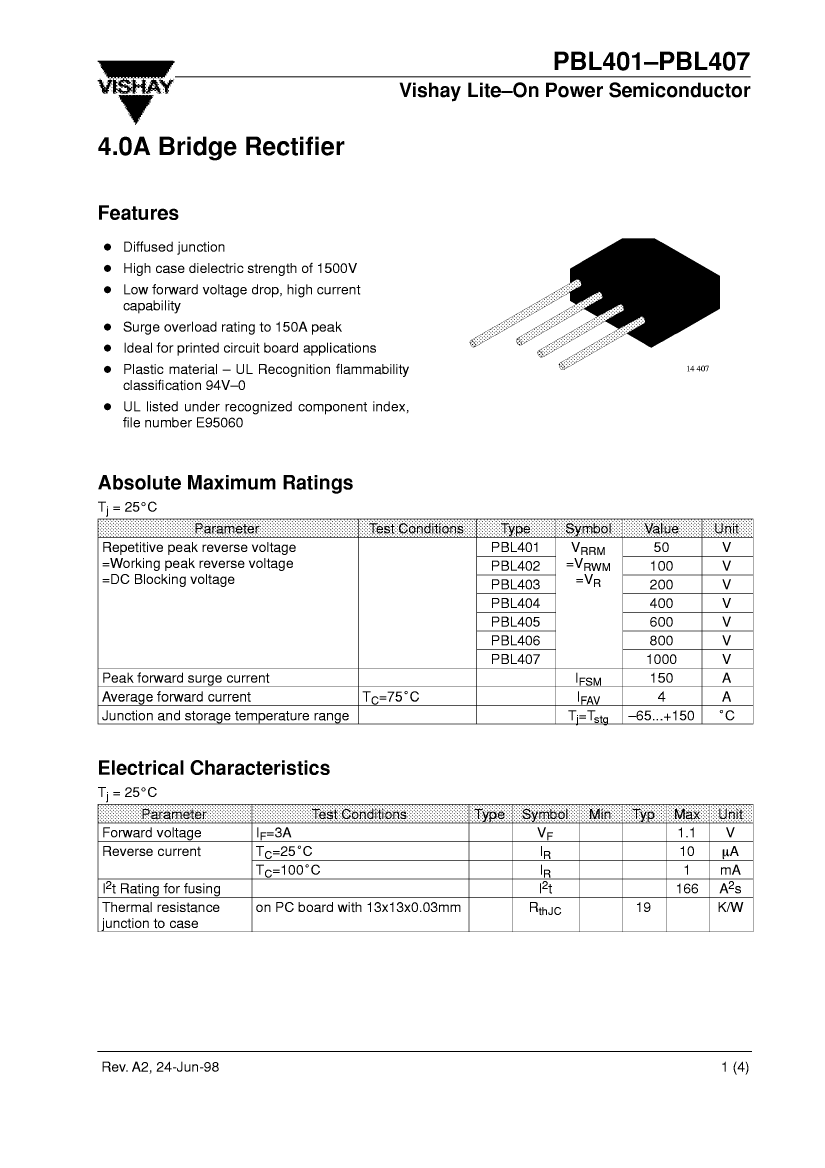

Preview

Download Datasheet

View All

PBL404 Related Products

	PBL404	PBL407	PBL406	PBL405	PBL401	PBL402	PBL403
Description	Bridge Rectifier Diode, 1 Phase, 4A, 400V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 4A, 1000V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 4A, 800V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 4A, 600V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 4A, 50V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 4A, 100V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 4A, 200V V(RRM), Silicon,
Maker	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay
package instruction	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4
Maximum non-repetitive peak forward current	150 A	150 A	150 A	150 A	150 A	150 A	150 A
Number of components	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	4 A	4 A	4 A	4 A	4 A	4 A	4 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	1000 V	800 V	600 V	50 V	100 V	200 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
