Datasheet> All Categories > Discrete semiconductor> diode> FSS34

Preview

FSS34: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN; CategoryDiscrete semiconductor diode; File Size44KB，2 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

FSS34 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN

FSS34 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
Parts packaging code	DO-214AB
package instruction	ROHS COMPLIANT, PLASTIC, SMC, 2 PIN
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	LOW POWER LOSS
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.55 V
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

FSS32 .... FSS36

3 Amp. Surface Mounted Schottky Barrier Rectifier

Dimensions in mm.

CASE:

SMC/DO-214AB

(Plastic)

Voltage

20 V to 60 V

Current

3.0 A

7.8

± 0.3

•

Metal Silicon Junction, majority carrier conduction

1.25

± 0.25

1.25

± 0.25

•

High current capability, low forward voltage drop

•

Guardring for overvoltage protection

Week code

•

Low power loss, high efficiency

•

High surge capability

•

Plastic material carries U/L recognition 94 V

-O

2.8

7.2

•

Low profile package

•

Easy pick and place

Year code

Type No. Closs

Standard soldering pad

Maximum Ratings, according to IEC publication No. 134

FSS32

FSS33

FSS34

FSS35

FSS36

Marking Code

V

RRM

V

RMS

V

DC

I

F (AV)

I

FSM

T

j

T

stg

Peak recurrent reverse voltage (V)

Maximum RMS voltage (V)

Maximum DC blocking voltage (V)

Maximum average Forward current.

8.3 ms. peak forward surge current

(Jedec Method)

C1

20

14

20

C2

30

21

30

C3

40

28

40

3A

100 A

C4

50

35

50

C5

60

42

60

Operating temperature range

Storage temperature range

– 65 to + 125 °C

– 65 to + 150 °C

Electrical Characteristics at Tamb = 25 °C

V

F

I

R

thj-a

R

thj-l

(1)

Max. forward voltage drop at I

F

= 3.0 A

Max. Instantaneous reverse

current at V

RRM

(1)

Typical Thermal Resistance

(1)

0.55 V

0.5 mA

20 mA

55 °C/W

17 °C/W

0.75 V

Ta = 25 ºC

Ta = 100 ºC

10 mA

NOTE: Thermal Resistance from junction to lead or to ambient PCB mounted with 14x14 mm copper pads areas.

Pulse test: 300µs pulse width, 1% duty cycle.

Sep - 03

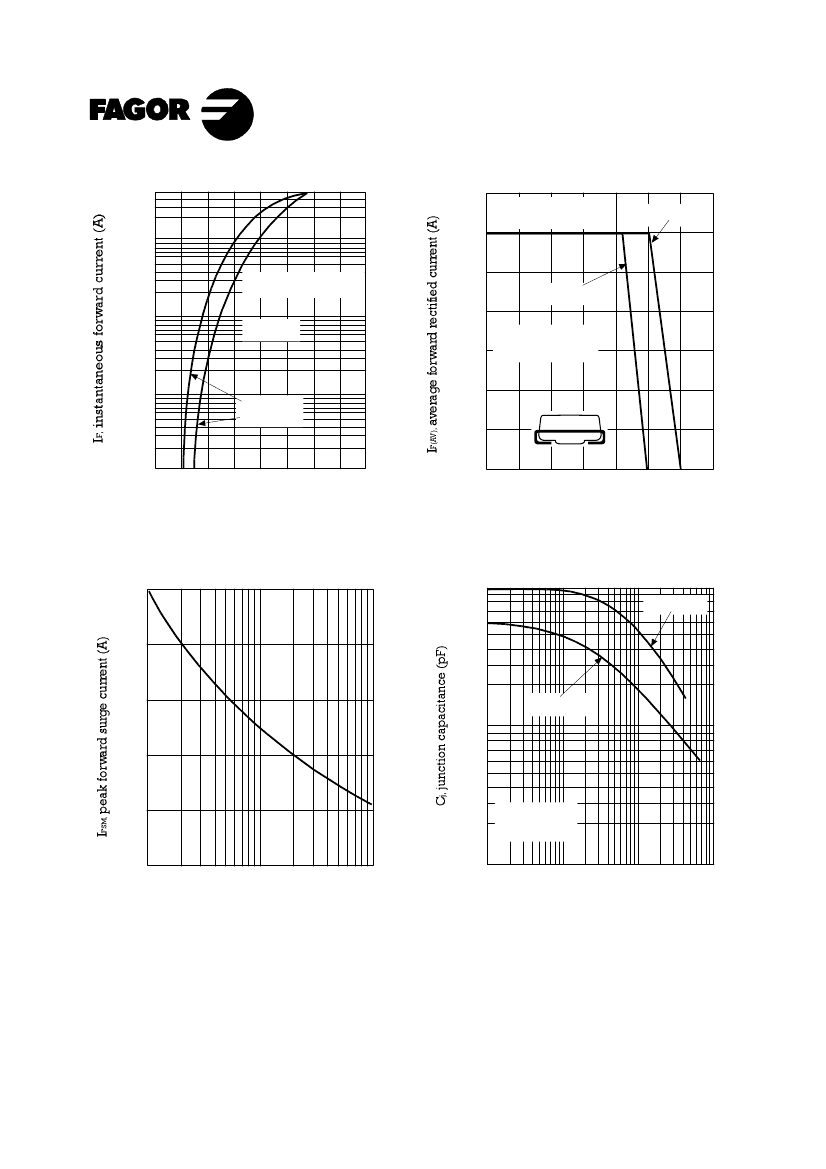

FSS34 Related Products

	FSS34	FSS33	FSS32	FSS35
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 20V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 50V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica
Parts packaging code	DO-214AB	DO-214AB	DO-214AB	DO-214AB
package instruction	ROHS COMPLIANT, PLASTIC, SMC, 2 PIN	ROHS COMPLIANT, PLASTIC, SMC, 2 PIN	ROHS COMPLIANT, PLASTIC, SMC, 2 PIN	ROHS COMPLIANT, PLASTIC, SMC, 2 PIN
Contacts	2	2	2	2
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.55 V	0.55 V	0.55 V	0.75 V
JEDEC-95 code	DO-214AB	DO-214AB	DO-214AB	DO-214AB
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1
Maximum non-repetitive peak forward current	100 A	100 A	100 A	70 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	150 °C
Maximum output current	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	40 V	30 V	20 V	50 V
surface mount	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
