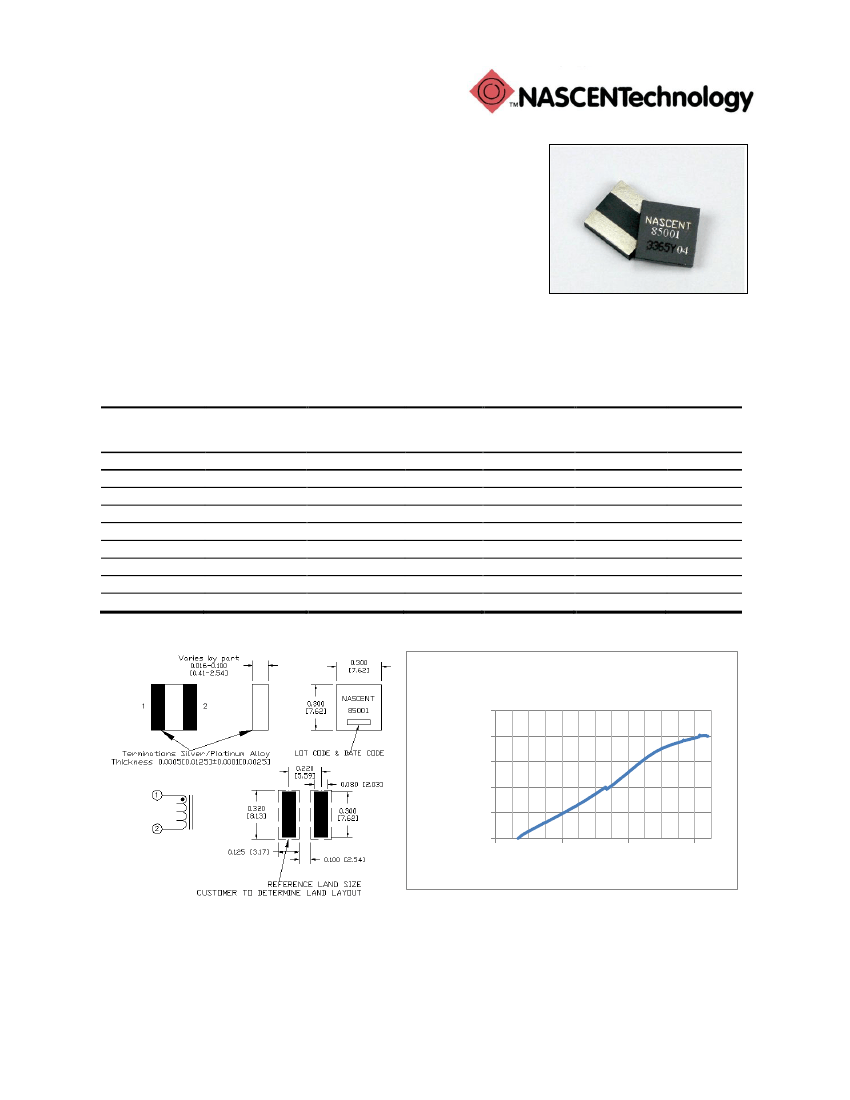

LTCC
High Temperature Inductors
0.30x0.30 inch Size
NASCENTechnology, Inc. has developed a series of high temperature, RoHS compliant inductors using
low temperature co-fired ceramic (LTCC) ferrite usable to 300°C that feature low profile, rugged
packaging, and self shielding characteristics.
Electrical Parameters at 25 °C unless otherwise noted
Part No.
85022
85024
85027
85028
85032
85031
85035
85036
85038
†
††
No Load
†
Inductance
µH
10
12
21
51
48
88
86
100
175
100 mA
Inductance
µH
5.9
10
19
30
43
47
67
85
125
100 mA
Tolerance
20%
20%
20%
20%
25%
20%
20%
25%
25%
Nominal DC
Resistance
ohms
0.12
0.20
0.30
0.60
1.00
1.20
1.90
1.35
2.43
Rated
††
Current
mA
Saturation
Current*
mA
250
250
250
250
250
250
250
250
250
Tolerance for no load inductance is ±25 %
Current will cause a 35 °C temperature rise over ambient (measured 20 to 55 °C)
* Saturation Current is the current that results in a 35% decrease in inductance over the 100 mA Inductance.
Inductance Change with Temperature
Percent Change in Inductance
100%
80%
60%
40%
20%
0%
0
100
200
300
Temperature (ºC)
Part dimension units: inches [millimeters]
For additional information, contact: Daryl Schofield, General Manager
Phone: 605-882-8513, Fax: 605-884-2450, E-mail: dschofield@nascentechnology.com
NASCENTechnology, Inc. 121 Airport Drive, Watertown, SD 57201
www.nascentechnology.com
This product is protected under US Patent #6054914, #6198374 and other international patents.
Specifications subject to change without notice. 03/13
