85083: DescriptionLTCC High Temperature Inductors 0.40x0.40 inch size Higher Current Series; File Size205KB，1 Pages; ManufacturerETC2

Download Datasheet Compare View All

85083 Overview

LTCC High Temperature Inductors 0.40x0.40 inch size Higher Current Series

Preview

Download Datasheet

View All

LTCC

High Temperature Inductors

0.40x0.40 inch size

Higher Current Series

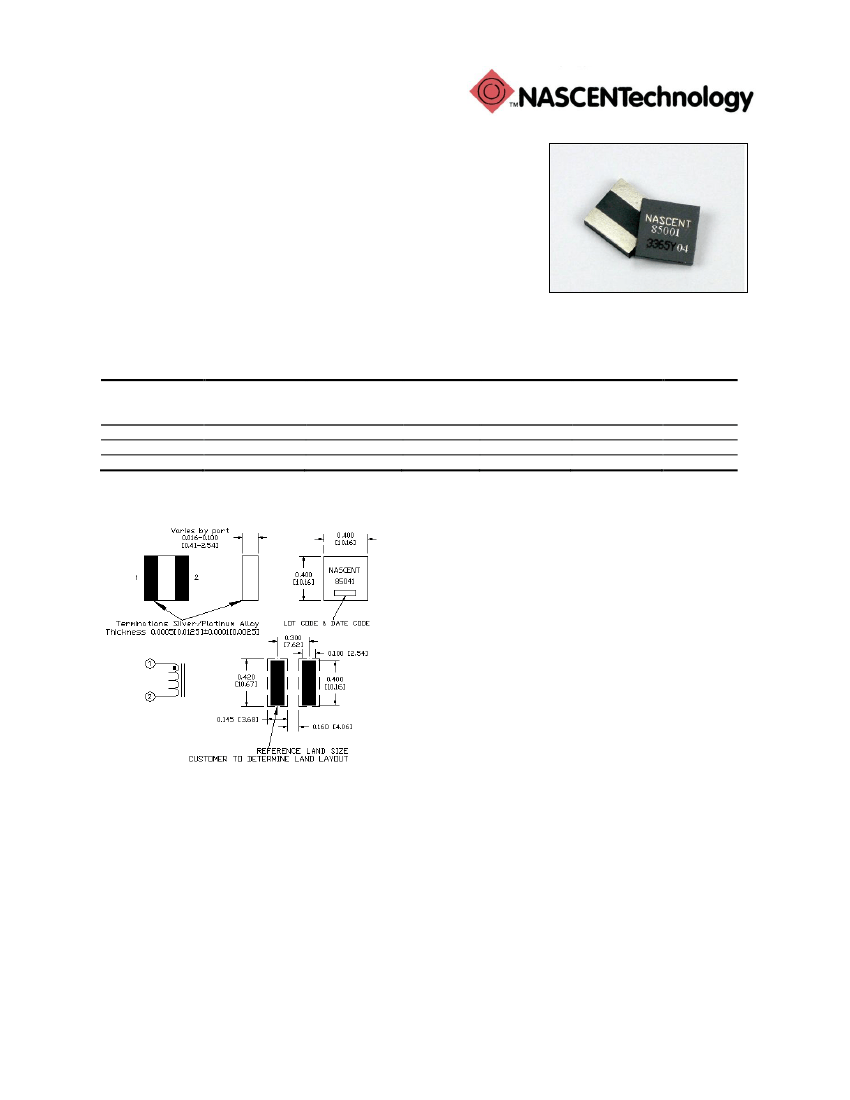

NASCENTechnology, Inc. has developed a series of high temperature, RoHS compliant inductors using

low temperature co-fired ceramic (LTCC) ferrite usable to 300°C that feature low profile, rugged

packaging, and self shielding characteristics.

Electrical Parameters at 25 °C unless otherwise noted

Part No.

No Load

†

Inductance

µH

100 mA

Inductance

µH

100 mA

Tolerance

Nominal DC

Resistance

ohms

Rated

††

Current

Saturation

Current*

950

350

290

85081

10.7

20%

0.28

85082

20%

1.4

85083

20%

2.75

†

Tolerance for no load inductance is ±25 %

††

Current will cause a 35 °C temperature rise over ambient (measured 20 to 55 °C)

* Saturation Current is the current that results in a 35% decrease in inductance over the 100 mA Inductance.

Part mass 0.6 to 1.2 g

Part dimension units: inches [millimeters]

For additional information, contact: Daryl Schofield, General Manager

Phone: 605-882-8513, Fax: 605-884-2450, E-mail: dschofield@nascentechnology.com

NASCENTechnology, Inc. 121 Airport Drive, Watertown, SD 57201

www.nascentechnology.com

This product is protected under US Patent #6054914, #6198374 and other international patents.

Specifications subject to change without notice. 03/13
