LTCC High Temperature Inductors 0.27x0.27 inch size Higher Current Series

Preview

Download Datasheet

View All

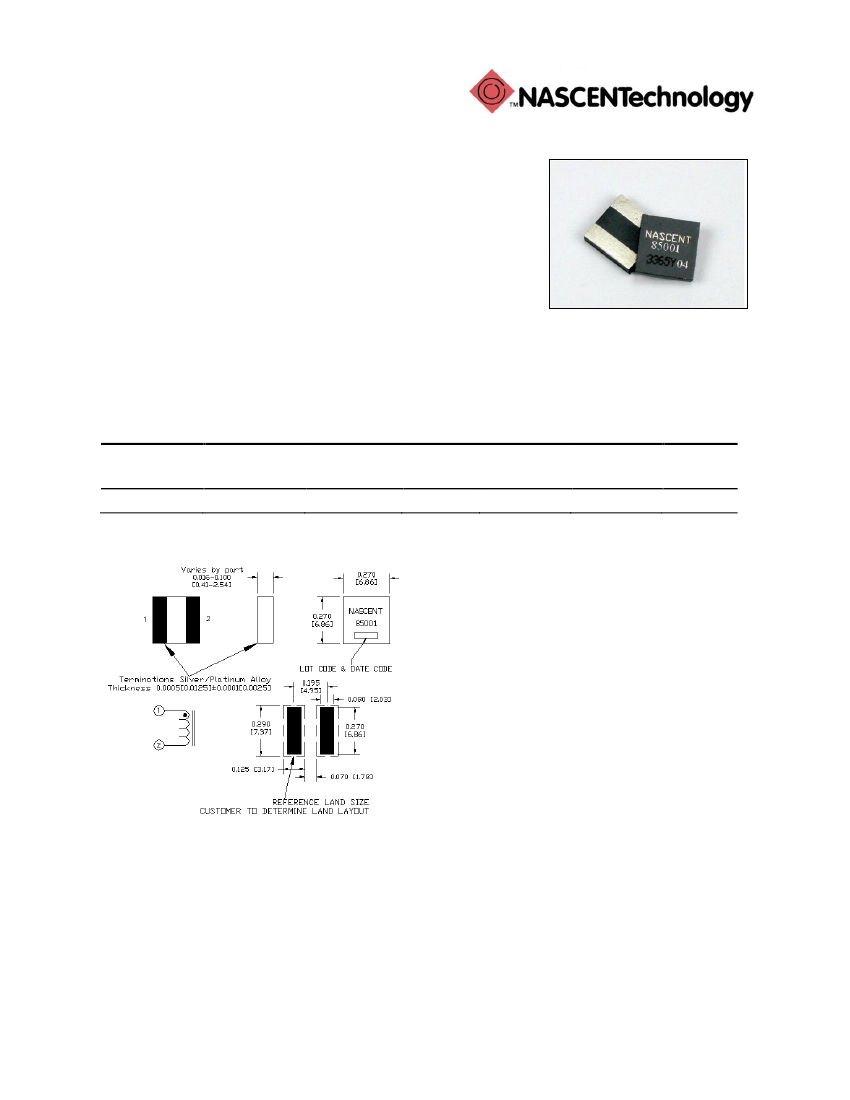

LTCC

High Temperature Inductors

0.27x0.27 inch size

Higher Current Series

NASCENTechnology, Inc. has developed a series of high temperature, RoHS compliant inductors using

low temperature co-fired ceramic (LTCC) ferrite usable to 300°C that feature low profile, rugged

packaging, and self shielding characteristics.

Electrical Parameters at 25 °C unless otherwise noted

Part No.

85090

†

††

No Load

†

Inductance

µH

100 mA

Inductance

µH

100 mA

Tolerance

20%

Nominal DC

Resistance

ohms

0.50

Rated

††

Current

Saturation

Current*

800

Tolerance for no load inductance is ±25 %

Current will cause a 35 °C temperature rise over ambient (measured 20 to 55 °C)

* Saturation Current is the current that results in a 35% decrease in inductance over the 100 mA Inductance.

Part dimension units: inches [millimeters]

For additional information, contact: Daryl Schofield, General Manager

Phone: 605-882-8513, Fax: 605-884-2450, E-mail: dschofield@nascentechnology.com

NASCENTechnology, Inc. 121 Airport Drive, Watertown, SD 57201

www.nascentechnology.com

This product is protected under US Patent #6054914, #6198374 and other international patents.

Specifications subject to change without notice. 09/12
