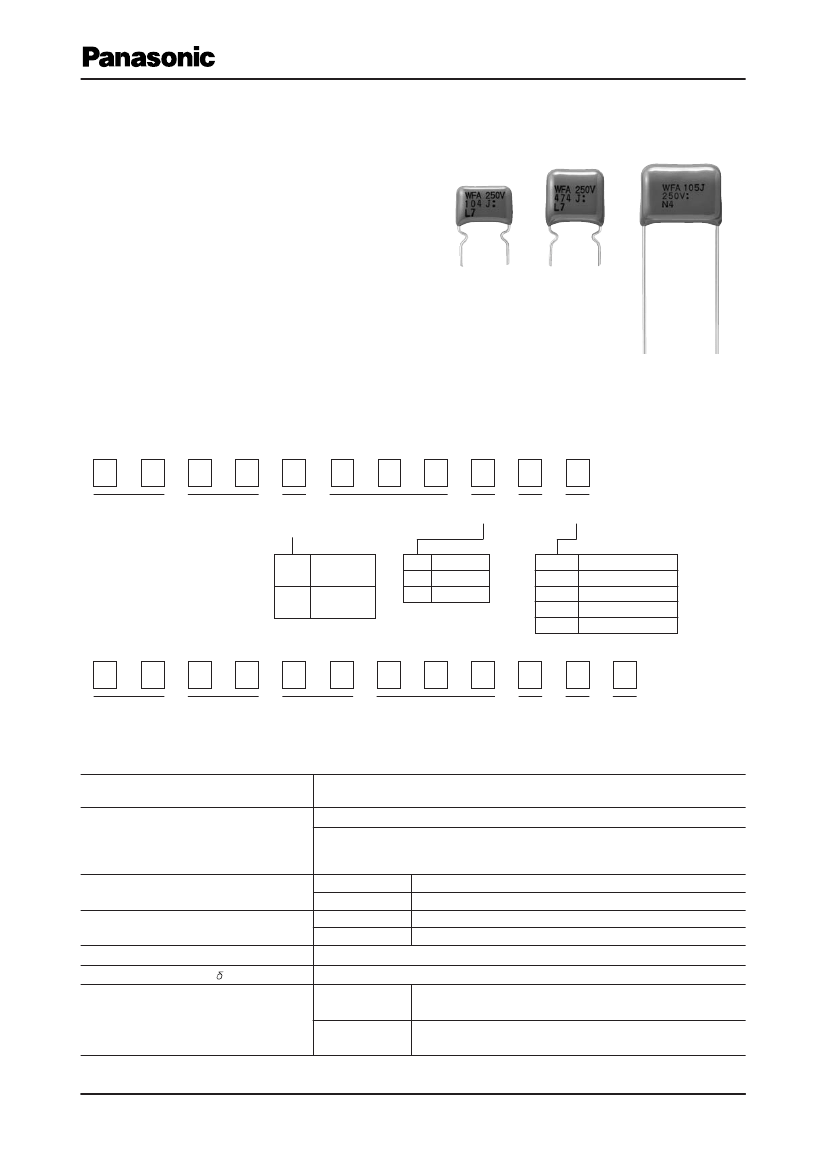

Plastic Film Capacitors
Metallized Polypropylene Film Capacitors
Type:
ECWF(A)
Designed for high frequency and current applications.
■Features
•
Small size
•
Excellent frequency characteristics
•
Low loss
•
Low Hum Sound Noise
•
RoHS directive compliant
■Recommended
Applications
•
250VDC:High frequency and high current circuits
•
450VDC:Active filter circuits
■Explanation
of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
E
C
W
F
Rated
voltage
Capacitance
A
Cap. Tol. Suffix
Suffix
Products code
Dielectric &
construction
2
2W
250 VDC
450 VDC
H
J
K
±3
%
±5
%
±10
%
Suffix
Blank
B
Q
C
Lead form
Straight
Crimped Lead
Crimped Lead
Cut lead
●
Explanation of Part Numbers for Odd Size Taping
E
C
W
F
Rated voltage
Capacitance
R
A
Products code
Dielectric &
construction
Suffix Cap. Tol. Suffix
■Specifications
Category temp. range
(Including temperature-rise on unit surface)
Rated voltage
–40 ˚C to +105 ˚C
250 VDC
450 VDC
Peak to peak voltage applied on the capacitor should be less than
240Vp-p, and zero to peak voltage should be less than 450V.
250 VDC
0.1 μF to 6.8 μF
450 VDC
0.1 μF to 4.7 μF
±3 %(H), ±5 %(J)
250 VDC
±5 %(J), ±10 %(K)
450 VDC
Between terminals:Rated voltage (VDC)
×
150 % 60 s
tanδ≦0.1 % (20 ˚C,1 kHz)
250 VDC
Insulation resistance (IR)
450 VDC
C≦0.33 μF :IR≧9,000 MΩ
(20 ˚C, 100 VDC, 60 s)
C
＞
0.33 μF :IR≧3,000 MΩ・μF
Capacitance range
Capacitance tolerance
Withstand voltage
Dissipation factor (tan )
C≦0.33 μF :IR≧30,000 MΩ
(20 ˚C, 100 VDC, 60 s)
C
＞
0.33 μF :IR≧10,000 MΩ・μF
❈
In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,
please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
− FC54 −
Plastic Film Capacitors

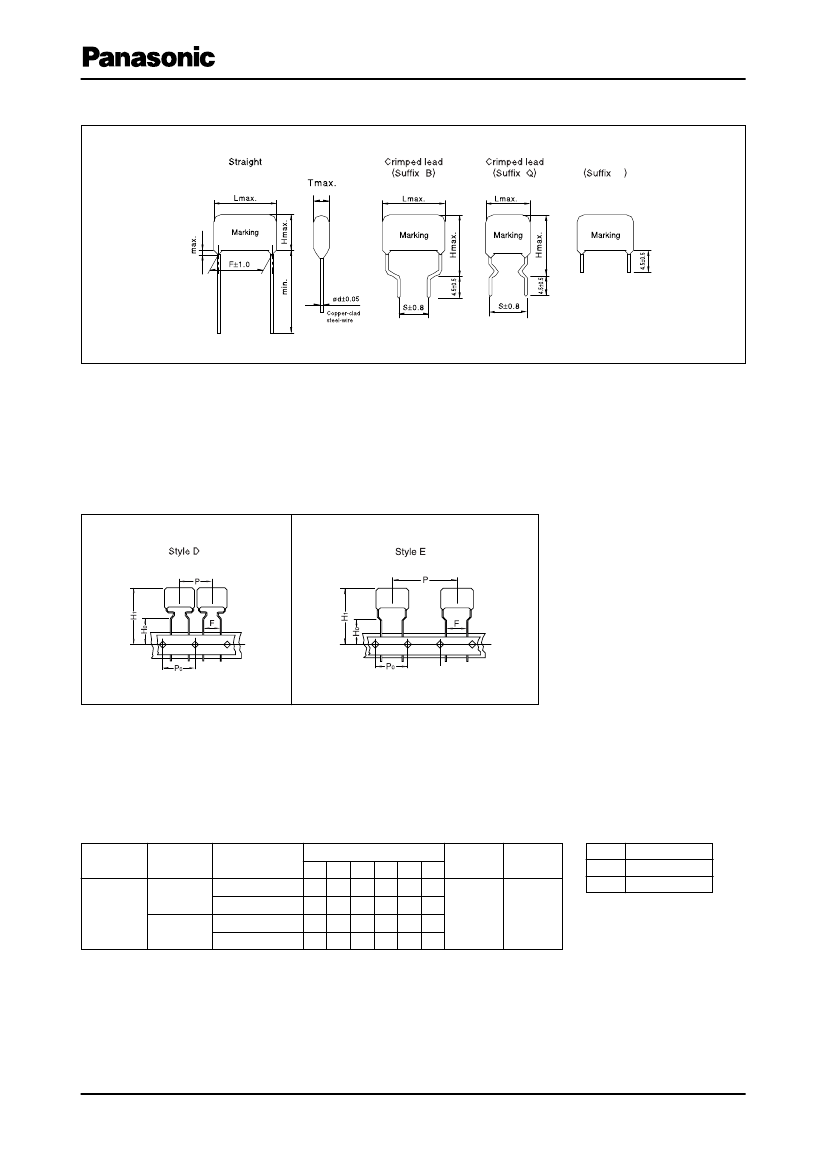

■Dimensions
in mm (not to scale)
(Dimensions : mm)
Cut lead
C
1.5
25
or Copper-wire
■Packaging
Specification for Bulk Package
Packing quantity: 100 pcs./bag
●Taping
style
■Taping
Specifications for Automatic Insertion
❈Refer
to the page of taping specifications.
●Packaging
Specifications
Type
Rated
voltage.
250 VDC
ECWF(A)
450 VDC
Cap. range
(μF)
0.10 to 0.47
0.56 to 2.2
0.10 to 0.47
0.56 to 2.2
Taping style
AD AS
B
C
D
○
○
○
○
●Lead
Spacing
E
Packing
suffix
Style
D
E
Lead Spacing
7.5 mm
7.5 mm
Ammo
R(
)A
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
Plastic Film Capacitors
■Rating,
Dimensions& Quantity/Ammo Box
●
Type ECWF(A)
Rated voltage : 250 VDC
Part No.
ECWF2104□A(
ECWF2124□A(
ECWF2154□A(
ECWF2184□A(
ECWF2224□A(
ECWF2274□A(
ECWF2334□A(
ECWF2394□A(
ECWF2474□A(
ECWF2564□A(
ECWF2684□A(
ECWF2824□A(
ECWF2105□A(
ECWF2125□A(
ECWF2155□A(
ECWF2185□A(
ECWF2225□A(
ECWF2275□A(
ECWF2335□A(
ECWF2395□A(
ECWF2475□A(
ECWF2565□A(
ECWF2685□A(
↑
↑
Cap.
(μF)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.00
1.20
1.50
1.80
2.20
2.70
3.30
3.90
4.70
5.60
6.80
H
L
max
max.
Dimensions (mm)
F
Min. order Q'ty
S
G
max.
T
max
Crimped lead Crimped lead
Crimped lead Crimped lead
Straight
(Suffix B) (Suffix Q)
Straight
(Suffix B) (Suffix Q)
Straight
ød
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
Taping
7.5mm
Bulk
13.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
18.1
18.1
18.1
18.1
18.8
18.8
18.8
18.8
23.8
23.8
23.8
23.8
23.8
23.8
5.0
5.3
5.6
5.9
6.3
6.8
7.3
7.8
8.4
6.9
7.4
8.0
8.5
9.5
10.5
11.4
12.6
11.4
12.5
13.5
14.8
16.2
17.8
─
13.3
14.6
15.6
16.5
17.6
17.2
18.3
19.3
20.6
21.9
23.5
14.1
14.4
14.7
15.1
15.4
15.9
16.4
16.9
17.6
16.4
17.0
17.6
18.3
19.6
20.6
21.5
22.6
22.2
23.3
24.3
25.6
26.9
28.5
14.1
14.4
14.7
15.1
15.4
15.9
16.4
16.9
17.6
18.4
19.0
19.6
20.3
21.6
22.6
23.5
24.6
24.2
25.3
26.3
27.6
28.9
30.5
─
15.0
15.0
15.0
15.0
15.0
20.0
20.0
20.0
20.0
20.0
20.0
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
12.5
12.5
12.5
12.5
12.5
12.5
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
20.0
20.0
20.0
20.0
20.0
20.0
1300
1200
1100
1000
900
800
700
400 500
─
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
300
200
300
200
─
Suffix for lead crimped
Capacitance tolerance code
●
Type ECWF(A)
Rated voltage : 450 VDC
Dimensions (mm)
Part No.
ECWF2W104□A(
ECWF2W124□A(
ECWF2W154□A(
ECWF2W184□A(
ECWF2W224□A(
ECWF2W274□A(
ECWF2W334□A(
ECWF2W394□A(
ECWF2W474□A(
ECWF2W564□A(
ECWF2W684□A(
ECWF2W824□A(
ECWF2W105□A(
ECWF2W125□A(
ECWF2W155□A(
ECWF2W185□A(
ECWF2W225□A(
ECWF2W275□A(
ECWF2W335□A(
ECWF2W395□A(
ECWF2W475□A(
↑
Min. order Q'ty
Cap.
(μF)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.00
1.20
1.50
1.80
2.20
2.70
3.30
3.90
4.70
H
max.
L
max
S
F
Crimped lead Crimped lead
G
(Suffix B) (Suffix Q)
max.
T
max
Crimped lead Crimped lead
Straight
(Suffix B) (Suffix Q)
ød
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
Taping
7.5mm
Bulk
13.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
18.1
18.1
18.1
18.1
18.8
18.8
18.8
18.8
26.3
26.3
26.3
26.3
5.1
5.4
5.7
6.1
6.5
7.0
7.6
8.1
8.7
7.0
7.5
8.2
9.3
9.7
10.7
11.6
12.8
10.6
11.7
12.6
13.8
─
11.5
12.1
12.7
12.6
14.7
15.8
16.7
17.9
16.5
17.5
18.4
19.6
14.3
14.5
14.9
15.2
15.6
16.1
16.7
17.2
17.9
16.5
17.1
17.7
17.6
19.7
20.8
21.7
22.9
21.5
22.5
23.4
24.6
14.3
14.5
14.9
15.2
15.6
16.1
16.7
17.2
17.9
18.5
19.1
19.7
19.6
21.7
22.8
23.7
24.9
23.5
24.5
25.4
26.6
─
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
15.0
15.0
15.0
15.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1200
1000
800
600
400 500
300
200
─
↑
Suffix for lead crimped
Capacitance tolerance code
