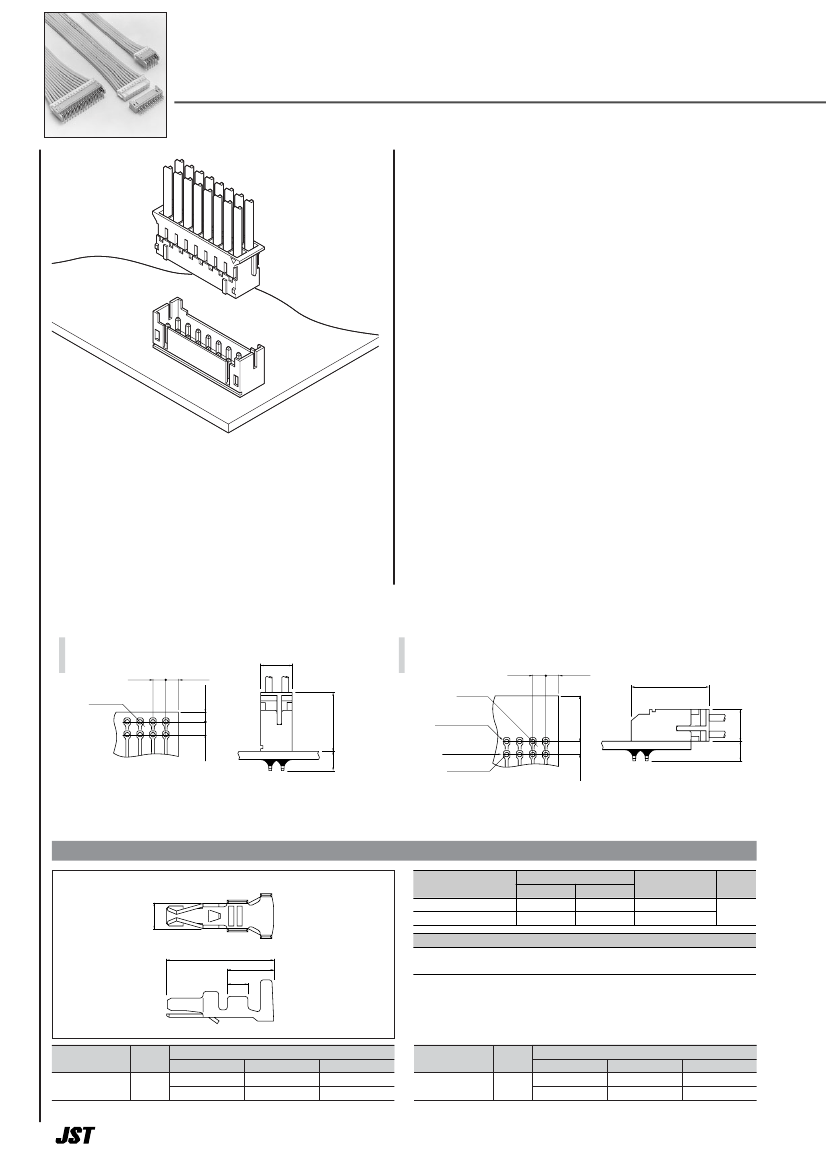

This is a 2.0mm pitch, crimp style, double-
row, wire-to-board connector. It is
designed to meet the demand for high-
density and low-profile connection.
• Compact
• Reliable contacts
• Fully shrouded header
Standards ––––––––––––––––––––––
1
Certified LR20812
Side entry type
5
0
Recognized E60389
Top entry type
2
±0.05
φ0.7
＋0.1
0
1.95
min
1.5
min
φ0.7
＋0.1
0
2
±0.05
1.95
min
11.8
8.8
7
min
2
±0.05
（3）
Circuit No.1
Note: 1. The above figure is the figure viewed from soldering side.
2. Tolerances are non-cumulative:
±
0.05mm for all centers.
3. Hole dimensions differ according to the kind of PC board and piercing method. If PC boards made of hard material are used, the hole dimensions should
be larger. The dimensions above should serve as a guideline. Contact JST for details.
Contact
Model No.
SPHD-002T-P0.5
SPHD-001T-P0.5
1.5
Applicable wire
AWG #
mm
2
0.08∼0.21
0.13∼0.33
28∼24
26∼22
2
±0.05
Insulation O.D.
(mm)
0.9∼1.5
1.0∼1.5
Q'ty /
reel
8,000
Material and Finish
6.5
2.85
1.3
Phosphor bronze, tin-plated (reflow treatment)
RoHS compliance
Contact
Crimping
machine Crimp applicator
MKS-L-10
*MKS-SC-10
Applicator
Dies
Crimp applicator with dies
Contact
SPHD-001T-P0.5
Crimping
machine Crimp applicator
AP-K2N
MKS-L-10
*MKS-SC-10
Applicator
Dies
Crimp applicator with dies
SPHD-002T-P0.5
AP-K2N
MK/SPHD-002-05 APLMK SPHD002-05
SC/SPHD-002-05 APLSC SPHD002-05
MK/SPHD-001-05 APLMK SPHD001-05
SC/SPHD-001-05 APLSC SPHD001-05
Note: *Strip-crimp applicator
1
（3）
Odd number
circuits
5
Even number
circuits
PHD CONNECTOR
Housing
Circuits
8
10
12
14
16
Circuit No.1
Circuit No.1
Circuit No.2
Model No.
PHDR-08VS
PHDR-10VS
PHDR-12VS
PHDR-14VS
PHDR-16VS
PHDR-18VS
PHDR-20VS
PHDR-22VS
PHDR-24VS
PHDR-26VS
PHDR-28VS
PHDR-30VS
PHDR-32VS
PHDR-34VS
A
Dimensions (mm)
B
9.9
11.9
13.9
15.9
17.9
19.9
21.9
23.9
25.9
27.9
29.9
31.9
33.9
35.9
Q'ty /
bag
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
18
20
22
24
7.3
2
1.95
A
B
Shrouded header
Top entry type
Circuit No.1
H
6.5
（3）
2
1.95
A
B
Side entry type
Circuit No.1
H
JST
6.5
9.5
Circuit No.2
7
2
2
1.95
A
B
H JST
26
28
30
32
2
4.2
5
34
Material
PA 66, UL94V-0, natural (white)
RoHS compliance
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
