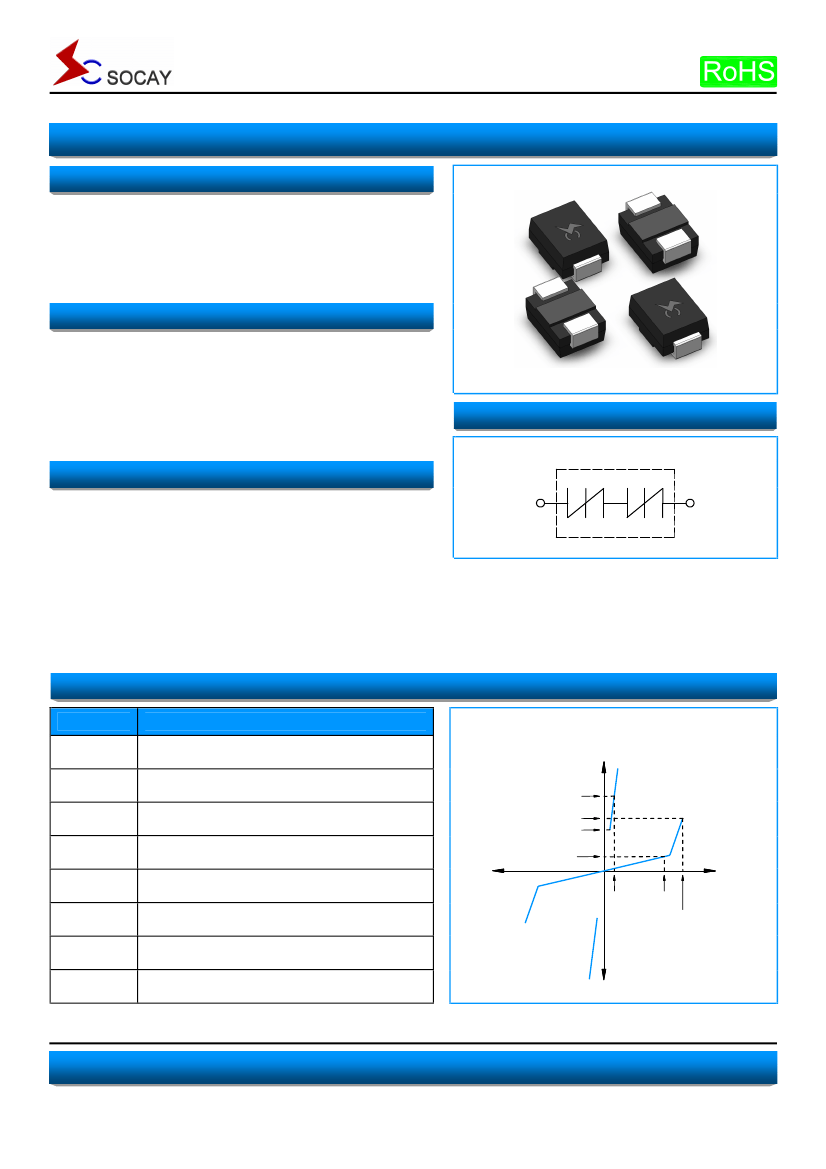

Thyristor Surge Suppressors (TSS)
P0642SA
–
P6002SA Series - DO-214AA(SMB)
Description
P0642SA-P6002SA Series are very low capacitance devices
designed to protect broadband equipment such as VoIP, DSL
modems and DSLAMs from damaging over-voltage transients. This
series provides a surface mount solution that enables equipment to
comply with global regulatory standards, while limiting the impact to
broadband signals.
@10/700μS, 2KV
Features and Benefits
u
u
u
u
u
Low voltage overshoot
Low on-state voltage
Does not degrade with use
Fails short circuit when surged in excess of ratings
Low distortion
40% lower capacitance than comparable product
Schematic Symbol
u
Applicable Global Standards
u
u
u
u
u
u
u
TIA-968-A
ITU K.20/21 Enhanced level
ITU K.20/21 Basic Level
GR 1089 Inter building
IEC 6100-4-5
YD/T 1082
YD/T 993
YD/T 950
u
Electrical Parameters
Parameter
I
S
I
DRM
I
H
I
T
V
S
V
DRM
V
T
C
0
Definition
Switching Current
- maximum current required to switch to
on state
Leakage Current
- maximum peak off-state current
measured at VDRM
Holding Current
- minimum current required to maintain on
state
On-state Current
- maximum rated continuous on-state
current
Switching Voltage
- maximum voltage prior to switching to
on stat
Peak Off-state Voltage
- maximum voltage that can be
applied while maintaining off state
On-state Voltage
- maximum voltage measured at rated
on-state current
Off-state Capacitance
- typical capacitance measured in
off state
+I
I
T
I
S
I
H
I
DRM
-V
V
T
V
DRM
V
S
+V
-I
SOCAY Electronics Co., Ltd.
Revision
September 25, 2013
www.socay.com
1/5
@SOCAY Electronics Co., Ltd. 2013
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Thyristor Surge Suppressors (TSS)
P0642SA
–
P6002SA Series - DO-214AA(SMB)
Electrical Characteristics
V
DRM
Part
Number
P0642SA
P0722SA
P0902SA
P1102SA
P1302SA
P1502SA
P1802SA
P2302SA
P2602SA
P3002SA
P3502SA
P4202SA
P4802SA
P6002SA
Marking
@I
DRM
=5μA
@10/700μS, 2KV
V
S
@100V/μS
V
T
@I
T
=2.2A
I
S
mA max
800
800
800
800
800
800
800
800
800
800
800
800
800
800
I
T
A max
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
I
H
mA min
120
120
120
120
120
120
120
120
120
120
120
120
120
120
C
0
@1MHz
V min
P06A
P07A
P09A
P11A
P13A
P15A
P18A
P23A
P26A
P30A
P35A
P42A
P48A
P60A
58
65
75
90
120
140
170
190
220
280
320
380
440
550
V max
77
88
98
130
160
180
220
260
300
360
400
500
600
700
V max
4
4
4
4
4
4
4
4
4
4
4
4
4
4
pF min
25
20
20
15
15
15
10
10
10
10
10
10
5
5
pF max
45
45
40
35
35
30
30
25
25
25
20
20
20
20
Notes:
- Absolute maximum ratings measured at T
A
= 25ºC (unless otherwise noted).
- Devices are bi-directional.
Surge Ratings
2/10μS
1
Series
2/10μS
A min
A
150
2
8/20μS
1
1.2/50μS
A min
150
2
10/160μS
1
10/160μS
A min
90
2
10/560μS
1
10/560μS
A min
50
2
10/1000μS
1
10/1000μS
A min
45
2
5/310μS
1
10/700μS
A min
50
2
I
TSM
50/60 Hz
A min
20
di/dt
Amps/µs max
500
Notes:
1. Current waveform in
µs
2. Voltage waveform in
µs
- Peak pulse current rating (I
PP
) is repetitive and guaranteed for the life of the product.
- I
PP
ratings applicable over temperature range of -40ºC to +85ºC
- The device must initially be in thermal equilibrium with -40°C < T
J
< +150°C
Thermal Considerations
Package
DO-214AA
Symbol
T
J
T
S
R
θJA
Parameter
Operating Junction Temperature Range
Storage Temperature Range
Thermal Resistance: Junction to Ambient
Value
- 40 to + 150
- 40 to +150
90
Unit
°C
°C
°C/W
SOCAY Electronics Co., Ltd.
Revision
September 25, 2013
www.socay.com
2/5
@SOCAY Electronics Co., Ltd. 2013
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Thyristor Surge Suppressors (TSS)
P0642SA
–
P6002SA Series - DO-214AA(SMB)

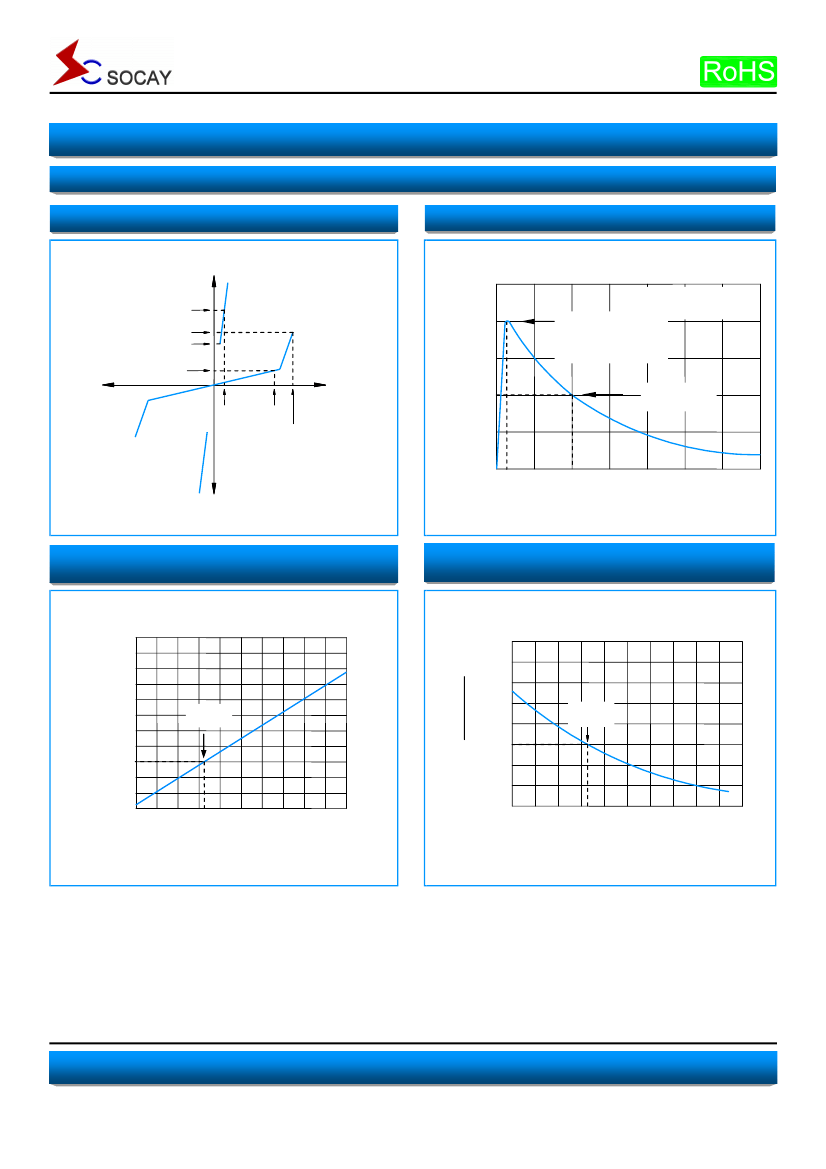

Characteristic Curves
Figure 1 - V-I Characteristics
Figure 2 - t
r
×
t
d
Pulse Waveform
@10/700μS, 2KV
+I
I
T
I
S
I
H
I
DRM
-V
V
T
V
DRM
V
S
+V
t
r
=rise time to peak value
t
d
=decay time to half value
I
pp
–
Peak Pulse Current - % I
pp
100
Peak
Value
Waveform=t
r
×t
d
50
Half Value
50
t
r
0
t
d
t
–
Time (μs)
-I
Figure 3 - Normalized V
S
Change Versus Junction
Temperature
Figure 4 - Normalized DC Holding Current Versus Case
Temperature
2.0
14
Percent of V
S
Change - %
12
10
8
6
4
2
9
-4
-6
-8
-40
-20 0
20
40
60
80
100
120
140
160
1.8
I
H
I
H
(T
C
=25℃)
1.6
1.4
1.2
1.0
0.8
0.6
0.4
-40 -20
0
20
40
60
80
100
120
140
160
25℃
25℃
Ration of
Junction Temperature (T
J
) -
℃
Case Temperature (TC) -
℃
SOCAY Electronics Co., Ltd.
Revision
September 25, 2013
www.socay.com
3/5
@SOCAY Electronics Co., Ltd. 2013
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Thyristor Surge Suppressors (TSS)
P0642SA
–
P6002SA Series - DO-214AA(SMB)
Environmental Specifications
80% Rated VDRM (VAC Peak ) +125°C or +150°C,
High Temp Voltage
Blocking
Lead Material Copper Alloy High Temp Voltage
Blocking 504 or 1008 hrs. MIL-STD-750 (Method
1040) JEDEC, JESD22-A-101
-65°C to +150°C, 15 min. dwell, 10 up to 100 cycles.
Temp Cycling
MIL-STD-750
JESD22-A104
Biased Temp &
Humidity
High Temp Storage
Low Temp Storage
52 VDC (+85°C) 85%RH, 504 up to 1008 hrs.
JEDEC, JESD22-A-101
+150°C 1008 hrs.
MIL-STD-750 (Method 1031)
EIA/
(Method
1051)
EIA/JEDEC,
@10/700μS, 2KV
Physical Specifications
Lead Material
Terminal Finish
Body Material
Copper Alloy
100% Matte-Tin Plated
UL recognized epoxy meeting flammability
classification 94V-0
JEDEC, JESD22-A-101
-65°C, 1008 hrs.
0°C to +100°C, 5 min. dwell, 10 sec. transfer,
Thermal Shock
Thermal Shock 10 cycles.
1056) JEDEC, JESD22-A-106
MIL-STD-750 (Method
Autoclave (Pressure
Cooker Test)
Resistance to Solder
Heat
Moisture Sensitivity
Level
+121°C, 100%RH, 2atm, 24 up to 168 hrs.
EIA/Cooker Test)
+260°C, 30 secs.
JEDEC, JESD22-A-102
MIL-STD-750 (Method 2031
85%RH, +85°C, 168 hrs., 3 reflow cycles Level
(+260°C Peak).
JEDEC-J-STD-020, Level 1

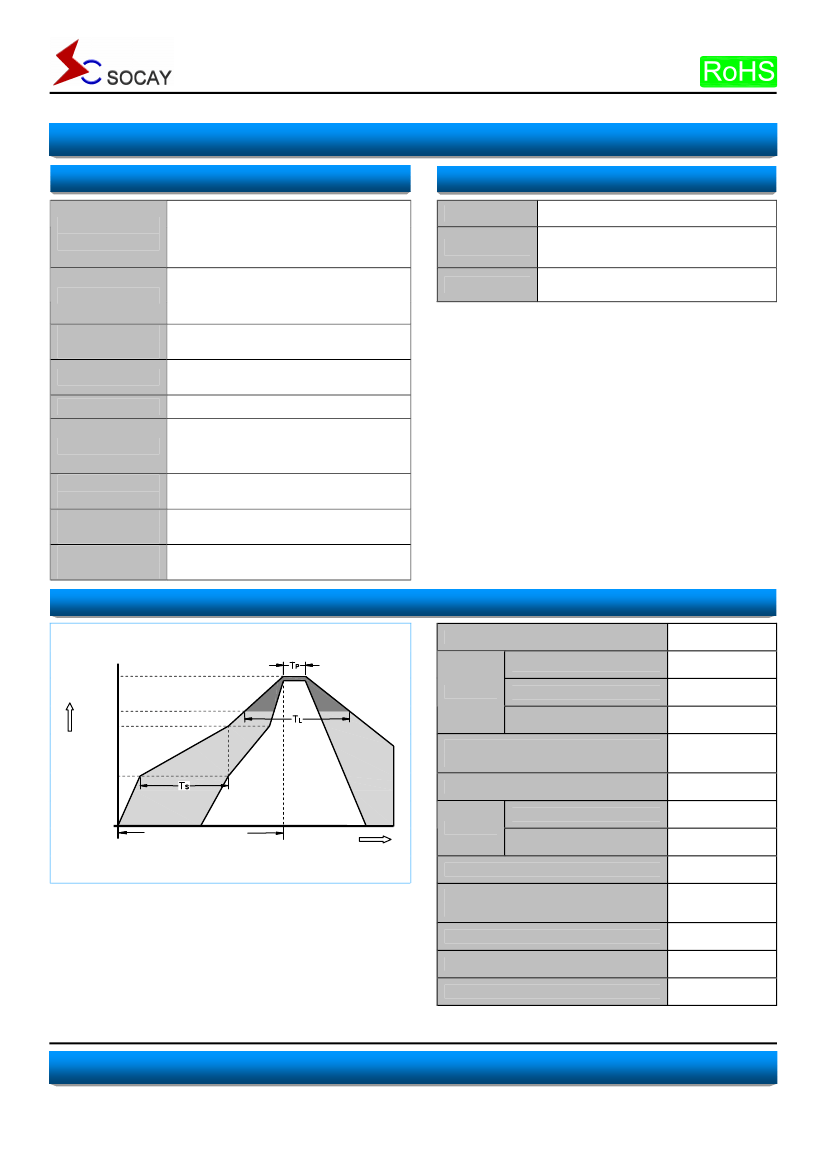

Soldering Parameters
Reflow Condition
-Temperature Min (T
s(min)
)
Ramp-up
Critical Zone
T
L
to T
P
Lead–free assembly
+150°C
+200°C
60 -180 Seconds
3°C/Second Max
3°C/Second Max
+217°C
60 -150 Seconds
260 +0/-5°C
30 Seconds Max
6°C/Second Max
8 minutes Max
+260°C
T
P
Pre Heat
-Temperature Max (T
s(max)
)
-Time (min to max) (t
s
)
T
L
T
S(max)
Temperature
Ramp-down
Average ramp up rate ( Liquidus Temp T
L
)
to peak
T
S(max)
to T
L
- Ramp-up Rate
T
S(min)
Preheat
25
Time to peak temperature
(t 25℃ to peak)
- Temperature (T
L
) (Liquidus)
Time
Reflow
- Time (min to max) (t
s
)
Peak Temperature (T
P
)
Time within 5°C of actual peak Temperature
(t
p
)
Ramp-down Rate
Time 25°C to peak Temperature (T
P
)
Do not exceed
SOCAY Electronics Co., Ltd.
Revision
September 25, 2013
www.socay.com
4/5
@SOCAY Electronics Co., Ltd. 2013
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Thyristor Surge Suppressors (TSS)
P0642SA
–
P6002SA Series - DO-214AA(SMB)

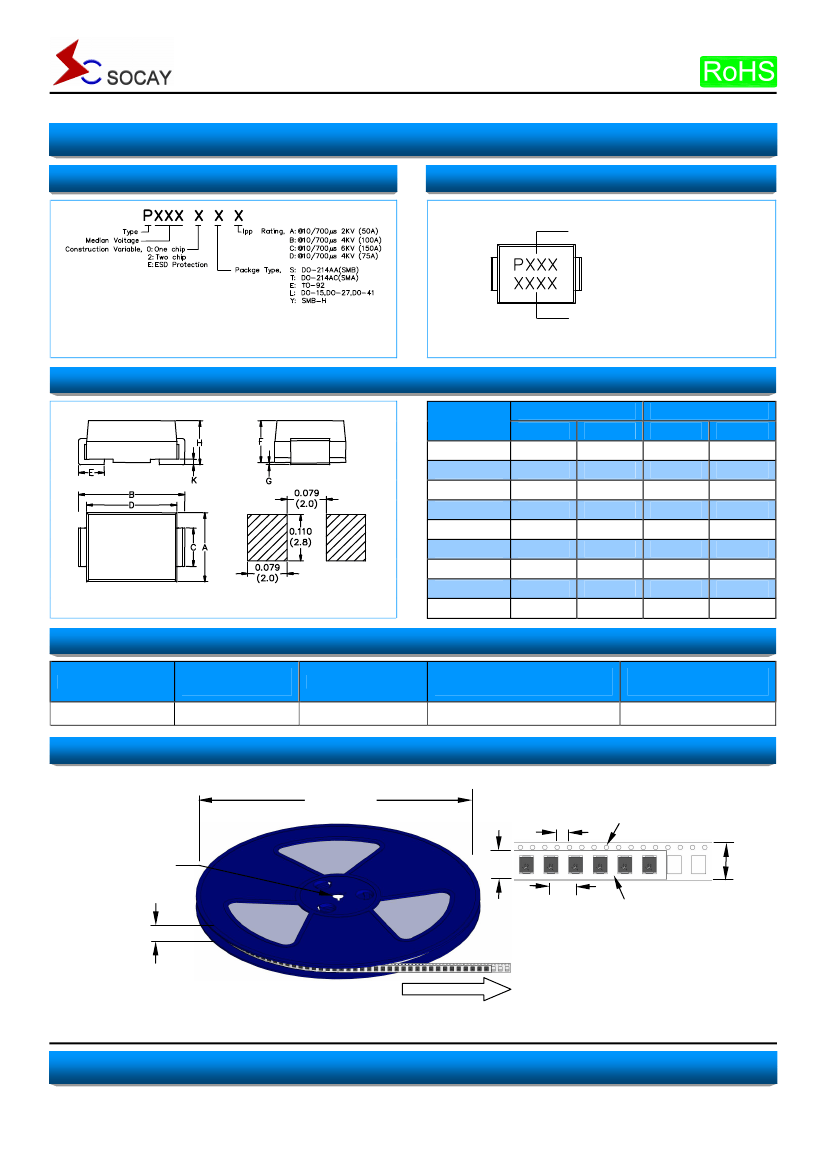

Part Numbering
@10/700μS, 2KV
Part Marking
Part Marking Code
(Refer to Electrical Characteristics Table)
Date code
Dimensions
DO-214AA
Dimensions
Min
A
B
C
D
E
F
Inch
(millimeter)
Inches
Max
0.156
0.220
0.087
0.181
0.063
0.096
0.008
0.104
0.016
Millimeters
Min
3.30
5.10
1.95
4.05
0.76
1.90
0.05
1.95
0.15
Max
3.95
5.60
2.20
4.60
1.60
2.45
0.20
2.65
0.41
0.130
0.201
0.077
0.159
0.030
0.076
0.002
0.077
0.006
G
H
K
Pad outline
Packaging
Part Number
Pxxx2SA
Component
Package
DO-214AA
Quantity
2500
Packaging
Option
Tape & Reel -12mm/13″tape
Packaging
Specification
EIA -481 - D
Tape and Reel Specifications
12.99
(330.0)
0.157
(4.0)
0.059 Diameter
(1.5)
0.512(13.0)
Arbor Hole Diameter
0.36
(9.2)
0.315
(8.0)
Cover tape
0.472
(12.0)
0.49
(12.4)
Dimensions are in inches
(and millimeters)
Direction of Feed
SOCAY Electronics Co., Ltd.
Revision
September 25, 2013
www.socay.com
5/5
@SOCAY Electronics Co., Ltd. 2013
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
