LH516AZ5E2 datasheet, PDF - EEWORLD Datasheet

LH516AZ5E2: DescriptionStandard SRAM, 8KX8, 200ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOP-28; Categorystorage storage; File Size525KB，20 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

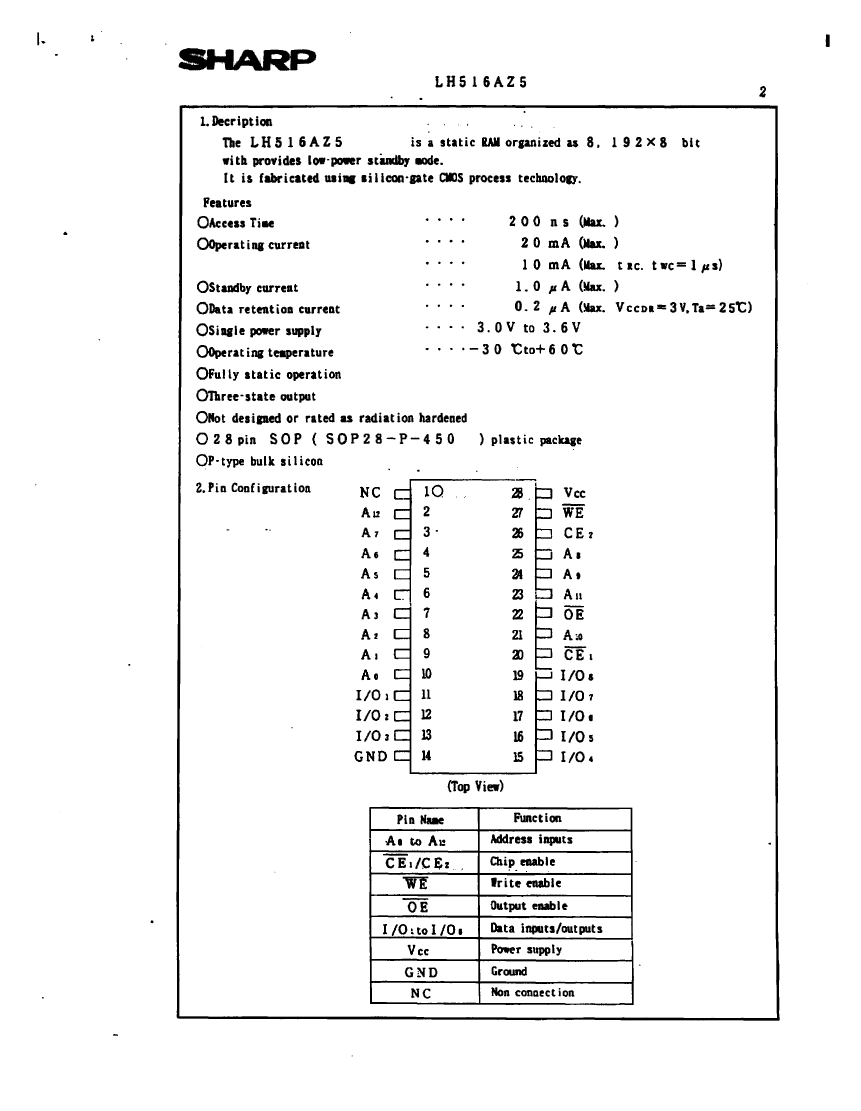

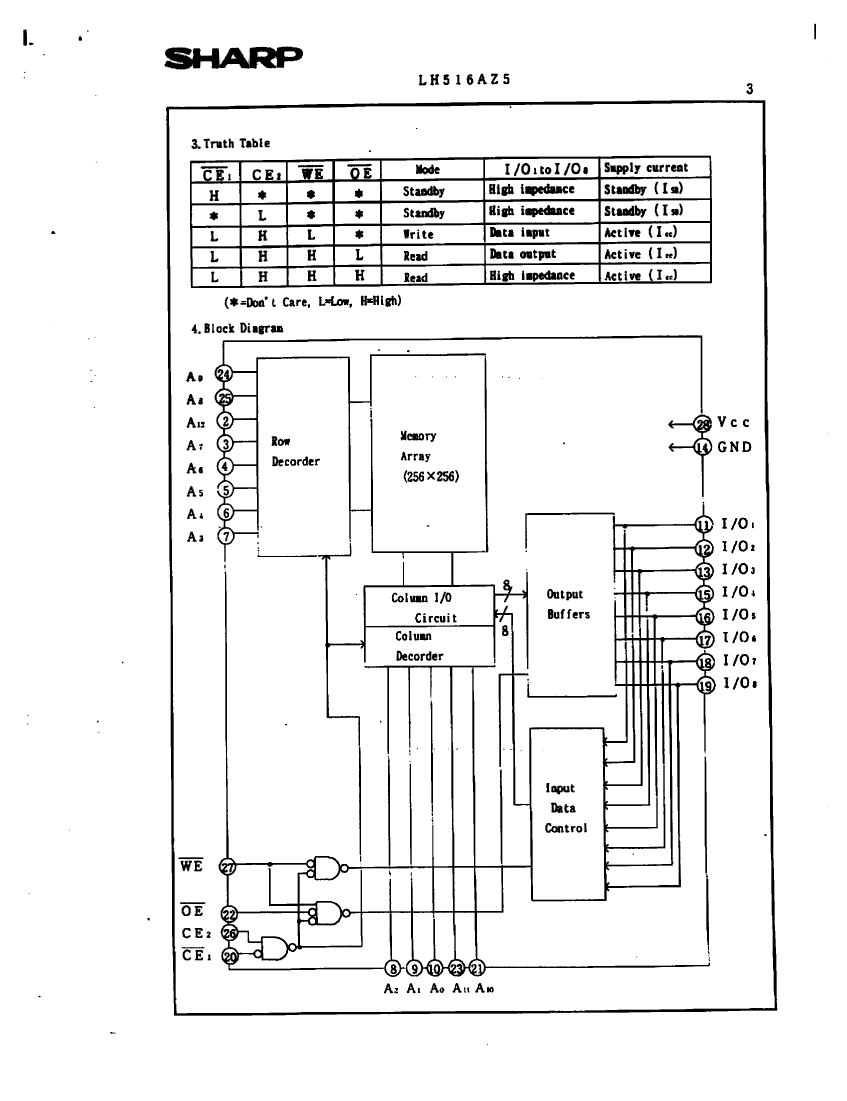

LH516AZ5E2 Overview

Standard SRAM, 8KX8, 200ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOP-28

Parameter Name	Attribute value
Maker	SHARP
package instruction	0.450 INCH, PLASTIC, SOP-28
Reach Compliance Code	unknown
Maximum access time	200 ns
JESD-30 code	R-PDSO-G28
length	18 mm
memory density	65536 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	60 °C
Minimum operating temperature	-30 °C
organize	8KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	2.6 mm
Minimum standby current	2 V
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	8.6 mm

	LH516AZ5E2	LH516AZ5E1
Description	Standard SRAM, 8KX8, 200ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOP-28	Standard SRAM, 8KX8, 200ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOP-28
Maker	SHARP	SHARP
package instruction	0.450 INCH, PLASTIC, SOP-28	0.450 INCH, PLASTIC, SOP-28
Reach Compliance Code	unknown	unknown
Maximum access time	200 ns	200 ns
JESD-30 code	R-PDSO-G28	R-PDSO-G28
length	18 mm	18 mm
memory density	65536 bit	65536 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM
memory width	8	8
Number of functions	1	1
Number of ports	1	1
Number of terminals	28	28
word count	8192 words	8192 words
character code	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	60 °C	60 °C
Minimum operating temperature	-30 °C	-30 °C
organize	8KX8	8KX8
Output characteristics	3-STATE	3-STATE
Exportable	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.6 mm	2.6 mm
Minimum standby current	2 V	2 V
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	OTHER	OTHER
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	8.6 mm	8.6 mm
