21RPT280TWRG4H-3C: DescriptionDual Color LED Array, High Efficiency Red/high Efficiency Green, Milky White, 5mm,; CategoryLED optoelectronic/LED photoelectric; File Size167KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric Compare View All

21RPT280TWRG4H-3C Overview

Dual Color LED Array, High Efficiency Red/high Efficiency Green, Milky White, 5mm,

21RPT280TWRG4H-3C Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	IC COMPATIBLE
color	HIGH EFFICIENCY RED/HIGH EFFICIENCY GREEN
Configuration	2 BANKS, COMMON CATHODE, 2 ELEMENTS
Maximum forward current	0.02 A
Lens type	MILKY WHITE
Nominal luminous intensity	5.6 mcd
Installation features	RADIAL MOUNT
Number of functions	2
Number of terminals	6
Optoelectronic device types	DUAL COLOR LED ARRAY
total height	12.7 mm
method of packing	BULK
peak wavelength	635/568 nm
shape	RECTANGULAR
size	5 mm
surface mount	NO
Terminal pitch	1.27 mm
perspective	125 deg
Base Number Matches	1

Preview

Download Datasheet

View All



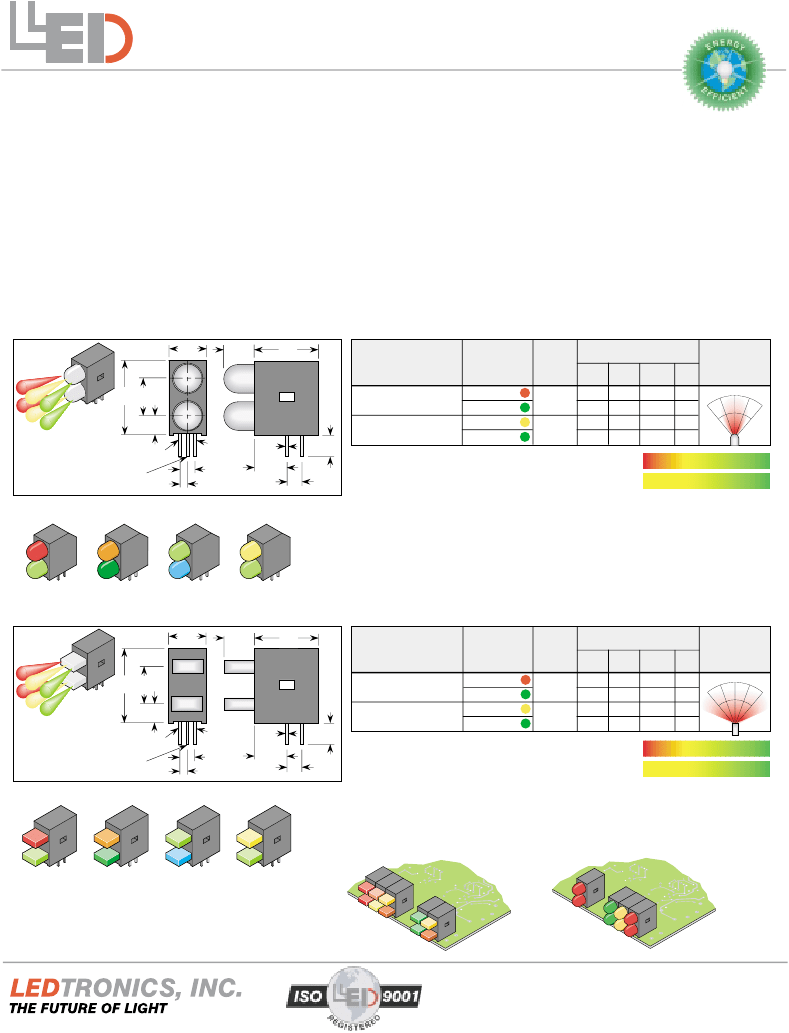

PCB Single or Bi-Level, Round & Rectangular

5mm Right Angle Tri-Color LEDs

Features

Applications

Options

•

Single Tri-Color PCB

Replaces Three Single

Color PCBs

•

Space Saving Design

•

Solid-State, High Shock/

Vibration Resistant

•

Long Life / 100,000+ Hours

•

Circuit Status/Logic

Status Fault Indicator

•

Fast Turn On/Off Time I.C.

Compatible

•

PCB Mounted Panel

Indicator

•

Black Nylon Plastic Block

Meets UL 94V-0 and

•

Telecom, Datacom

Bellcore Flammability

Specifications

•

Sunlight Visible Ultrabrights

•

Low Current (2mA)LEDs

•

3mm LED Versions

•

Tri-Color Clear Illuminators

•

Single Colors Available

•

High Intensity Wide

Angle Illumination

•

2 Year Warranty

5mm Tri-Color, Bi-Level, 3 Leaded Standard Dome

.250

[6.35]

.202

[5.13]

.430

[10.9]

Part Number

.500 .250

[12.7] [6.35]

.125

[3.17]

GREEN

ANODE (+)

.100

[2.54]

.020

[.508]

.220

[5.58]

.140

[3.56]

Color

HE. RED

HE. GREEN

YELLOW

HE. GREEN

Lens

Type/

Color

MILKY-

WHITE

MILKY-

WHITE

Electrical-Optical

Characteristics (Ta = 25˚C)

If = mA Iv mcd Vf = V

λP

typ

typ/max nm

Full Viewing

Angle

20

40

0

20

40

21PCT200TWRG4H-3C

21PCT200TWYG4H-3C

20

15.0 1.9/2.4 635

25.0 2.1/2.7 568

15.0 2.0/2.6 585

25.0 2.1/2.7 568

65˚

RED ANODE (+)

COMMON

CATHODE (–)

.050

[1.27]

.100

[2.54]

Special Notes:

1. Available with top or bottom LED position blank

Example: 21PCT200TW4H-X/RG-3C (Top blank)

2. Available in single same color in top and bottom position.

Example: 21PCT200TR4-140 (Red top and bottom)

3. Available in single mix color in top and bottom position.

Example: 21PCT200T4-Y/G-140 (Yellow top and Green bottom)

Optional Single Color Examples

2 x 5mm Tri-Color, Bi-Level, 3 Leaded Rectangular

.250

[6.35]

.202

[5.13]

.430

[10.9]

Part Number

Color

HE. RED

HE. GREEN

Lens

Type/

Color

MILKY-

WHITE

MILKY-

WHITE

Electrical-Optical

Characteristics (Ta = 25˚C)

If = mA Iv mcd Vf = V

typ

typ/max

λP

nm

Full Viewing

Angle

20

40

0

20

40

.500 .250

[12.7] [6.35]

.125

[3.17]

RED ANODE (+)

COMMON

CATHODE (–)

GREEN

ANODE (+)

.100

[2.54]

.020

[.508]

.220

[5.58]

.140

[3.56]

21RPT280TWRG4H-3C

20

5.6

2.5

4.0

1.9/2.4 635

2.1/2.7 568

2.0/2.6 585

2.1/2.7 568

21RPT280TWYG4H-3C YELLOW

HE. GREEN

125˚

Special Notes:

.100

[2.54]

.050

[1.27]

1. Available with top or bottom LED position blank

Example: 21RPT280TW4H-X/RG-3C (Top blank)

2. Available in single same color in top and bottom position.

Example: 21RPT280TR4-140 (Red top and bottom)

3. Available in single mix color in top and bottom position.

Example: 21RPT280T4-Y/G-140 (Yellow top and Green bottom)

Optional Single Color Examples



23105 Kashiwa Court, Torrance, CA 90505

Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424

E-mail: webmaster@ledtronics.com

Website: http://www.ledtronics.com

Log # 082 Rev 04-99

21RPT280TWRG4H-3C Related Products

	21RPT280TWRG4H-3C	21PCT200TWRG4H-3C	21PCT200TWYG4H-3C	21RPT280TWYG4H-3C
Description	Dual Color LED Array, High Efficiency Red/high Efficiency Green, Milky White, 5mm,	Dual Color LED Array, High Efficiency Red/high Efficiency Green, Milky White, T-1 3/4, 5mm,	Dual Color LED Array, Yellow/high Efficiency Green, Milky White, T-1 3/4, 5mm,	Dual Color LED Array, Yellow/high Efficiency Green, Milky White, 5mm,
Reach Compliance Code	unknow	unknow	unknow	unknow
Other features	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE
color	HIGH EFFICIENCY RED/HIGH EFFICIENCY GREEN	HIGH EFFICIENCY RED/HIGH EFFICIENCY GREEN	YELLOW/HIGH EFFICIENCY GREEN	YELLOW/HIGH EFFICIENCY GREEN
Configuration	2 BANKS, COMMON CATHODE, 2 ELEMENTS	2 BANKS, COMMON CATHODE, 2 ELEMENTS	2 BANKS, COMMON CATHODE, 2 ELEMENTS	2 BANKS, COMMON CATHODE, 2 ELEMENTS
Maximum forward current	0.02 A	0.02 A	0.02 A	0.02 A
Lens type	MILKY WHITE	MILKY WHITE	MILKY WHITE	MILKY WHITE
Nominal luminous intensity	5.6 mcd	15.0/25.0 mcd	15.0/25.0 mcd	2.5/4.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	2	2	2	2
Number of terminals	6	6	6	6
Optoelectronic device types	DUAL COLOR LED ARRAY	DUAL COLOR LED ARRAY	DUAL COLOR LED ARRAY	DUAL COLOR LED ARRAY
total height	12.7 mm	12.7 mm	12.7 mm	12.7 mm
method of packing	BULK	BULK	BULK	BULK
peak wavelength	635/568 nm	635/568 nm	585/568 nm	585/568 nm
shape	RECTANGULAR	ROUND	ROUND	RECTANGULAR
size	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
perspective	125 deg	65 deg	65 deg	125 deg
Base Number Matches	1	1	1	1
