NACHR47K50V4X6.3TR13F

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 10% +Tol, 10% -Tol, 0.47uF, Surface Mount, CHIP, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size147KB,2 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Download Datasheet Parametric View All

NACHR47K50V4X6.3TR13F Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 10% +Tol, 10% -Tol, 0.47uF, Surface Mount, CHIP, ROHS COMPLIANT

NACHR47K50V4X6.3TR13F Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerNichicon
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance0.47 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
Custom functionsOptional 10% Tolerance Contact NIC
diameter4 mm
dielectric materialsALUMINUM (WET)
ESR424000 mΩ
JESD-609 codee6
leakage current0.003 mA
length4 mm
Manufacturer's serial numberNACH
Installation featuresSURFACE MOUNT
negative tolerance10%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
Package formSMT
method of packingTR, 13 INCH
polarityPOLARIZED
positive tolerance10%
Rated (DC) voltage (URdc)50 V
ripple current5 mA
seriesNACH
surface mountYES
Delta tangent0.12
Terminal surfaceTin/Bismuth (Sn/Bi)
Terminal shapeFLAT

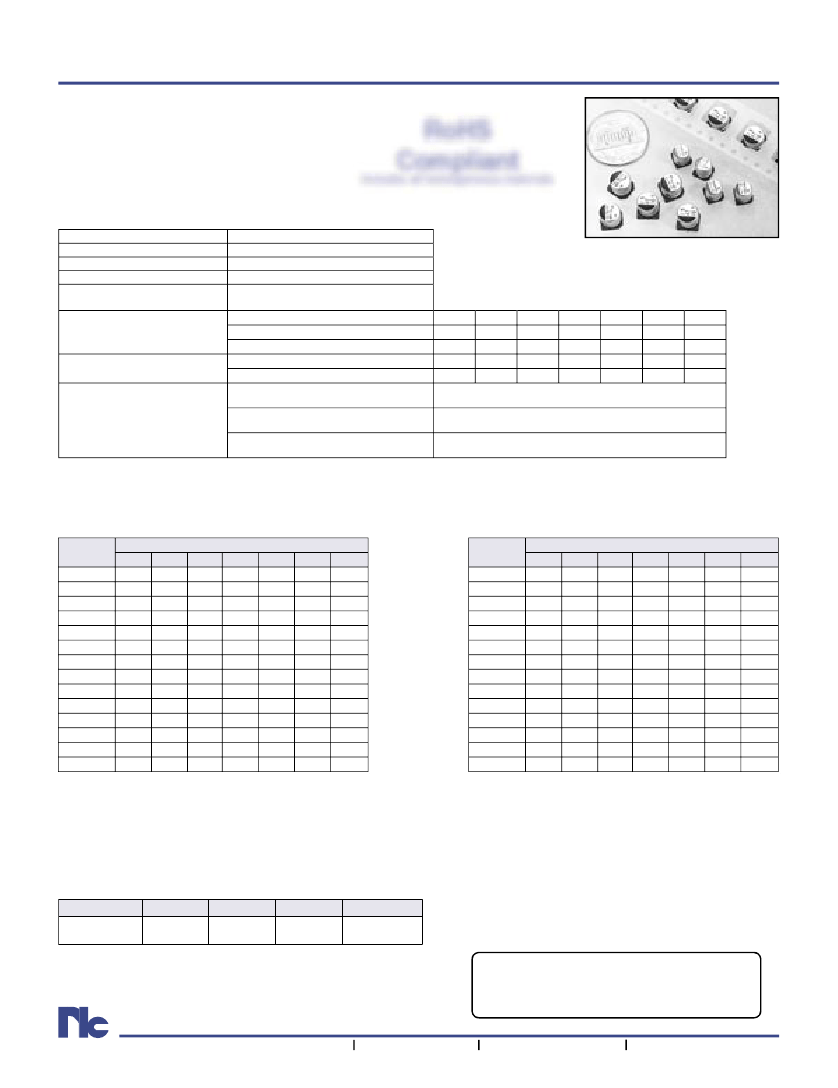

NACHR47K50V4X6.3TR13F Preview

Surface Mount Aluminum Electrolytic Capacitors
FEATURES
• CYLINDRICAL V-CHIP CONSTRUCTION
• WIDE TEMPERATURE -40° ~+105°C
• LONG LIFE (+105°C, 2000 HOURS)
• 6.3 mm MAXIMUM HEIGHT
• DESIGNED FOR REFLOW..SOLDERING
CHARACTERISTICS
Rated Voltage Range
Rate Capacitance Range
Operating Temp. Range
Capacitance Tolerance
Max. Leakage Current
After 2 Minutes @ 20°C
Working Voltage/Surge Voltage
Max. Tan
δ
@120Hz/20°C
Low Temperature Stability
Impedance Ratio @ 120Hz
Load Life Test @105°C
2,000 Hours
4 ~ 50Vdc
0.1 ~ 220µF
-40°C ~ +105°C
±20% (M), ±10% (K)*
0.01CV or 3µA
whichever is greater
W.V. (Vdc)
S.V. (Vdc)
Dissipation Factor
Z-40°C/Z+20°C
Z-55/Z+20°C
Capacitance Change
Tan
δ
Leakage Current
* Optional ± 10% (K) Tolerance available on most values. Contact factory for availability.
** DF is 0.16 for NACH470M25V6.3X8
NACH Series
includes all homogeneous materials
*See Part Number System for Details
RoHS
Compliant
4
5
0.50
7
12
6.3
8.0
0.30
4
8
10
13
0.22
3
6
16
20
0.16
2
4
25
32
0.14**
2
4
35
44
0.12
2
3
50
63
0.12
2
3
Within ±25% of initial measured value
Less than 200% of specified value
Less than specified value
MAXIMUM PERMISSIBLE RIPPLE CURRENT
(mA rms AT 120Hz AND 105
O
C)
Cap. (µF)
0.1
0.22
0.33
0.47
1.0
2.2
3.3
4.7
10
22
33
47
100
220
4.0
-
-
-
-
-
-
-
-
-
-
-
34
61
82
Working Voltage (Vdc)
6.3
10
16
25
35
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
22
-
-
-
28
-
28
26
-
39
-
55
29
43
-
65
-
46
-
70
-
-
71
-
-
-
-
-
-
-
-
-
50
1.0
2.0
3.0
5.0
10
16
16
23
35
-
-
-
-
-
MAXIMUM ESR
(Ω AT 120Hz AND 20
O
C)
Cap. (µF)
0.1
0.22
0.33
0.47
1.0
2.2
3.3
4.7
10
22
33
47
100
220
4.0
-
-
-
-
-
-
-
-
-
-
-
17.7
8.31
3.77
6.3
-
-
-
-
-
-
-
-
-
22.6
15.1
10.6
4.98
-
Working Voltage (Vdc)
10
16
25
35
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
49.5
-
-
26.6
-
19.9
-
12.1
-
9.05
11.1
-
7.05
-
-
5.66
-
-
-
-
-
-
-
-
-
-
50
1993
906
604
424
199
90.6
60.4
42.4
19.9
-
-
-
-
-
RIPPLE CURRENT FREQUENCY CORRECTION FACTOR
Frequency Hz
Correction
Factor
50
f<100 100
f<1K 1K
f<10K 10K
f < 100K
0.8
1.0
1.3
1.5
PRECAUTIONS
®
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process details with
NIC’s technical support personnel:
tpmg@niccomp.com
12
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Surface Mount Aluminum Electrolytic Capacitors
STANDARD PRODUCT AND CASE SIZE TABLE DφxL (mm)
½½½ ½µ½½
½½½
½½½½
½½½½
½½½½
½½½
½½½
½½½
½½½
½½
½½
½½
½½
½½½
½½½
½½½½
½½½
½½½
½½½
½½½
½½½
½½½
½½½
½½½
½½½
½½½
½½½
½½½
½½½
½½½
½½½½½½½ ½½½½½½½ ½½½½½
½½½
½
½
½
½
½
½
½
½
½
½
½
½½½½½
½½½½½
½½½½½½½
½½½
½
½
½
½
½
½
½
½
½
½½½½½
½½½½½
½½½½½
½½½½½½½
½
½½
½
½
½
½
½
½
½
½
½
½
½½½½½
½
½
½
½½
½
½
½
½
½
½
½
½
½½½½½
½½½½½
½
½½½½½½½
½
½
½½
½
½
½
½
½
½
½
½½½½½
½
½
½½½½½½½
½
½
½
½½
½
½
½
½
½
½
½
½
½½½½½
½½½½½½½
½
½
½
½
½½
½½½½½
½½½½½
½½½½½
½½½½½
½½½½½
½½½½½
½½½½½
½½½½½
½½½½½½½
½
½
½
½
½
W
0.3mm max.
NACH Series
L
+
I
I
-
A
P
B
DIMENSIONS (mm)
Case Size
4 x 6.3
5 x 6.3
6.3 x 6.3
Dφ ±0.5
4.0
5.0
6.3
L max.
6.3
6.3
6.3
A ±0.2
4.3
5.3
6.6
B ±0.2
4.3
5.3
6.6
I ±0.2
1.8
2.2
2.5
W
0.5 ~ 0.8
0.5 ~ 0.8
0.5 ~ 0.8
P ±0.2
1.0
1.5
2.2
PART NUMBER SYSTEM
NACH 100 M 35V
RoHS Compliant
97% Sn (min.), 3% Bi (max.)
330mm (13”) Reel
Tape & Reel
Size in mm
Working Voltage
Tolerance Code M=20%, K=10%
Capacitance Code in
µF,
first 2 digits are significant
Third digit is no. of zeros, “R” indicates decimal for
values under 10µF
5x6.3 TR 13 F
Series
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
13
