1N3155

Description
8.4 V, SILICON, VOLTAGE REFERENCE DIODE, DO-35
CategoryDiscrete semiconductor    diode
File Size149KB，2 Pages
ManufacturerDigitron
Websitehttp://www.digitroncorp.com
Download Datasheet Parametric Compare View All

1N3155 Online Shopping

Suppliers Part Number Price MOQ In stock
1N3155 - - View Buy Now

1N3155 Overview

8.4 V, SILICON, VOLTAGE REFERENCE DIODE, DO-35

1N3155 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerDigitron
Reach Compliance Codeunknow
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
Maximum dynamic impedance15 Ω
JEDEC-95 codeDO-35
JESD-30 codeO-LALF-W2
JESD-609 codee0
Number of components1
Number of terminals2
Maximum operating temperature175 °C
Minimum operating temperature-65 °C
Package body materialGLASS
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)NOT SPECIFIED
polarityUNIDIRECTIONAL
Maximum power dissipation0.5 W
Nominal reference voltage8.4 V
Maximum reverse current10 µA
Reverse test voltage5.5 V
surface mountNO
technologyZENER
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formWIRE
Terminal locationAXIAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Voltage temperatureCoeff-Max0.42 mV/°C
Maximum voltage tolerance4.76%
Working test current10 mA

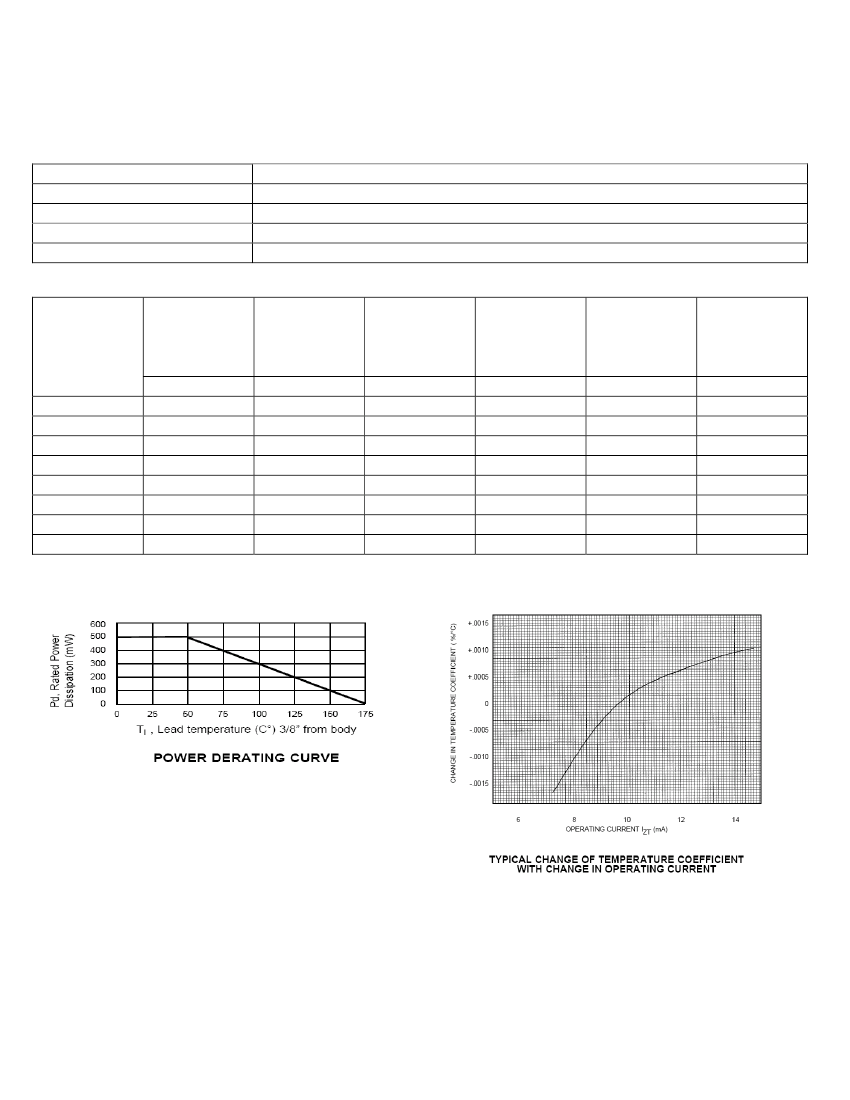

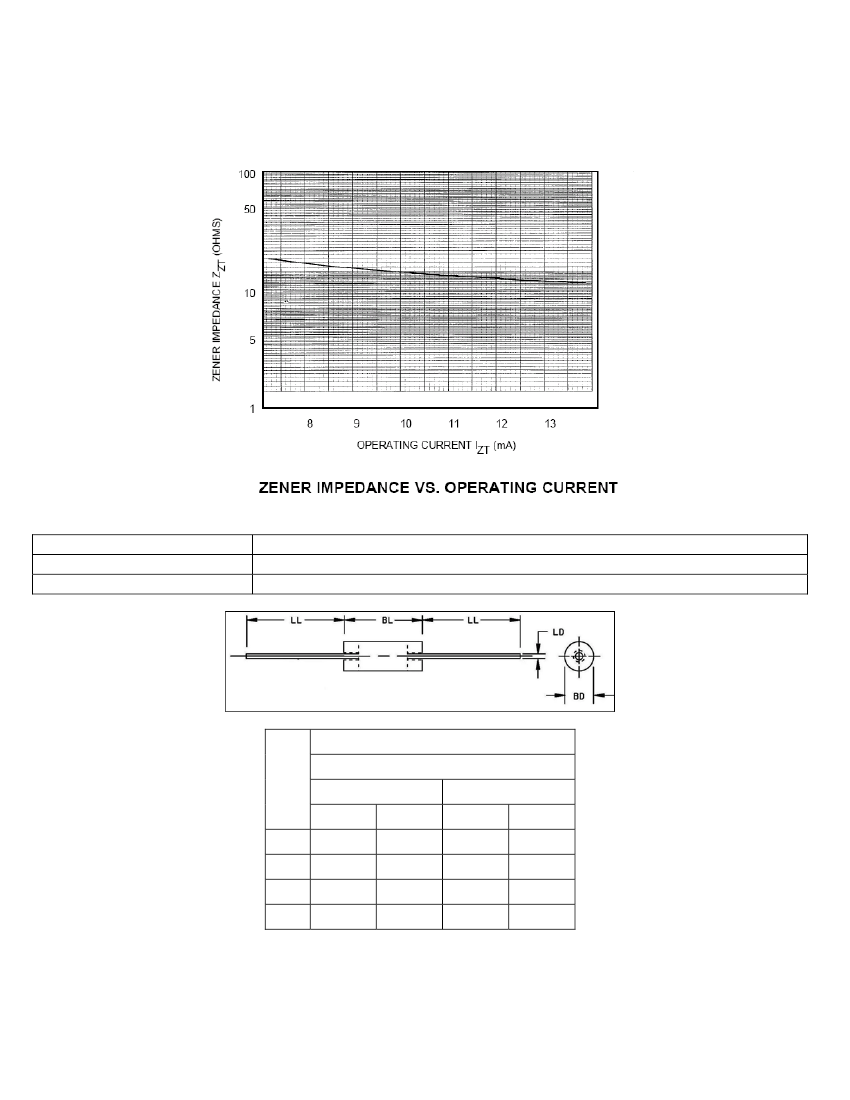

Preview

Download Datasheet
DIGITRON SEMICONDUCTORS
1N3154(A) -1N3157(A)
MAXIMUM RATINGS
Operating Temperature
Storage Temperature
DC Power Dissipation
Power Derating
Reverse Leakage Current
-65 to +175°C
-65 to +175°C
500 mW @ 50۠
°C
4 mW/°C above 50°C
I
R
= 10µA @ 25°C & V
R
= 5.5 Vdc
TEMPERATURE COMPENSATED ZENER DIODES
ELECTRICAL CHARACTERISTICS
Zener Voltage
V
Z
@ I
ZT
Volts
1N3154
1N3154A
1N3155
1N3155A
1N3156
1N3156A
1N3157
1N3157A
8.00-8.80
8.00-8.80
8.00-8.80
8.00-8.80
8.00-8.80
8.00-8.80
8.00-8.80
8.00-8.80
Zener Test
Current
I
ZT
mA
10
10
10
10
10
10
10
10
Maximum
Zener
Impedance
Z
ZT
Note 1
Ohms
15
15
15
15
15
15
15
15
Voltage
Temperature
Stability
V
ZT
maximum
Note 2
mV
130
172
65
86
26
34
13
17
Temperature
Range
Effective
Temperature
Coefficient
%/°C
.01
.01
.005
.005
.002
.002
.001
.001
Type Number
°C
-55 to +100
-55 to +150
-55 to +100
-55 to +150
-55 to +100
-55 to +150
-55 to +100
-55 to +150
Note 1: Zener impedance is derived by superimposing on I
ZT
A 60 Hz rms ac current equal to 10% of I
ZT
.
Note 2: The maximum allowable change observed over the entire temperature range. (The diode voltage will not exceed the specified mV at any discrete
temperature between the established limits.
144 Market Street
Kenilworth NJ 07033 USA
phone +1.908.245-7200
fax +1.908.245-0555
sales@digitroncorp.com
www.digitroncorp.com
Rev. 20120705

1N3155 Related Products

1N3155 1N3154 1N3154A 1N3155A 1N3156 1N3156A 1N3157 1N3157A
Description 8.4 V, SILICON, VOLTAGE REFERENCE DIODE, DO-35 SILICON, VOLTAGE REFERENCE DIODE, DO-7 8.4 V, SILICON, VOLTAGE REFERENCE DIODE, DO-7 8.4 V, SILICON, VOLTAGE REFERENCE DIODE, DO-7 8.4 V, SILICON, VOLTAGE REFERENCE DIODE, DO-7 8.4 V, SILICON, VOLTAGE REFERENCE DIODE, DO-7 8.4 V, SILICON, VOLTAGE REFERENCE DIODE, DO-35 8.4 V, SILICON, VOLTAGE REFERENCE DIODE, DO-35
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Reach Compliance Code unknow unknown unknow unknow unknown unknow unknow unknow
Shell connection ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON
Diode type ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE
Maximum dynamic impedance 15 Ω 15 Ω 15 Ω 15 Ω 15 Ω 15 Ω 15 Ω 15 Ω
JEDEC-95 code DO-35 DO-35 DO-35 DO-35 DO-35 DO-35 DO-35 DO-35
JESD-30 code O-LALF-W2 O-LALF-W2 O-LALF-W2 O-LALF-W2 O-LALF-W2 O-LALF-W2 O-LALF-W2 O-LALF-W2
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0
Number of components 1 1 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2 2 2
Maximum operating temperature 175 °C 175 °C 175 °C 175 °C 175 °C 175 °C 175 °C 175 °C
Minimum operating temperature -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C
Package body material GLASS GLASS GLASS GLASS GLASS GLASS GLASS GLASS
Package shape ROUND ROUND ROUND ROUND ROUND ROUND ROUND ROUND
Package form LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
polarity UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL
Maximum power dissipation 0.5 W 0.5 W 0.5 W 0.5 W 0.5 W 0.5 W 0.5 W 0.5 W
Nominal reference voltage 8.4 V 8.4 V 8.4 V 8.4 V 8.4 V 8.4 V 8.4 V 8.4 V
Maximum reverse current 10 µA 10 µA 10 µA 10 µA 10 µA 10 µA 10 µA 10 µA
Reverse test voltage 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V
surface mount NO NO NO NO NO NO NO NO
technology ZENER ZENER ZENER ZENER ZENER ZENER ZENER ZENER
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form WIRE WIRE WIRE WIRE WIRE WIRE WIRE WIRE
Terminal location AXIAL AXIAL AXIAL AXIAL AXIAL AXIAL AXIAL AXIAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Voltage temperatureCoeff-Max 0.42 mV/°C 0.84 mV/°C 0.84 mV/°C 0.42 mV/°C 0.17 mV/°C 0.17 mV/°C 0.08 mV/°C 0.08 mV/°C
Maximum voltage tolerance 4.76% 4.76% 4.76% 4.76% 4.76% 4.76% 4.76% 4.76%
Working test current 10 mA 10 mA 10 mA 10 mA 10 mA 10 mA 10 mA 10 mA
Maker Digitron Digitron Digitron Digitron Digitron Digitron Digitron -
