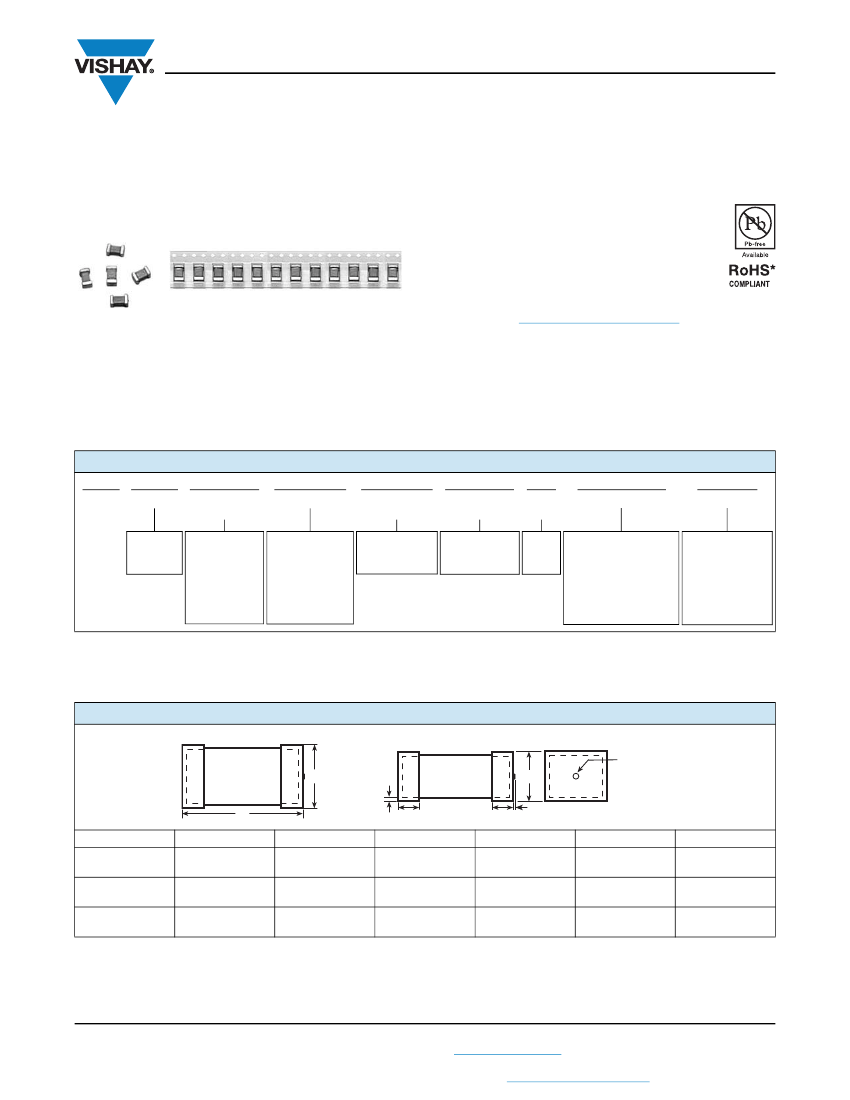

CWR26
www.vishay.com
Vishay Sprague
Solid Tantalum Surface Mount Capacitors
T
ANTAMOUNT®
Conformal Coated, Low ESR,
Military, MIL-PRF-55365/13 Qualified
FEATURES
•
•
•
•
Weibull failure rates B, C, T
Low ESR
Tape and reel available per EIA 481
Termination finishes available: Gold plate,
solder plated, solder fused, and hot solder
dipped
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
Lead (Pb)-containing terminations are not RoHS-compliant.
Exemptions may apply.
PERFORMANCE CHARACTERISTICS
Operating Temperature:
- 55 °C to + 125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
10 μF to 100 μF
Capacitance Tolerance:
± 5 %, ± 10 %, ± 20 %
Voltage Rating:
15 V
DC
to 35 V
DC
ORDERING INFORMATION
CWR26
TYPE
H
VOLTAGE
B
TERMINATION
FINISH
B = Gold
C = Hot solder
dipped
H = Solder
plated
K = Solder
fused
106
CAPACITANCE
K
CAPACITANCE
TOLERANCE
J=±5%
K = ± 10 %
M = ± 20 %
B
FAILURE RATE
%/1000 h
B = 0.1
C = 0.01
T = 0.01
(1)
F
CASE
CODE
F
G
H
A
SURGE CURRENT
/TR
PACKAGING
H = 15 V
K = 25 V
M = 35 V
This is expressed
in picofarads. The
first two digits are
the significant
figures. The third
is the number of
zeros to follow.
A = 3 cycles at + 25 °C
B = 3 cycles
at - 55 °C and + 85 °C
C = 3 cycles
at - 55 °C and + 85 °C
(before Weibull grading)
Z = No surge current
Blank = Bulk,
plastic tray
/FA = Waffle pack
/PR = 100 pcs
reel
/HR = Half reel
/TR = Full reel
Note
(1)
T level requires surge current option “C”. Capacitors are recommended for “space applications”. Shipped in tape and reel/or waffle
packaging only.
DIMENSIONS
in inches [millimeters]
-
+
Weld and
dimple
projection
identifies
anode (+)
terminal
W
T
1
L
P
P
H
T
2
(max.)
CASE CODE
F
G
H
L
0.220 ± 0.015
[5.59 ± 0.38]
0.265 ± 0.015
[6.73 ± 0.38]
0.285 ± 0.015
[7.24 ± 0.38]
W
0.135 ± 0.015
[3.43 ± 0.38]
0.110 ± 0.015
[2.79 ± 0.38]
0.150 ± 0.015
[3.81 ± 0.38]
H
0.070 ± 0.015
[1.78 ± 0.38]
0.110 ± 0.015
[2.79 ± 0.38]
0.110 ± 0.015
[2.79 ± 0.38]
P
0.030 ± 0.005
[0.76 ± 0.13]
0.050 ± 0.005
[1.27 ± 0.13]
0.050 ± 0.005
[1.27 ± 0.13]
T
1
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
T
2
(max.)
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
Note
• When solder coated terminations are required, add 0.015" [0.38 mm] to termination dimension tolerance.
Revision: 27-Feb-13
Document Number: 40163
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CWR26
www.vishay.com
Vishay Sprague
RATINGS AND CASE CODES
μF
10
22
33
100
15 V
F
G
F
H
25 V
G
35 V
H
STANDARD RATINGS
MAX. DCL (μA) AT
CAPACITANCE CASE
(μF)
CODE
PART NUMBER
+ 25 °C
+ 85 °C
+ 125 °C + 25 °C
MAX. DF (%) AT
+ 85 °C
+ 125 °C
- 55 °C
MAX. ESR
AT + 25 °C
100 kHz
()
15 V
DC
AT + 85 ºC; 10 V
DC
AT + 125 ºC
10
22
33
100
F
G
F
H
CWR26H(1)106(2)(3)F(4)(5)
CWR26H(1)226(2)(3)G(4)(5)
CWR26H(1)336(2)(3)F(4)(5)
CWR26H(1)107(2)(3)H(4)(5)
2
4
5
15
20
40
50
150
24
48
60
180
6
6
6
10
8
8
8
12
8
8
8
12
0.667
0.275
0.800
0.180
25 V
DC
AT + 85 ºC; 17 V
DC
AT + 125 ºC
10
G
CWR26K(1)106(2)(3)G(4)(5)
3
30
36
6
8
8
0.350
35 V
DC
AT + 85 ºC, 23 V
DC
AT + 125 ºC
10
Note
• Part number definitions:
(1) Termination finish: B, C, H, K
(2) Capacitance tolerance: J, K, M
(3) Failure rate: B, C, T
(4) Surge current: A, B, C, Z
(5) Packaging: Blank, /FA, /HR, /PR, /TR
H
CWR26M(1)106(2)(3)H(4)(5)
4
40
48
8
10
10
0.500
Revision: 27-Feb-13
Document Number: 40163
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CWR26
www.vishay.com
Vishay Sprague

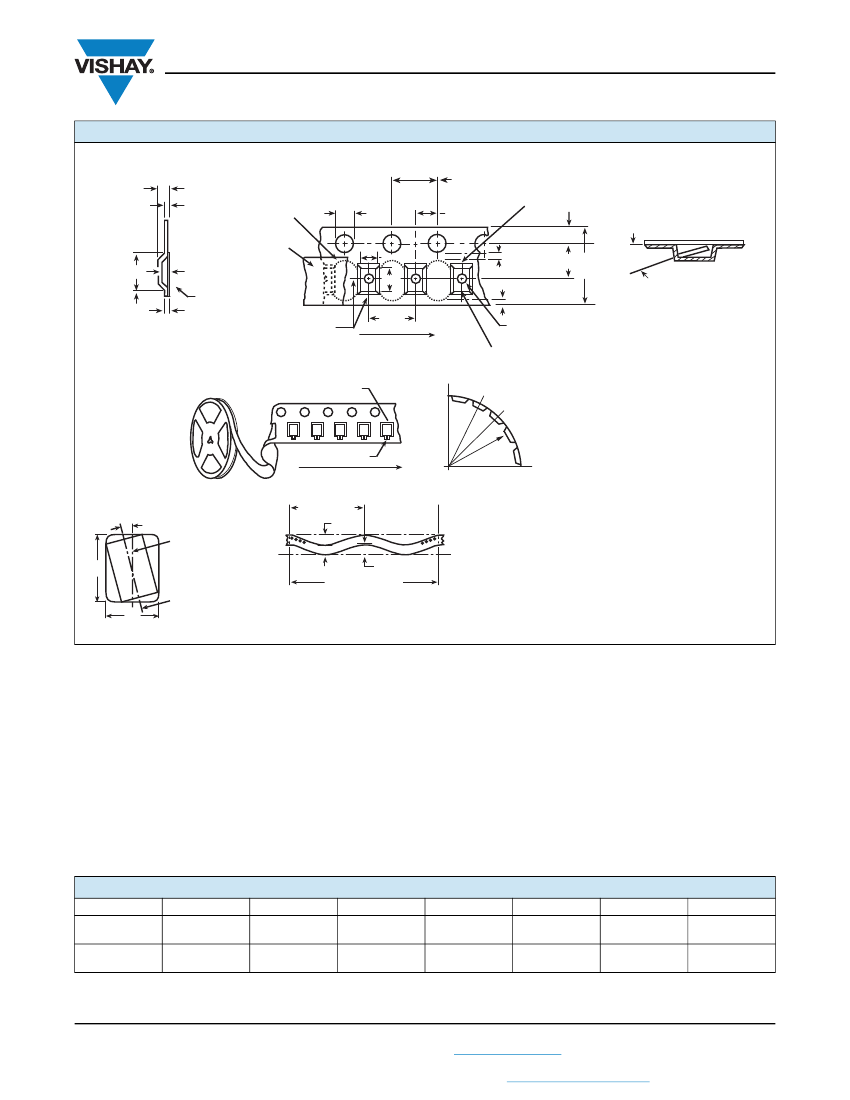

TAPE AND REEL PACKAGING
in inches [millimeters]
T
2
(max.)
0.024
[0.600]
max.
0.157 ± 0.004
[4.0 ± 0.10]
Deformation
between
embossments
Top
cover
tape
B
1
(max.)
(6)
0.059 + 0.004 - 0.0
[1.5 + 0.10 - 0.0]
10 pitches cumulative
tolerance on tape
± 0.008 [0.200]
Embossment
0.079 ± 0.002
0.069 ± 0.004
[2.0 ± 0.05]
[1.75 ± 0.10]
A
0
B
0
K
0
Top
cover
tape
0.030 [0.75]
min.
(3)
0.030 [0.75]
min.
(4)
F
W
20°
Maximum
component
rotation
(Side or front sectional view)
For tape feeder
reference only
including draft.
Concentric around B
0
0.004 [0.10]
max.
Center lines
of cavity
P
1
USER DIRECTION
OF FEED
D
1
(min.) for components
.
0.079 x 0.047 [2.0 x 1.2] and larger
(5)
Maximum
cavity size
(1)
Cathode (-)
Anode (+)
DIRECTION OF FEED
20° maximum
component rotation
Typical
component
cavity
center line
Typical
component
center line
3.937 [100.0]
0.039 [1.0]
max.
Tape
0.039 [1.0]
max.
0.9843 [250.0]
Camber
(Top view)
Allowable camber to be 0.039/3.937 [1/100]
Non-cumulative over 9.843 [250.0]
R
min.
Bending radius
(2)
R minimum:
8 mm = 0.984" (25 mm)
12 mm and 16 mm = 1.181" (30 mm)
B
0
Tape and reel specifications:
All case sizes are
available on plastic embossed tape per EIA-481.
Standard reel diameter is 7" (178 mm).
A
0
(Top view)
Notes
• Metric dimensions will govern. Dimensions in inches are rounded and for reference only.
(1)
A , B , K , are determined by the maximum dimensions to the ends of the terminals extending from the component body and/or the body
0
0
0
dimensions of the component. The clearance between the ends of the terminals or body of the component to the sides and depth of the
cavity (A
0
, B
0
, K
0
) must be within 0.002" (0.05 mm) minimum and 0.020" (0.50 mm) maximum. The clearance allowed must also prevent
rotation of the component within the cavity of not more than 20°.
(2)
Tape with components shall pass around radius “R” without damage. The minimum trailer length may require additional length to provide
“R” minimum for 12 mm embossed tape for reels with hub diameters approaching N minimum.
(3)
This dimension is the flat area from the edge of the sprocket hole to either outward deformation of the carrier tape between the embossed
cavities or to the edge of the cavity whichever is less.
(4)
This dimension is the flat area from the edge of the carrier tape opposite the sprocket holes to either the outward deformation of the carrier
tape between the embossed cavity or to the edge of the cavity whichever is less.
(5)
The embossed hole location shall be measured from the sprocket hole controlling the location of the embossement. Dimensions of
embossement location shall be applied independent of each other.
(6)
B dimension is a reference dimension tape feeder clearance only.
1
CARRIER TAPE DIMENSIONS
in inches [millimeters]
CASE CODE
F
G, H
TAPE SIZE
12 mm
double pitch
16 mm
B
1
(max.)
0.323 [8.2]
0.476 [12.1]
D
1
(min.)
0.059 [1.5]
0.059 [1.5]
F
0.217 ± 0.002
[5.5 ± 0.05]
0.295 ± 0.004
[7.5 ± 0.1]
P
1
0.315 ± 0.004
[8.0 ± 0.10]
0.315 ± 0.004
[8.0 ± 0.10]
T
2
(max.)
0.256
[6.5]
0.315
[8.0]
W
0.472 ± 0.012
[12.0 ± 0.30]
0.642 max.
[16.3] max.
Revision: 27-Feb-13
Document Number: 40163
3
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CWR26
www.vishay.com
Vishay Sprague
QUANTITY (PCS/REEL)
STANDARD PACKAGING QUANTITY
CASE CODE
F
G
H
7", FULL REEL
(/TR)
1000
600
600
7", HALF REEL
(/HR)
500
300
300
7", PARTIAL REEL
(/PR)
100
100
100
BULK, PLASTIC
TRAY QUANTITY
(PCS)
75
60
50
Notes
• Bulk capacitors are shipped in plastic trays
• T level capacitors are only shipped in tape and reel/or waffle packaging. Contact factory for waffle pack quantities.
PAD DIMENSIONS
in inches [millimeters]
B
C
B
A
CASE CODE
F
G
H
WIDTH (A)
0.150 [3.8]
0.125 [3.2]
0.165 [4.2]
PAD METALLIZATION (B)
0.070 [1.8]
0.070 [1.8]
0.090 [2.3]
SEPARATION (C)
0.140 [3.6]
0.170 [4.3]
0.170 [4.3]
POWER DISSIPATION
CASE CODE
F
G
H
MAXIMUM PERMISSIBLE POWER DISSIPATION AT + 25 °C (W) IN FREE AIR
0.110
0.120
0.150
PRODUCT INFORMATION
Conformal Coated Guide
Pad Dimensions
Package Dimensions
Moisture Sensitivity
SELECTOR GUIDES
Solid Tantalum Selector Guide
Solid Tantalum Chip Capacitors
FAQ
Frequently Asked Questions
www.vishay.com/doc?40110
www.vishay.com/doc?49053
www.vishay.com/doc?40091
www.vishay.com/doc?40135
www.vishay.com/doc?40150
Revision: 27-Feb-13
Document Number: 40163
4
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please
contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free
requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference
to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21
conform to JEDEC JS709A standards.
Revision: 02-Oct-12
1
Document Number: 91000
京公网安备 11010802033920号
EEWORLD
