BZD27C Series
1 W Surface Mount Zener Diode
Voltage
11 to 220 V
Current
1W
DO-219AA (M1F)
FEATURES
Low profile package
Ideal for automated placement
Low leakage current
High surge current and zener capability
Low differential resistance
Tolerance series ± 5%
Low forward voltage drop
Solder dip 260ºC, 10s
AEC-Q101 qualified
Component in accordance to RoHS 2011/65/EU
and WEEE 2002/96/EC
Meets MSL level 1, per J-STD-020, LF maximum
peak of 260º C
MECHANICAL DATA
Case
:
DO-219AA (M1F). Epoxy meets UL 94V-0
flammability rating.
Polarity
:
Color band denotes cathode end.
Terminals
:
Matte tin plated leads, solderable per
MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.
Consumer grade, meets JESD 201 class 1A whisker test
TYPICAL APPLICATIONS
Used for basic regulation functions in most electronic
applications, Zener diodes offer a cheaper alternative to IC
solutions.
Maximum Ratings and Electrical Characteristics at 25 ºC
SYMBOL
TYPE NUMBER
Forward Voltage
Power Dissipation
@ IF = 0.2A
TL = 80 °C
TA = 25 °C (Note 1)
Non-Repetitive Peak Pulse Power Dissipation
100 µs square pulse (Note 2)
Non-Repetitive Peak Pulse Power Dissipation
10/1000 µs waveform (BZD27-C7V5P to BZD27-C100P)
(Note 2)
Non-Repetitive Peak Pulse Power Dissipation
Value
1.2
2.3
1
300
Unit
V
W
W
V
F
Ptot
P
ZSM
P
RSM
150
W
P
RSM
R.
JA
R.
JC
T
j
- T
stg
Notes:
10/1000 µs waveform (BZD27-110P to BZD27-C220P)
(Note 2)
100
180
30
-65 to + 150
W
°C/W
°C/W
°C
Thermal Resistance Junction to Ambient Air
(Note 1)
Thermal Resistance Junction to lead
Operating and Storage Temperature Range
µmthick)
1.Mounted on Epoxy-Glass PCB with 3 x 3 mm Cu pads (
³40
2. T
j
= 25
°C
Prior to surge
.
www.fagorelectronica.com
Document Name: bzd27c series
Version: Mar-12
Page Number: 1/6
BZD27C Series
1 W Surface Mount Zener Diode
Ordering information
PREFERRED P/N
BZD27C11P TRTB
BZD27C11P TRTS
PACKAGE CODE
TRTB
TRTS
DELIVERY MODE
13" diameter tape and reel
8" diameter tape and reel
BASE QUANTITY
7,500
1,800
UNIT WEIGHT (g)
0.0196
0.0196

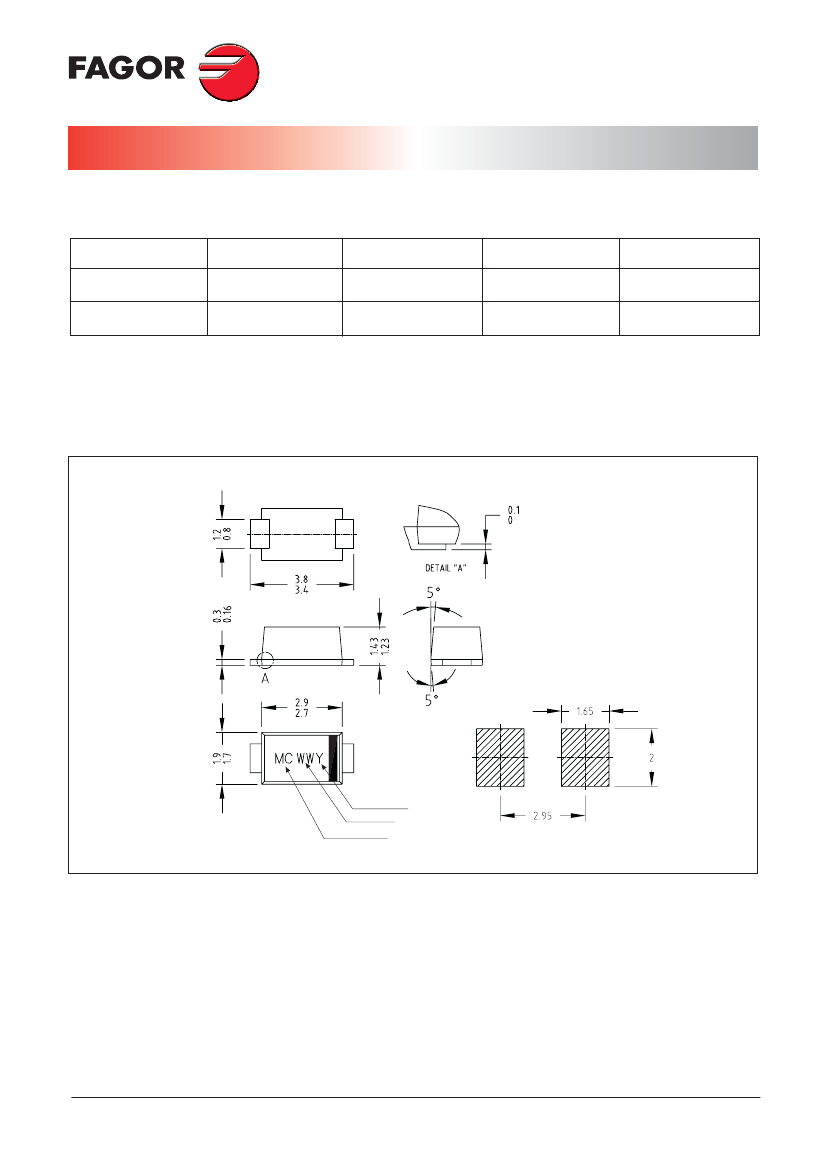

Package Outline Dimensions: (mm)
DO-219AA (M1F)
Mounting Pad Layout
Year code
Week code
Marking code
www.fagorelectronica.com
Document Name: bzd27c series
Version: Mar-12
Page Number: 2/6
BZD27C Series
1 W Surface Mount Zener Diode
Ratings and Characteristics
(Ta 25 ºC unless otherwise noted)
Working Voltage
Device
Device
Marking
Code
Z11
Z12
Z13
Z15
Z16
Z18
Z24
Z27
Z33
Z36
Z39
Z43
Z47
Z62
Z68
10Z
12Z
20Z
22Z
Differential
Resistance
r
dif
@
I
Z
W
typ
4.0
4.0
5.0
5.0
6.0
6.0
7.0
7.0
8.0
21
21
24
24
25
25
60
150
350
430
Max.
7
7
10
10
15
15
15
15
15
40
40
45
45
80
80
200
300
750
900
Temperature
Coefficient
ALPH
Z
@
I
Z
% / °C
Min.
0.05
0.05
0.05
0.05
0.06
0.06
0.06
0.06
0.06
0.06
0.06
0.07
0.07
0.08
0.08
0.09
0.09
0.09
0.09
Max.
0.10
0.10
0.10
0.10
0.11
0.11
0.11
0.11
0.11
0.11
0.11
0.12
0.12
0.13
0.13
0.13
0.13
0.13
0.13
Reverse Current @
Test
Current
I
ZT
mA
50
50
50
25
25
25
25
25
25
10
10
10
10
10
10
4
4
4
4
(Note 1)
V
Z
@
I
ZT
V
Min.
Max.
11.6
12.7
14.1
15.6
17.1
19.1
25.6
28.9
35
38
41
46
50
66
72
106
127
212
233
10.4
11.4
12.4
13.8
15.3
16.8
22.8
25.1
31
34
37
40
44
58
64
94
114
188
208
Reverse Voltage
I
R
µA
Max.
4.0
3.0
2.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
V
R
V
8.2
9.1
10
11
12
13
18
20
24
27
30
33
36
47
51
75
91
150
160
BZD27C11P
BZD27C12P
BZD27C13P
BZD27C15P
BZD27C16P
BZD27C18P
BZD27C24P
BZD27C27P
BZD27C33P
BZD27C36P
BZD27C39P
BZD27C43P
BZD27C47P
BZD27C62P
BZD27C68P
BZD27C100P
BZD27C120P
BZD27C200P
BZD27C220P
Notes: 1. Pulse test: tp
£
5ms.
Electrical characteristics when used as voltage regulator diodes
www.fagorelectronica.com
Document Name: bzd27c series
Version: Mar-12
Page Number: 3/6
BZD27C Series
1 W Surface Mount Zener Diode
Ratings and Characteristics
(Ta 25 ºC unless otherwise noted)
Notes: 1. Non-repetitive peak reverse current in accordance with "IEC 60-1, Section 8" (10/1000 µs pulse)

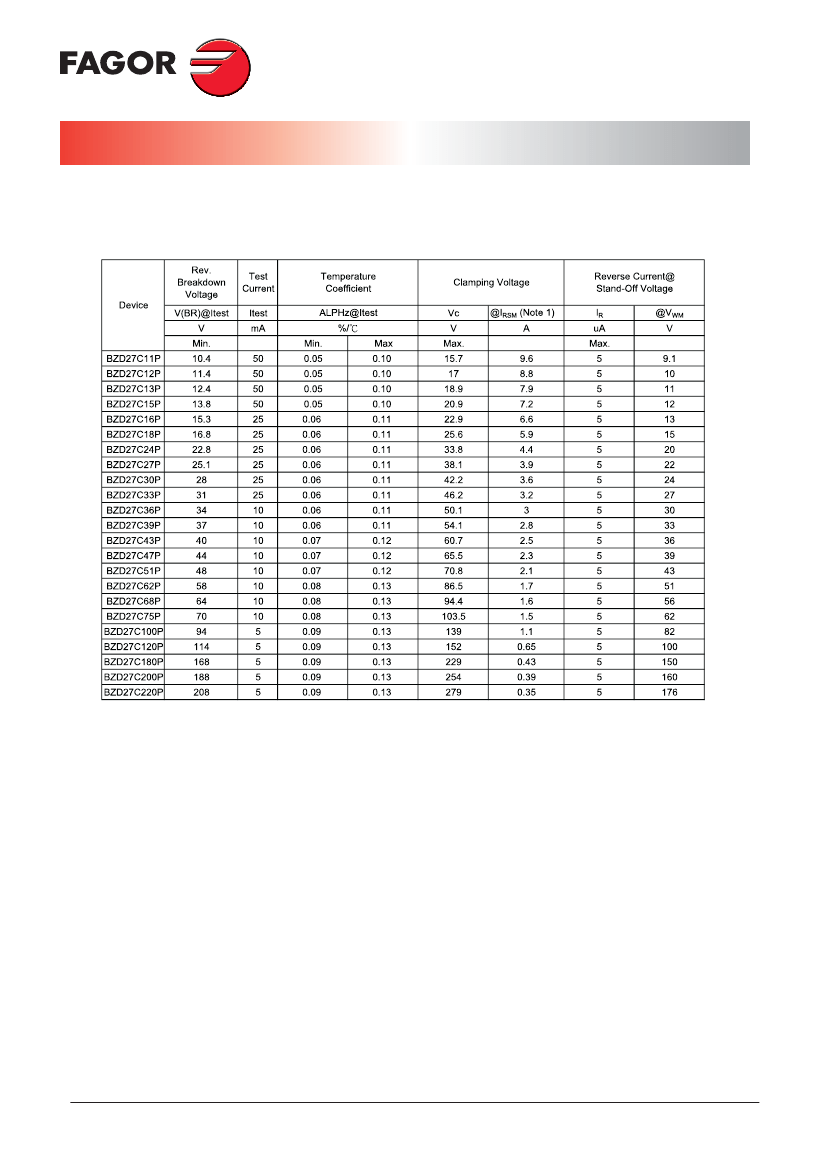

Electrical characteristics when used as protection diodes
www.fagorelectronica.com
Document Name: bzd27c series
Version: Mar-12
Page Number: 4/6
BZD27C Series
1 W Surface Mount Zener Diode
Ratings and Characteristics
(Ta 25 ºC unless otherwise noted)
FORWARD CURRENT vs FORWARD
VOLTAGE
10
10000
TYP. DIODE CAPACITANCE vs
REVERSE VOLTAGE
C
D
, Typ. junction capacitance (pF)
I
F
, forward current (A)
1000
C12P
1
TYP. V
F
MAX. V
F
100
C27P
C200P
0.1
0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6
10
0.0 0.5
1.0
1.5
2.0 2.5
3.0
V
F
, forward voltage (V)
POWER DISSIPATION vs AMBIENT
TEMPERATURE
P
PDM
, Max. pulse power dissipation (W)
3.0
V
R
, reverse voltage (V)
MAXIMUM PULSE POWER DISSIPATION vs
ZENER VOLTAGE
160
140
120
100
80
60
40
20
0
0
25 50 75 100 125 150 175 200
P
D
, power dissipation (W)
2.5
2.0
1.5
1.0
0.5
0
0
25
25
75 100 125 150 175
T
amb
, ambient temperature °C
V
z
, zener voltage (V)
www.fagorelectronica.com
Document Name: bzd27c series
Version: Mar-12
Page Number: 5/6
