BAV23CQ-7-F

Description
Rectifier Diode, 2 Element, 0.4A, 250V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-3
CategoryDiscrete semiconductor    diode
File Size299KB，4 Pages
ManufacturerDiodes Incorporated
Environmental Compliance
Download Datasheet Parametric View All

BAV23CQ-7-F Online Shopping

Suppliers Part Number Price MOQ In stock
BAV23CQ-7-F - - View Buy Now

BAV23CQ-7-F Overview

Rectifier Diode, 2 Element, 0.4A, 250V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-3

BAV23CQ-7-F Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerDiodes Incorporated
package instructionSOT23, 3 PIN
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time19 weeks
Other featuresLOW LEAKAGE CURRENT
applicationHIGH VOLTAGE FAST RECOVERY
Minimum breakdown voltage250 V
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.25 V
JESD-30 codeR-PDSO-G3
JESD-609 codee3
Humidity sensitivity level1
Maximum non-repetitive peak forward current1.7 A
Number of components2
Phase1
Number of terminals3
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Maximum output current0.4 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Maximum power dissipation0.35 W
GuidelineAEC-Q101
Maximum repetitive peak reverse voltage250 V
Maximum reverse current0.1 µA
Maximum reverse recovery time0.05 µs
Reverse test voltage200 V
surface mountYES
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal locationDUAL

BAV23CQ-7-F Preview

BAV23A/C/S
SURFACE MOUNT HIGH VOLTAGE DUAL SWITCHING DIODE
Features
Fast Switching Speed
Surface Mount Package Ideally Suited for Automated Insertion
High Reverse Breakdown Voltage
Low Leakage Current
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
SOT23
Case: SOT23
Case Material: Molded Plastic.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Lead Free Plating (Matte Tin Finish Annealed over Alloy 42
Leadframe).
Polarity: See Diagrams Below
Weight: 0.008 grams (Approximate)
NEW PRODUCT
Top View
BAV23A
BAV23C
BAV23S
Ordering Information
(Note 4)
Part Number
BAV23A-7-F
BAV23A-13-F
BAV23AQ-7-F
BAV23AQ-13-F
BAV23C-7-F
BAV23C-13-F
BAV23CQ-7-F
BAV23CQ-13-F
BAV23S-7-F
BAV23S-13-F
BAV23SQ-13-F
Notes:
Qualification
Commercial
Commercial
Automotive
Automotive
Commercial
Commercial
Automotive
Automotive
Commercial
Commercial
Automotive
Case
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
Packaging
3,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
XXX = Product Type Marking Code
ex. KT7 = BAV23A
KT6 = BAV23C
KL31 = BAV23S
YM = Date Code Marking
Y = Year (ex: F = 2018)
M = Month (ex: 9 = September)
XXX
Date Code Key
Year
2003
Code
Month
Code
P
Jan
1
2004
R
Feb
2
2005
S
Mar
3
2006
T
Apr
4
…..
…..
May
5
YM
2018
F
2019
G
Jun
6
Jul
7
2020
H
2021
I
Aug
8
2022
J
Sep
9
2023
K
Oct
O
2024
L
Nov
N
2025
M
Dec
D
June 2018
BAV23A/C/S
Document number: DS30042 Rev. 17 - 2
1 of 4
www.diodes.com
© Diodes Incorporated
BAV23A/C/S

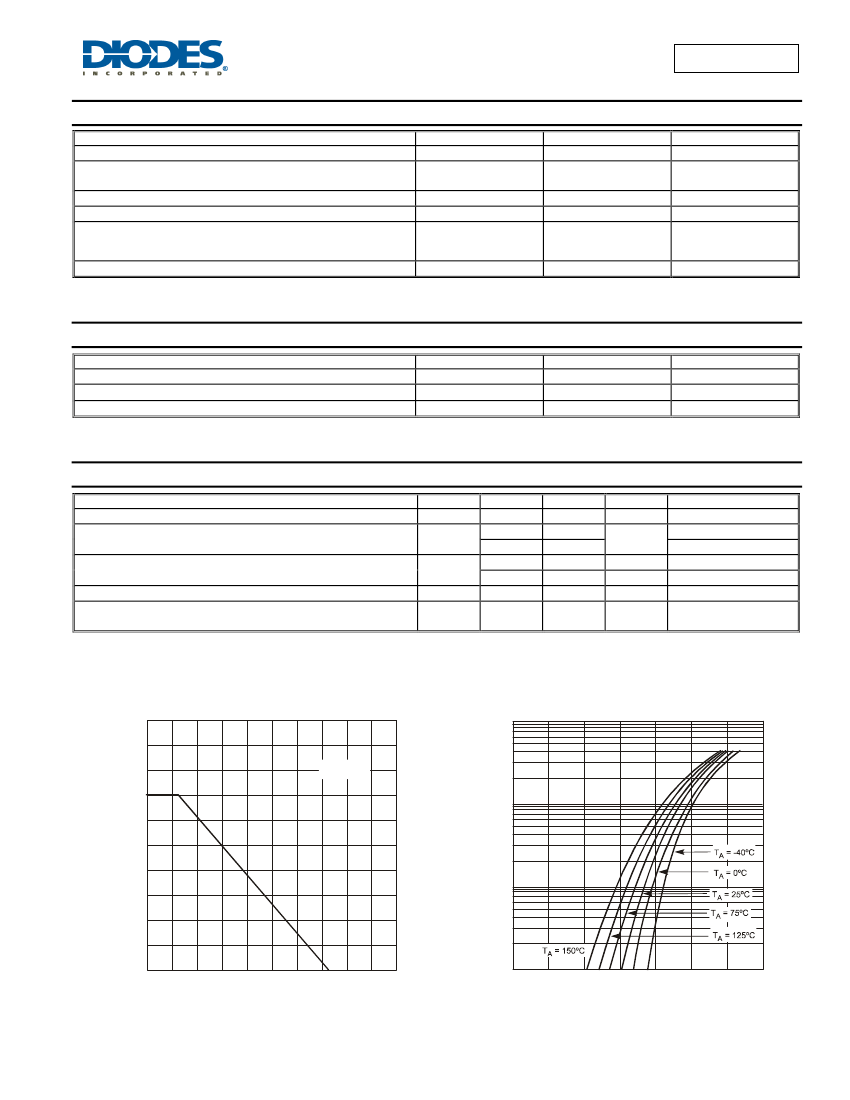

Maximum Ratings
(
@T
A
= 25°C, unless otherwise specified.)
Characteristic
Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 5, Note 7)
Non-Repetitive Peak Forward Surge Current
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
@ t = 1.0µs
@ t = 100µs
@ t = 10ms
I
FSM
I
FRM
Value
250
200
141
400
9.0
3.0
1.7
625
Unit
V
V
V
mA
A
mA
NEW PRODUCT
Repetitive Peak Forward Surge Current (Note 5)
Thermal Characteristics
Characteristic
Power Dissipation (Note 5)
Thermal Resistance Junction to Ambient Air (Note 5)
Operating and Storage Temperature Range
Symbol
P
D
R
JA
T
J
, T
STG
Value
350
357
-65 to +150
Unit
mW
C/W
C
Electrical Characteristics
(
@T
A
= 25°C, unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 6)
Forward Voltage
Reverse Current (Note 6)
Total Capacitance
Reverse Recovery Time
Notes:
Symbol
V
(BR)R
V
F
I
R
C
T
t
rr
Min
250


Max
1.0
1.25
100
100
5.0
50
Unit
V
V
nA
µA
pF
ns
Test Condition
I
R
= 100µA
I
F
= 100mA
I
F
= 200mA
V
R
= 200V, T
J
= 25C
V
R
= 200V, T
J
= 150C
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 30mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
5. Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com.
6. Short duration pulse test used to minimize self-heating effect.
7. Double Diode Loaded in Parallel. For Single Diode or Double Diode Loaded in Series, the continuous forward current should be reduced by half.
400
Note
Note 5
4
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
500
1
P
D
, POWER DISSIPATION (mW)
0.1
300
200
0.01
100
0
0
40
80
120
160
200
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 1 Power Derating Curve, Total Package
0.001
0
0.2
0.4
0.8
1.0
0. 6
1.2
1.4
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics, Per Element
BAV23A/C/S
Document number: DS30042 Rev. 17 - 2
2 of 4
www.diodes.com
June 2018
© Diodes Incorporated
BAV23A/C/S
100
4.0
3.5
C
T
, TOTAL CAPACITANCE (pF)
10
3.0
2.5
2.0
1.5
1.0
0.5
0.0
1
NEW PRODUCT
0.1
0.01
0.001
0.0001
150
200
50
250
100
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)

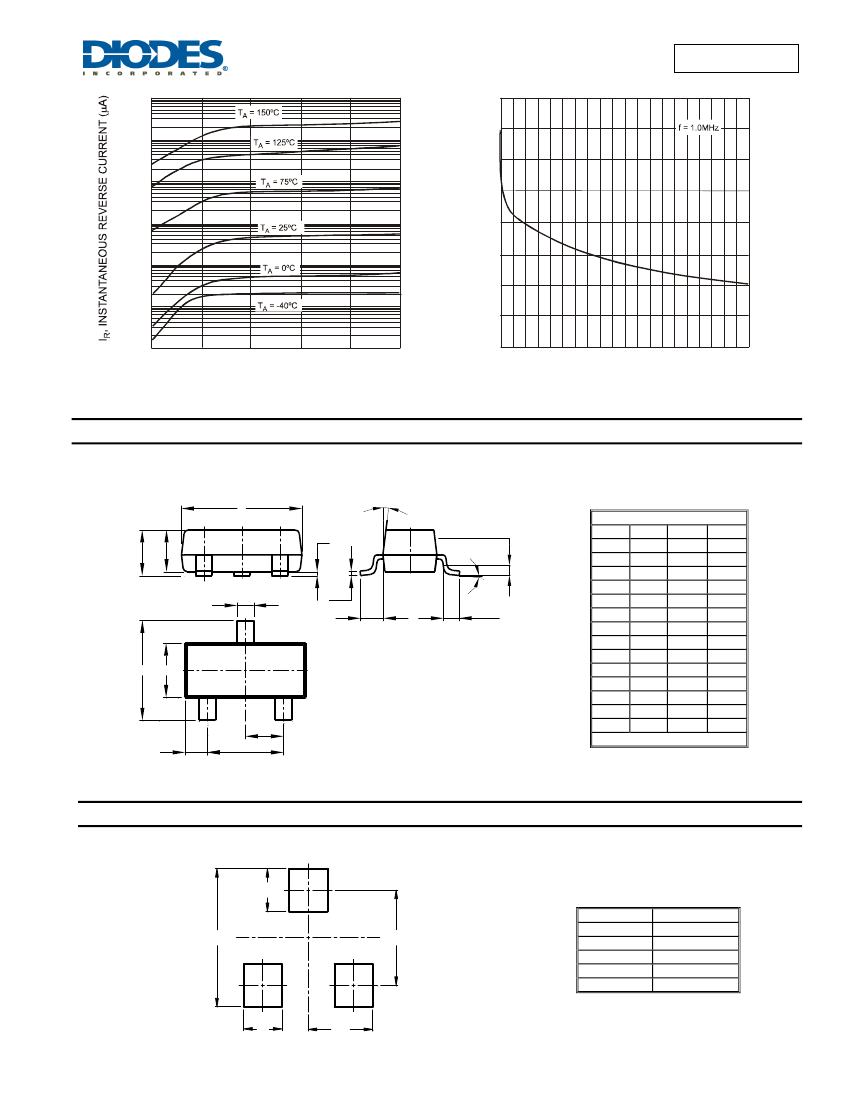

Fig. 3 Typical Reverse Characteristics, Per Element
0
10
30
40
20
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage, Per Element
0
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23
H
J
All 7°
GAUGE PLANE
0.25
K1
K
a
A
M
L
L1
C
B
D
F
G
SOT23
Dim
Min
Max
Typ
A
0.37
0.51
0.40
B
1.20
1.40
1.30
C
2.30
2.50
2.40
D
0.89
1.03 0.915
F
0.45
0.60 0.535
G
1.78
2.05
1.83
H
2.80
3.00
2.90
J
0.013 0.10
0.05
K
0.890 1.00 0.975
K1
0.903 1.10 1.025
L
0.45
0.61
0.55
L1
0.25
0.55
0.40
M
0.085 0.150 0.110
a
0°
8°
--
All Dimensions in mm
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23
Y
Y1
C
Dimensions
C
X
X1
Y
Y1
Value (in mm)
2.0
0.8
1.35
0.9
2.9
X
X1
BAV23A/C/S
Document number: DS30042 Rev. 17 - 2
3 of 4
www.diodes.com
June 2018
© Diodes Incorporated
BAV23A/C/S
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
NEW PRODUCT
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2018, Diodes Incorporated
www.diodes.com
BAV23A/C/S
Document number: DS30042 Rev. 17 - 2
4 of 4
www.diodes.com
June 2018
© Diodes Incorporated
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Motor sequential starting and individual stopping control circuit b

audio power circuit

Simple high-power temperature control circuit

Electronic ventriloquist circuit

CX23040 (TV and VCR) infrared remote control transmitter circuit

Computer motherboard circuit diagram 815 5_31

Kinetis DAC module (Part 3)
DAC function details 1. DAC buffer operation The buffer size is 1~16 and can be set in word units. When converting, the read pointer points to the data being converted. The buffer unit currently being...
bluehacker NXP MCU
TI IC:cc2540 configuration
The GAPP layer always plays one of the following four roles: 1. Broadcaster - cannot connect to advertising devices 2. Observer - scans broadcasts but cannot initiate connections 3. Peripheral - a con...
Jacktang Wireless Connectivity
The serial port baud rate is set to 115200 and garbled characters are output
As the title says, using Wanli's board, usart1, and changing the baud rate to 57600 or below is normal. What's the problem?...
yanlei8158 stm32/stm8
DaVinci Technology DSP TMS320DM648
DaVinciTM technology DSP TMS320DM648 is based on TI's TMS320C64X+TM DSP core, and is based on TMS320DM642. The new processors integrate new features and reduce video system bill of materials (BOM) cos...
灞波儿奔 Microcontroller MCU
MSP430 maskable interrupt
Interrupts largely reflect the performance of a microcontroller. From this point of view, MSP430 does a very good job in interrupts, mainly by providing a very rich interrupt source, the basic ones ar...
wstt Microcontroller MCU
Congratulations to 91program for becoming the moderator of WINCE!
Congratulations to 91program for being the moderator of WINCE! Hope everyone will support it....
zhangzaifang Embedded System
Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. RTE0201G05
  2. CA61
  3. HMTSW-211-11-G-Q-100-RE
  4. GWCR1206-10R2FT5
  5. SE-K100M100AZFM1019
  6. M80-4T11205F3-01-302-04-302
  7. ULV4F2GNSG2P1
  8. AR10CBC1691N
  9. KAQV414A
  10. D2541HC-10P-BL
  11. CR0603J1M1P05
  12. MPH201610S4R7MT

Popular Articles

  1. Bourns Launches New Series of High-Q Miniature Size Chip Inductors
  2. Using 7-nanometer technology, China's general-purpose high-end chip research and development has achieved a major breakthrough
  3. Apple watchOS 8 Beta 7 released
  4. Will auto insurance cover all the problems of spontaneous combustion and water damage? The world of auto insurance is changing! You must read these terms!
  5. ATmega88 External RC Oscillator
  6. ARM cpsr register and spsr register
  7. Android development process based on Xunwei 4412 development board
  8. Graphene makes thinnest heart implant yet
  9. How does a multimeter differentiate between PNP sensors and NPN type sensors?
  10. Measuring motor losses and efficiency with HIOKI's PW6001 power analyzer

Technical ResourceMore

  1. motor control
  2. Digital Isolator Board Principle
  3. Voltage conversion circuit design method
  4. 51 single chip microcomputer design and packaging
  5. 5-axis industrial robot drawing
  6. Design of high-precision digital phase measurement method based on STC89C52
  7. PBOC Common Instructions
  8. MATLAB Case 15 Information Granulation Time Series Regression Prediction of SVM Neural Network.rar
  9. Feature-based robust LIDAR localization and mapping in unstructured environments
  10. Altium Designer Schematic Library AVR MCU.SchLib

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2440  214  2741  1784  78  50  5  56  36  2
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
