GVXO-41F/SEI13.50MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> GVXO-41F/SEI13.50MHZ

GVXO-41F/SEI13.50MHZ: DescriptionHCMOS/LSTTL Output Clock Oscillator, 13.5MHz Nom, DIL-14/4; CategoryPassive components oscillator; File Size55KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

GVXO-41F/SEI13.50MHZ Overview

HCMOS/LSTTL Output Clock Oscillator, 13.5MHz Nom, DIL-14/4

GVXO-41F/SEI13.50MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Golledge Electronics
Reach Compliance Code	compliant
Maximum control voltage	5 V
Minimum control voltage
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	150 ppm
frequency stability	15%
linearity	10%
Manufacturer's serial number	GVXO-41
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	13.5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS/LSTTL
Output load	5 LS TTL, 30 pF
physical size	20.8mm x 13.08mm x 6.5mm
longest rise time	6 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	60/40 %

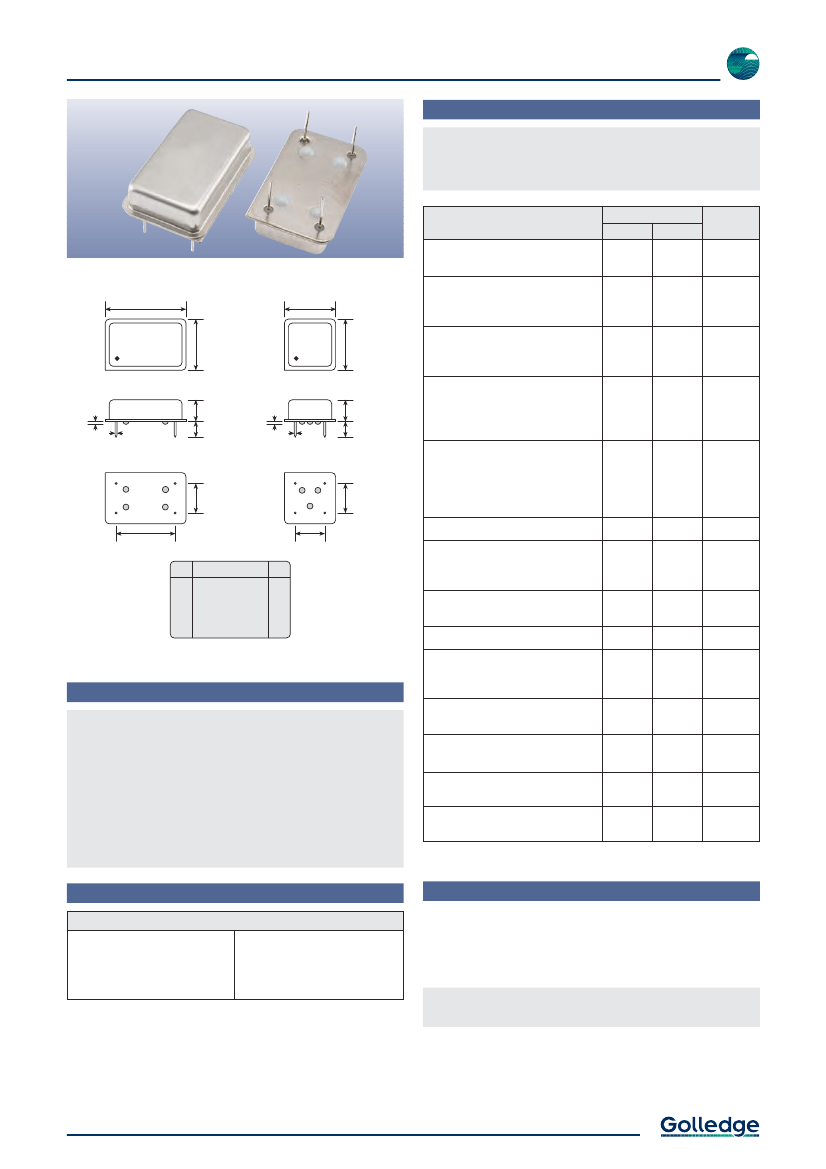

Preview

Download Datasheet

View All

5V VCXO

Specifications

GVXO-41

GVXO-41F: Full size (14 pin DIL)

GVXO-41H: Half size (8 pin DIL)

Parameters

Package:

14 pin DIL (full size)

8 pin DIL (half size)

1.544 ~ 33.0MHz

1.544 ~ 30.0MHz

13.08

(max)

Variant

Option

Codes

20.80

(max)

13.08

(max)

Frequency range:

13.08

(max)

Voltage control:

+2.5V ±2.5V, 10% linearity

>100k input impedance

Frequency pullability (min):

±80ppm

±150ppm

±200ppm

Frequency stability:

±100ppm

±50ppm

±25ppm

±20ppm

±15ppm

0.80

0.46Ø

5.70

(max)

4.00

(min)

0.80

0.46Ø

5.70

(max)

4.00

(min)

7.62

Ageing:

15.24

CONNECTION

Control voltage

Ground

Output

Supply

7.62

±5.0ppm max per year

Operating temperature range:

-10 to +70°C

-40 to +85°C

Storage temperature range:

-55 to +125°C

Supply voltage (V

+5.0V (±5%)

Scale 1:1

Supply current:

20mA max (<20.0MHz)

30mA max (20.0 ~ 33.0MHz)

Driving ability:

30pF HCMOS

5 LSTTL

Features

5.0V supply

Low cost for volume applications

Choice of pullability & stability

Express deliveries for non-standard items

Industrial temperature range option

Logic levels:

‘0’ level = +0.4V max

‘1’ level = 90%V

min

Waveform symmetry @ 50%V

40:60 max

Rise / fall time:

6ns max (0.4V ~ 90%V

min)

Standard.

Optional - Please specify required code(s) when ordering

Standard Frequencies

Frequencies in MHz

8.19200

13.50000

14.31818

16.38400

17.73447

Other frequencies available. Please consult our sales office.

19.44000

20.48000

24.57600

27.00000

32.76800

Ordering Information

Product + variant + option codes + frequency

eg:

GVXO-41F/SC 20.480MHz

±150ppm pullability, ±25ppm stability

Option codes must be included to specify a model

completely.

Option code X (eg GVXO-41F/X) denotes a custom spec.

±15ppm and ±20ppm stability may not be available over -40+85°C,

depending on frequency. Check with our sales office.

Tel:

+44 1460 256 100

12 Jul 2001

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
