CY7C265-15JIR datasheet, PDF - EEWORLD Datasheet

CY7C265-15JIR: DescriptionOTP ROM, 8KX8, 12ns, CMOS, PQCC28, PLASTIC, LCC-28; Categorystorage storage; File Size245KB，8 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric View All

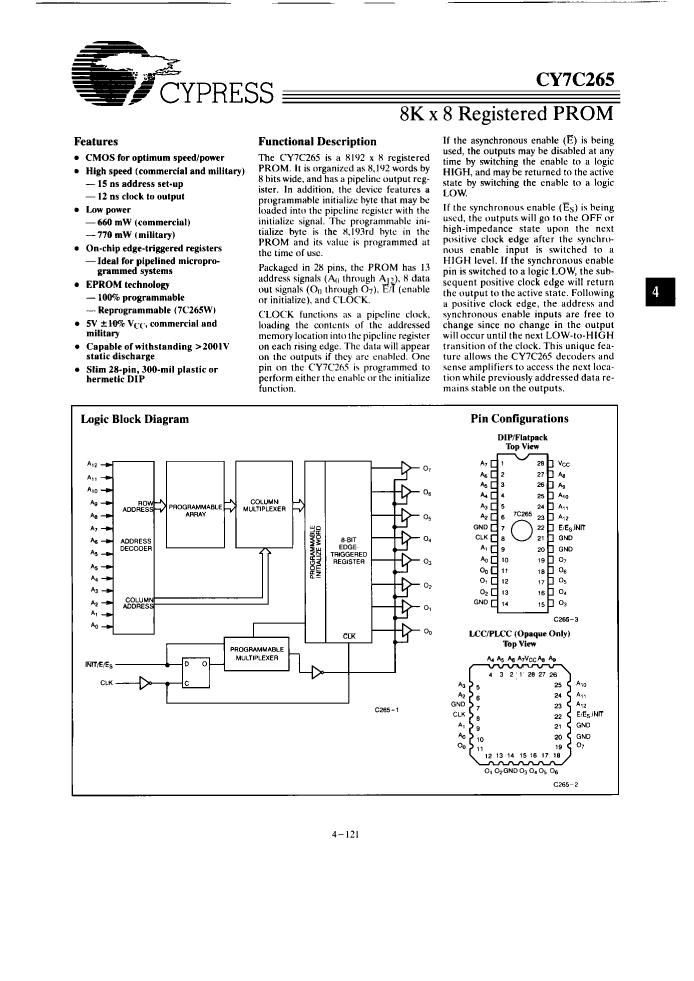

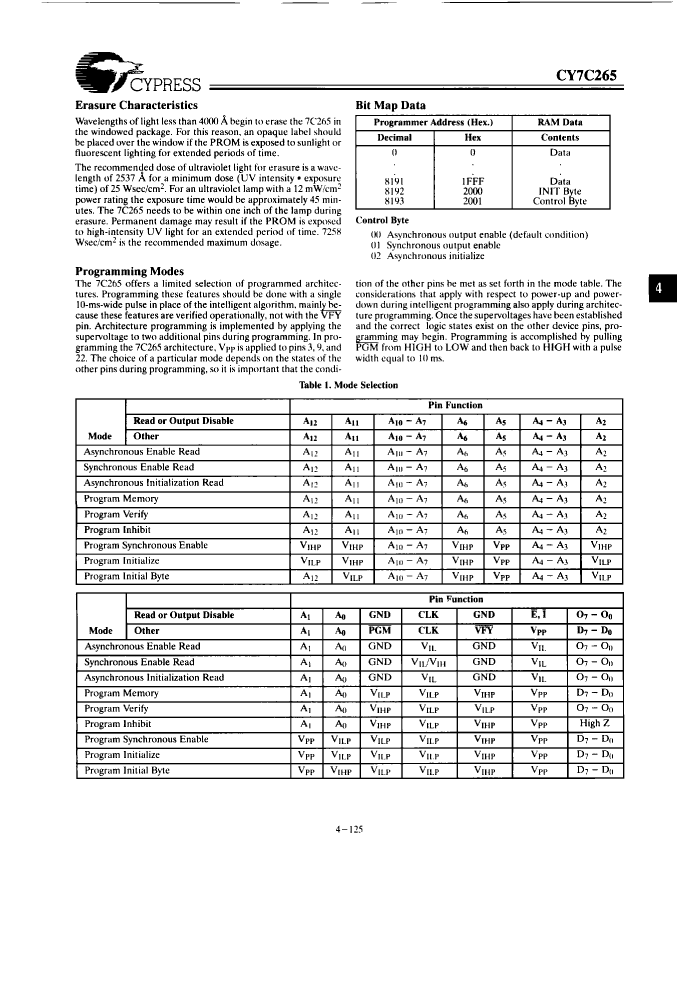

CY7C265-15JIR Overview

OTP ROM, 8KX8, 12ns, CMOS, PQCC28, PLASTIC, LCC-28

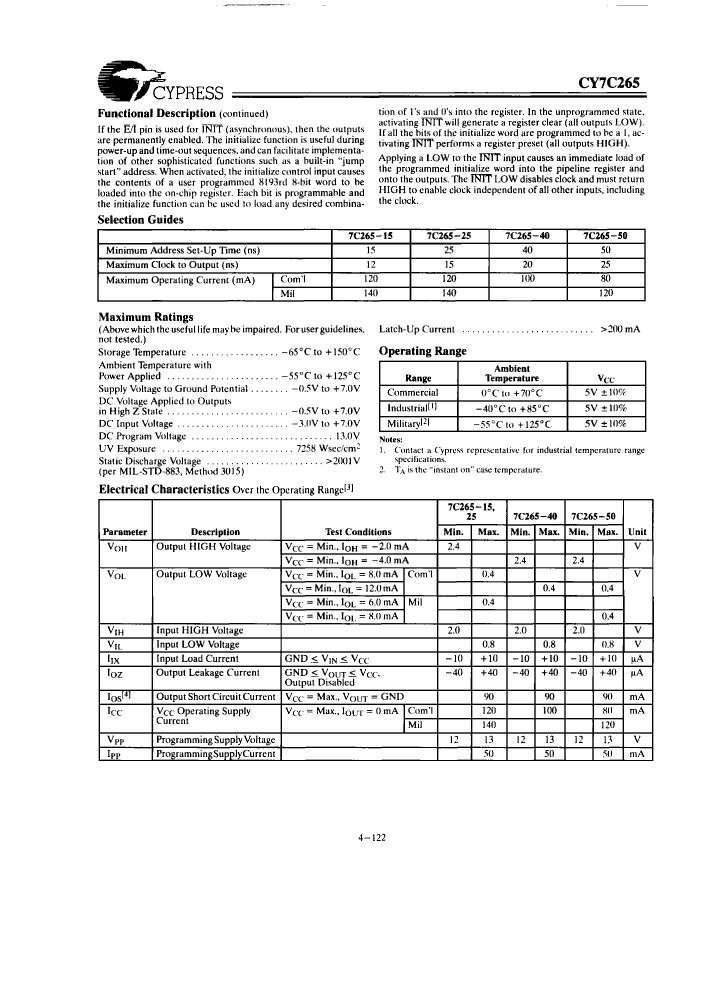

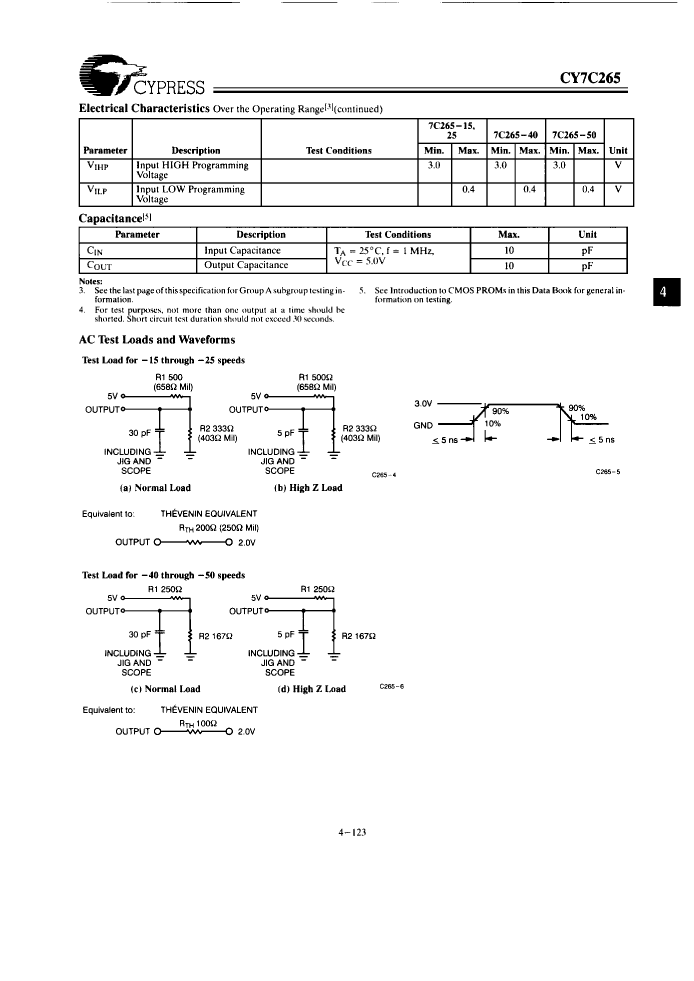

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	QLCC
package instruction	QCCJ,
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99

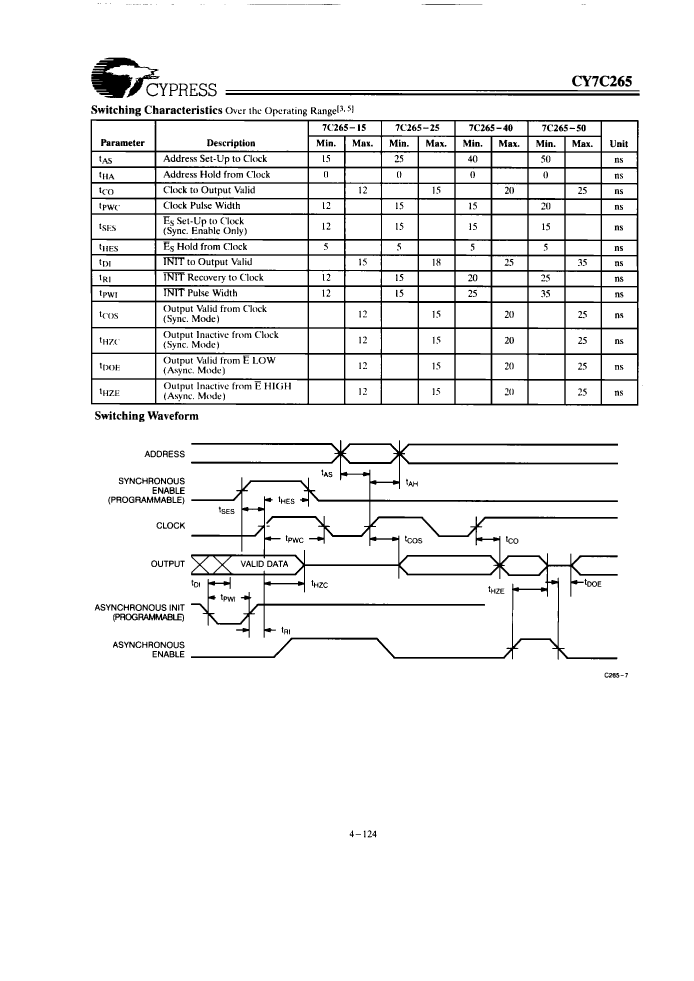

Maximum access time	12 ns
JESD-30 code	S-PQCC-J28
memory density	65536 bit
Memory IC Type	OTP ROM
memory width	8
Number of functions	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	8KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal location	QUAD
