SI4804BDY-E3

Description
Power Field-Effect Transistor, N-Channel, Metal-oxide Semiconductor FET
CategoryDiscrete semiconductor    The transistor
File Size88KB，6 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

SI4804BDY-E3 Overview

Power Field-Effect Transistor, N-Channel, Metal-oxide Semiconductor FET

SI4804BDY-E3 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerVishay
package instruction,
Reach Compliance Codecompliant
Maximum drain current (Abs) (ID)5.7 A
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-609 codee3
Humidity sensitivity level1
Operating modeENHANCEMENT MODE
Maximum operating temperature150 °C
Polarity/channel typeN-CHANNEL
Maximum power dissipation(Abs)2 W
surface mountYES
Terminal surfaceMatte Tin (Sn)

SI4804BDY-E3 Preview

Si4804BDY
Vishay Siliconix
Dual N-Channel 30-V (D-S) MOSFET
PRODUCT SUMMARY
V
DS
(V)
30
FEATURES
I
D
(A)
7.5
6.5
r
DS(on)
(W)
0.022 @ V
GS
= 10 V
0.030 @ V
GS
= 4.5 V
D
Trench FETr Power MOSFET
D
PWM Optimized
D
100% R
g
Tested
APPLICATIONS
D
Symmetrical Buck-Boost DC/DC Converter
D
1
D
2
SO-8
S
1
G
1
S
2
G
2
1
2
3
4
Top View
S
1
Ordering Information: Si4804BDY—E3 (Lead Free)
Si4804BDY-T1—E3 (Lead Free with Tape and Reel)
N-Channel MOSFET
S
2
N-Channel MOSFET
8
7
6
5
D
1
D
1
D
2
D
2
G
1
G
2
ABSOLUTE MAXIMUM RATINGS (T
A
= 25_C UNLESS OTHERWISE NOTED)
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current (T
J
= 150_C)
a
Pulsed Drain Current
Continuous Source Current (Diode Conduction)
a
Maximum Power Dissipation
a
T
A
= 25_C
T
A
= 70_C
T
A
= 25_C
T
A
= 70_C
Symbol
V
DS
V
GS
I
D
I
DM
I
S
P
D
T
J
, T
stg
10 secs
30
"20
7.5
6.0
30
1.7
2.0
1.3
−55
to 150
Steady State
Unit
V
5.7
4.6
0.9
1.1
0.7
W
_C
A
Operating Junction and Storage Temperature Range
THERMAL RESISTANCE RATINGS
Limits
Parameter
Maximum J
M i
Junction-to-Ambient
a
ti t A bi t
Maximum Junction-to-Foot (Drain)
Notes
a. Surface Mounted on 1” x 1” FR4 Board.
Document Number: 72061
S-32621—Rev. D, 29-Dec-03
www.vishay.com
t
v
10 sec
Steady-State
Steady-State
Symbol
R
thJA
R
thJF
Typ
52
93
35
Max
62.5
110
40
Unit
_C/W
C/W
1
Si4804BDY
Vishay Siliconix
MOSFET SPECIFICATIONS (T
J
= 25_C UNLESS OTHERWISE NOTED).
Parameter
Static
Gate Threshold Voltage
Gate-Body Leakage
Zero Gate Voltage Drain Current
On-State Drain Current
b
Drain-Source On-State
Drain Source On State Resistance
b
Forward Transconductance
b
Diode Forward
Voltage
b
V
GS(th)
I
GSS
I
DSS
I
D(on)
r
DS( )
DS(on)
g
fs
V
SD
V
DS
= V
GS
, I
D
= 250
mA
V
DS
= 0 V, V
GS
=
"20
V
V
DS
= 30 V, V
GS
= 0 V
V
V
DS
= 30 V, V
GS
= 0 V T
J
= 85_C
V
V,
V
DS
= 5 V, V
GS
= 10 V
V
GS
= 10 V, I
D
= 7.5 A
V
GS
= 4.5 V, I
D
= 6.5 A
V
DS
= 15 V, I
D
= 7.5 A
I
S
= 1 A V
GS
= 0 V
A,
20
0.017
0.024
19
0.75
0 75
1.2
12
0.022
0.030
0.8
3.0
"100
1
15
V
nA
mA
A
W
S
V
Symbol
Test Condition
Min
Typ
a
Max
Unit
Dynamic
a
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
Gate Resistance
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Source-Drain
Source Drain Reverse Recovery Time
Q
g
Q
gs
Q
gd
R
g
t
d(on)
t
r
t
d(off)
t
f
t
rr
I
F
= 1 7 A di/dt = 100 A/ms
1.7 A,
Ch-1
Ch 1
V
DD
= 15 V, R
L
= 15
W
I
D
^
1 A, V
GEN
= 10 V, R
g
= 6
W
0.5
V
DS
= 15 V, V
GS
= 4.5 V, I
D
= 7.5 A
,
,
7
2.9
2.5
1.5
9
10
19
9
35
2.6
15
17
30
15
55
ns
W
11
nC
Notes
a. Guaranteed by design, not subject to production testing.
b. Pulse test; pulse width
v
300
ms,
duty cycle
v
2%.
www.vishay.com
2
Document Number: 72061
S-32621—Rev. D, 29-Dec-03
Si4804BDY
Vishay Siliconix

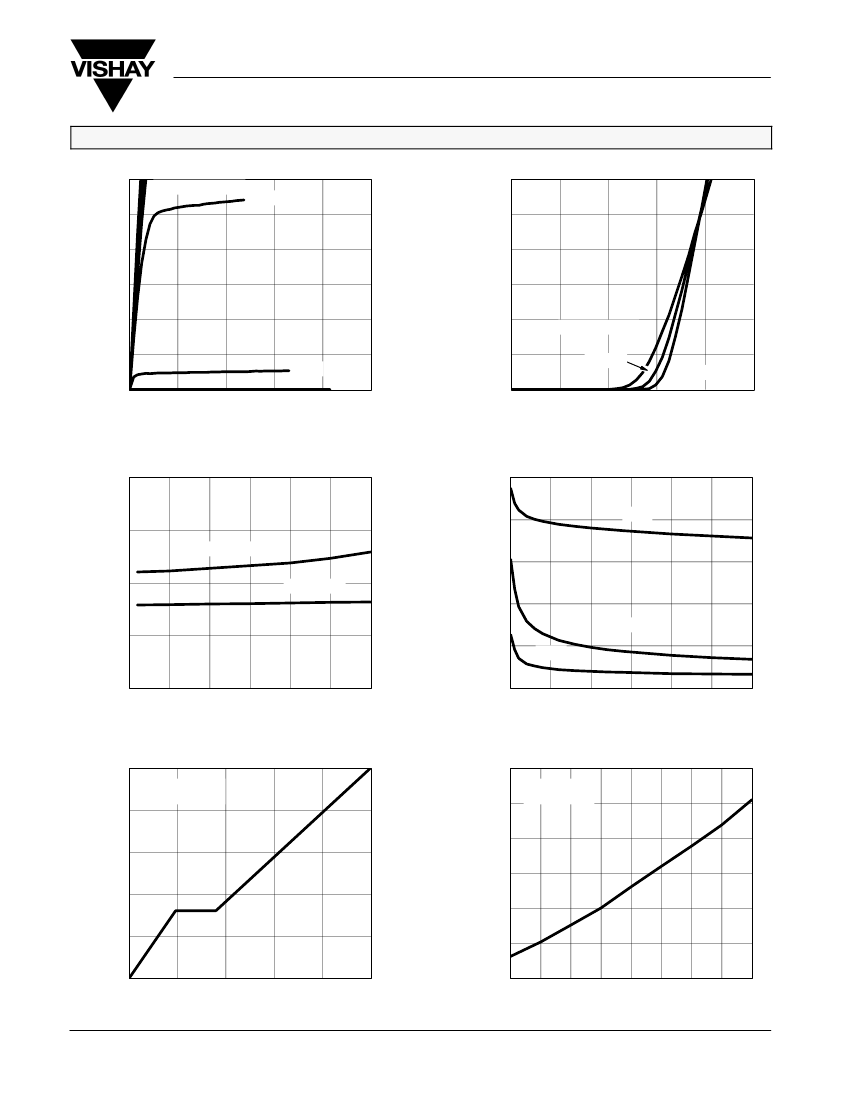

TYPICAL CHARACTERISTICS (25_C UNLESS NOTED)
Output Characteristics
30
25
I
D
−
Drain Current (A)
20
15
10
5
3V
0
0
2
4
6
8
10
V
DS
−
Drain-to-Source Voltage (V)
0
0
1
2
3
4
5
V
GS
−
Gate-to-Source Voltage (V)
I
D
−
Drain Current (A)
V
GS
= 10 thru 5 V
30
4V
25
20
15
10
5
Transfer Characteristics
T
C
= 125_C
25_C
−55_C
On-Resistance vs. Drain Current
0.040
r
DS(on)
−
On-Resistance (
W
)
1200
Capacitance
0.030
V
GS
= 4.5 V
0.020
V
GS
= 10 V
C
−
Capacitance (pF)
960
C
iss
720
480
C
oss
240
C
rss
0.010
0.000
0
5
10
15
20
25
30
0
0
5
10
15
20
25
30
I
D
−
Drain Current (A)
V
DS
−
Drain-to-Source Voltage (V)
Gate Charge
10
V
GS
−
Gate-to-Source Voltage (V)
V
DS
= 15 V
I
D
= 7.5 A
r
DS(on)
−
On-Resistance
(Normalized)
8
1.8
1.6
1.4
1.2
1.0
0.8
0.6
−50
On-Resistance vs. Junction Temperature
V
GS
= 10 V
I
D
= 7.5 A
6
4
2
0
0
3
6
9
12
15
Q
g
−
Total Gate Charge (nC)
Document Number: 72061
S-32621—Rev. D, 29-Dec-03
−25
0
25
50
75
100
125
150
T
J
−
Junction Temperature (_C)
www.vishay.com
3
Si4804BDY
Vishay Siliconix

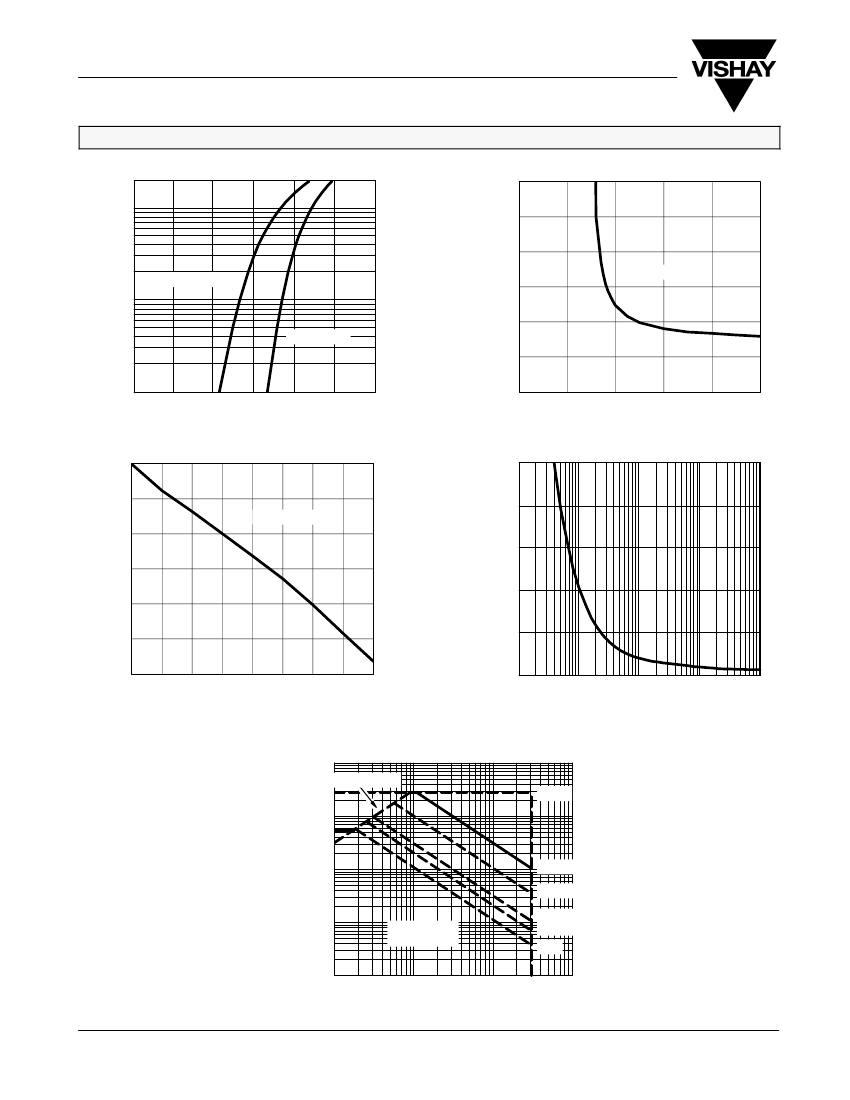

TYPICAL CHARACTERISTICS (25_C UNLESS NOTED)
Source-Drain Diode Forward Voltage
20
10
r
DS(on)
−
On-Resistance (
W
)
I
S
−
Source Current (A)
0.06
0.05
0.04
I
D
= 7.5 A
0.03
0.02
0.01
0.00
0.2
0.4
0.6
0.8
1.0
1.2
0
2
4
6
8
10
V
SD
−
Source-to-Drain Voltage (V)
V
GS
−
Gate-to-Source Voltage (V)
On-Resistance vs. Gate-to-Source Voltage
T
J
= 150_C
1
T
J
= 25_C
0.1
0.0
Threshold Voltage
0.4
0.2
V
GS(th)
Variance (V)
I
D
= 250
mA
−0.0
−0.2
−0.4
−0.6
−0.8
−50
20
Power (W)
60
100
Single Pulse Power, Junction-to-Ambient
80
40
−25
0
25
50
75
100
125
150
0
10
−3
10
−2
10
−1
Time (sec)
1
10
T
J
−
Temperature (_C)
100
Safe Operating Area, Junction-to-Foot
Limited by r
DS(on)
1 ms
10
I
D
−
Drain Current (A)
1
10 ms
100 ms
0.1
T
C
= 25_C
Single Pulse
1s
10 s
dc
0.01
0.1
1
10
100
V
DS
−
Drain-to-Source Voltage (V)
www.vishay.com
Document Number: 72061
S-32621—Rev. D, 29-Dec-03
4
Si4804BDY
Vishay Siliconix
TYPICAL CHARACTERISTICS (25_C UNLESS NOTED)

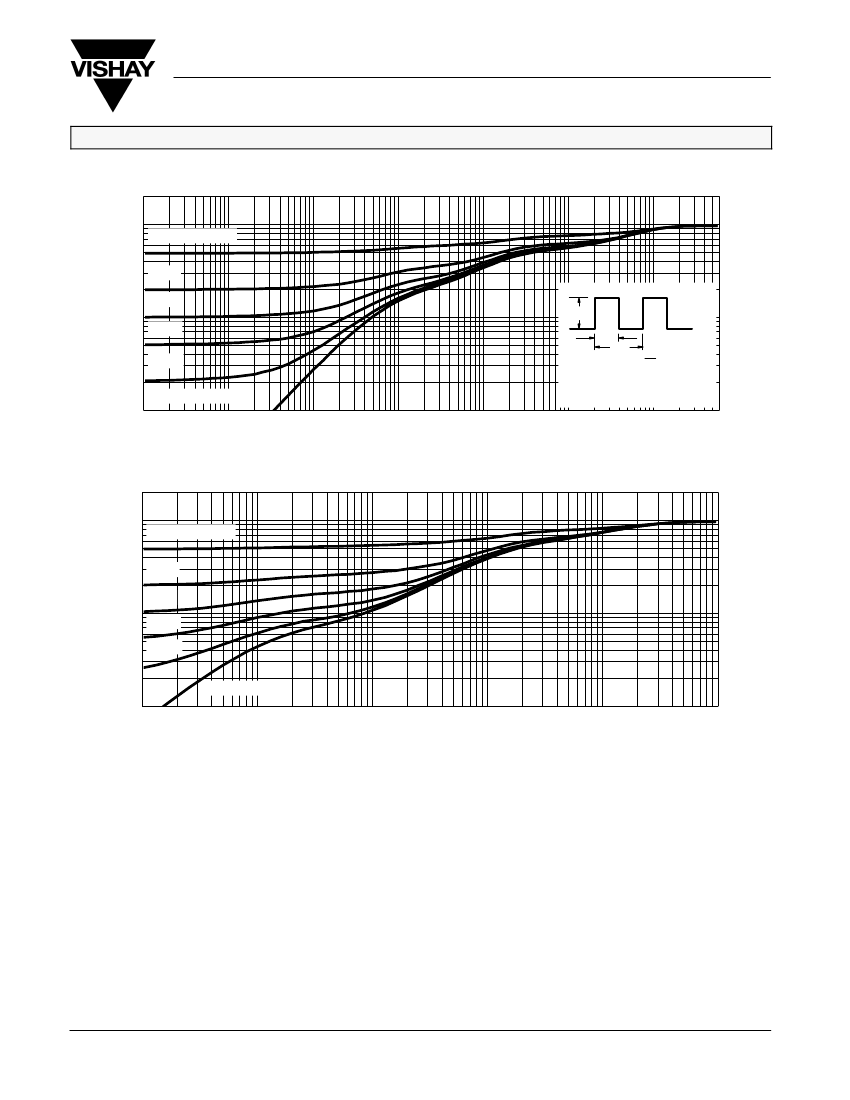

Normalized Thermal Transient Impedance, Junction-to-Ambient
2
1
Normalized Effective Transient
Thermal Impedance
Duty Cycle = 0.5
0.2
0.1
0.1
0.05
0.02
Single Pulse
0.01
10
−4
10
−3
10
−2
10
−1
1
Square Wave Pulse Duration (sec)
Notes:
P
DM
t
1
t
2
1. Duty Cycle, D =
2. Per Unit Base = R
thJA
= 93_C/W
3. T
JM
−
T
A
= P
DM
Z
thJA(t)
4. Surface Mounted
t
1
t
2
10
100
600
2
1
Normalized Thermal Transient Impedance, Junction-to-Foot
Normalized Effective Transient
Thermal Impedance
Duty Cycle = 0.5
0.2
0.1
0.1
0.05
0.02
Single Pulse
0.01
10
−4
10
−3
10
−2
10
−1
Square Wave Pulse Duration (sec)
1
10
Document Number: 72061
S-32621—Rev. D, 29-Dec-03
www.vishay.com
5
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

direct action control circuit

Power supply circuit diagram using transformer isolation

DS8 type 100V, 5A mutual inductance three-phase three-wire electric meter wiring

Practical sparrow expulsion device circuit

Oscillation circuit composed of gate circuit

Automatic hand dryer circuit diagram

TouchGFX design (round screen display effect)
After seeing the news that TouchGFX is free, I downloaded it and tried it out right away. I used the STM32L4R9 development board. Through TouchGFX, I can directly generate code and burn code to develo...
John20190401 stm32/stm8
Graphics Controls
Has anyone written their own graphics control in WinCE? For example, a heart-shaped button or something. Please give me some advice, thank you!...
watersondf Embedded System
15-TCP protocol (half-open)
[b]1. Half-Open[/b][indent][p=22, null, left][color=rgb(153, 153, 153)]If one side has been closed or abnormally terminated, and the other side is unaware of this, the connection is called half-open. ...
兰博 Embedded System
Analog Devices Dialogue 204-2015 Bound Bookmark Edition
[i=s] This post was last edited by 5zhidandelion on 2015-11-3 18:15 [/i] Bookmarked on the official basis. The file is too big to put on Baidu network disk. Link: Link: [url=http://pan.baidu.com/s/1qW...
5之蒲公英 ADI Reference Circuit
Simple integrated operational amplifier
The integrated operational amplifier (hereinafter referred to as the integrated operational amplifier) is a multi-stage direct-coupled amplifier circuit with high voltage gain, high input resistance a...
fish001 Analogue and Mixed Signal
20 yuan to create a classic PC remote control (3)
After that, let's look at the wiring problem. If you use a female serial port socket on the board, you can directly buy a common serial communication cable, one end is male and the other end is female...
yaoniming3k DIY/Open Source Hardware
Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. ATS-04H-204-C2-R0
  2. OC-160-AAF-107AA-20.48MHZ
  3. M55342E02W12A1P-W
  4. 6A6
  5. MB2065SB1W02-BC
  6. RNN70C7231DMRJ8
  7. RN12D22R3CT5-50
  8. CKSAJEB50UI
  9. P4KE170CA_B0_00001
  10. D1272H-16P-75
  11. A2361WRA-3P-G
  12. A2012WVA-11P-BK

Popular Articles

  1. ZDS2022 Oscilloscope 100 Practical Specials 10: Application of XY Mode
  2. Avnet: On the "cloud" economy in the protracted fight against the epidemic
  3. ON Semiconductor's low-power asset tags bring 5-year battery life to industrial asset management
  4. SECORA™ ID supports FIDO applications as a solution for online identity verification
  5. Pixelworks Visual Display Technology Powers OPPO’s First Foldable Phone Find N
  6. ATmega88 power failure detection
  7. WPG World Peace Group's 300W ultra-high-performance network power solution based on Onsemi products
  8. Sievers and Rohde & Schwarz collaborate to test 5G RF transceivers up to 71 GHz
  9. Han's Laser: Net profit is expected to exceed 1.95 billion yuan in 2021, a year-on-year increase of more than 99%
  10. How to tell if the car fuse is burnt

Technical ResourceMore

  1. Analysis of TD-LTE network coverage performance
  2. Guide to large-scale application and multi-person development with labview software
  3. XAPP105 - Introduction to CPLD VHDL
  4. Wireless data collection and transmission system for LED navigation lights
  5. Research on Feature Fusion Algorithm for Target Matching in Target Tracking
  6. Projection surface vertical line animation video tutorial
  7. FPGA Hardware Implementation of Dual-core Lifting Wavelet Transform
  8. iPhone multi-touch event programming example
  9. Using GCC to Write ATMEG128 Application Software Source Code
  10. Research on Thermal Calculation of IC Package

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1637  2661  1405  1492  1737  33  54  29  31  35
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
