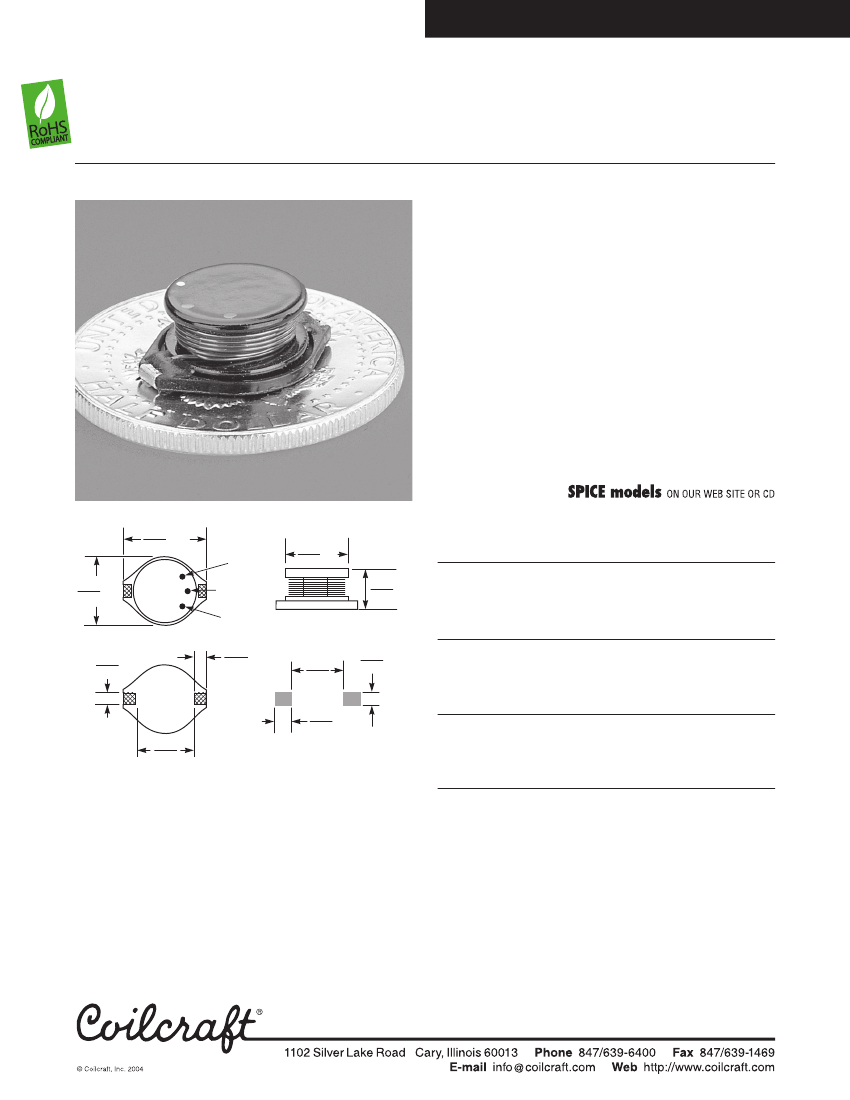

SMT Power Inductors – DO5022 Series
This series of surface mount power inductors is designed
for the higher current requirements of notebook computers
and other portable and handheld devices.
A 1 µH inductor is rated at 8.6 Arms with a saturation current
of 20 Amps. Exceptionally low dc resistance (as low as
0.009 Ohm) keeps power losses to a minimum.
The DO5022 Series was designed specifically for surface
mounting. It has a flat top for reliable pick-and place
operations and features robust temperature deflection.
In addition to the standard versions shown here, custom
inductors are available to meet your exact requirements.
Coilcraft
Designer’s Kit C111
contains three samples
each of the standard parts shown. To order, contact Coilcraft
or visit
http://order.coilcraft.com.
0.730
max
18,54
0.600
max
15,24
1st
significant
digit
2nd
significant
digit
Multiplier
0.100
2,54
0.500
dia
12,70
0.280
max
7,11
Part
number
1
DO5022P-102
DO5022P-222
DO5022P-332
DO5022P-562
DO5022P-103
DO5022P-153
DO5022P-223
DO5022P-333
DO5022P-473
DO5022P-683
DO5022P-104
DO5022P-154
DO5022P-224
DO5022P-334
DO5022P-474
DO5022P-684
DO5022P-105
L
±20%
2
(µH)
1.0
2.2
3.3
5.6
10
15
22
33
47
68
100
150
220
330
470
680
1000
DCR
max
(Ohms)
0.009
0.014
0.018
0.020
0.031
0.036
0.047
0.066
0.086
0.13
0.19
0.25
0.38
0.56
0.85
1.1
1.8
SRF
typ
3
(MHz)
80
80
60
40
30
22
20
15
9
8
7
6
5
4
3
2.5
2
Isat
4
(A)
20
16
14
12
10
8.0
7.0
5.5
4.5
3.5
3.0
2.6
2.4
1.9
1.4
1.2
1.0
Irms
5
(A)
8.6
7.1
6.2
5.3
4.3
4.0
3.5
3.0
2.6
2.3
1.8
1.5
1.2
1.0
0.82
0.72
0.56
0.100
2,54
0.490
12,45
0.110
2,79
0.115
2,92
0.500
12,70
Recommended
Land Pattern
Weight:
2.8 – 3.9 g
Tape and reel:
250/13″ reel 32 mm tape width
For packaging data see Tape and Reel Specifications section.
1. Part number on reel label may have a B suffix to indicate packaging.
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
3. SRF >13 MHz measured using Agilent/HP 8753D network analyzer;
<13 MHz using Agilent/HP 4192A.

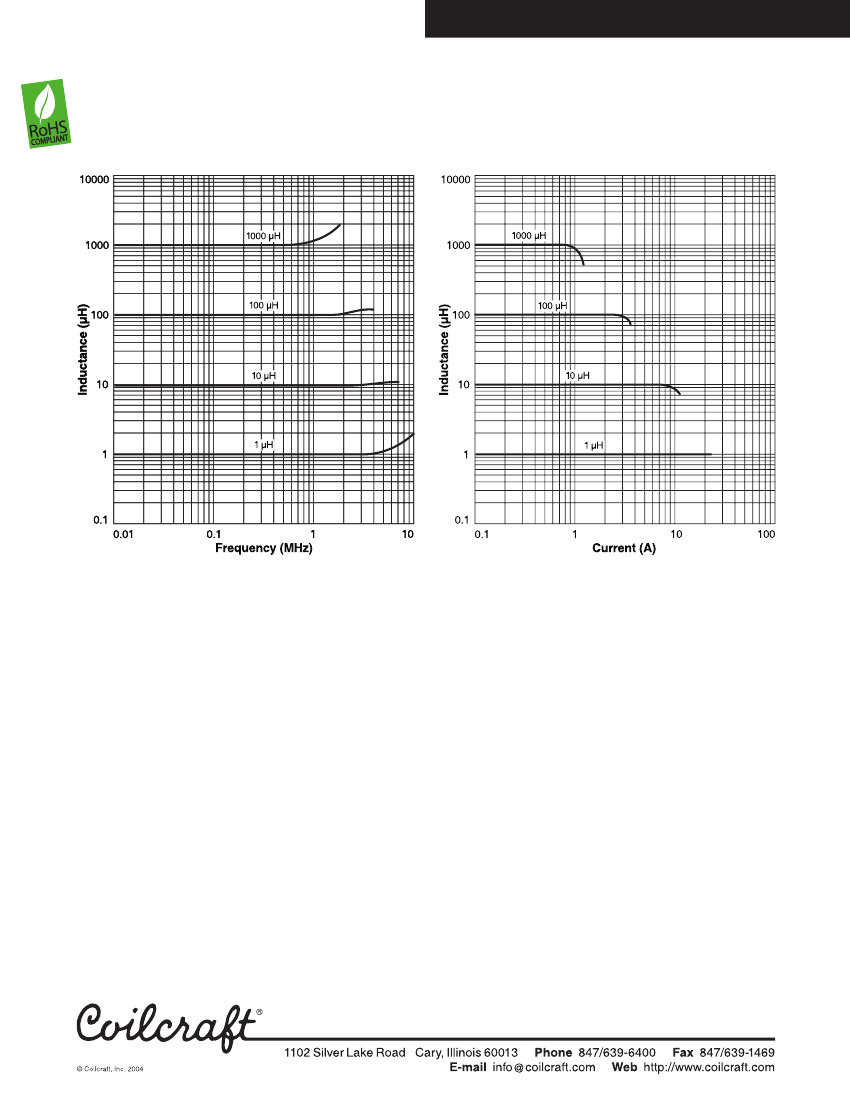

4. DC current at which inductance drops 10% (typ) from its value without
current.
5. Average current for 40°C temperature rise from 25°C ambient.
6. Operating temperature range -40°C to +85°C.
7. Electrical specifications at 25°C.
See Qualification Standards section for environmental and test data.
See Color Coding section for part marking data.
Specifications subject to change without notice. Document 172-1
Revised 10/31/03
