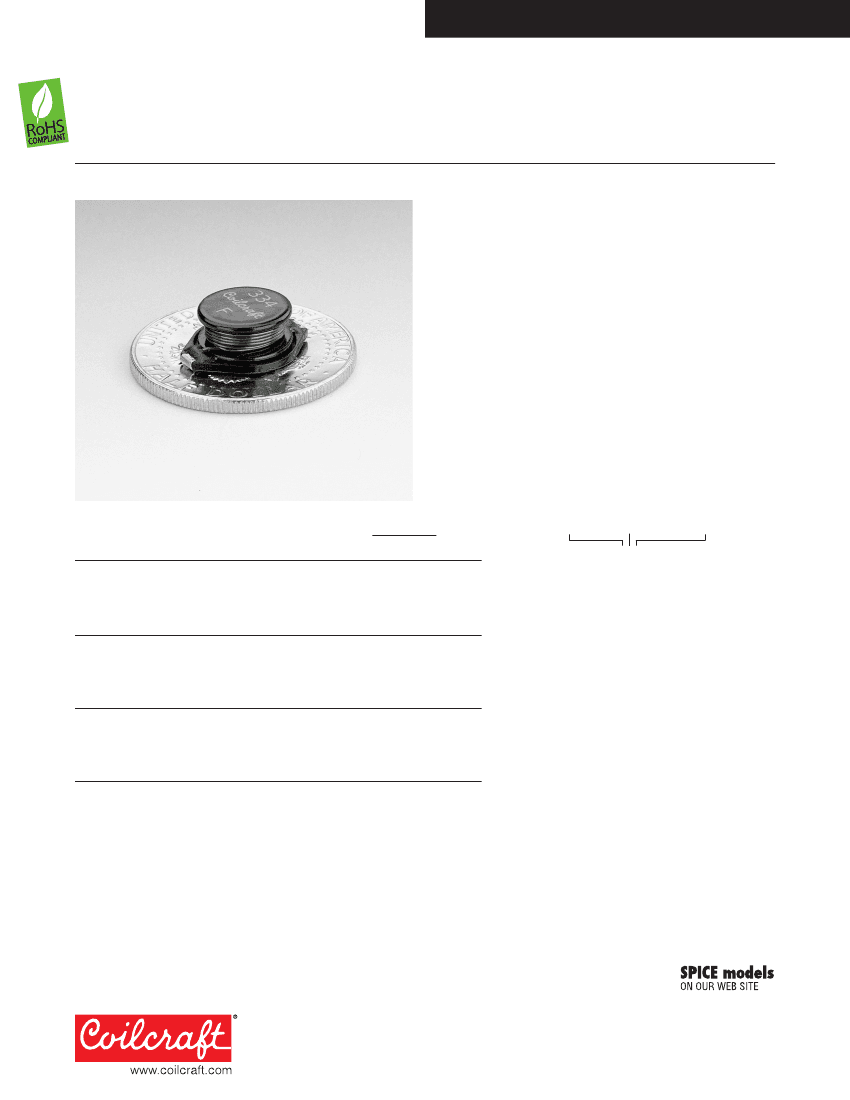

Document 172-1
SMT Power Inductors – DO5022P
• Excellent current handling – up to 28.8 Asat.
• Low dc resistance keeps power losses to a minimum
Designer’s Kit C311
contains 3 of each 20% tolerance part
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant gold over nickel over phos bronze.
Other terminations available at additional cost.
Weight
2.8 – 3.9 g
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
250 per 13″ reel Plastic tape: 32 mm wide,
0.38 mm thick, 24 mm pocket spacing, 7.8 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
Part number
1
L
2
(µH)
DCR
Percent max
tol
3
(Ohms)
20
20
20
20
20
20
20
20
20
20
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
0.009
0.014
0.018
0.020
0.029
0.031
0.036
0.047
0.066
0.086
0.13
0.19
0.25
0.38
0.56
0.85
1.1
1.8
SRF
typ
4
(MHz)
80
80
60
40
30
30
22
20
15
9
8
7
6
5
4
3
2.5
2.0
Isat
(A)
5
10% 20%
drop drop
27.6
18.5
14.5
12.5
10.3
9.4
7.5
6.5
5.2
4.2
3.7
3.0
2.5
2.0
1.7
1.5
1.2
0.95
28.8
19.8
15.5
13.8
11.5
10.5
8.2
7.2
6.1
4.7
4.1
3.4
2.8
2.3
1.9
1.7
1.3
1.1
Irms
6
(A)
8.6
7.1
6.2
5.3
4.8
4.3
4.0
3.5
3.0
2.6
2.3
1.8
1.5
1.2
1.0
0.82
0.72
0.56
1. Specify
tolerance, termination
and
packaging
codes:
DO5022P-105MLD
DO5022P-102ML_
1.0
DO5022P-222ML_
2.2
DO5022P-332ML_
3.3
DO5022P-562ML_
5.6
DO5022P-822ML_
8.2
DO5022P-103ML_
10
DO5022P-153ML_
15
DO5022P-223ML_
22
DO5022P-333ML_
33
DO5022P-473ML_
47
DO5022P-683_L_
68
DO5022P-104_L_
100
DO5022P-154_L_
150
DO5022P-224_L_
220
DO5022P-334_L_
330
DO5022P-474_L_
470
DO5022P-684_L_
680
DO5022P-105_L_ 1000
M =
20%,
K
= 10% (Table shows stock
tolerances in bold.)
Termination: L
= RoHS compliant gold over nickel over
phos bronze.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: D
= 13″ machine-ready reel. EIA-481
embossed plastic tape (250 parts per
full reel).
B
= Less than full reel. In tape, but not
machine ready.
To have a leader and trailer added
($25 charge), use code letter D
instead.
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an
Agilent/HP 4263B LCR meter or equivalent.
3. Tolerances in bold are stocked for immediate shipment.
4. SRF >13 MHz measured using Agilent/HP 8753D
network analyzer; <13 MHz using Agilent/HP 4192A.
5. DC current at which inductance drops the specified
amount from its value without current.
6. Current that causes a 40°C temperature rise from 25°C
ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components”
before soldering.
Tolerance:
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 172-1
Revised 12/09/11
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 172-2
SMT Power Inductors – DO5022P Series

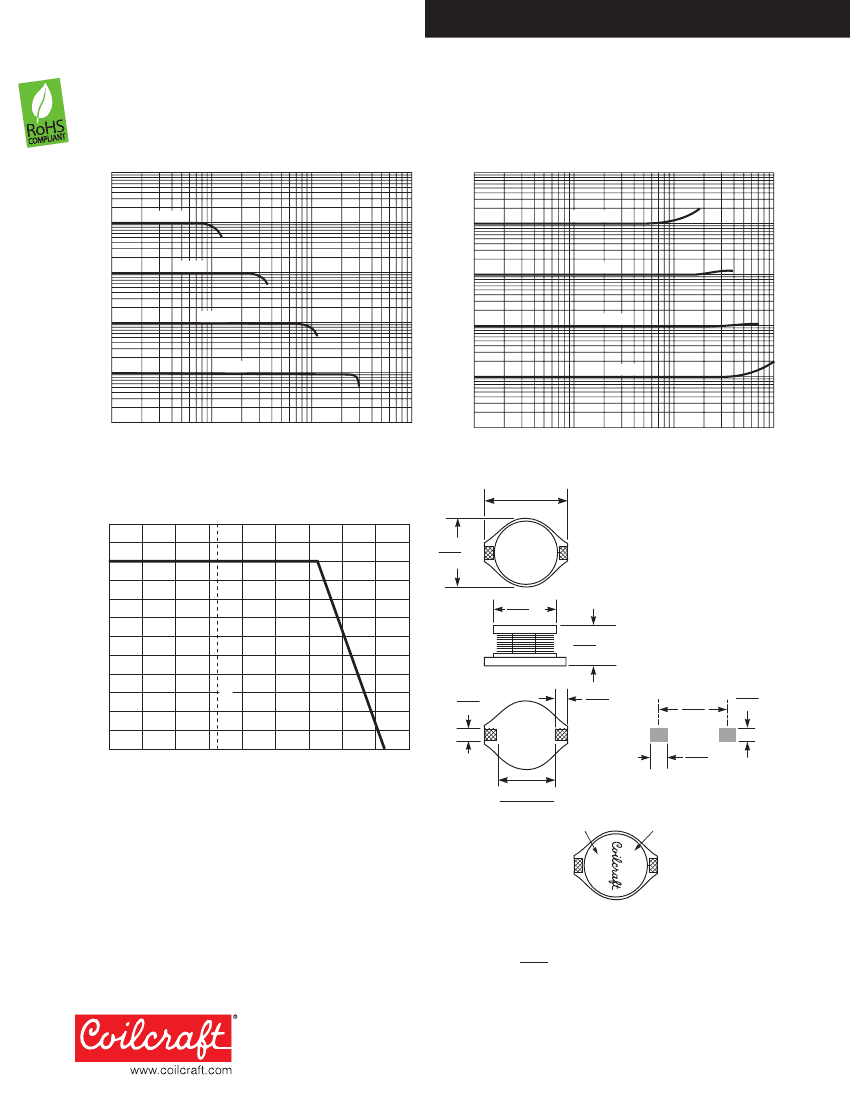

Typical L vs Current
10000
1000
1000 µH
Typical L vs Frequency
10000
1000 µH
1000
Inductance (µH)
100
100 µH
Inductance (µH)
100
100 µH
10
10 µH
10
10 µH
1
1 µH
1
1 µH
0.1
0.1
1
10
100
0.1
0.01
0.1
Current (A)
Frequency (MHz)
1
10
Current Derating
120
110
100
0.600
max
15,24
0.710 ±0.020
*
18,03 ±0,508
additional 0.01/0,254
*
Allow an and 0.005/0,127 in
in length
height for optional tin-lead and
tin-silver-copper application.
Percent of rated
I
rms
90
80
70
60
50
40
0.500
dia
12,70
0.280
max
*
7,11
25°C
30
20
10
0
-40
-20
0
20
0.100
2,54
0.100
2,54
0.605
15,37
0.110
2,79
40
60
80
100
120 140
Ambient temperature (°C)
0.510 ±0.010
12,95 ±0,25
Internal code
0.115
2,92
Recommended
Land Pattern
Dash number
XXX
Part Marking
Start
Finish
Part marking since Feb. 2005. Parts manufactured
prior to that date may have color dots.
Visit www.coilcraft.com/colrpowr.cfm
for color dot marking details.
X
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 172-2
Revised 12/09/11
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
