MB81141623-015PFTN datasheet, PDF

Datasheet> All Categories > storage> storage> MB81141623-015PFTN

MB81141623-015PFTN: Description256KX16 SYNCHRONOUS DRAM, 75ns, PDSO50, 0.400 INCH, PLASTIC, TSOP2-50; Categorystorage storage; File Size1MB，40 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

MB81141623-015PFTN Overview

256KX16 SYNCHRONOUS DRAM, 75ns, PDSO50, 0.400 INCH, PLASTIC, TSOP2-50

MB81141623-015PFTN Parametric

Parameter Name	Attribute value
Maker	FUJITSU
Parts packaging code	TSOP2
package instruction	TSOP2,
Contacts	50
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	DUAL BANK PAGE BURST
Maximum access time	75 ns
Other features	AUTO/SELF REFRESH; DOWN COUNT BURST MODE CAPABILITY
JESD-30 code	R-PDSO-G50
length	20.95 mm
memory density	4194304 bit
Memory IC Type	SYNCHRONOUS DRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	50
word count	262144 words
character code	256000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	1.2 mm
self refresh	YES
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	10.16 mm

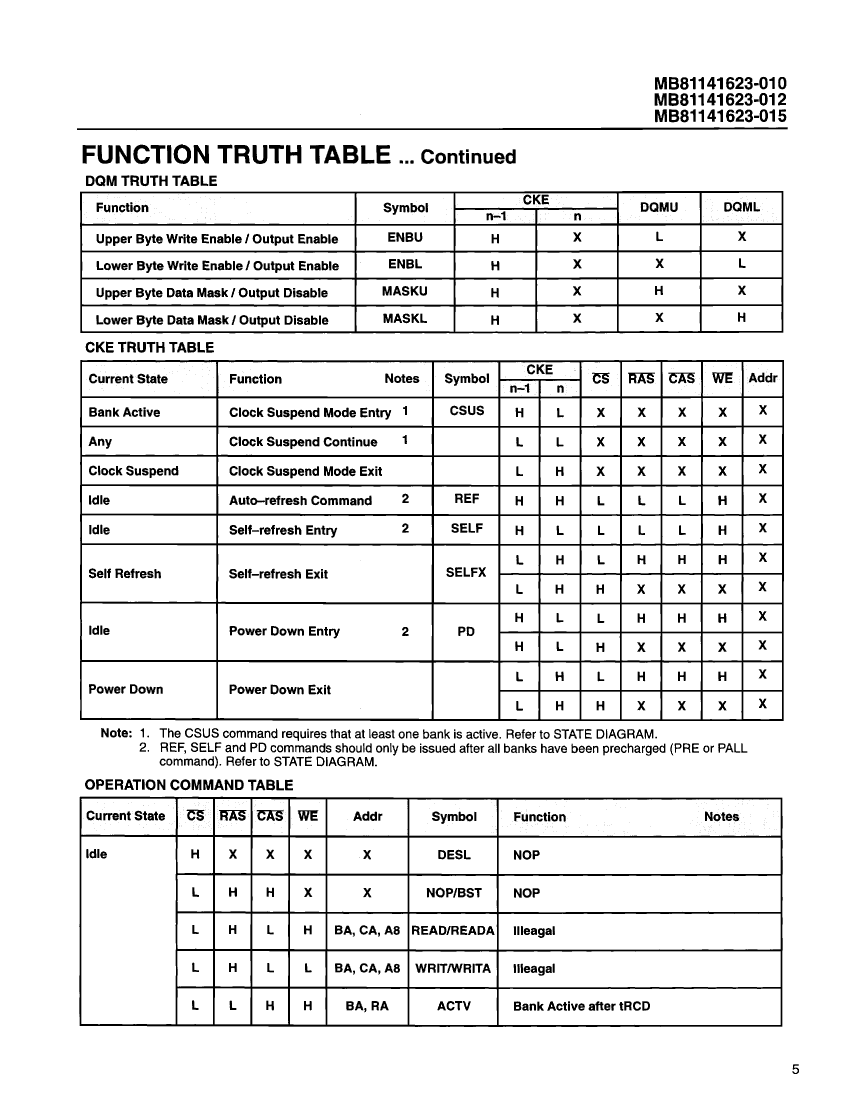

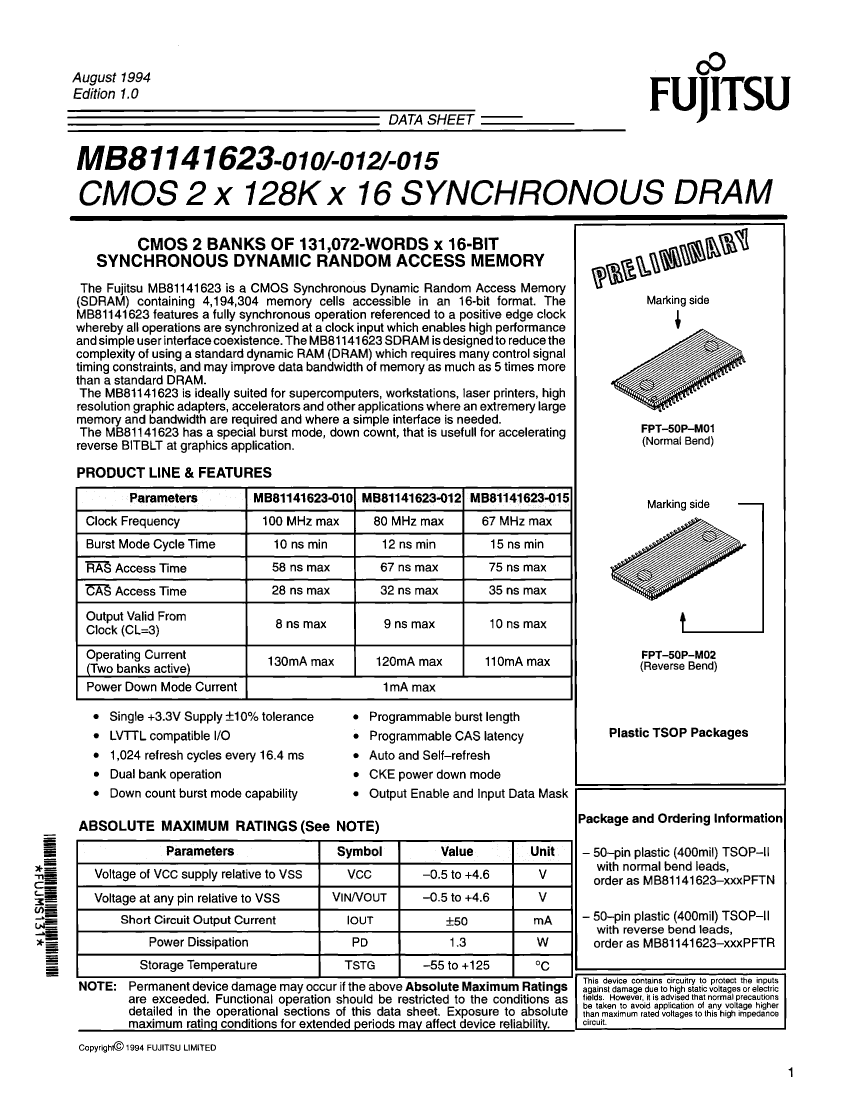

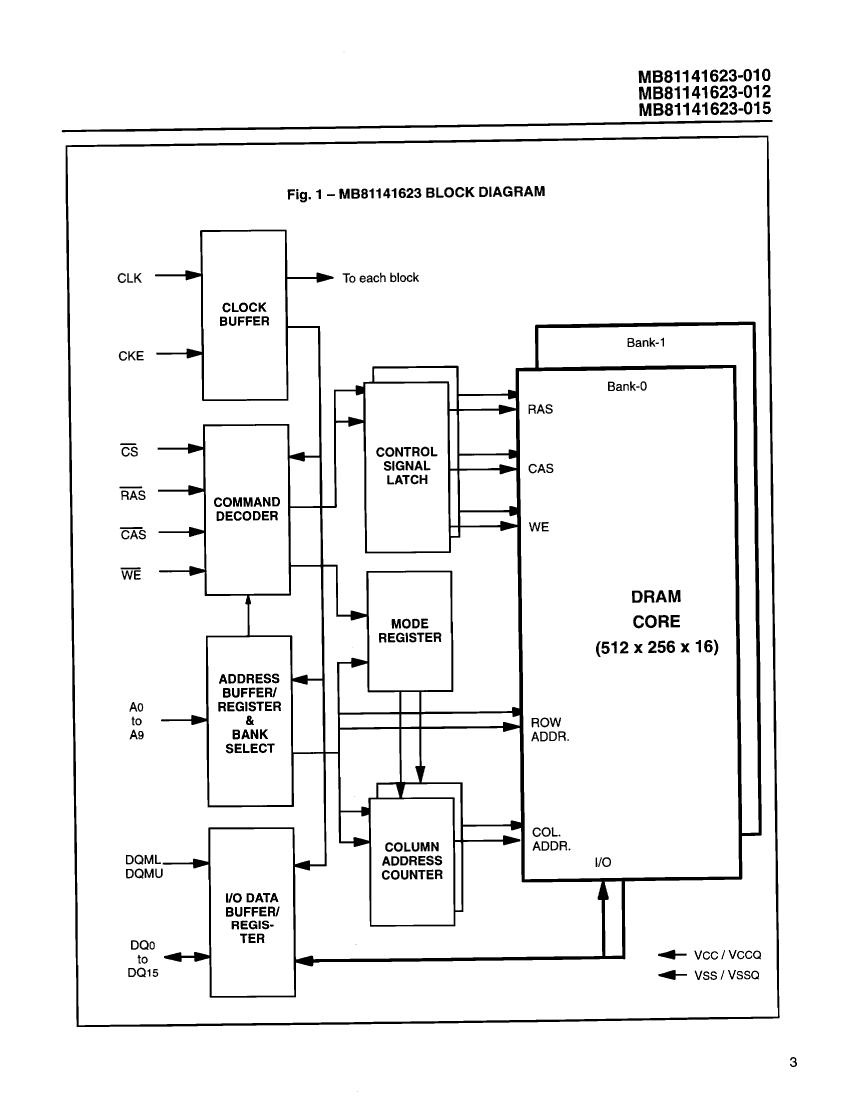

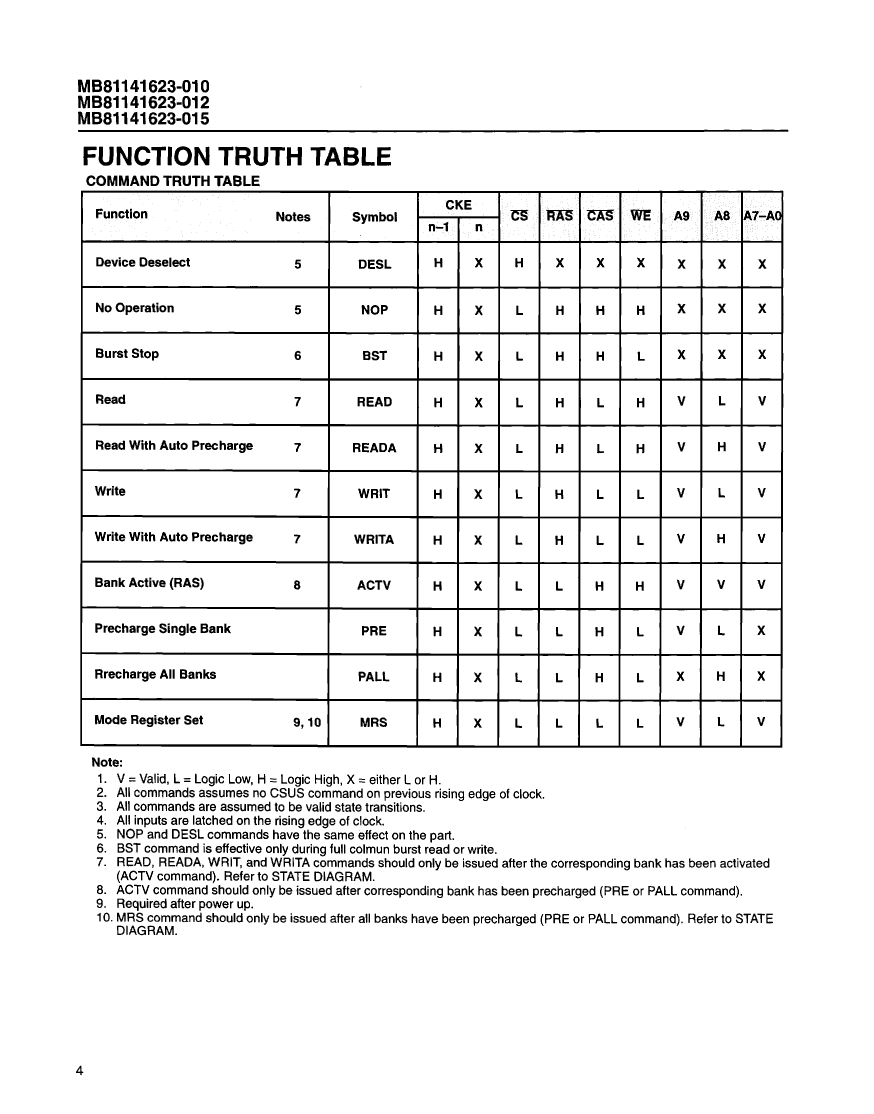

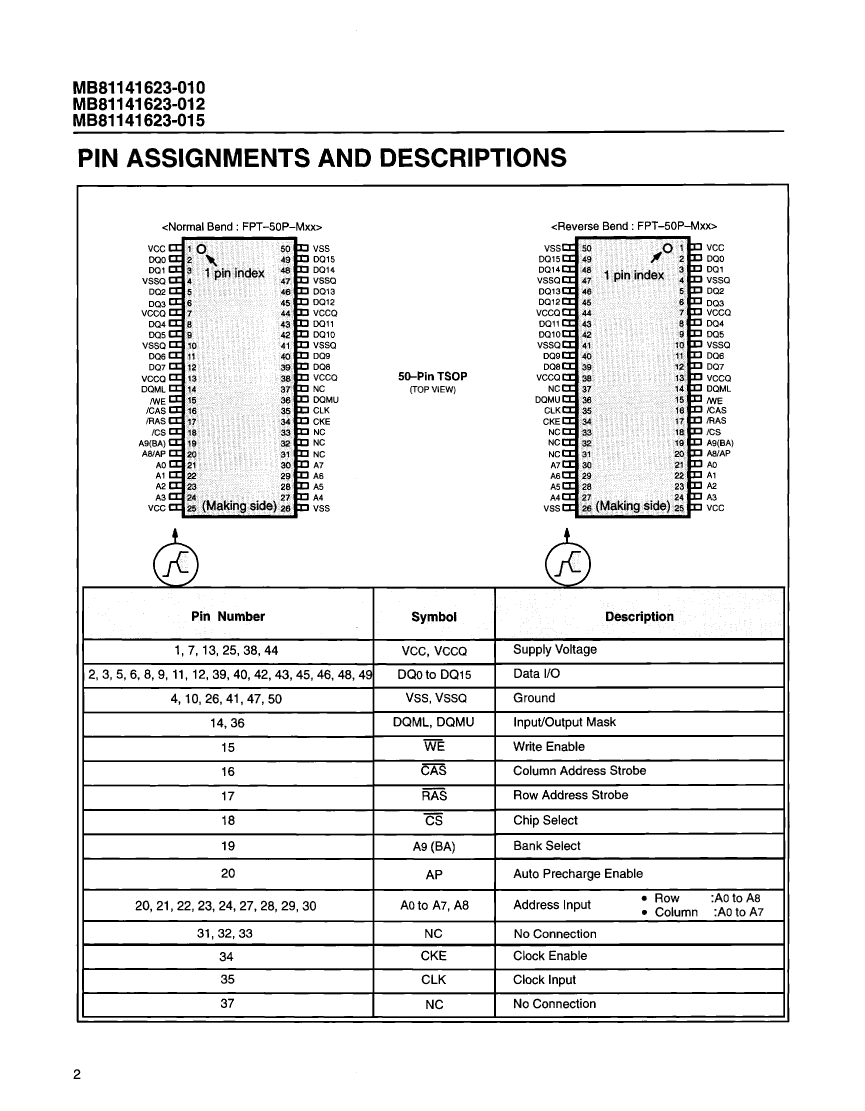

MB81141623-015PFTN Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

MB81141623-015PFTN Related Products

	MB81141623-015PFTN	MB81141623-015PFTR	MB81141623-012PFTR	MB81141623-010PFTN	MB81141623-010PFTR	MB81141623-012PFTN
Description	256KX16 SYNCHRONOUS DRAM, 75ns, PDSO50, 0.400 INCH, PLASTIC, TSOP2-50	256KX16 SYNCHRONOUS DRAM, 75ns, PDSO50, 0.400 INCH, REVERSE, PLASTIC, TSOP2-50	256KX16 SYNCHRONOUS DRAM, 67ns, PDSO50, 0.400 INCH, REVERSE, PLASTIC, TSOP2-50	256KX16 SYNCHRONOUS DRAM, 58ns, PDSO50, 0.400 INCH, PLASTIC, TSOP2-50	256KX16 SYNCHRONOUS DRAM, 58ns, PDSO50, 0.400 INCH, REVERSE, PLASTIC, TSOP2-50	256KX16 SYNCHRONOUS DRAM, 67ns, PDSO50, 0.400 INCH, PLASTIC, TSOP2-50
Maker	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU
Parts packaging code	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2
package instruction	TSOP2,	TSOP2-R,	TSOP2-R,	TSOP2,	TSOP2-R,	TSOP2,
Contacts	50	50	50	50	50	50
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST
Maximum access time	75 ns	75 ns	67 ns	58 ns	58 ns	67 ns
Other features	AUTO/SELF REFRESH; DOWN COUNT BURST MODE CAPABILITY	AUTO/SELF REFRESH; DOWN COUNT BURST MODE CAPABILITY	AUTO/SELF REFRESH; DOWN COUNT BURST MODE CAPABILITY	AUTO/SELF REFRESH; DOWN COUNT BURST MODE CAPABILITY	AUTO/SELF REFRESH; DOWN COUNT BURST MODE CAPABILITY	AUTO/SELF REFRESH; DOWN COUNT BURST MODE CAPABILITY
JESD-30 code	R-PDSO-G50	R-PDSO-G50	R-PDSO-G50	R-PDSO-G50	R-PDSO-G50	R-PDSO-G50
length	20.95 mm	20.95 mm	20.95 mm	20.95 mm	20.95 mm	20.95 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM
memory width	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	50	50	50	50	50	50
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256KX16	256KX16	256KX16	256KX16	256KX16	256KX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2-R	TSOP2-R	TSOP2	TSOP2-R	TSOP2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
self refresh	YES	YES	YES	YES	YES	YES
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
