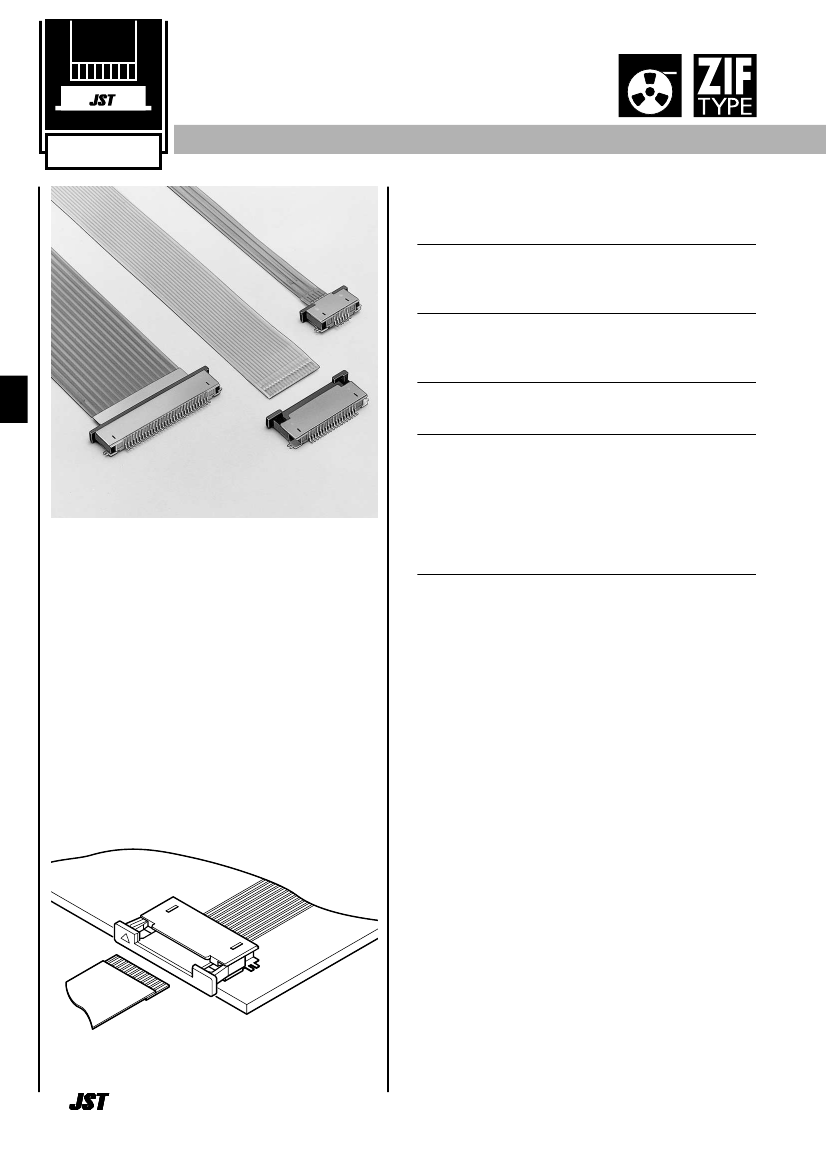

FLZ
CONNECTOR
0.5mm
(.020") pitch
Emboss Tape
Connectors for FFC and FPC
Features––––––––––––––––––––––––
• Zero insertion force mechanism
A ZIF mechanism increases wear resistance and extends the
connector's mating life.
• Heat resistant design suitable for surface mounting
This housing is made of heat resistant plastic to allow reflow
soldering.
• In-line surface mount tails
Has an in-line surface mount tails for easy inspection.
• Two types of connections
The connector is available in either the normal or reverse
configurations. The FFC/FPC is positioned with its mating
surfaces facing upward for the normal configured connector,
while the reverse configuration requires that the FFC/FPC be
positioned with its mating surfaces facing down. The engineer
This extremely small 0.5mm (.020") pitch
connector with a height of only 2.0mm
(.079") above the PCB surface allows
interconnection in extremely small spaces
and is an example of JST's leading edge
technology.
has greater freedom in designing his circuitry.
• Embossed tape for automatic mounting
The FLZ connector can be packaged in embossed tape for
automatic mounting.
Specifications –––––––––––––––––––
• Current rating: 0.5A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/40m
Ω
max.
After environmental testing/60m
Ω
max.
• Insulation resistance:
800M
Ω
min.
• Withstanding voltage: 200V AC/minute
• Applicable FFC and FPC: Lead pitch/0.5mm(.020")
Lead width/0.35mm(.014")
Mating part thickness/
0.30±0.03mm(.012"
±
.001")
<
Note
>FFC and
FPC to be actually used should be checked for applicability.
HJ
ST
* Contact JST if Lead-Free product is required.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
Recognized E60389
492
1
Certified LR20812
FLZ
CONNECTOR
Connector –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Normal type
Reverse type
B
A
0.5(.020)
3.2(.126)
4.6(.181)
1.9
(.075)
2.0
(.079)
[0.7
(.028)]
B
A
0.5(.020)
3.2(.126)
4.6(.181)
1.9
(.075)
2.0
(.079)
[0.7
(.028)]
HJST
Cir-
cuits
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
30
33
Model No.
Normal type
06FLZ-SM1-TB
07FLZ-SM1-TB
08FLZ-SM1-TB
09FLZ-SM1-TB
10FLZ-SM1-TB
11FLZ-SM1-TB
12FLZ-SM1-TB
13FLZ-SM1-TB
14FLZ-SM1-TB
15FLZ-SM1-TB
16FLZ-SM1-TB
17FLZ-SM1-TB
18FLZ-SM1-TB
19FLZ-SM1-TB
20FLZ-SM1-TB
21FLZ-SM1-TB
22FLZ-SM1-TB
23FLZ-SM1-TB
24FLZ-SM1-TB
25FLZ-SM1-TB
26FLZ-SM1-TB
27FLZ-SM1-TB
28FLZ-SM1-TB
30FLZ-SM1-TB
33FLZ-SM1-TB
Reverse type
06FLZ-RSM1-TB
07FLZ-RSM1-TB
08FLZ-RSM1-TB
09FLZ-RSM1-TB
10FLZ-RSM1-TB
11FLZ-RSM1-TB
12FLZ-RSM1-TB
13FLZ-RSM1-TB
14FLZ-RSM1-TB
15FLZ-RSM1-TB
16FLZ-RSM1-TB
17FLZ-RSM1-TB
18FLZ-RSM1-TB
19FLZ-RSM1-TB
20FLZ-RSM1-TB
21FLZ-RSM1-TB
22FLZ-RSM1-TB
23FLZ-RSM1-TB
24FLZ-RSM1-TB
25FLZ-RSM1-TB
26FLZ-RSM1-TB
27FLZ-RSM1-TB
28FLZ-RSM1-TB
30FLZ-RSM1-TB
–
Material and Finish
Contact: Phosphor bronze, tin/lead-plated
Slider housing: Nylon 46, UL94V-0 (black)
Receptacle housing: Nylon 46, UL94V-0
( )FLZ-SM1-TB, gray
( )FLZ-RSM1-TB, natural
Solder tab: Phosphor bronze, tin/lead-plated
0.2(.008)
Dimensions mm(in.)
A
2.5(.098)
3.0(.118)
3.5(.138)
4.0(.157)
4.5(.177)
5.0(.197)
5.5(.217)
6.0(.236)
6.5(.256)
7.0(.276)
7.5(.295)
8.0(.315)
8.5(.335)
9.0(.354)
9.5(.374)
10.0(.394)
10.5(.413)
11.0(.433)
11.5(.453)
12.0(.472)
12.5(.492)
13.0(.512)
13.5(.531)
14.5(.571)
16.0(.630)
B
8.9(.350)
9.4(.370)
9.9(.390)
10.4(.409)
10.9(.429)
11.4(.449)
11.9(.469)
12.4(.488)
12.9(.508)
13.4(.528)
13.9(.547)
14.4(.567)
14.9(.587)
15.4(.606)
15.9(.626)
16.4(.646)
16.9(.665)
17.4(.685)
17.9(.705)
18.4(.724)
18.9(.744)
19.4(.764)
19.9(.783)
20.9(.823)
22.4(.882)
Q'ty /
reel
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
Note: The products listed above are supplied on embossed tape.
0.2(.008)
HJST
493
FLZ
CONNECTOR
Connector <Inner-lock type> ––––––––––––––––––––––––––––––––––––––––––––––––
Normal type
Reverse type
B
A
0.5(.020)
3.6(.142)
5.1(.201)
0.7
(.028)
B
A
0.5(.020)
3.6(.142)
5.1(.201)
0.7
(.028)
1.9
(.075)
HJST
1.9
(.075)
Cir-
cuits
13
30
32
34
36
40
42
45
50
Model No.
Normal type
–
30FLZ-SM1-R-TB
32FLZ-SM1-R-TB
34FLZ-SM1-R-TB
36FLZ-SM1-R-TB
40FLZ-SM1-R-TB
42FLZ-SM1-R-TB
45FLZ-SM1-R-TB
50FLZ-SM1-R-TB
Reverse type
13FLZ-RSM1-R-TB
–
32FLZ-RSM1-R-TB
34FLZ-RSM1-R-TB
36FLZ-RSM1-R-TB
40FLZ-RSM1-R-TB
–
–
–
Material and Finish
Contact: Phosphor bronze, tin/lead-plated
Slider housing: Nylon 46, UL94V-0 (black)
Receptacle housing: Nylon 46, UL94V-0
( )FLZ-SM1-R-TB, gray
( )FLZ-RSM1-R-TB, natural
Solder tab: Phosphor bronze, tin/lead-plated
0.2
(.008)
Dimensions mm(in.)
A
6.0(.236)
14.5(.571)
15.5(.610)
16.5(.650)
17.5(.689)
19.5(.768)
20.5(.807)
22.0(.866)
24.5(.965)
B
13.1( .516)
21.6( .850)
22.6( .890)
23.6( .929)
24.6( .969)
26.6(1.047)
27.6(1.087)
29.1(1.146)
31.6(1.244)
Q'ty /
reel
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
Note: 1. The products listed above are supplied on embossed tape.
2. 45FLZ-SM1-R-TB and 50FLZ-SM1-R-TB are not CSA approved.
494
0.2
(.008)
HJST
FLZ
CONNECTOR

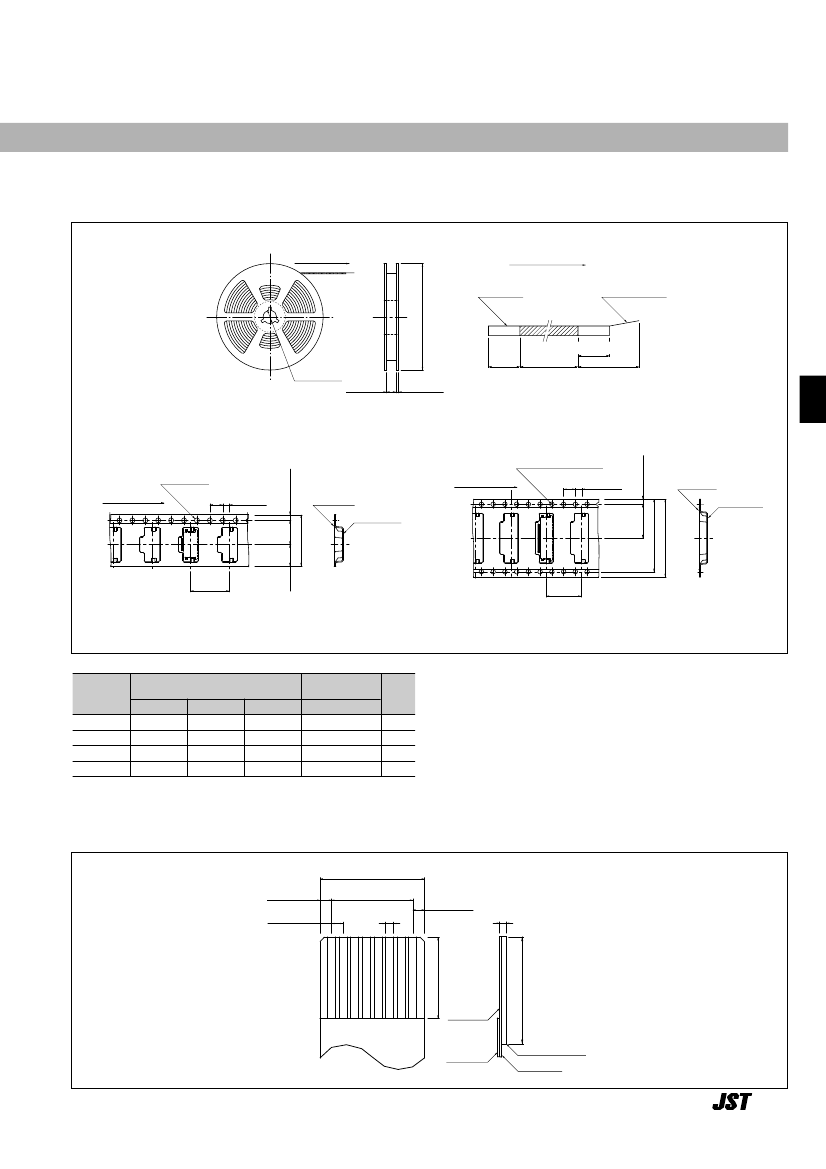

Taping specifications ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Feeding direction
330±2.0(12.992±.079)dia.
Feeding direction
Carrier tape
Cover tape leader
Leader part
100(3.937)min.
The end part Connector
160(6.299)min. mounting part 400(15.748)min.
[13(.512)dia.]
W1
+ 2.5
(
+ .098
)
- 1.0 - .039
2.0
±
0.5
(.079
±
.020)
1.55± 0.05(.061± .002)dia.
1.75± 0.1
(.069±.004)
Feeding direction
Cover tape
W± 0.3(.012)
Carrier tape
4.0± 0.1
2.0± 0.1
(.157± .004) (.079±.004)
1.55± 0.05
(.061
±
.002)dia.
Feeding direction
4.0± 0.1
2.0± 0.1
(.157±.004) (.079±.004)
1.75± 0.1
(.069± .004)
(6 to 24 circuits)
(25 to 50 circuits)
Cover tape
Carrier tape
F± 0.1
(.004)
S± 0.1(.004)
12.0± 0.1
(.472±.004)
W± 0.3(.012)
12.0± 0.1
(.472±.004)
[6.75
(.266)]
F± 0.1
(.004)
Taping dimensions mm(in.)
Circuits
6 to 8
9 to 24
25 to 30
32 to 50
Reel dimen-
sions mm(in.)
W1
17.5( .689)
25.5(1.004)
33.5(1.319)
45.5(1.791)
F
7.5(.295)
11.5(.453)
14.2(.559)
20.2(.795)
S
–
–
28.4(1.118)
40.4(1.591)
W
16.0( .630)
24.0( .945)
32.0(1.260)
44.0(1.732)
Q'ty /
reel
2,000
2,000
2,000
2,000
Note:
1. Specifications conform to JIS C 0806. The tape width, connector recess
dimensions, etc. are determined by the number of circuits and external
shape of the connector to be loaded.
2. Specifications are subject to change without prior notice.
Lead section dimensions of FFC and FPC –––––––––––––––––––––––––––––––––––––
[0.5(.020)x(Number of circuits +1)]
±
0.05(.002)
0.5
±
0.1
(.020
±
.004)
0.5
±
0.03
(.020
±
.001)
[0.5(.020)x(Number of
circuits -1)]
±
0.03(.001)
0.35
±
0.04
(.014
±
.002)
0.5
±
0.1
(.020
±
.004)
0.3
±
0.03
(.012
±
.001)
3.0(.118)min.
Conductor
Cover layer
[5.5(.217)]
Reinforcing layer
Base layer
495
