DTSMW-66N-V-T/R datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> DTSMW-66N-V-T/R

DTSMW-66N-V-T/R: DescriptionKeypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.06N, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size862KB，2 Pages; ManufacturerDIPTRONICS MANUFACTURING INC; Environmental Compliance

Download Datasheet Parametric Compare View All

DTSMW-66N-V-T/R Overview

Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.06N, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT

DTSMW-66N-V-T/R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIPTRONICS MANUFACTURING INC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	6.2 mm
Body length or diameter	6.3 mm
Circuit configuration	1X1
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	100000 Cycle(s)
Manufacturer's serial number	DTSMW-6
Installation features	SURFACE MOUNT-STRAIGHT
Number of switches	1
Maximum operating force	2.06 N
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
method of packing	TAPE AND REEL
seal	IP67
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYPAD SWITCH
Termination type	SOLDER

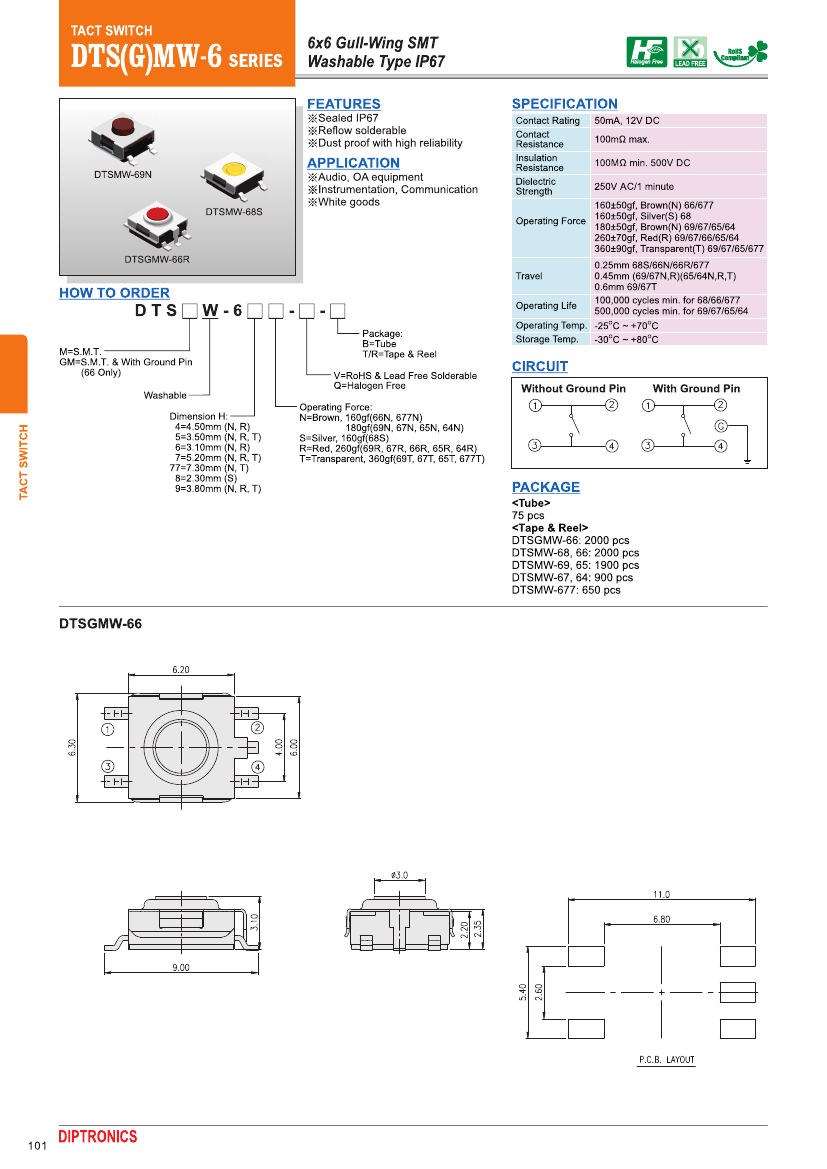

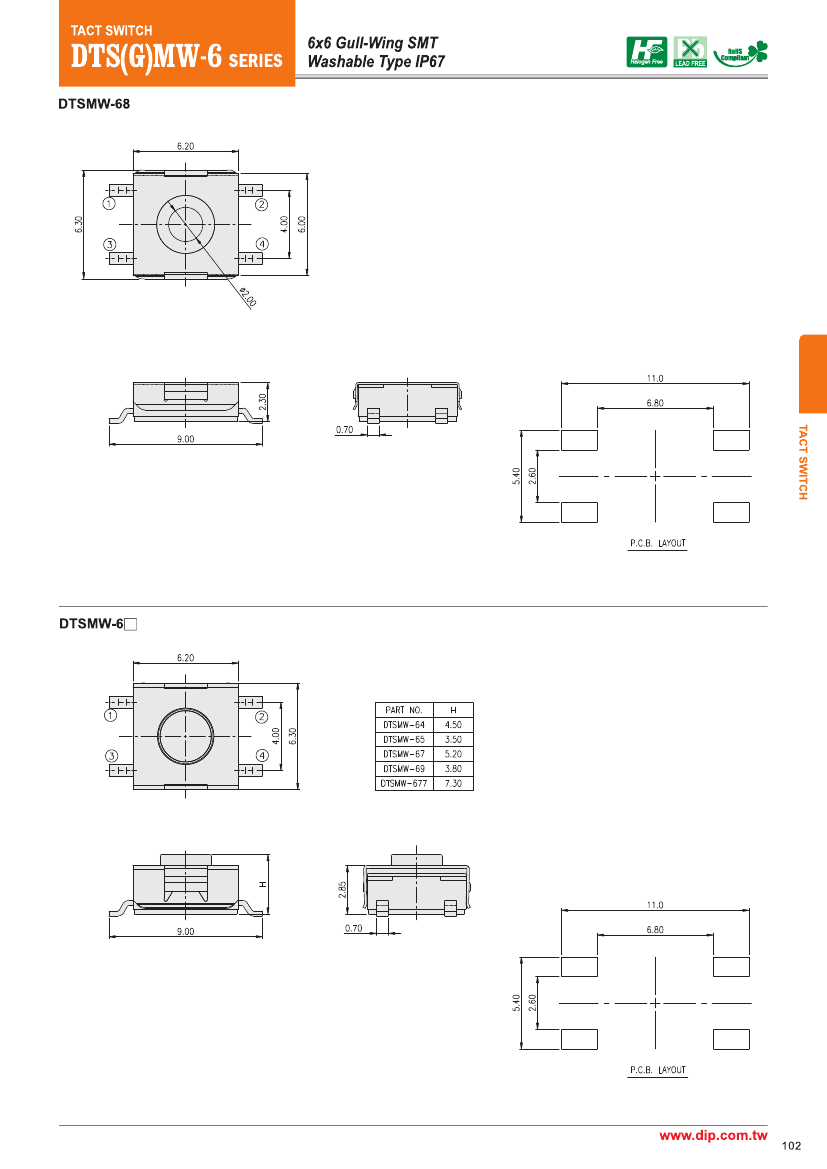

DTSMW-66N-V-T/R Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

DTSMW-66N-V-T/R Related Products

	DTSMW-66N-V-T/R	DTSMW-69N-V-B	DTSMW-68S-V-T/R
Description	Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.06N, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT	Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.26N, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT	Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.06N, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compli	compliant
ECCN code	EAR99	EAR99	EAR99
body width	6.2 mm	6.2 mm	6.2 mm
Body length or diameter	6.3 mm	6.3 mm	6.3 mm
Circuit configuration	1X1	1X1	1X1
Maximum contact current (DC)	0.05 A	0.05 A	0.05 A
Contact (DC) maximum rated R load	.05A@12VDC	.05A@12VDC	.05A@12VDC
Maximum contact voltage (DC)	12 V	12 V	12 V
Electrical life	100000 Cycle(s)	500000 Cycle(s)	100000 Cycle(s)
Manufacturer's serial number	DTSMW-6	DTSMW-6	DTSMW-6
Installation features	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT
Number of switches	1	1	1
Maximum operating force	2.06 N	2.26 N	2.06 N
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C
method of packing	TAPE AND REEL	TUBE	TAPE AND REEL
seal	IP67	IP67	IP67
surface mount	NO	NO	NO
Switch action	MOMENTARY-TACTILE	MOMENTARY-TACTILE	MOMENTARY-TACTILE
switch function	SPST	SPST	SPST
Switch type	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH
Termination type	SOLDER	SOLDER	SOLDER
Maker	DIPTRONICS MANUFACTURING INC	DIPTRONICS MANUFACTURING INC	-
body height	-	2.85 mm	2.3 mm
