1369-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1369-3

1369-3: DescriptionINTERCONNECTION DEVICE; CategoryThe connector; File Size418KB，1 Pages; ManufacturerETC2

Download Datasheet Parametric View All

1369-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1369-3	-	-	View	Buy Now

1369-3 Overview

INTERCONNECTION DEVICE

1369-3 Parametric

Parameter Name	Attribute value
Connector type	INTERCONNECTION DEVICE
state	Active

Preview

Download Datasheet

View All

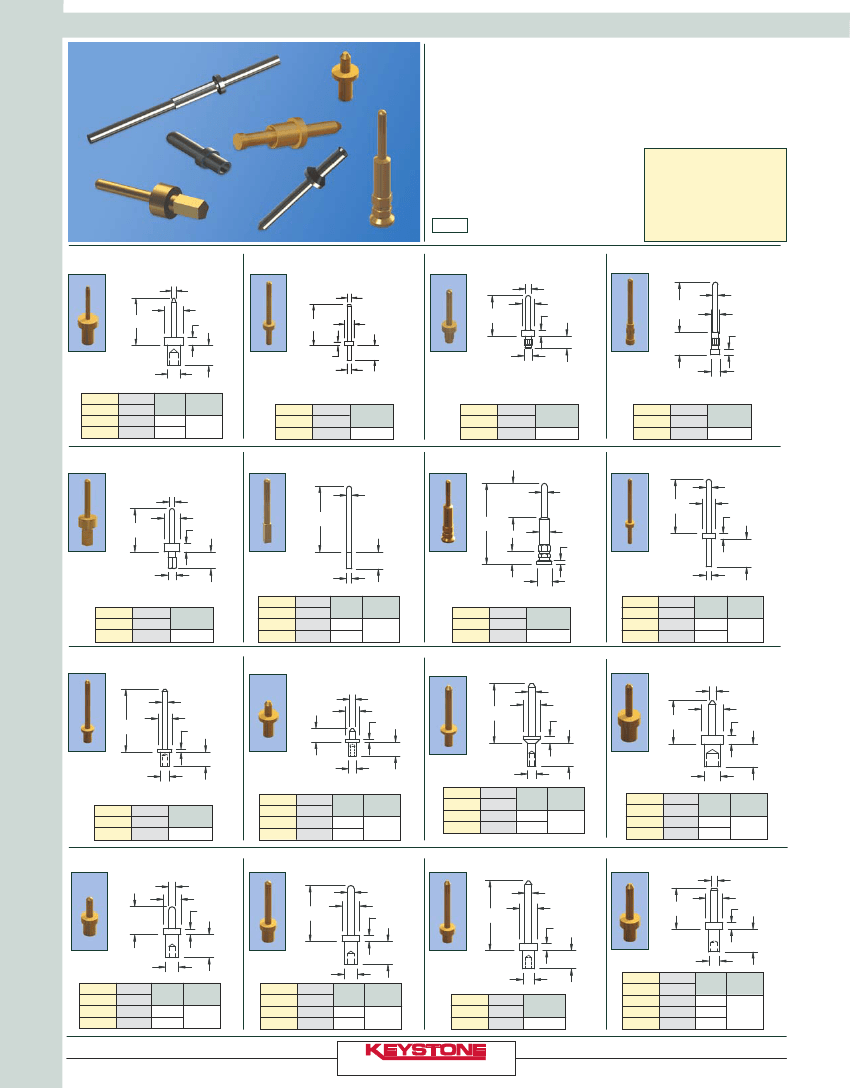

MICRO PINS

•

Precision engineered and manufactured

•

Space saving design for high density packaging

•

Micro pins are available in .017 (.43) to .080 (2.03) diameters

•

Ideal for mating with our standard line of micro jacks

•

Available for press-fit, swage or solder mounting

•

Custom micro pins manufactured to your specifications

•

Other platings available upon request

SPECIFICATIONS

Material:

Brass, ASTM-B16

Plating:

Gold:

.000010 per MIL-G-45204

Tin:

.000200 to .000300 per

MIL-T-10727, Type 1

RoHS

(RoHS Compliant)

DASH NUMBERS (L Dimension)

-1 for .032 (.81) thick Board

-2 for .062 (1.57) thick Board

-3 for .093 (2.36) thick Board

-4 for .125 (3.2) thick Board

Example:

1967-1 for .032 (.81) thick Board

1967-2 for .062 (1.57) thick Board

.017 (.43) PIN -SWAGE MOUNT

.017 [0.43]

.017 (.43) PIN - SOLDER MOUNT

.018 (.46) PIN - PRESS-FIT

.018 [0.46]

.018 (.46) PIN- PRESS-FIT

.017 [0.43]

.078 [1.98]

.186 [4.7]

.030 [0.76]

.018 [0.46]

.180 [4.6]

.028 [0.71]

KNURL

.020 [0.51]

.080 [2.03]

.045 [1.14]

.145 [3.7]

.020 [0.51]

.045 [1.14]

.173 [4.4]

.039 [0.99]

.049 [1.24]

.016 [0.41]

.019 [0.48]

.061 [1.55]

.028 [0.71]

KNURL

.032 [0.81]

GOLD

TIN

Mtg. Hole

CAT. NO. CAT. NO.

Length

Dia.

1967-1 1968-1

.051 (1.3) .052

1967-2 1968-2

.082 (2.0) (1.32)

MATERIAL:

Phosphor Bronze

GOLD

TIN

Mtg. Hole

CAT. NO. CAT. NO.

Dia.

1378-1 1379-1

.022 (.56)

GOLD

TIN

Mtg. Hole

CAT. NO. CAT. NO.

Dia.

1986-1 1987-1

.026 (.66)

GOLD

TIN

Mtg. Hole

CAT. NO. CAT. NO.

Dia.

1990-2 1991-2

.026 (.66)

MICRO PINS

.018 (.46) PIN - PRESS-FIT

.020 (.51) PIN - PRESS-FIT

.020 [0.51]

.125 [3.2]

.295 [7.5]

.038 [0.97]

.016 [0.41]

.049 [1.24]

.055 [1.40]

.020 (.51) PIN - SOLDER MOUNT

.020 [0.51]

.018 [0.46]

.056 [1.42]

.155 [4.0]

.030 [0.76]

.045 [1.14]

.020 [0.51]

.060 [1.52]

.029 [0.72]

PENTAGON

.019 [0.48]

SQUARE

.060 [1.52]

.100 [2.6]

.020 [0.51]

GOLD

TIN

Mtg. Hole

CAT. NO. CAT. NO.

Dia.

1988-2 1989-2

.026 (.66)

GOLD

TIN

Mtg. Hole

CAT. NO. CAT. NO.

Dim.

Dia.

1992-2 1994-2

.243 (6.2) .022

1993-2 1995-2

.140 (3.6) (.56)

GOLD

TIN

Mtg. Hole

CAT. NO. CAT. NO.

Dia.

1996-2 1997-2

.040 (1.01)

GOLD

TIN

Mtg. Hole

CAT. NO. CAT. NO.

Dim.

Dia.

1998-3 2000-3

.250 (6.4) .024

1999-3 2001-3

.425 (10.8) (.61)

.020 (.51) PIN - SWAGE MOUNT

.024 (.61) PIN - SWAGE MOUNT

.024 [0.61]

.060 [1.52]

.213 [5.4]

.025 [0.64]

.025 (.64) PIN - SWAGE MOUNT

.025 [0.64]

.078 [1.98]

.156 [4.0]

.030 [0.76]

.020 [0.51]

.050 [1.27]

.225 [5.7]

.010 [0.25]

.050 [1.27]

.020 [0.51]

.050 [1.27]

.010 [0.25]

.051 [1.30]

.027 [0.68]

.030 [0.76]

.058 [1.47]

.031 [0.79]

GOLD

TIN

Mtg. Hole

CAT. NO. CAT. NO.

Dia.

1366-1 1367-1

.035 (.89)

GOLD

TIN

Mtg. Hole

CAT. NO. CAT. NO.

Length

Dia.

1372-1 1373-1

.051 (1.3) .031

1372-2 1373-2

.082 (2.1) (.78)

GOLD

TIN

Mtg. Hole

CAT. NO. CAT. NO.

Length

Dia.

1406-1 1426-1

.047 (1.2) .035

1406-2 1426-2

.078 (1.9) (.89)

GOLD

TIN

Mtg. Hole

CAT. NO. CAT. NO.

Length

Dia.

1408-1 1428-1

.062 (1.6) .062

1408-2 1428-2

.094 (2.4) (1.57)

.025 (.64) PIN - SWAGE MOUNT

.025 [0.64]

.062 [1.57]

.021 [0.53]

.100 [2.6]

.025 (.64) PIN - SWAGE MOUNT

.025 [0.64]

.062 [1.57]

.200 [5.1]

.021 [0.53]

.025 (.64) PIN - SWAGE MOUNT

.025 [0.64]

.250 [6.4]

.062 [1.57]

.025 [0.64]

.025 (.64) PIN - SWAGE MOUNT

.025 [0.64]

.062 [1.57]

.150 [3.8]

.025 [0.64]

.047 [1.19]

.040 [1.02]

.065 [1.64]

.040 [1.02]

GOLD

TIN

Mtg. Hole

CAT. NO. CAT. NO.

Length

Dia.

1404-1 1424-1

.051 (1.3) .052

1404-2 1424-2

.082 (2.1) (1.32)

GOLD

TIN

Mtg. Hole

CAT. NO. CAT. NO.

Length

Dia.

1407-1 1427-1

.051 (1.3) .052

1407-2 1427-2

.082 (2.1) (1.32)

GOLD

TIN

Mtg. Hole

CAT. NO. CAT. NO.

Dia.

1401-1 1421-1

.043 (1.09)

GOLD

CAT. NO.

1368-1

1368-2

1368-3

TIN

Mtg. Hole

CAT. NO.

Length

Dia.

1369-1

.051 (1.3)

1369-2

.082 (2.1) .043

(1.09)

1369-3

.113 (2.9)

100

Tel (718) 956-8900

•

Fax (718) 956-9040

(800) 221-5510

•

kec@keyelco.com

RoHS COMPLIANT

ISO 9001 CERTIFIED

www.keyelco.com

31-07 20th Road – Astoria, NY 11105-2017
