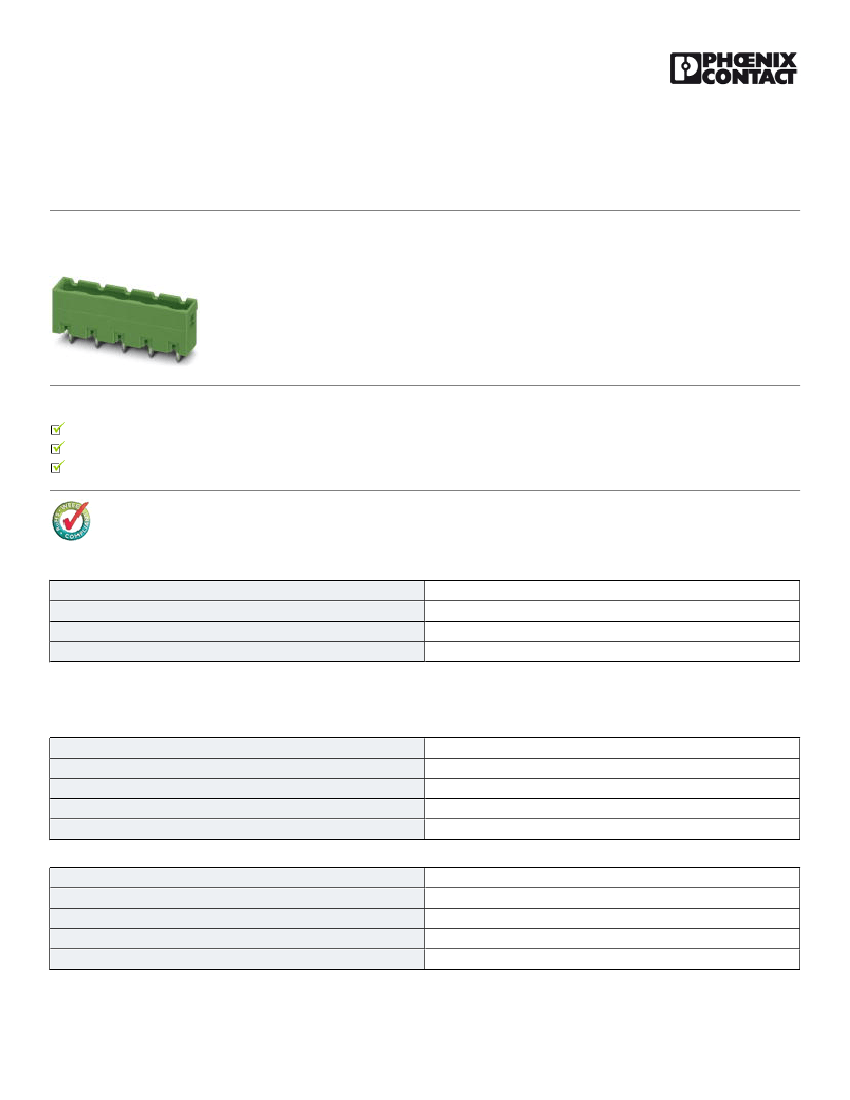

Printed-circuit board connector - GMSTBVA 2,5 HC/ 7-G-7,62 - 1792407
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 16 A, Rated voltage (III/2): 630 V, Number of positions: 7, Pitch: 7.62 mm, Color: green,
Contact surface: Tin, Assembly: Soldering
Product Features
GMSTBVA 2,5 HC vertical headers for use in combination with GMSTB 2,5 HCV plugs
CR-MSTB coding sections as protection against mismatching
Compact 7.62 mm pitch
Key commercial data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 pc
50 pc
85366990
Germany
Technical data
Dimensions
Length
Pitch
Dimension a
Pin dimensions
Hole diameter
8.6 mm
7.62 mm
45.72 mm
1 x 1 mm
1.4 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
GMSTBVA 2,5 HC/..-G
I
6 kV
6 kV
6 kV
10/27/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/1792407
Printed-circuit board connector - GMSTBVA 2,5 HC/ 7-G-7,62 - 1792407
Technical data
General
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Inflammability class according to UL 94
Color
Number of positions
400 V
630 V
630 V
EN-VDE
16 A
16 A
PA
V0
green
7
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27260704
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC002637
EC002637
EC002637
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Approvals
Approvals
10/27/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/1792407
Printed-circuit board connector - GMSTBVA 2,5 HC/ 7-G-7,62 - 1792407
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Nominal current IN
Nominal voltage UN
B
18.5 A
300 V
D
10 A
300 V
cUL Recognized
Nominal current IN
Nominal voltage UN
B
18.5 A
300 V
D
10 A
300 V
GOST
GOST
cULus Recognized
Drawings
10/27/2014 Page 3 / 4
https://www.phoenixcontact.com/us/products/1792407
Printed-circuit board connector - GMSTBVA 2,5 HC/ 7-G-7,62 - 1792407
Dimensioned drawing
8,6
a+7,62
Drilling diagram
a
7,62
3,81
12
3,9
3,8
3,81
7,62
a
Diagram
32
28
24
20
16
12
8
4
0
0
Current strength [A]
= 2-pos.
= 5-pos.
= 12-pos.
20
40
60
80
3,8
100
Ambient temperature [°C]
Type: GMSTB 2.5 HCV/...-ST-7.62(-LR) with GMSTBVA 2.5 HC/...-G-7.62(-LR)
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
10/27/2014 Page 4 / 4
1,4
