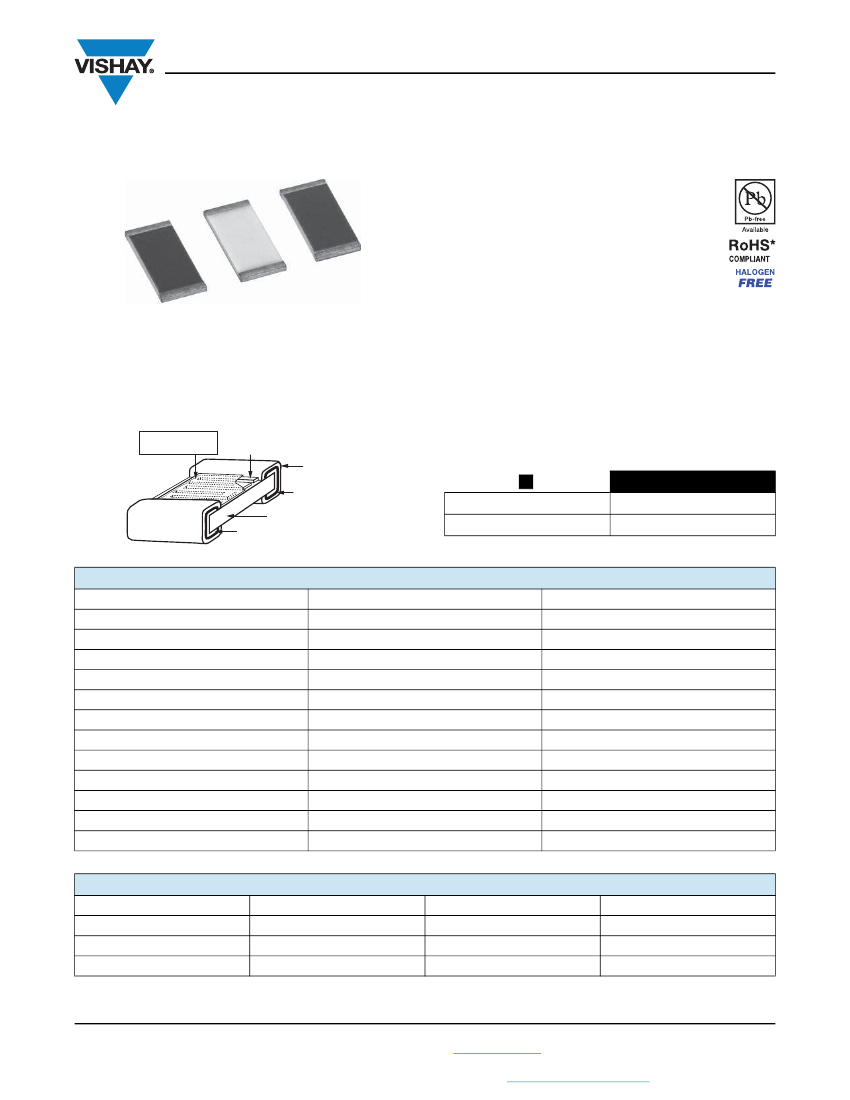

PLT
www.vishay.com
Vishay Dale Thin Film
Precision Low TCR Thin Film Resistor, Surface Mount Chip,
± 5 ppm/°C TCR, 0.01 % Tolerance
FEATURES
• TCR of ± 5 ppm/°C standard
• Tolerances to ± 0.01 %
• Anti corrosion resistant film with (SPM) special
passivation method
• Stable film and performance characteristics
(R ± 0.04 % at 70 °C, 10 000 h)
• Non-standard resistance values available
• Very low noise and voltage coefficient
(< - 30 dB, 0.1 ppm/V)
• UL 94 V-0 flame resistant
• Compliant to RoHS Directive 2002/95/EC
• Halogen-free according to IEC 61249-2-21 definition
Note
*
Pb containing terminations are not RoHS compliant, exemptions
may apply
Actual
Size
0603
Vishay’s proven precision thin film wraparound resistors will
meet your exact requirements. These resistors are ideal for
precision applications requiring low noise, stability, ultra low
temperature coefficient of resistance, and low voltage
coefficient. The chip resistors are available in any resistance
ohmic value in the range specified below.
CONSTRUCTION
SPM
Passivation
Enhancement
Passivated Nichrome
Resistive Film
Solder
Coating
Nickel Barrier
High Purity
Alumina
Substrate
Adhesion Layer
TYPICAL PERFORMANCE
ABSOLUTE
TCR
TOL.
5
0.01
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Material
Resistance Range
TCR: Absolute
Tolerance: Absolute
Stability: Absolute
Stability: Ratio
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Shelf Life Stability: Absolute
SPECIFICATIONS
Passivated nichrome
100
to 775 k
± 5 ppm/°C
± 0.1 % to ± 0.01 %
R
± 0.02 %
-
± 0.1 ppm/V (typical)
75 V to 200 V
- 55 °C to + 125 °C
- 55 °C to + 150 °C
< - 35 dB (typical)
R
± 0.01 %
CONDITIONS
-
-
- 55 °C to + 125 °C
+ 25 °C
2000 h at 70 °C
-
-
-
-
-
-
1 year at + 25 °C
COMPONENT RATINGS
CASE SIZE
0603
0805
1206
POWER RATING (mW)
150
250
400
WORKING VOLTAGE (V)
75
100
200
RESISTANCE RANGE ()
100 to 130K
100 to 260K
100 to 775K
Revision: 02-Aug-11
1
For technical questions, contact:
thinfilm@vishay.com
Document Number: 60030
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PLT
www.vishay.com
Vishay Dale Thin Film
DIMENSIONS
in inches
D
T
E
L
W
CASE SIZE
0603
0805
1206
TERM
B
B
B
L
0.064 ± 0.006
0.080 ± 0.006
0.126 ± 0.008
W
0.032 ± 0.005
0.050 ± 0.005
0.063 ± 0.005
T
0.020 max.
0.015 to 0.033
0.015 to 0.033
D
0.012 ± 0.005
0.016 ± 0.008
0.020 + 0.005/- 0.010
E
0.015 ± 0.005
0.015 ± 0.005
0.020 + 0.005/- 0.010
ENVIRONMENTAL TESTS - TYPICAL
ENVIRONMENTAL TEST
Thermal Shock
Short Time Overload
Low Temperature Operation
Resistance to Solder Heat
Moisture Resistance
High Temperature Exposure
Load Life (10 000 h, + 70 °C)
TCR
10 k
R
±
(%)
0.02
0.01
0.01
0.01
0.02
0.02
0.04
± 5 ppm/°C
100 k
R
±
(%)
0.02
0.01
0.01
0.01
0.02
0.02
0.04
± 5 ppm/°C
DERATING CURVE
100
Precent of Rated Power
80
60
40
20
0
0
70
125
150
Ambient Temperature °C
GLOBAL PART NUMBER INFORMATION
P
GLOBAL
MODEL
PLT
L
CASE
SIZE
0603
0805
1206
T
0
6
0
3
Z
1
0
0
1
Q
B
T
1
TCR
CHARACTERISTIC
Z
= ± 5 ppm/°C
RESISTANCE
The first 3 digits are
significant figures and
the last digit specifies
the number of zeros to
follow. “R” designates
the decimal point.
Example:
1001 = 1 k
2500 = 250
Special values with more
than 4 significant figures,
use a R for value below
1 k and a K for values
greater than 1 k to
signify a decimal point.
982R6 = 982.6
532R41 = 532.41
TOLERANCE
L
= ± 0.01 %
Q
= ± 0.02 %
A
= ± 0.05 %
B
= ± 0.1 %
TERMINATION
PACKAGING
B
= Wraparound Sn/Pb
WS
= WAFFLE PACK
solder w/Ni barrier
(63 % Sn/37 % Pb w/ TAPE AND REEL
nickel barrier)
T0
= 100 min., 100 mult
T1
= 1000 min., 1000 mult
(1)
S
= Wraparound
T3
= 300 min., 300 mult
lead (Pb)-free solder
T5
= 500 min., 500 mult
96.5 % Sn/3.0 % Ag/
TF
= Full reel
0.5 % Cu
TS
= 100 min., 1 mult
RoHS compliant - e1
Note
(1)
Preferred packaging code
Revision: 02-Aug-11
2
For technical questions, contact:
thinfilm@vishay.com
Document Number: 60030
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
