1N4450

Description
SILICON, SIGNAL DIODE
CategoryDiscrete semiconductor    diode
File Size118KB,3 Pages
ManufacturerDigitron
Websitehttp://www.digitroncorp.com
Download Datasheet Parametric View All

1N4450 Overview

SILICON, SIGNAL DIODE

1N4450 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerDigitron
package instructionO-XALF-W2
Reach Compliance Codeunknow
Minimum breakdown voltage40 V
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1 V
JEDEC-95 codeDO-35
JESD-30 codeO-XALF-W2
JESD-609 codee0
Maximum non-repetitive peak forward current4 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature200 °C
Maximum output current0.2 A
Package body materialUNSPECIFIED
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum power dissipation0.5 W
Maximum repetitive peak reverse voltage40 V
Maximum reverse current0.05 µA
Maximum reverse recovery time0.004 µs
Reverse test voltage30 V
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formWIRE
Terminal locationAXIAL
Maximum time at peak reflow temperatureNOT SPECIFIED

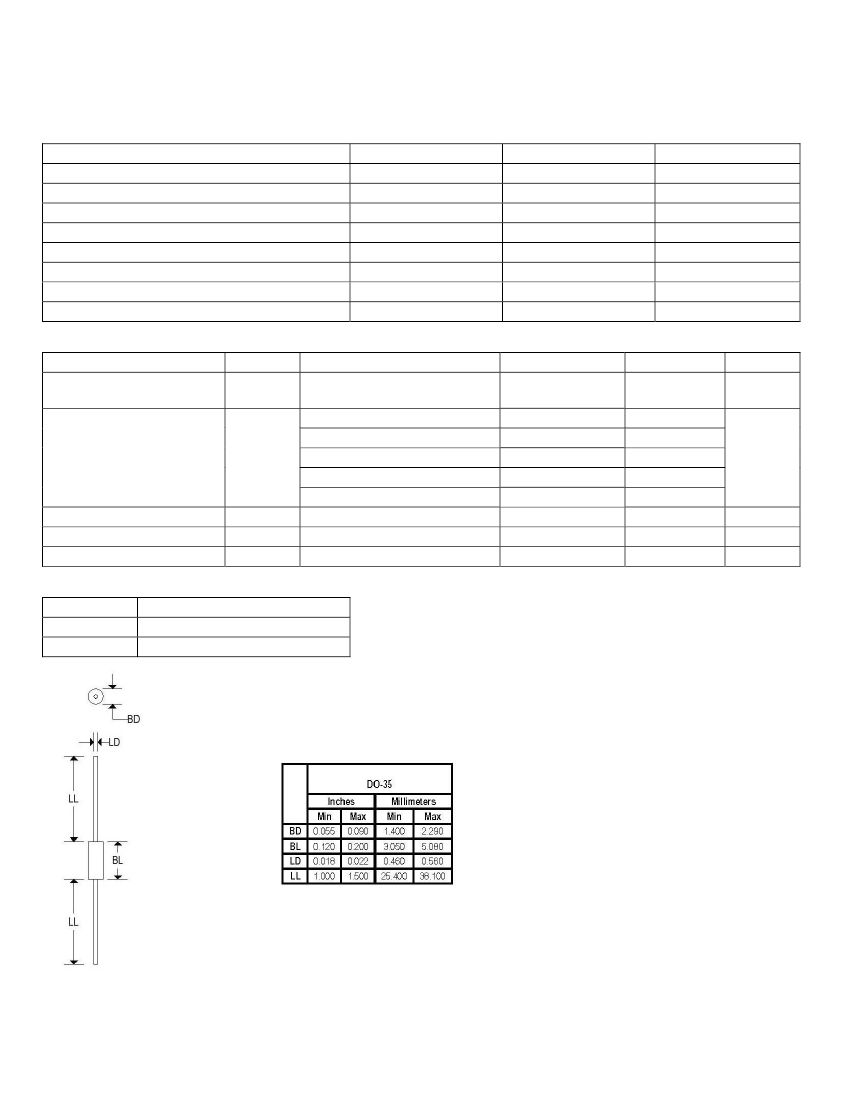

DIGITRON SEMICONDUCTORS
1N4450
MAXIMUM RATINGS
Rating
Maximum peak reverse voltage
Maximum reverse voltage
Maximum forward DC current
Maximum average forward current
Maximum surge forward current @ t
p
= 1µs
Power dissipation
Maximum junction temperature
Storage temperature range
Symbol
V
RM
V
R
I
F
I
F(AV)
I
FSM
P
D
T
J
T
stg
Value
40
30
250
200
4
500
200
-65 to +200
Unit
V
V
mA
mA
A
mW
°C
°C
SWITCHING RECTIFIER
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C)
Parameter
Reverse current
Forward voltage
V
F
Symbol
I
R
Test Condition
V
R
= 30V
V
R
= 30V, T
J
= 150°C
I
F
= 0.1mA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 200mA
Reverse breakdown voltage
Diode capacitance
Reverse recovery
V
(BR)R
C
d
t
rr
I
R
= 5µA (pulsed)
f = 1MHz, V
R
= 0
I
F
= 10mA, V
R
= 6V, R
L
= 100Ω
Min
-
-
0.42
0.52
0.64
0.80
-
40
-
-
Max
50
50
0.54
0.64
0.72
0.92
1.00
-
4
4
V
pF
ns
V
Unit
nA
µA

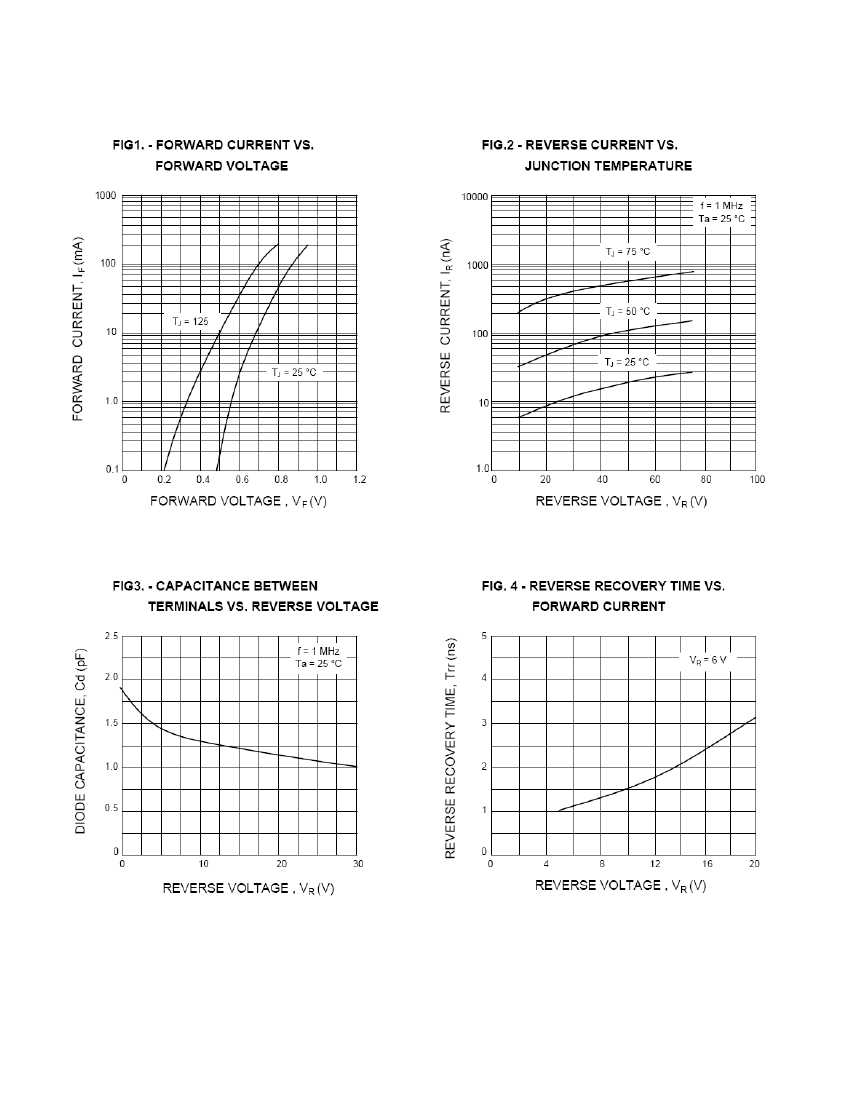

MECHANICAL CHARACTERISTICS
Case
Marking
Polarity
DO-35
Body painted, alpha-numeric
Cathode band
Available Non-RoHS (standard) or RoHS compliant (add PBF suffix).
144 Market Street
Kenilworth NJ 07033 USA
phone +1.908.245-7200
fax +1.908.245-0555
sales@digitroncorp.com
www.digitroncorp.com
Rev. 20121218
