N3429-650T02RB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> N3429-650T02RB

N3429-650T02RB: Description26 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，5 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric View All

N3429-650T02RB Overview

26 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, ROHS COMPLIANT

N3429-650T02RB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	3M
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	MATTE TIN (300) OVER NICKEL (100)
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	3000
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	26
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

™

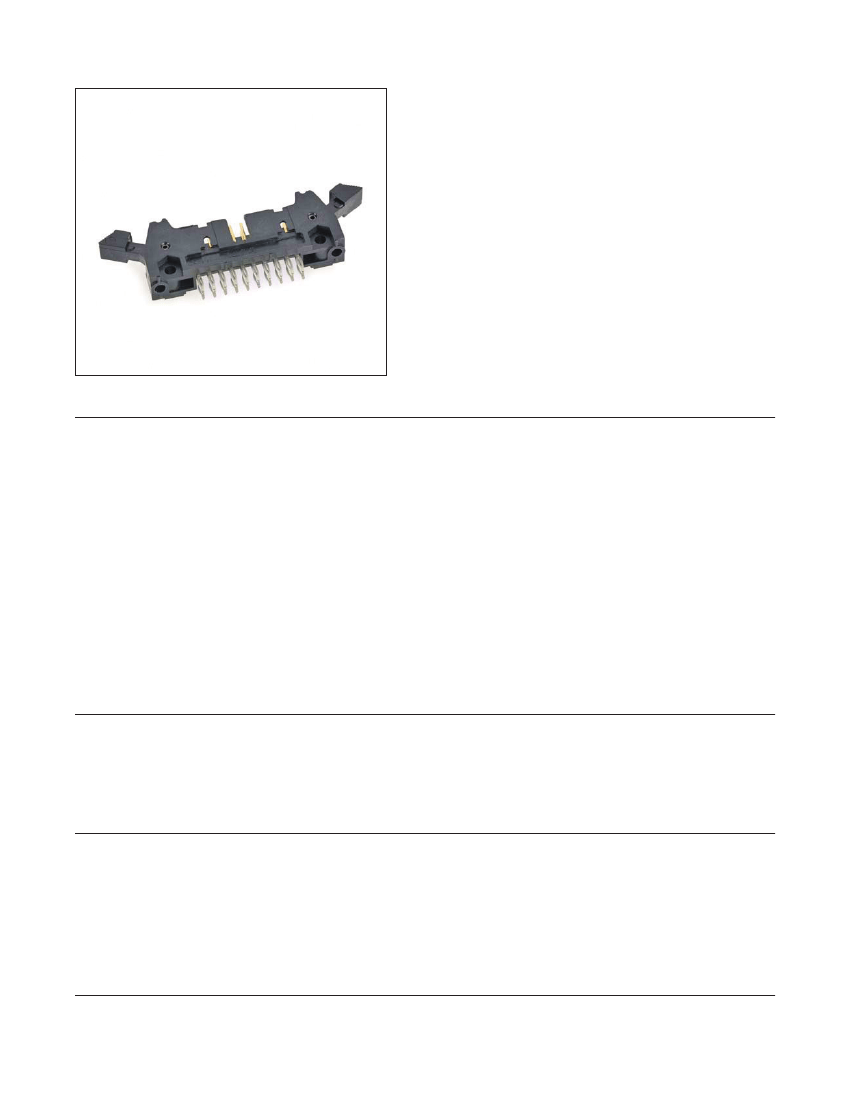

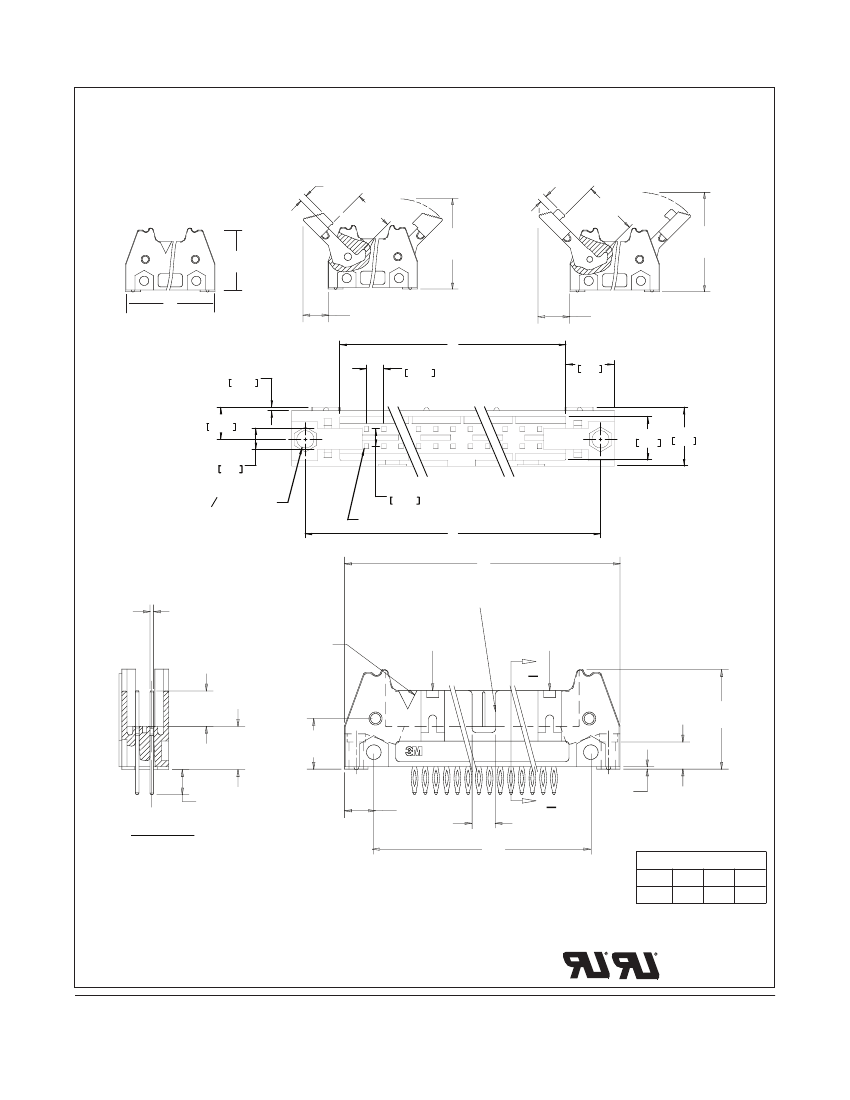

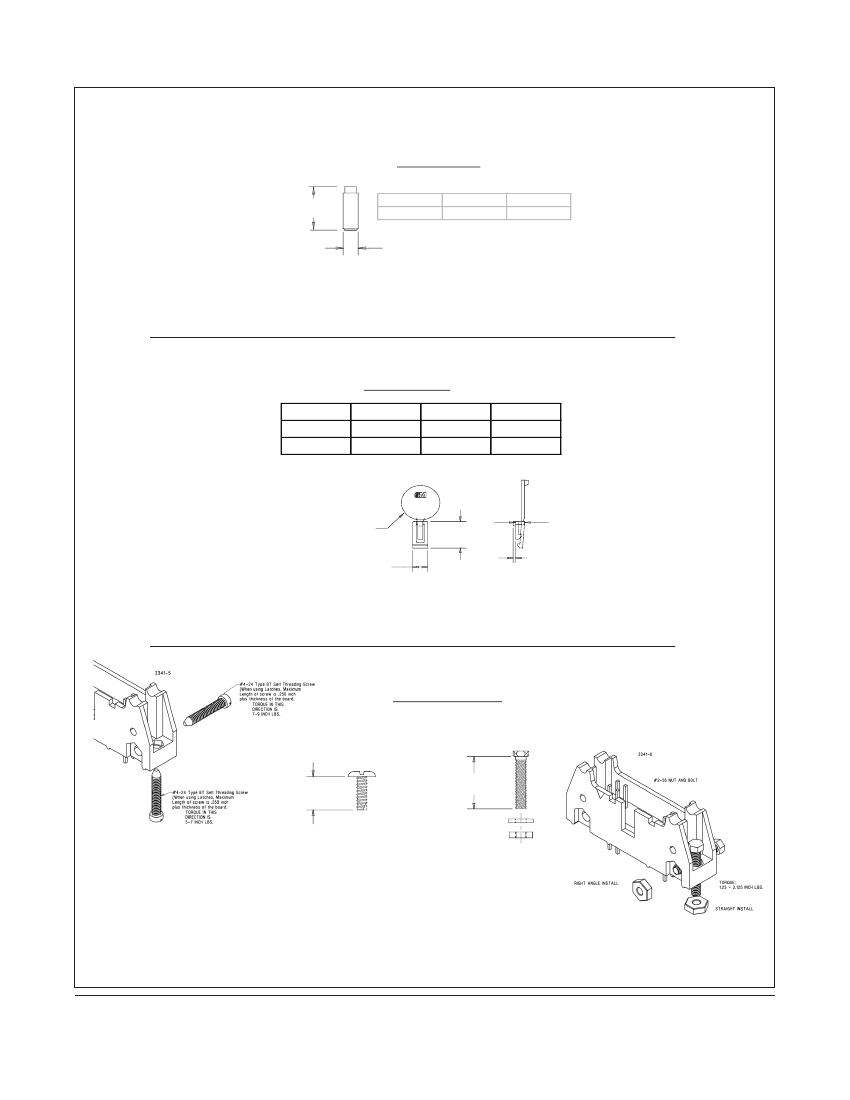

Four-Wall Header

.100” × .100” Latch/Ejector, Straight, Compliant Pin

• Military (with 3M’s 3518 and N3518 polarizing key)

and centerbump polarization

• Optional ejector latches

• Optional polarizing posts

• Mounting holes for securing header to board

• Dependable eye-of-the needle pin design

• Optional high-temperature insulator

• See the Regulatory Information Appendix (RIA) in

the “RoHS compliance” section of

www.3Mconnectors.com for compliance information

3000 Series

Date Modified: April 3, 2013

TS-0478-D

Sheet 1 of 4

Physical

Insulation:

Flammability: UL 94V-0

Material: Glass Filled Polyester (PBT) Glass Filled Polyester (PCT)

Color: Gray (PBT), Black (PCT)

Contact:

Underplating: 100 μ” [ 2.54 μm ] Nickel

Wiping Area: 30 μ” [ 0.76 μm ] Gold

Solder Tails: 100 μ” [ 2.54 μm ] Tin Lead or 300u” [7.62 um] Matte Tin (See Ordering Information)

Plating:

Material: Copper Alloy

Marking:

3M Logo, Part Identification Number and Orientation Triangle

Electrical

Current Rating:

1 A

Insulation Resistance:

>1 × 10

at 500 V

Withstanding Voltage:

1,000 V

RMS

at Sea Level

Environmental

Temperature Rating:

-55°C to +105°C

UL File No.: E68080

Electronic Solutions Division

Interconnect Solutions

http://www.3Mconnectors.com

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373
