SG1118AY/883C datasheet, PDF - EEWORLD Datasheet

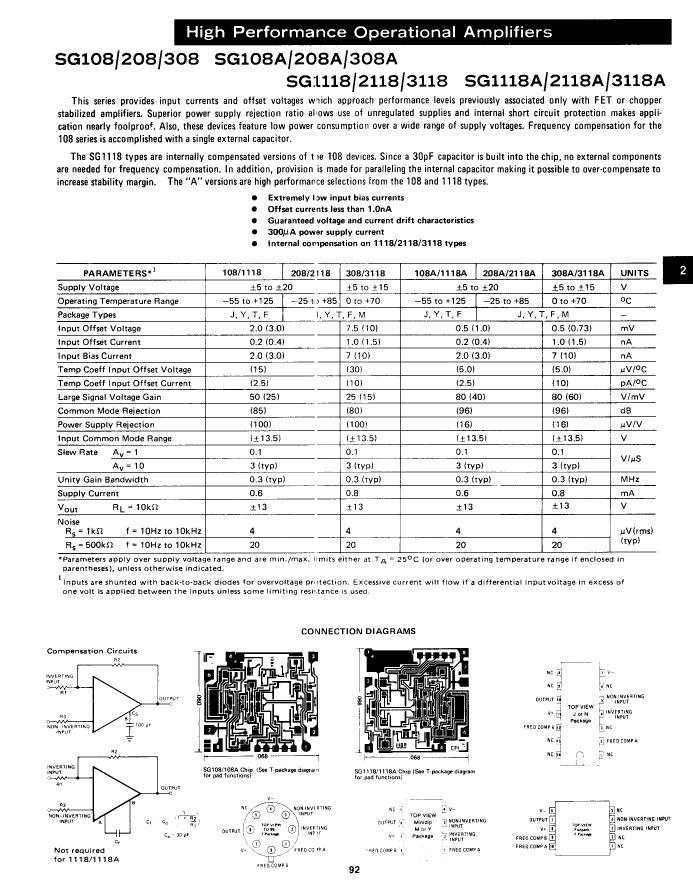

SG1118AY/883C: DescriptionOperational Amplifier, 1 Func, 1000uV Offset-Max, BIPolar, CDIP8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size93KB，1 Pages; ManufacturerLinfinity Microelectronics

Download Datasheet Parametric View All

SG1118AY/883C Overview

Operational Amplifier, 1 Func, 1000uV Offset-Max, BIPolar, CDIP8,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linfinity Microelectronics
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.002 µA
frequency compensation	YES
Maximum input offset voltage	1000 µV
JESD-30 code	R-XDIP-T8
JESD-609 code	e0
low-dissonance	NO
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-5/+-20 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class C
minimum slew rate	0.1 V/us
Supply voltage upper limit	20 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	300 kHz
Minimum voltage gain	40000
