CDRH5D28RHPNP-3R0NC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH5D28RHPNP-3R0NC

CDRH5D28RHPNP-3R0NC: Description1 ELEMENT, 3 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size200KB，4 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance; Related ProductsFound1parts with similar functions to CDRH5D28RHPNP-3R0NC

Download Datasheet Parametric Compare View All

CDRH5D28RHPNP-3R0NC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CDRH5D28RHPNP-3R0NC	-	-	View	Buy Now

CDRH5D28RHPNP-3R0NC Overview

1 ELEMENT, 3 uH, GENERAL PURPOSE INDUCTOR, SMD

CDRH5D28RHPNP-3R0NC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	2424
Reach Compliance Code	unknow
ECCN code	EAR99
Factory Lead Time	12 weeks
Is Samacsys	N
uppercase and lowercase codes	2424
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.0318 Ω
Nominal inductance(L)	3 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	2.8 mm
Package length	6 mm
Package form	SMT
Package width	5.9 mm
method of packing	TR
Maximum rated current	3.35 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	25%
Base Number Matches	1

Preview

Download Datasheet

View All

SMD Power Inductor

CDRH5D28R/HP

Description

• Ferrite drum core construction.

• Magnetically shielded.

• L×W×H:6.3×6.2×3.0 mm Max.

• Product weight: 0.4g(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

Environmental Data

• Operating temperature range: -40℃~+105℃

(including coil’s self temperature rise)

• Storage temperature range: -40℃½+105℃

• Solder reflow temperature: 260

℃

peak.

4. 7 ±0 .3

RoHS

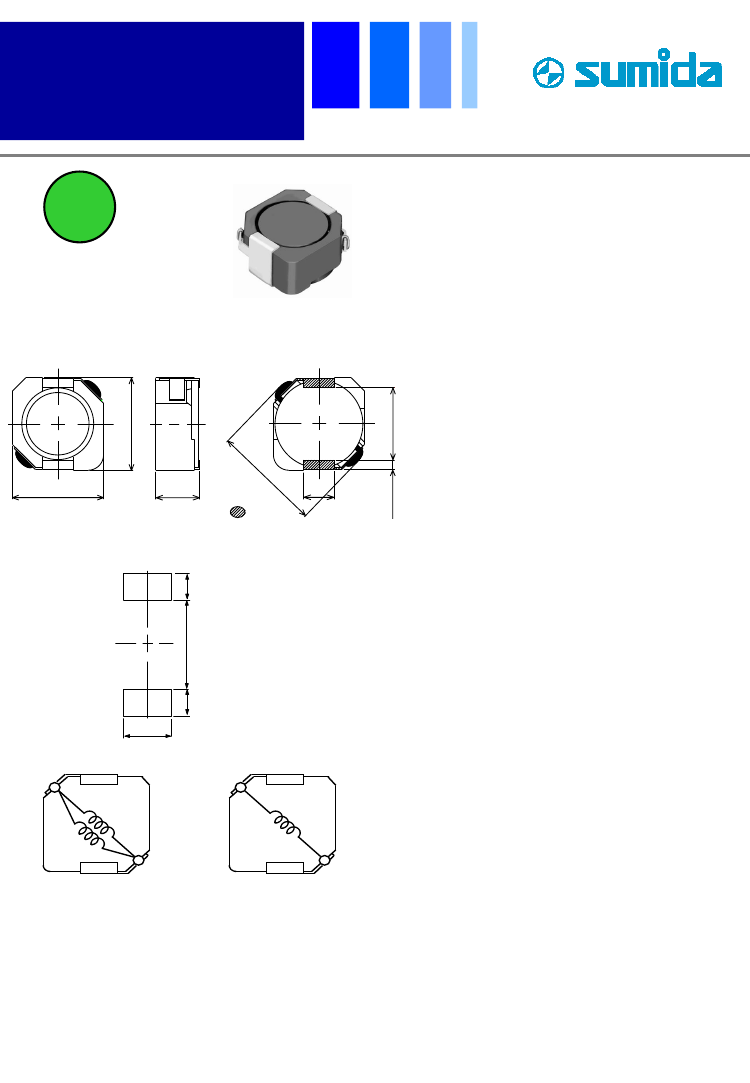

Dimension - [mm]

１

6.0 ±0 .3

5.9±

0.3

2.8±

0.2

2.0±

0.1

Eetoe

lcrd

0 .6 ±0 . 15

２

Packaging

• Carrier tape and reel packaging

• 13.0”diameter reel

• 2000pcs per reel

Applications

• Ideally used in Notebook PC,HDD,DSC/DVC,

LCD TV ,Game machine etc. as DC-DC

converter inductors.

Land pattern and Schematics - [mm]

1.0

2.1

1.0

4.6

(2.2μH½10μH)

(12μH½47μH)

Page 1 of 4

Revised: 9-Jan-17

CDRH5D28RHPNP-3R0NC Related Products

	CDRH5D28RHPNP-3R0NC	CDRH5D28RHP	CDRH5D28RHPNP-120MC	CDRH5D28RHPNP-150MC	CDRH5D28RHPNP-180MC	CDRH5D28RHPNP-270MC	CDRH5D28RHPNP-330MC	CDRH5D28RHPNP-470MC	CDRH5D28RHPNP-5R6NC
Description	1 ELEMENT, 3 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 10 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 12 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 15 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 18 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 27 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 33 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 47 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 5.6 uH, GENERAL PURPOSE INDUCTOR, SMD
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free	Lead free	Lead free	-	Lead free
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to	-	conform to
Maker	SUMIDA	-	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA	-	-
package instruction	2424	-	2424	2424	2424	2424	2424	-	2424
Reach Compliance Code	unknow	-	unknow	unknow	unknow	unknow	unknow	-	unknow
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99
uppercase and lowercase codes	2424	-	2424	2424	2424	2424	2424	-	2424
structure	Magnetically Shielded	-	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	-	Magnetically Shielded
core material	Ferrite	-	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	-	Ferrite
DC Resistance	0.0318 Ω	0.0930 ohm	0.115 Ω	0.144 Ω	0.161 Ω	0.277 Ω	0.314 Ω	-	0.0479 Ω
Nominal inductance(L)	3 µH	-	12 µH	15 µH	18 µH	27 µH	33 µH	-	5.6 µH
Inductor Applications	POWER INDUCTOR	-	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	-	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	Universal inductor	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1	-	1
Number of terminals	2	2	2	2	2	2	2	-	2
Maximum operating temperature	105 °C	-	105 °C	105 °C	105 °C	105 °C	105 °C	-	105 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-	-40 °C
Package height	2.8 mm	-	2.8 mm	2.8 mm	2.8 mm	2.8 mm	2.8 mm	-	2.8 mm
Package length	6 mm	-	6 mm	6 mm	6 mm	6 mm	6 mm	-	6 mm
Package form	SMT	-	SMT	SMT	SMT	SMT	SMT	-	SMT
Package width	5.9 mm	-	5.9 mm	5.9 mm	5.9 mm	5.9 mm	5.9 mm	-	5.9 mm
method of packing	TR	-	TR	TR	TR	TR	TR	-	TR
Maximum rated current	3.35 A	1.85 A	1.6 A	1.4 A	1.35 A	1 A	0.9 A	-	2.7 A
Shape/Size Description	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE
shield	YES	-	YES	YES	YES	YES	YES	-	YES
surface mount	YES	Yes	YES	YES	YES	YES	YES	-	YES
Terminal location	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	-	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	-	WRAPAROUND
Test frequency	0.1 MHz	-	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	-	0.1 MHz
Tolerance	25%	-	20%	20%	20%	20%	20%	-	25%
