CD74FCT138ATNM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD74FCT138ATNM

CD74FCT138ATNM: DescriptionFCT SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16; Categorylogic logic; File Size833KB，7 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

CD74FCT138ATNM Overview

FCT SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16

CD74FCT138ATNM Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	,
Reach Compliance Code	unknown
Other features	3 ENABLE INPUTS
series	FCT
JESD-30 code	R-PDSO-G16
Logic integrated circuit type	OTHER DECODER/DRIVER
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	5.8 ns
Certification status	COMMERCIAL
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL

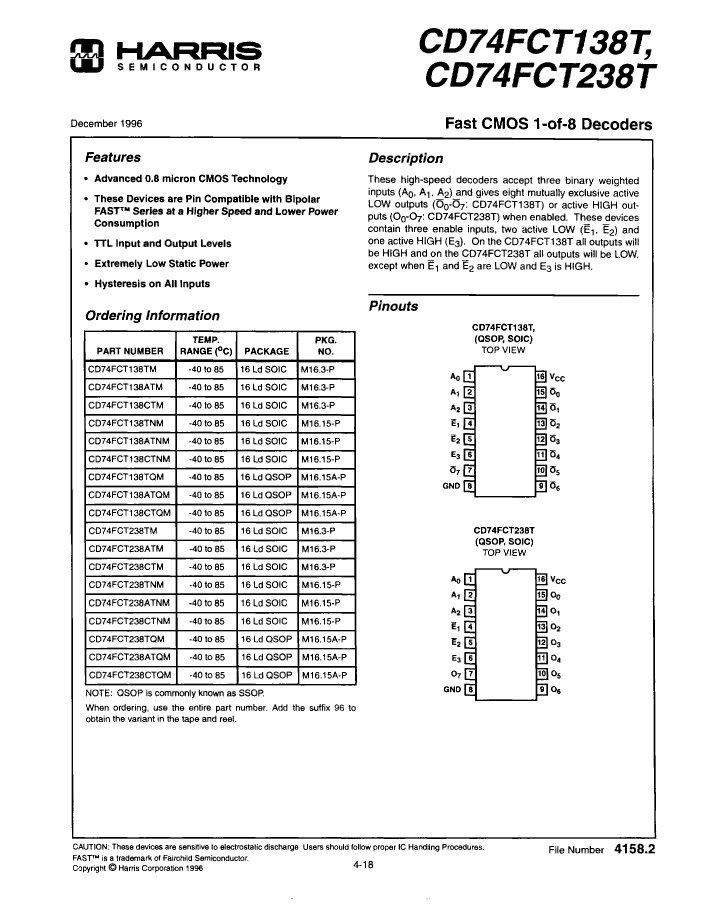

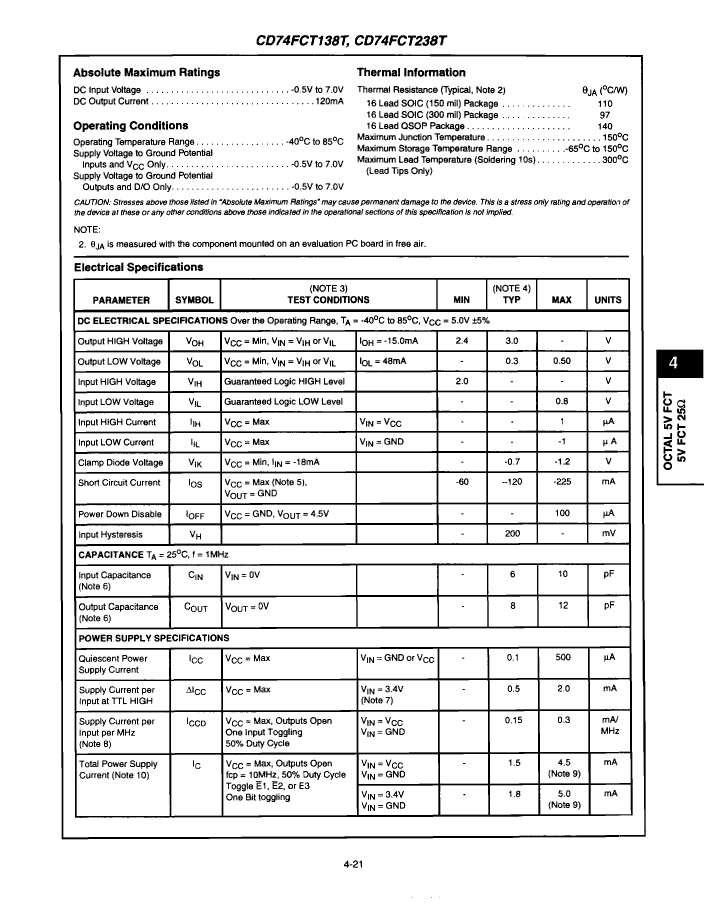

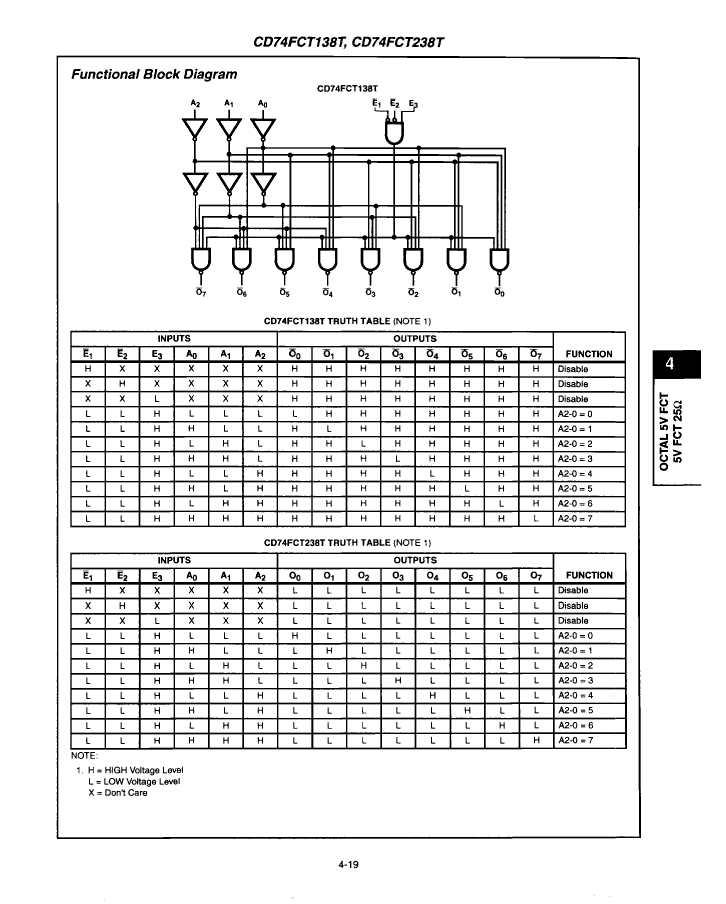

CD74FCT138ATNM Preview
