SPR2LT521A5600F datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> SPR2LT521A5600F

SPR2LT521A5600F: DescriptionFixed Resistor, Carbon Film, 2W, 560ohm, 700V, 1% +/-Tol, 350ppm/Cel, Through Hole Mount, AXIAL LEADED; CategoryPassive components The resistor; File Size84KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

SPR2LT521A5600F Overview

Fixed Resistor, Carbon Film, 2W, 560ohm, 700V, 1% +/-Tol, 350ppm/Cel, Through Hole Mount, AXIAL LEADED

SPR2LT521A5600F Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	_compli
ECCN code	EAR99
JESD-609 code	e0
Manufacturer's serial number	SPR
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	AMMO PACK
Rated power dissipation(P)	2 W
Rated temperature	70 °C
resistance	560 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	CARBON FILM
Temperature Coefficient	350 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	700 V
Base Number Matches	1

Preview

Download Datasheet

View All

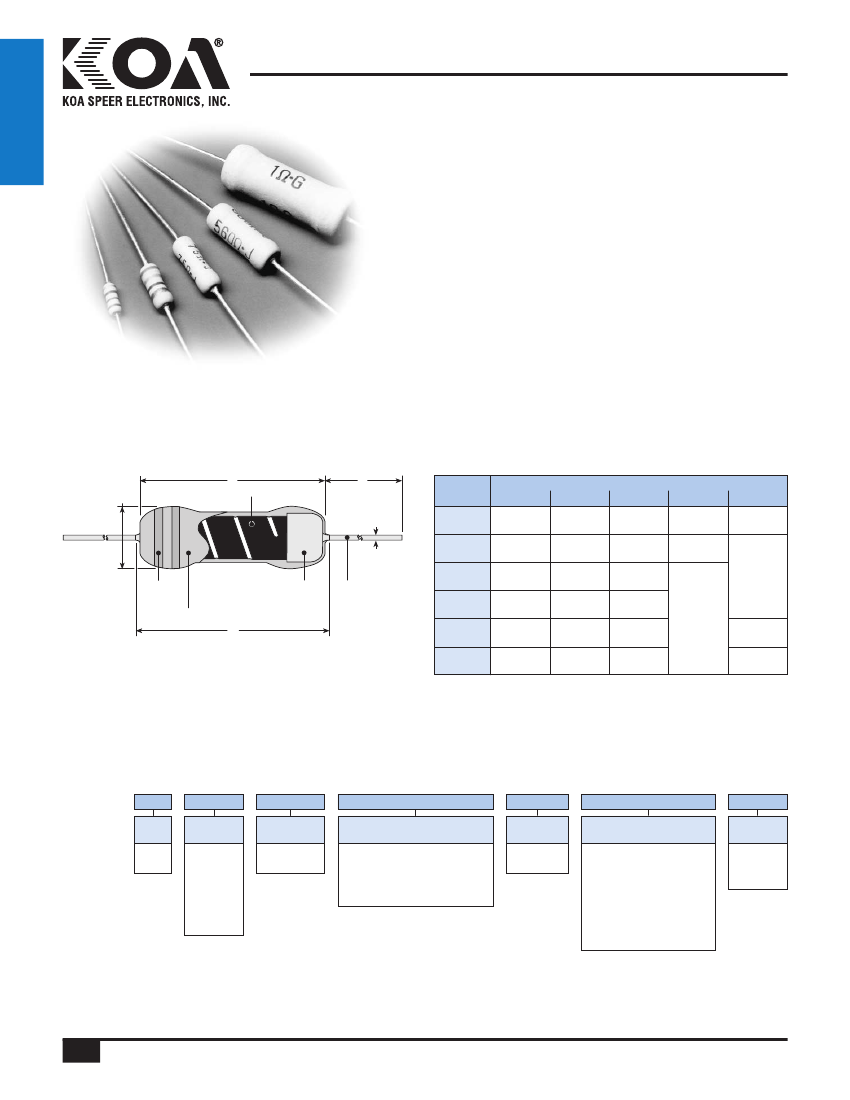

SPR

resistors

power carbon film leaded resistor

features

•

Fixed metal film resistor available (specify “SPRX”)

Flameproof silicone coating (UL94V0)

High reliability performance

Suitable for automatic machine insertion

Marking: Light green body color

Color-coded bands on 1/2W - 1W

Alpha-numeric black marking on 2W - 5W

dimensions and construction

Ceramic Body

Type

SPR1/4

SPRX1/4

SPR1/2

SPRX1/2

Marking

Flame Retardant Coating

End

Cap

Lead

Wire

SPR1

SPRX1

SPR2

SPRX2

SPR3

SPRX3

SPR5

SPRX5

.13±.012

(3.3±0.3)

.244±.02

(6.2±0.5)

.354±.039

(9.0±1.0)

.472±.039

(12.0±1.0)

.610±.039

(15.5±1.0)

.965±.039

(24.5±1.0)

Dimensions

inches

(mm)

C (max.)

.138

(3.5)

.280

(7.1)

.437

(11.1)

.591

(15.0)

.709

(18.0)

1.10

(28.0)

.067±.012 .018±.002 .787 Min.

(1.7±0.3) (0.45±0.05) (20.0 Min.)

.098±.02

(2.5±0.5)

.138±.02

(3.5±0.5)

.024±.002

(0.6±0.05)

.945 Min.

(24.0 Min.)

.165±.031

(4.2±0.8)

.031±.002

.236±.039

(0.8±0.05)

1.18±.118

(30.0±3.0)

(6.0±1.0)

.354±.039

(9.0±1.0)

1.50±.118

(38.0±3.0)

ordering information

New Part #

SPR

Type

SPR

SPRX

1/2

Power

Rating

1/4: 0.25W

1/2: 0.5W

1: 1W

2: 2W

3: 3W

5: 5W

Termination

Material

C: SnCu

L: SnPb

T52

Taping and Forming

Axial: T26, T52, T521, T631

Stand-off Axial: L52, L521, L631

Radial: VT, VTP, VTE, GT

L, U, M Forming

Packaging

A: Ammo

R: Reel

103

Nominal

Resistance

±2%, ±5%: 2 significant

figures + 1 multiplier

“R” indicates decimal

on value <10Ω

±1%: 3 significant

figures + 1 multiplier

“R” indicates decimal

on value <100Ω

Tolerance

F: ±1%

G: ±2%

J: ±5%

For further information

on packaging, please

refer to Appendix C.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

1/04/05

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
