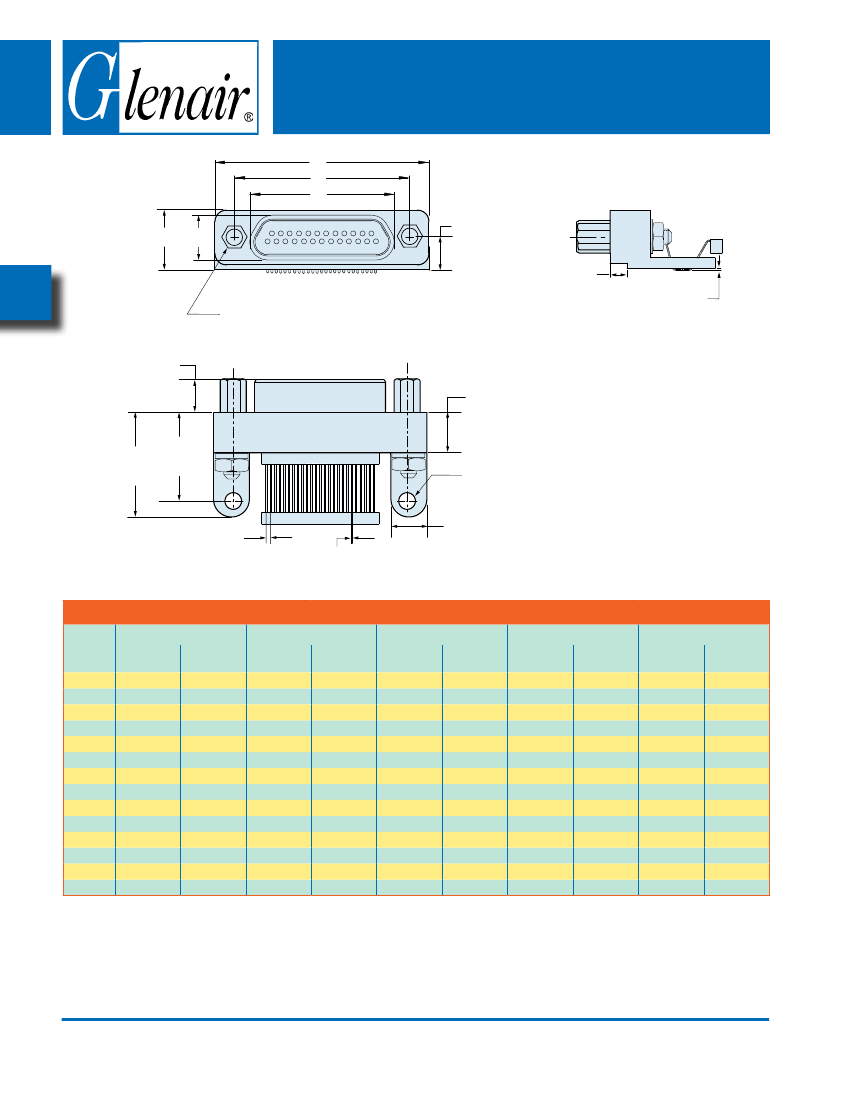

MWDM
Surface Mount Right Angle
Micro-D Connectors
Micro-D
PCB

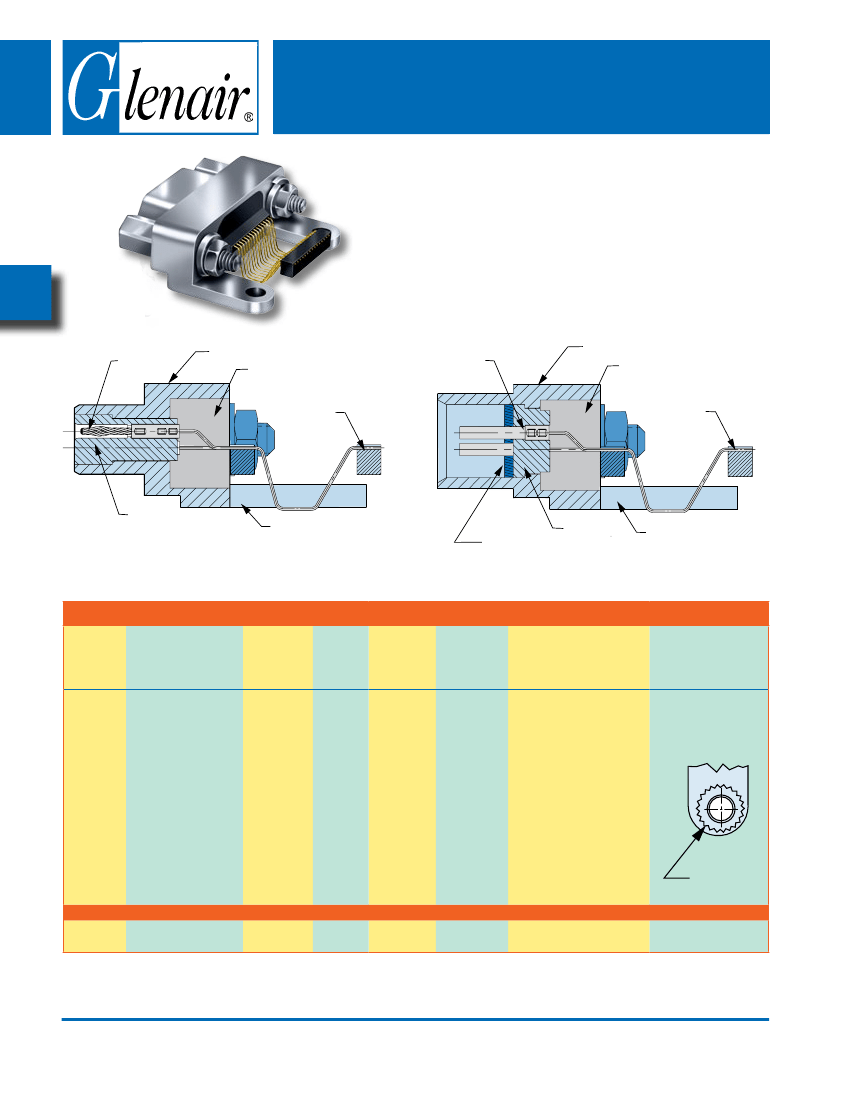

Surface Mount Micro-D
– These connectors feature .025 inch
terminal spacing and an alignment strip for accurate registration.
The integral mounting legs provide a ground path.
9 To 51 Contacts
– These compact connectors are lighter and
smaller than comparable thru-hole versions.
C
TwistPin
Contact
Aluminum Shell
Epoxy Potting
Plastic
Alignment
Strip
Mil Spec Reliability
– Suitable for mission-critical
requirements, These high performance connectors meet
the requirements of MIL-DTL-83513.
Socket
Contact
Aluminum Shell
Epoxy Potting
Plastic
Alignment
Strip
Insulator
Integral Mounting Leg
Flourosilicone
Interfacial Seal
Pin Connector
Insulator
Integral Mounting Leg
Socket Connector
HOW TO ORDER SURFACE MOUNT PCB MICRO-D CONNECTORS
Shell Material and
Finish
1
– Cadmium
2
– Nickel
4
– Black Anodize
5
– Gold
6
– Chem Film
Stainless Steel
Shell
3
–
Passivated
Series
MWDM
Insulator
Material
L
– LCP
30% Glass-
Filled Liquid
Crystal
Polymer
Contact
Layout
9
15
21
25
31
37
51-2
Contact Termination Jackpost or Jackscrew
Type
Type
Option
P
–
Pin
SMR
N
– Thru-Hole
N
– Thru-Hole, No
Insert
S
–
Socket
Surface Mount
P
– Jackpost
Right Angle
M
– Jackscrew, Hex Head
T
– Threaded Inserts
T
– Threaded Insert
Jackposts for Rear Panel
Mounting
Board Mounting
Threaded Insert
Option
R1
R2
R3
R4
R5
– .032” Panel
– .047” Panel
– .062” Panel
– .093” Panel
– .125” Panel
#2-56 Insert
Sample Part Number
MWDM
2
L
– 51-2
P
SMR
P
N
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-36
Micro-D Connectors

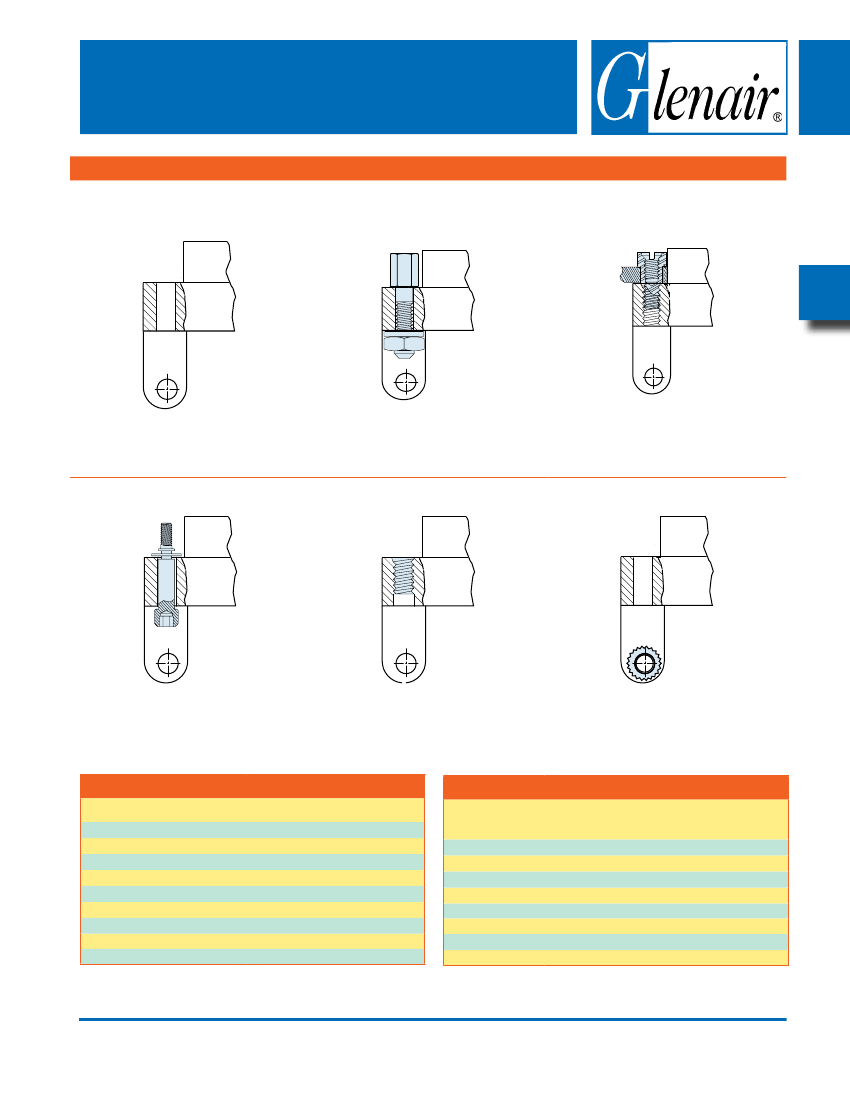

SuRFACE MouNt MICRo-D hARDWARE optIoNS
N
p
R1 thru R5
No jackpost supplied
thru-hole
Factory installed with nut and lockwasher
Standard Jackpost
Shipped loosely installed. Install with permanent
threadlocking compund.
Jackpost for Rear panel Mounting
M
t
t
Jackscrew, hex Drive
Attached with e-ring
threaded Insert
#2-56 Thread
Board Mount threaded Insert
pERFoRMANCE SpECIFICAtIoNS
Current Rating
DWV
Insulation Resistance
Contact Resistance
Low Level Contact Resist.
Magnetic Permeability
Operating Temperature
Shock, Vibration
Mating Force
1 AMP
600 VAC Sea level
5000 Megohms Minimum
8 Milliohms Maximum
32 Milliohms Maximum
2
µ
Maximum
-55° C. to +150° C.
50 g., 20g.
(10 Ounces) X (# of Contacts)
MAtERIALS AND FINIShES
Connector Shell
Insulators
Interfacial Seal
Pin Contact
Socket Contact
PCB Terminals
Hardware
Encapsulant
Aluminum Alloy 6061.See Ordering Info for
Plating Options
Liquid Crystal Polymer (LCP)
Fluorosilicone Rubber, Blue
Beryllium Copper Gold over Nickel Plating
Copper Alloy Gold Over Nickel Plating
Gold Plated Copper Alloy, Solder Dipped
300 Series Stainless Steel
Epoxy Resin Hysol EE4215
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-37
Micro-D
PCB
MWDM
Surface Mount Right Angle
C
MWDM
Surface Mount Right Angle
Micro-D Connectors
Micro-D
PCB
A
B
C
.324 (8.23)
D
.177 (4.50)
C
F
.094 (2.39)
JACKPOST, THREADED INSERT: #2-56 UNC-2B THREADS
THRU-HOLE: .096 ± .005 (2.43 ± 0.13
)
.008±.005 (0.20± 0.08)
.224
(5.69)
.581
(14.76)
.492
(12.47)
.093 ± .005
(2.36 ± 0.13)
.200 (5.08) TYP
Ø.008 ± .001 (0.20 ± 0.03)
.025 (0.64) TYP
DIMENSIONS
A Max.
Layout
9P
9S
15P
15S
21P
21S
25P
25S
31P
31S
37P
37S
51-2P
51-2S
In.
.785
.785
.935
.935
1.085
1.085
1.185
1.185
1.335
1.335
1.485
1.485
1.840
1.840
mm.
19.94
19.94
23.75
23.75
27.56
27.56
30.01
30.01
33.91
33.91
37.72
37.72
46.74
46.74
In.
±.005
.565
.565
.715
.715
.865
.865
.965
.965
1.115
1.115
1.265
1.265
1.615
1.615
B
mm.
± 0.13
14.35
14.35
18.16
18.16
21.97
21.97
24.51
24.51
28.32
28.32
32.13
32.13
41.02
41.02
C Max.
In.
.333
.400
.483
.551
.633
.701
.733
.801
.883
.951
1.033
1.101
1.375
1.444
mm.
8.46
10.16
12.27
14.00
16.08
17.81
18.62
20.35
22.43
24.16
26.24
27.96
34.93
36.68
In.
D Max.
mm.
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
.184
.250
.184
.250
.184
.250
.184
.250
.184
.250
.184
.250
.184
.250
In.
±.003
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
F
mm.
± 0.08
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-38
Micro-D Connectors
SMR SURFACE MOUNT CONNECTOR PCB LAYOUTS
FRONT OF CONNECTOR FLANGE
Suggested Printed Circuit Board Layout
.174
(4.42)
.012 (0.30
Ø.093
(2.36)
B
.025 (0.64) TYP
.492(12.47)
9 Contacts
5 9 4 8 3 7 2 6 1
Socket
.160 (4.06)
.017 (0.43)
1 6 2 7 3 8 4 9 5
A
Pin
15 Contacts
8 15 7 14 6 13 5 12 4 11 3 10 2 9 1
Socket
A
Layout
9
15
21
25
31
37
51-2
In.
.565
.715
.865
.965
1.115
1.265
1.615
mm.
14.35
18.16
21.97
24.51
28.32
32.13
41.02
In.
.200
.350
.500
.600
.750
.900
1.250
B
mm.
5.08
8.89
12.70
15.24
19.05
22.86
31.75
1 9 2 10 3 11 4 12 5 13 6 14 7 15 8
Pin
21 Contacts
11 21 10 20 9 19 8 18 7 17 6 16 5 15 4 14 3 13 2 12 1
Socket
1 12 2 13 3 14 4 15 5 16 6 17 7 18 8 19 9 20 10 21 11
Pin
25 Contacts
13 25 12 24 11 23 10 22 9 21 8 20 7 19 6 18 5 17 4 16 3 15 2 14 1
Socket
1 14 2 15 3 16 4 17 5 18 6 19 7 20 8 21 9 22 10 23 11 24 12 25 13
Pin
31 Contacts
16 31 15 30 14 29 13 28 12 27 11 26 10 25 9 24 8 23 7 22 6 21 5 20 4 19 3 18 2 17 1
Socket
1 17 2 18 3 19 4 20 5 21 6 22 7 23 8 24 9 25 10 26 11 27 12 28 13 29 14 30 15 31 16
Pin
37 Contacts
19 37 18 36 17 35 13 34 15 33 14 32 13 31 12 30 11 29 10 28 9 27 8 26 7 25 6 24 5 23 4 22 3 21 2 20 1
16
Socket
1 20 2 21 3 22 4 23 5 24 6 25 7 26 8 27 9 28 10 29 11 30 12 31 13 32 14 33 15 34 16 35 17 36 18 37 19
13
Pin
51 Contacts
26 51 25 50 24 49 23 48 22 47 21 46 20 45 19 44 18 43 17 42 13 41 15 40 14 39 13 38 12 37 11 36 10 35 9 34 8 33 7 32 6 31 5 30 4 29 3 28 2 27 1
16
Socket
1 27 2 28 3 29 4 30 5 31 6 32 7 33 8 34 9 35 10 36 11 37 12 38 13 39 14 40 15 41 13 42 17 43 18 44 19 45 20 46 21 47 22 48 23 49 24 50 25 51 26
16
Pin
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-39
Micro-D
PCB
MWDM
Surface Mount Right Angle
C
FPGA/CPLD
