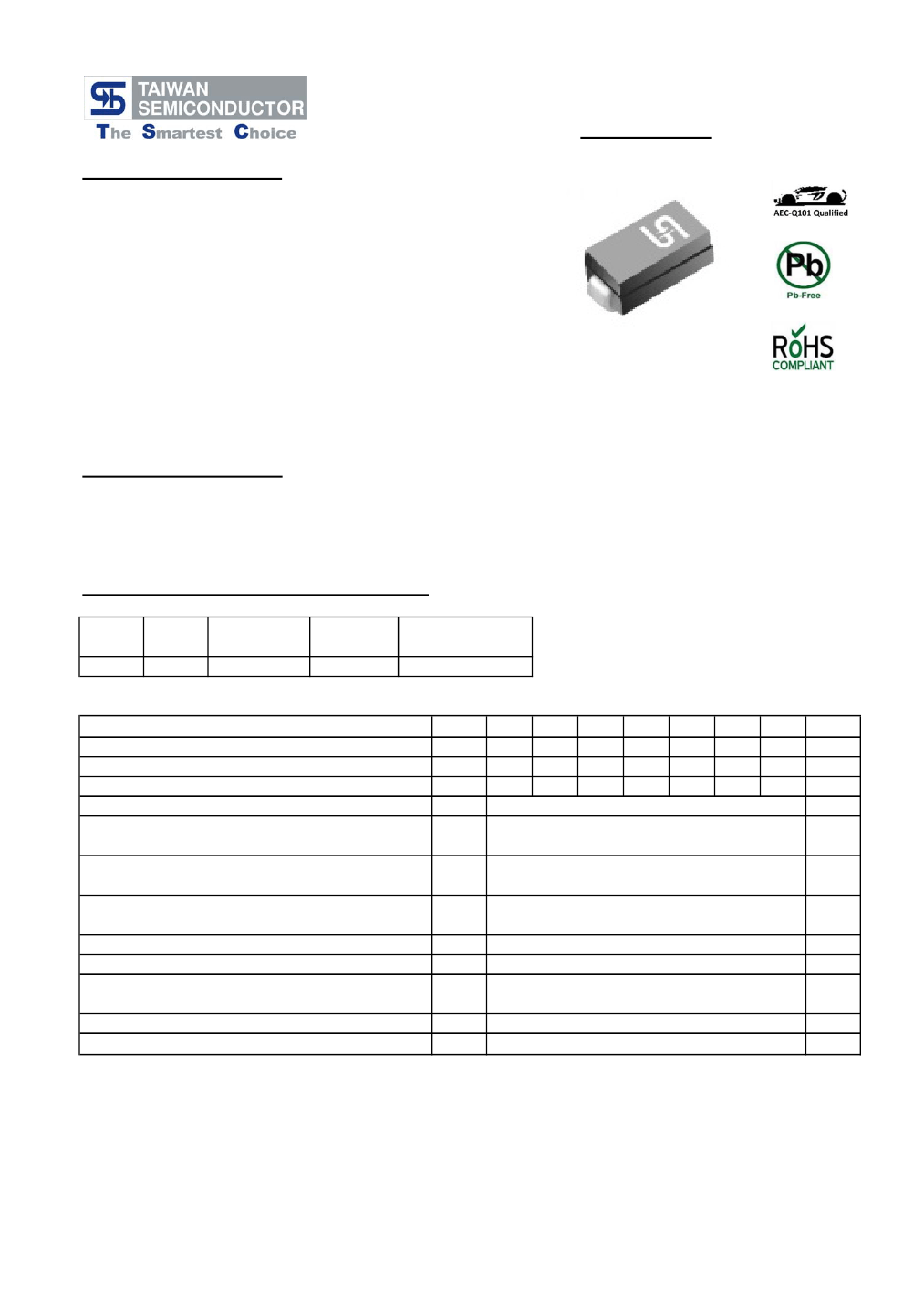

S2A - S2M
2.0 AMPS Surface Mount Rectifiers

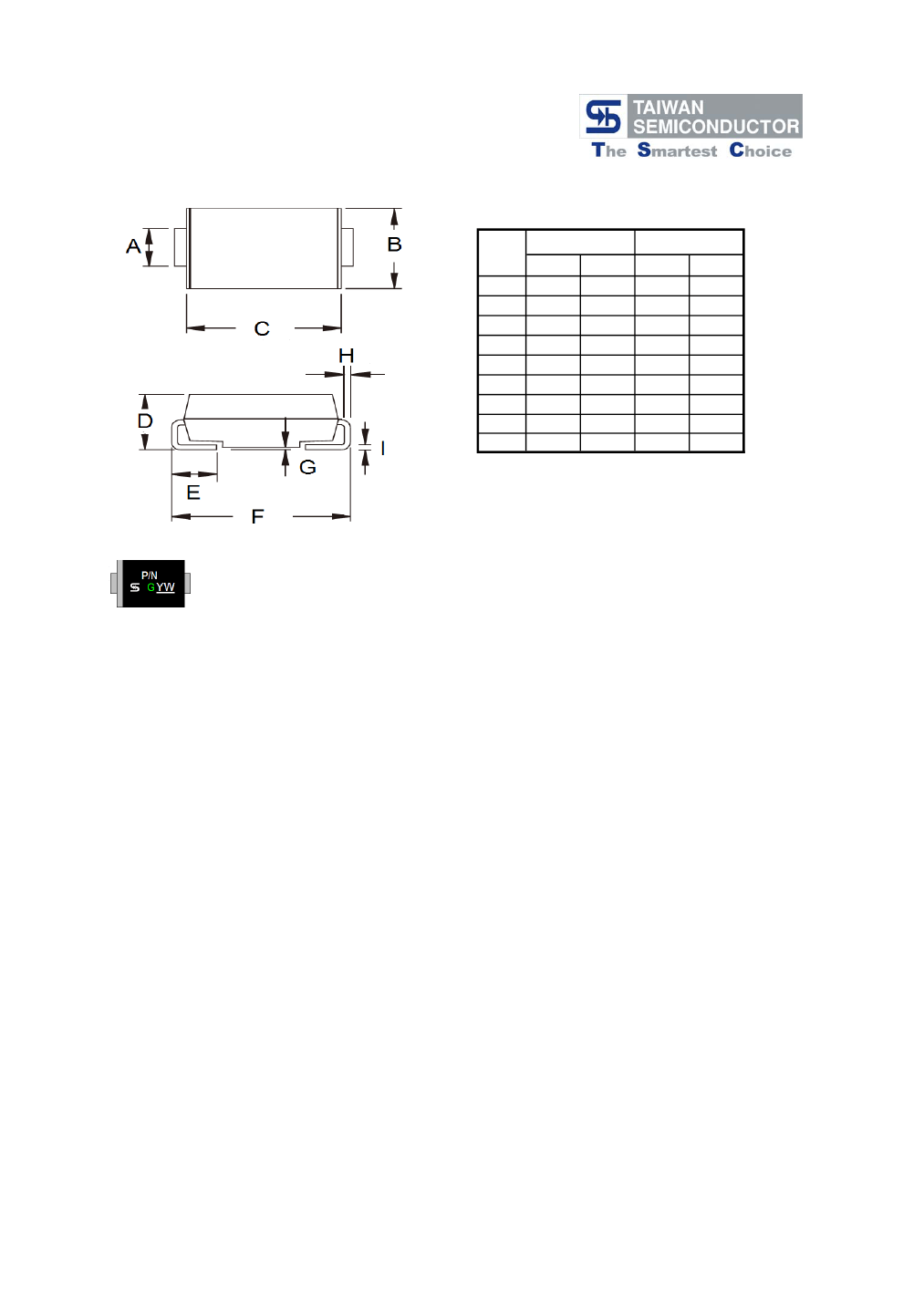

SMB/DO-214AA
Features
For surface mounted application
Glass passivated chip junction
Low forward voltage drop
High current capability
Easy pick and place
High surge current capability
Plastic material used carries Underwriters
Laboratory Classification 94V-0
Meet MSL level 1, per J-STD-020D,
lead free maximum peak of 260℃
High temperature soldering:
260℃/10 seconds at terminals
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Case: Molded plastic
Terminal: Pure tin plated, lead free
Polarity: Indicated by cathode band

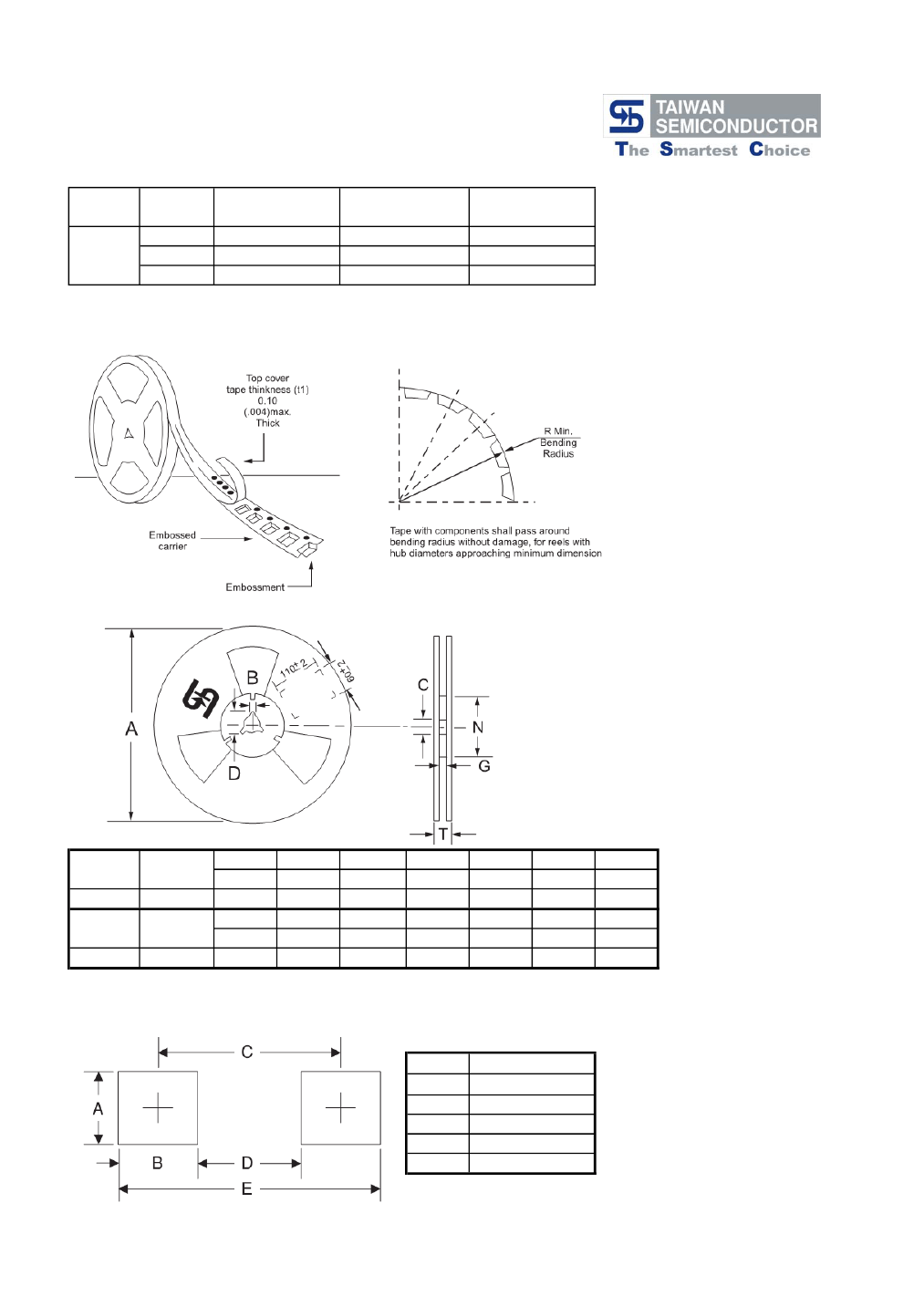

Packing: 12mm tape per EIA STD RS-481
Weight: 0.093 grams
Ordering Information (example)
Part No.
S2A
Package
SMB
Packing
850 / 7" REEL
Packing code
R5
Packing code
(Green)
R5G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Parameter
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@2A
Maximum Reverse Current @ Rated VR
Typical Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
T
A
=25
℃
T
A
=125
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θjA
R
θjL
T
J
T
STG
S2A
50
35
50
S2B
100
70
100
S2D
200
140
200
S2G
400
280
400
2
50
1.15
1
125
1.5
30
53
16
S2J
600
420
600
S2K
800
560
800
S2M
1000
700
1000
Unit
V
V
V
A
A
V
uA
uS
pF
O
C/W
O
O
- 55 to + 150
- 55 to + 150
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:G13

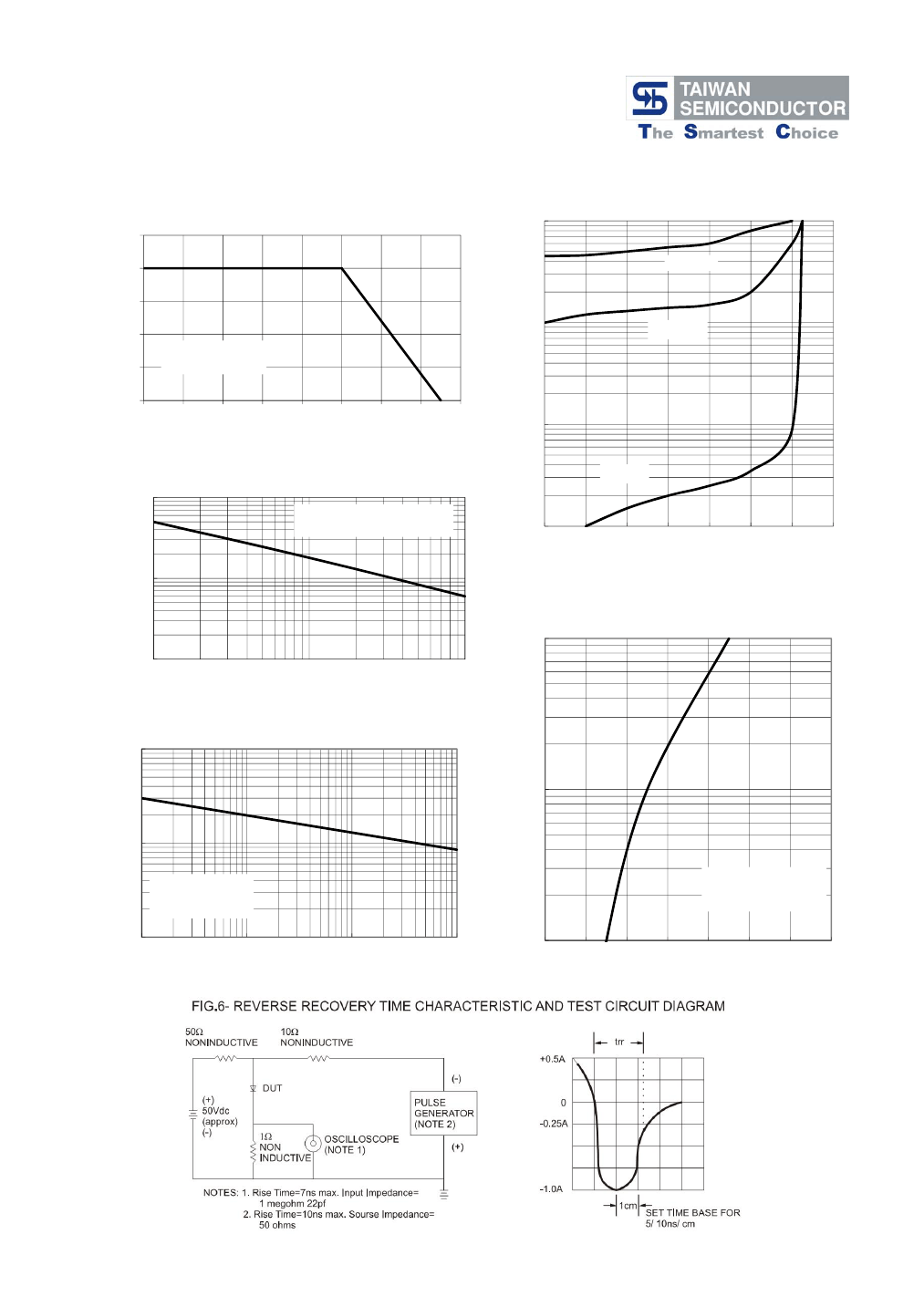

RATINGS AND CHARACTERISTIC CURVES (S2A THRU S2M)
FIG.1 FORWARD CURRENT DERATING CURVE
2.5
AVERAGE FORWARD CURRENT (A)
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
10
1.5
1
0.5
0
0
20
40
60
80
100
120
140
160
LEAD TEMPERATURE (
o
C)
RESISTIVE OR
INDUCTIVE LOAD
INSTANTANEOUS REVERSE CURRENT (uA)
2
TA=125℃
1
TA=100℃
0.1
PEAK FORWARD SURGE URRENT (A)
100
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
8.3mS Single Half Sine Wave
JEDEC Method
TA=25℃
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
10
FIG. 5 TYPICAL FORWARD CHARACTERISTICS
10
1
1
10
NUMBER OF CYCLES AT 60 Hz
100
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 4 TYPICAL JUNCTION CAPACITANCE
100
1
CAPACITANCE (pF)
10
TA=25℃
f=1.0MHz
Vsig=50mVp-p
1
0.1
1
10
100
REVERSE VOLTAGE (V)
TA=25℃
Pulse Width=300us
1% Duty Cycle
0.1
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
FORWARD VOLTAGE (V)
Version:G13
