A2E250-AE65-02
AC axial fan
straight blades (A series)
ebm-papst Mulfingen GmbH & Co. KG
Bachmühle 2 · D-74673 Mulfingen
Phone +49 7938 81-0
Fax +49 7938 81-110
info1@de.ebmpapst.com
www.ebmpapst.com
Limited partnership · Headquarters Mulfingen
County court Stuttgart · HRA 590344
General partner Elektrobau Mulfingen GmbH · Headquarters Mulfingen
County court Stuttgart · HRB 590142

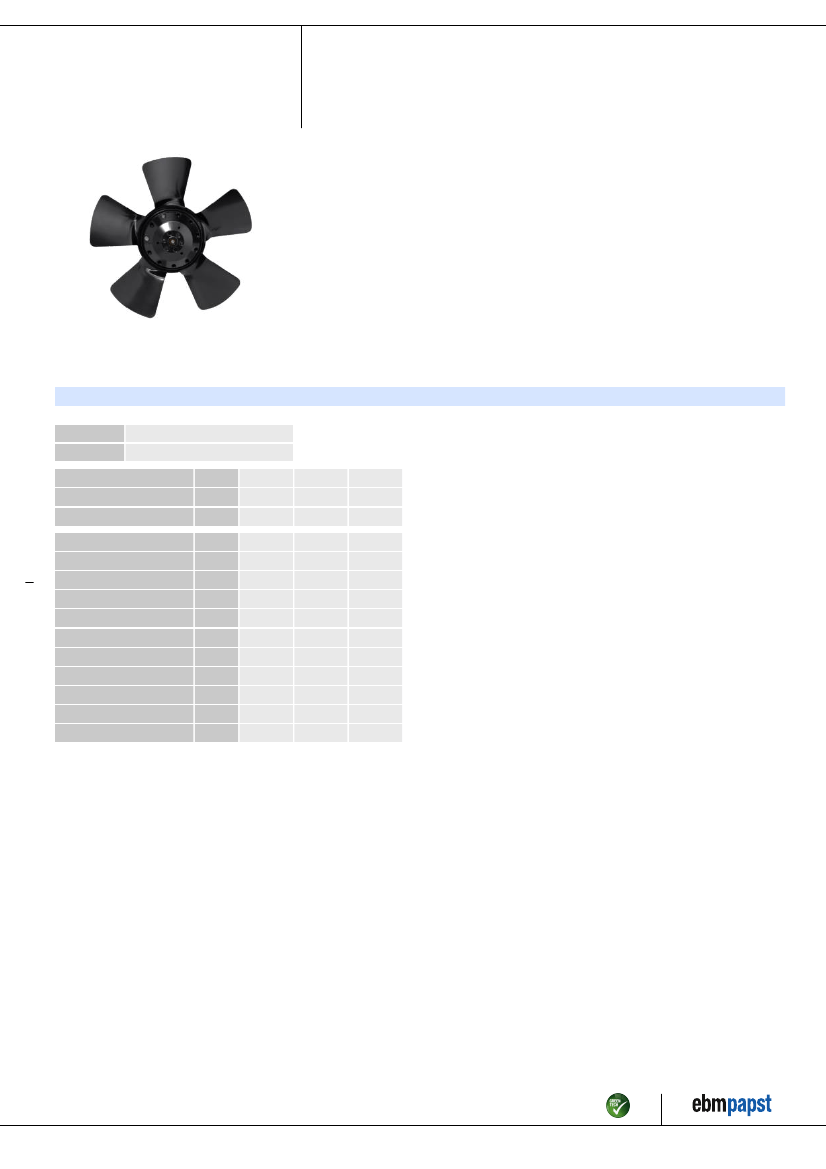

Nominal data
Type
Motor
Phase
Nominal voltage
Frequency
Type of data definition
Valid for approval / standard
Speed
Power input
Current draw
Motor capacitor
Capacitor voltage
Capacitor standard
Max. back pressure
Max. ambient temperature
Starting current
Pa
°C
A
min
-1
W
A
µF
VDB
VAC
Hz
A2E250-AE65-02
M2E068-DF
1~
230
50
fa
CE
2550
115
0.51
4
400
P0 (CE)
150
55
0.9
1~
230
60
fa
CE
2750
165
0.74
4
400
P0 (CE)
130
50
0.9
1~
230
60
fa
UL
2750
175
0.74
4
400
UL
130
50
0.9
ml = max. load · me = max. efficiency · fa = running at free air · cs = customer specs · cu = customer unit
Subject to alterations
Item no. 11006-5-9980 · Revision 71618 · Release 2012-02-27 · Page 1 / 5
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
A2E250-AE65-02
AC axial fan
straight blades (A series)
Technical features
Mass
Size
Surface of rotor
Material of impeller
Number of blades
Direction of air flow
Direction of rotation
Type of protection
Insulation class
Humidity class
Max. permissible ambient motor
temp. (transp./ storage)
Min. permissible ambient motor
temp. (transp./storage)
Mounting position
Condensate discharge holes
Operation mode
Motor bearing
Touch current acc. IEC 60990
(measuring network Fig. 4, TN
system)
Motor protection
Cable exit
Protection class
Product conforming to standard
Approval
2.2 kg
250 mm
Coated in black
Sheet steel, coated in black
5
"A"
Clockwise, seen on rotor
IP 44
"B"
F1-2
+ 80 °C
- 40 °C
Shaft horizontal or rotor on bottom; rotor on top on request
Rotor-side
S1
Ball bearing
< 0.75 mA
Thermal overload protector (TOP) wired internally
Variable
I (if protective earth is connected by customer)
EN 60335-1; CE
GOST; CCC
Item no. 11006-5-9980 · Revision 71618 · Release 2012-02-27 · Page 2 / 5
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
A2E250-AE65-02
AC axial fan
straight blades (A series)

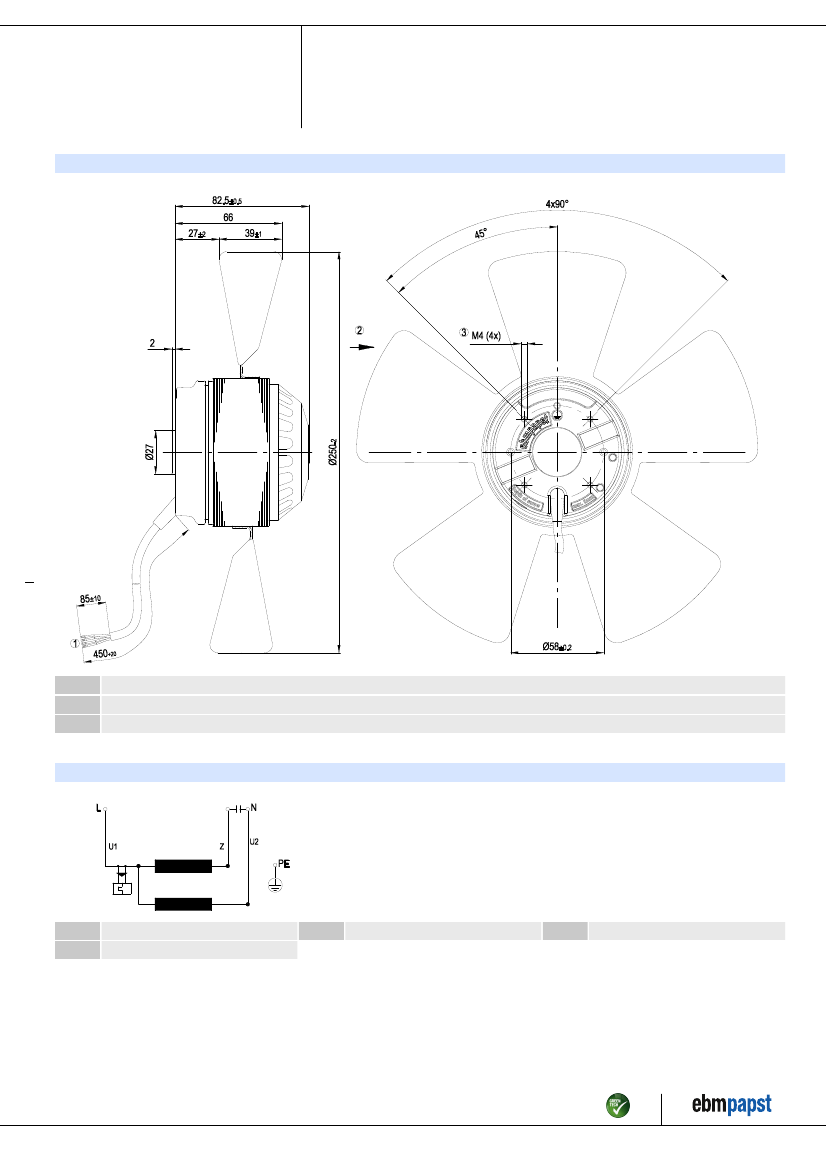

Product drawing
1
2
3
Connection line PVC 4G 0.5 mm², 4x brass lead tips crimped
Direction of air flow "A"
Depth of screw max. 5 mm
Connection screen
U1
PE
blue
green/yellow
Z
brown
U2
black
Item no. 11006-5-9980 · Revision 71618 · Release 2012-02-27 · Page 3 / 5
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
A2E250-AE65-02
AC axial fan
straight blades (A series)

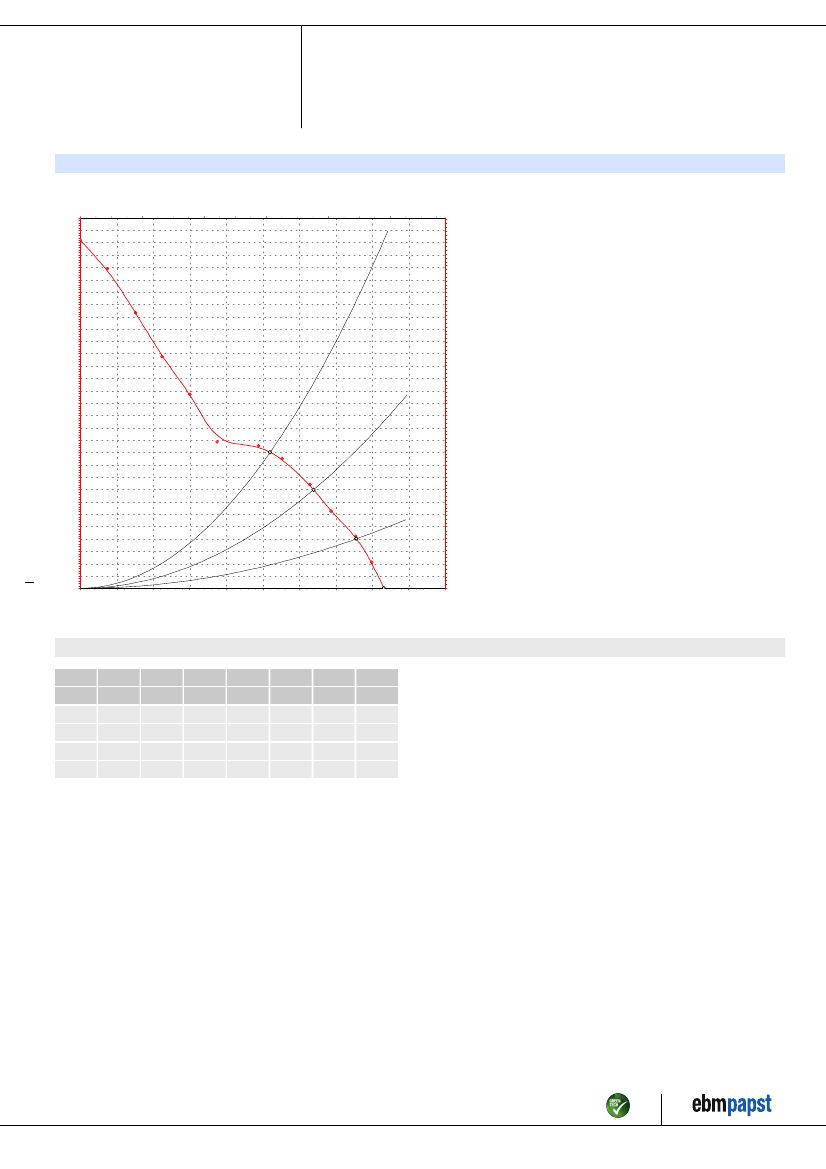

Charts: Air flow 50 Hz
Druck p f s[Pa]für Rho=1,2kg/m^3
300
290
280
270
260
250
240
230
220
210
200
190
180
170
p s[Pa]
f
0
200
400
qv[cfm]
600
800
1.000
1,2
1,15
1,1
1,05
1
0,95
0,9
0,85
0,8
0,75
0,7
0,65
0,6
p fs_E[IN H2O]
Measurement: LU-68411
Air performance measured as per ISO 5801
Installation category A. For detailed
information on the measuring set-up, please
contact ebm-papst. Suction-side noise
levels: LwA measured as per ISO 13347 /
LpA measured with 1m distance to fan axis.
The values given are valid under the
measuring conditions mentioned above and
may vary according to the actual installation
situation. With any deviation from the
standard set-up, the specific values have to
be checked and reviewed with the unit
installed.
160
150
140
130
120
110
100
90
80
70
60
50
40
30
20
0,55
0,5
4
0,45
0,4
3
0,35
0,3
0,25
2
0,2
0,15
0,1
Pa]
f [
ps
10
0
0
200
400
600
800
1.000
qv[m^3/h]
1.200
1.400
0,05
1.800
0
2.000
1
1.600
Measured values
U
V
1
2
3
4
230
230
230
230
f
Hz
50
50
50
50
n
min
-1
2550
2460
2430
2430
P
e
W
115
127
129
129
I
A
0.51
0.55
0.56
0.56
qv
m
3
/h
1660
1515
1280
1040
p
fs
Pa
0
40
80
110
U = Supply voltage · f = Frequency · n = Speed · P
e
= Power input · I = Current draw · qv = Air flow · p
fs
= Pressure increase
Item no. 11006-5-9980 · Revision 71618 · Release 2012-02-27 · Page 4 / 5
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
A2E250-AE65-02
AC axial fan
straight blades (A series)

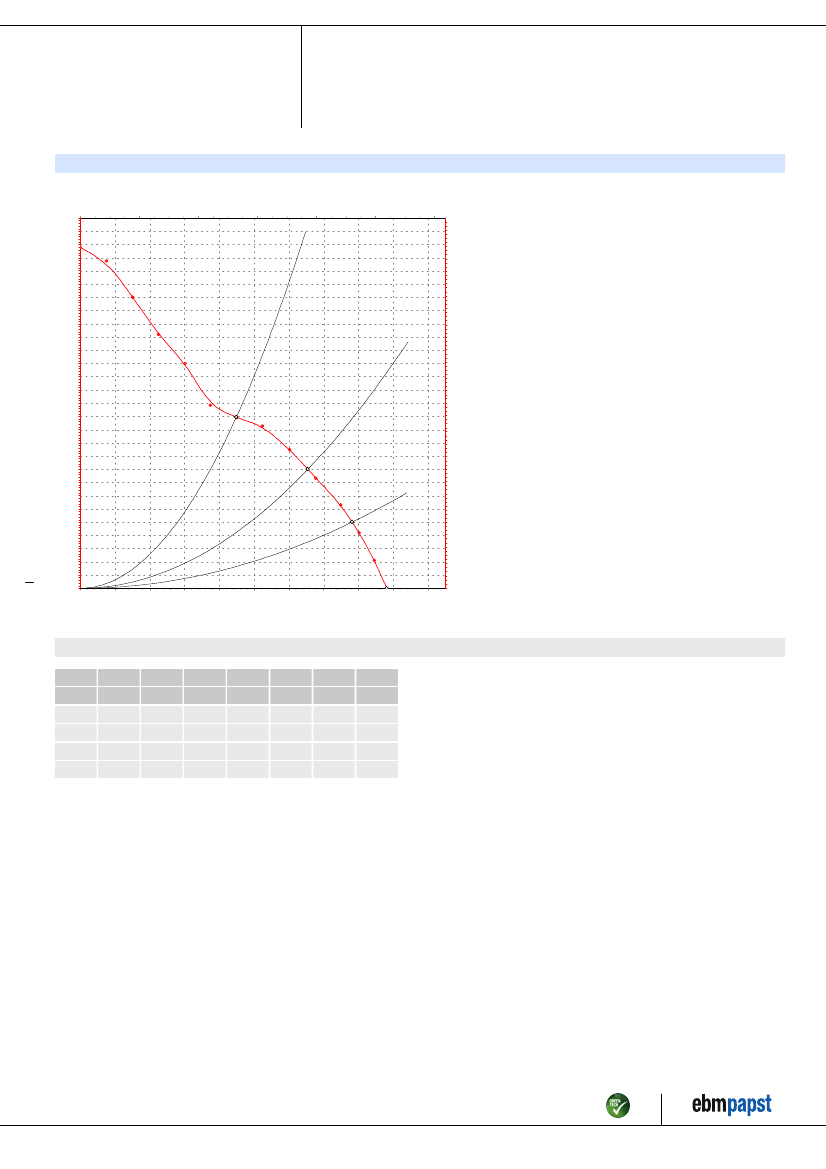

Charts: Air flow 60 Hz
Druck p f s[Pa]für Rho=1,2kg/m^3
280
270
260
250
240
230
220
210
200
190
180
170
160
p s[Pa]
f
0
200
400
qv[cfm]
600
800
1.000
1.200
1,1
1,05
1
0,95
0,9
0,85
0,8
0,75
0,7
0,65
0,6
p fs_E[IN H2O]
Measurement: LU-68412
Air performance measured as per ISO 5801
Installation category A. For detailed
information on the measuring set-up, please
contact ebm-papst. Suction-side noise
levels: LwA measured as per ISO 13347 /
LpA measured with 1m distance to fan axis.
The values given are valid under the
measuring conditions mentioned above and
may vary according to the actual installation
situation. With any deviation from the
standard set-up, the specific values have to
be checked and reviewed with the unit
installed.
150
140
130
120
110
100
90
80
70
60
50
40
30
20
4
0,55
0,5
0,45
3
0,4
0,35
0,3
0,25
2
0,2
0,15
0,1
a]
f [P
ps
10
0
0
200
400
600
800
1.000
1.200
qv[m^3/h]
1.400
1.600
0,05
2.000
0
1
1.800
Measured values
U
V
1
2
3
4
230
230
230
230
f
Hz
60
60
60
60
n
min
-1
2750
2580
2525
2590
P
e
W
165
171
175
170
I
A
0.74
0.75
0.76
0.75
qv
m
3
/h
1760
1565
1310
900
p
fs
Pa
0
50
90
130
U = Supply voltage · f = Frequency · n = Speed · P
e
= Power input · I = Current draw · qv = Air flow · p
fs
= Pressure increase
Item no. 11006-5-9980 · Revision 71618 · Release 2012-02-27 · Page 5 / 5
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
