ST90E40D1/ES datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ST90E40D1/ES

ST90E40D1/ES: Description16-BIT, UVPROM, 24MHz, MICROCONTROLLER, CDIP56, 0.600 INCH, WINDOWED, SHRINK, CERAMIC, DIP-56; CategoryThe embedded processor and controller Microcontrollers and processors; File Size386KB，14 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

ST90E40D1/ES Overview

16-BIT, UVPROM, 24MHz, MICROCONTROLLER, CDIP56, 0.600 INCH, WINDOWED, SHRINK, CERAMIC, DIP-56

ST90E40D1/ES Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	0.600 INCH, WINDOWED, SHRINK, CERAMIC, DIP-56
Contacts	56
Reach Compliance Code	not_compliant
Has ADC	YES
Other features	CAPTURE/COMPARE UNIT
Address bus width	12
bit size	16
boundary scan	NO
CPU series	ST9
maximum clock frequency	24 MHz
DAC channel	NO
DMA channel	YES
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-CDIP-T56
JESD-609 code	e0
low power mode	YES
Number of DMA channels	4
Number of external interrupt devices	4
Number of I/O lines	44
Number of serial I/Os	2
Number of terminals	56
Number of timers	3
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	SDIP56,.7
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	480
RAM (number of words)	480
rom(word)	16384
ROM programmability	UVPROM
speed	24 MHz
Maximum slew rate	50 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.78 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

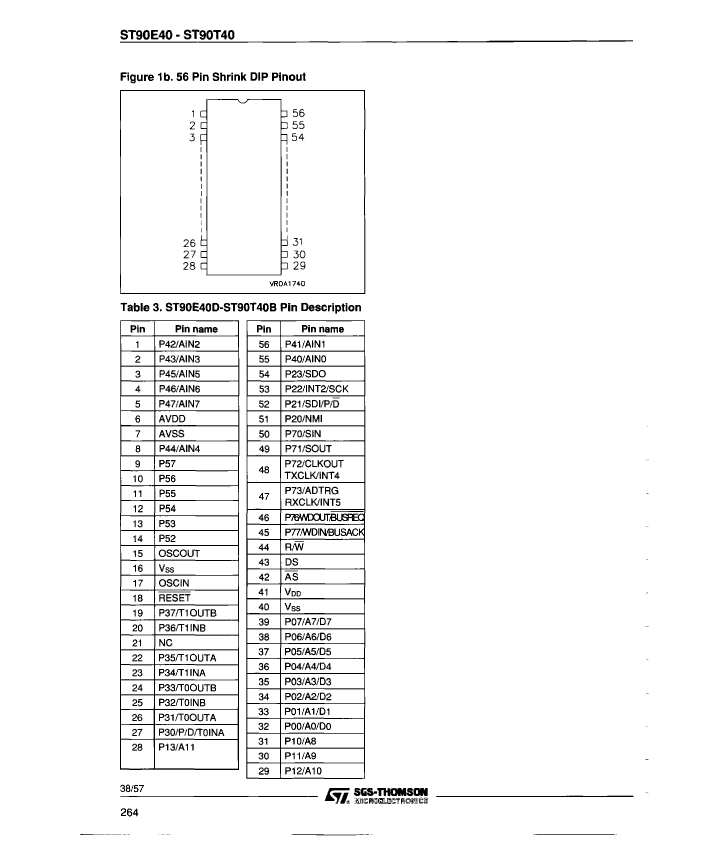

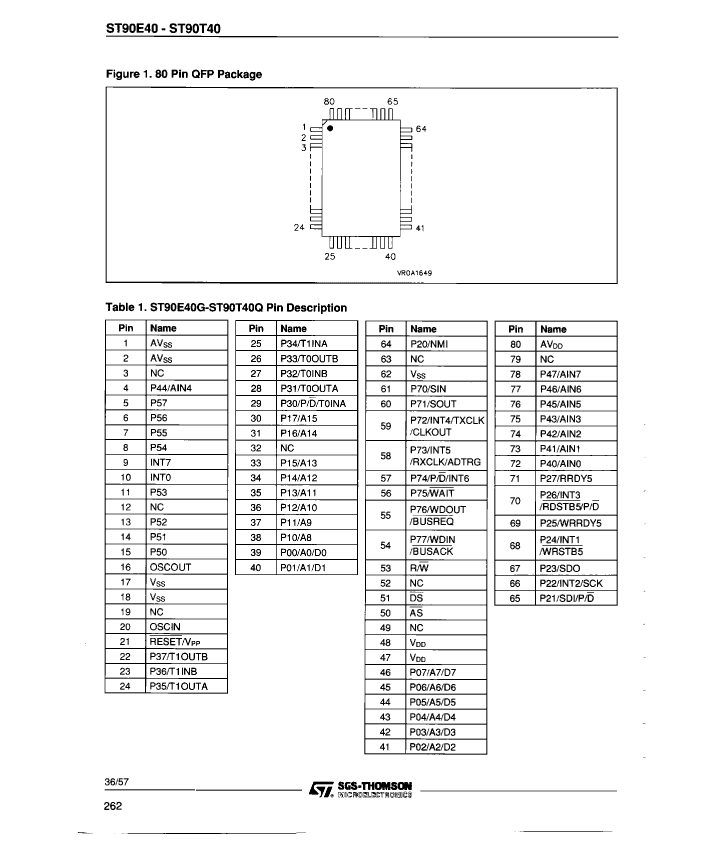

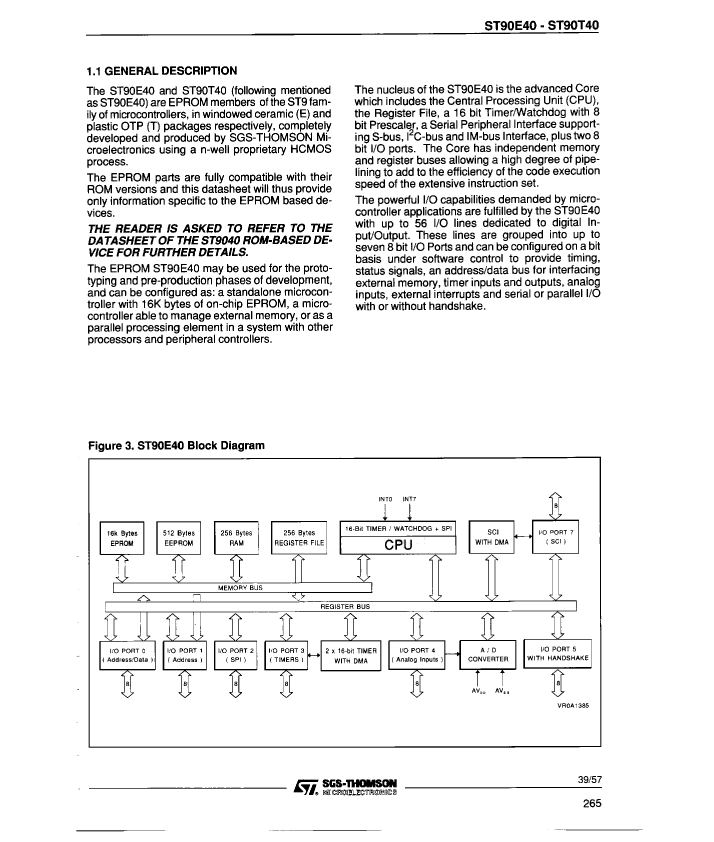

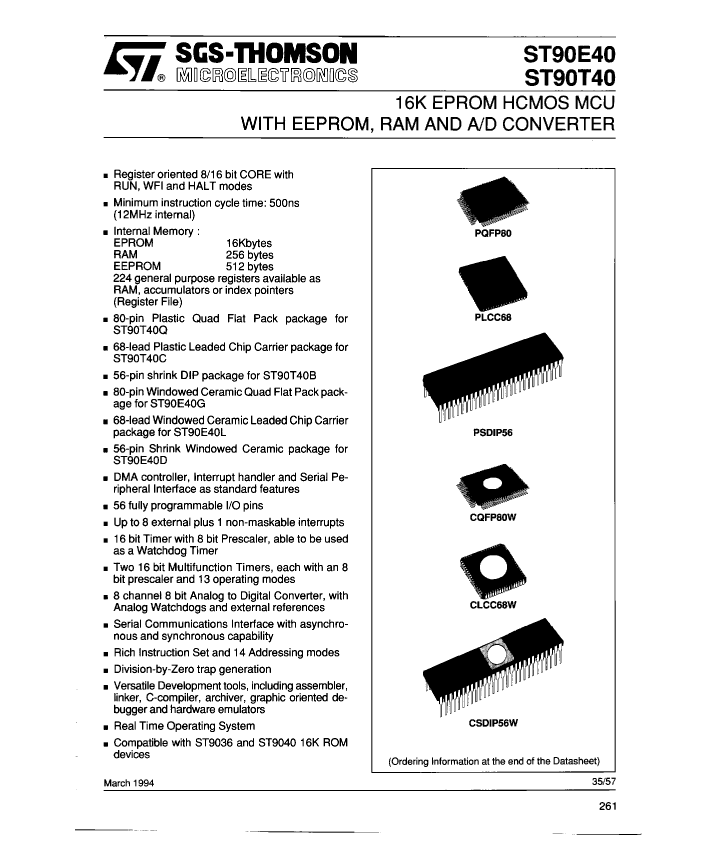

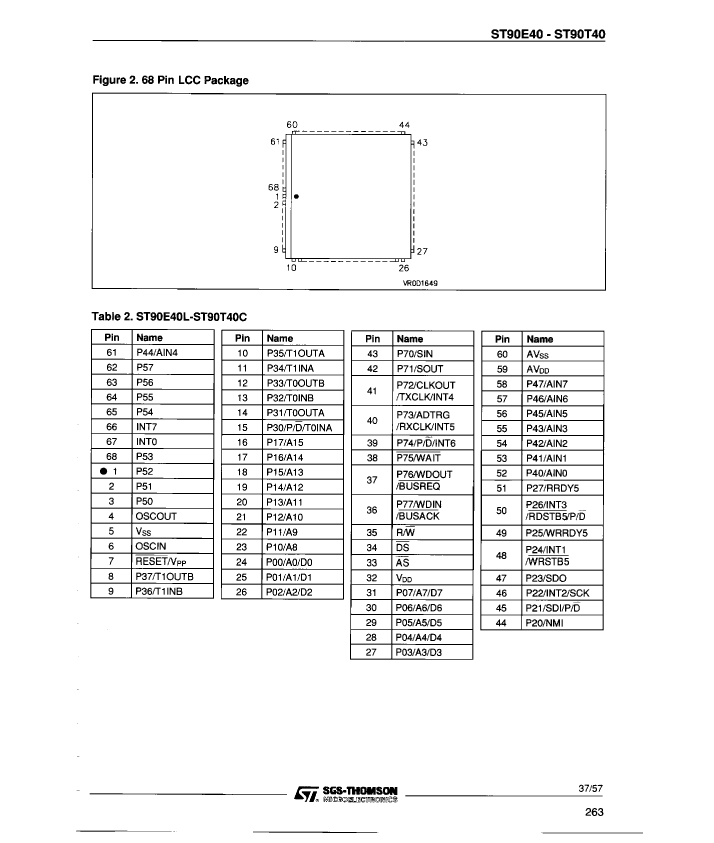

Preview

Download Datasheet

View All

ST90E40D1/ES Related Products

	ST90E40D1/ES	ST90T40B6
Description	16-BIT, UVPROM, 24MHz, MICROCONTROLLER, CDIP56, 0.600 INCH, WINDOWED, SHRINK, CERAMIC, DIP-56	16-BIT, OTPROM, 24MHz, MICROCONTROLLER, PDIP56, SHRINK, PLASTIC, DIP-56
Is it Rohs certified?	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics
Parts packaging code	DIP	DIP
package instruction	0.600 INCH, WINDOWED, SHRINK, CERAMIC, DIP-56	SHRINK, PLASTIC, DIP-56
Contacts	56	56
Reach Compliance Code	not_compliant	not_compliant
Has ADC	YES	YES
Other features	CAPTURE/COMPARE UNIT	CAPTURE/COMPARE UNIT
Address bus width	12	12
bit size	16	16
boundary scan	NO	NO
CPU series	ST9	ST9
maximum clock frequency	24 MHz	24 MHz
DAC channel	NO	NO
DMA channel	YES	YES
External data bus width	8	8
Format	FIXED POINT	FIXED POINT
Integrated cache	NO	NO
JESD-30 code	R-CDIP-T56	R-PDIP-T56
JESD-609 code	e0	e0
low power mode	YES	YES
Number of DMA channels	4	4
Number of external interrupt devices	4	4
Number of I/O lines	44	44
Number of serial I/Os	2	2
Number of terminals	56	56
Number of timers	3	3
On-chip data RAM width	8	8
On-chip program ROM width	8	8
Maximum operating temperature	70 °C	85 °C
PWM channel	NO	NO
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	SDIP56,.7	LDCC68,1.0SQ
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	480	480
RAM (number of words)	480	480
rom(word)	16384	16384
ROM programmability	UVPROM	OTPROM
speed	24 MHz	24 MHz
Maximum slew rate	50 mA	50 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.78 mm	1.27 mm
Terminal location	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
