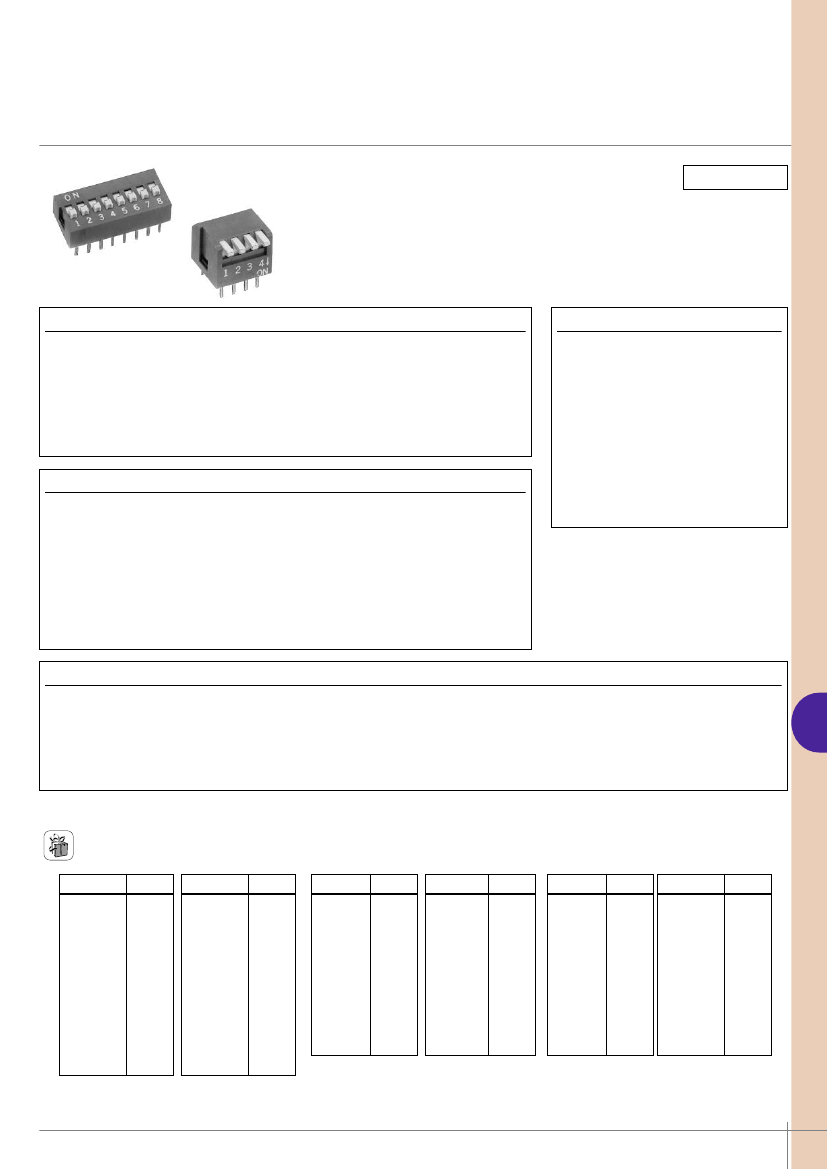

NDS-DP-DA series
DIP switches
Distinctive features and specifications
UG1212-A-R1
K
Standard, piano and right angle models
K
1 to 12 positions
K
Top tape sealing option
ELECTRICAL SPECIFICATIONS
MATERIALS
• Current/voltage rating : 25mA 24VDC
• Initial contact resistance : 50mΩ max.
• Insulation resistance (at 500VDC) :
100 MΩ min. between adjacent terminals
• Dielectric strength : 500VDC for one minute
• Circuit : single pole, single throw
• Electrical life : 2.000 cycles min. per switch
GENERAL SPECIFICATIONS
• Case, UL94-V0, glass fiber
filled PBT, black
• Cover : UL94-V0,glass fiber
filled PBT, red
• Actuator : UL94-V0, glass
fiber filled PBT, white
• Terminals/contacts : gold over
nickel plated phosphor bronze
• Terminal seal : epoxy
• Tape seal : polyester film
• Operating force :
- NDS/DA models : 10N
- DP models : 4N
• Travel :
- NDS/DA : 2 mm (.078)
- DP models : 30°
• Operating temperature :
- DP/DA models : -20°C to +70°C
- NDS models : -40°C to +85°C
RECOMMENDED SOLDERING AND CLEANING PROCESSES
• Hand soldering : 320°C max. for 2 seconds max. (30 watt iron max.)
• Wave soldering : 260°C max. for 5 seconds max.
• Force rinse, high agitation or triple bath cleaning method (with
tape seal, option T)
: freon TF or TE. When vapor
methods are used, do not subject switch to solvents above 51°C.
Note : keep switches in "OFF" position during soldering and cleaning for best results.
Dimensions
: first dimensions are in mm while inches are shown as bracketed numbers.
Packaging unit
: standard IC tubes - Quantities depending on model. See table below.
NDS(R)
NDS(R)-01
NDS(R)-02
NDS(R)-03
NDS(R)-04
NDS(R)-05
NDS(R)-06
NDS(R)-07
NDS(R)-08
NDS(R)-09
NDS(R)-10
NDS(R)-12
F
Quantity
120
72
51
40
32
27
24
21
19
17
14
NDS(R)-T
NDS(R)-01T
NDS(R)-02T
NDS(R)-03T
NDS(R)-04T
NDS(R)-05T
NDS(R)-06T
NDS(R)-07T
NDS(R)-08T
NDS(R)-09T
NDS(R)-10T
NDS(R)-12T
Quantity
113
70
50
39
32
27
24
21
19
17
14
DA
DA-02
DA-03
DA-04
DA-05
DA-06
DA-07
DA-08
DA-09
DA-10
DA-12
Quantity
73
52
40
33
28
24
21
19
17
14
DA-T
DA-02T
DA-03T
DA-04T
DA-05T
DA-06T
DA-07T
DA-08T
DA-09T
DA-10T
DA-12T
Quantity
70
50
39
32
28
24
21
19
17
14
DP/DPL
Quantity
DP-T/DPL-T
Quantity
DP(L)-02
DP(L)-03
DP(L)-04
DP(L)-05
DP(L)-06
DP(L)-08
DP(L)-10
DP(L)-12
70
50
39
32
27
21
17
14
DP(L)-02T
DP(L)-03T
DP(L)-04T
DP(L)-05T
DP(L)-06T
DP(L)-08T
DP(L)-10T
DP(L)-12T
65
49
39
32
27
21
17
14
APEM
www.apem.com
F-7

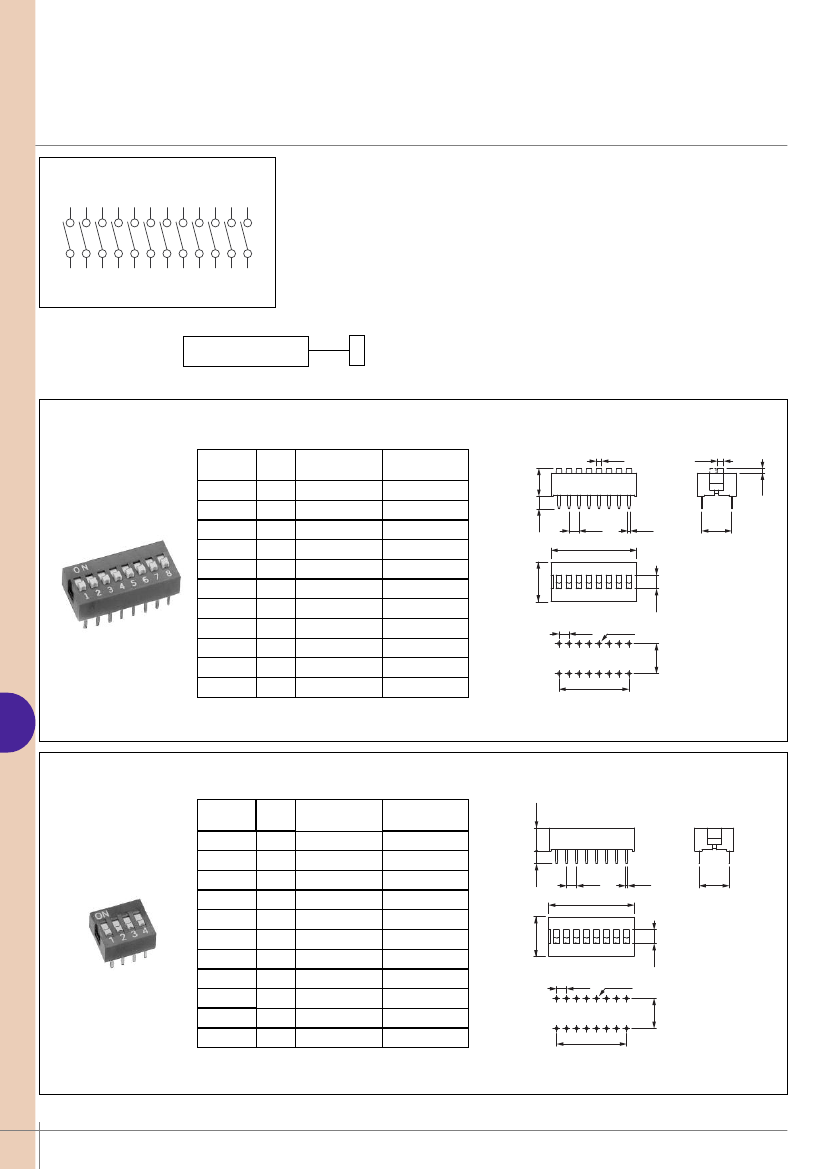

NDS/NDSR series
Standard DIP switches
•
Raised or recessed actuator
• 1 to 12 positions
1
2
3
4
5
6
7
8
9 10
11 12
MODEL
STRUCTURE
Raised actuator : NDS
No.
Model No pos.
NDS-01
NDS-02
NDS-03
NDS-04
NDS-05
NDS-06
NDS-07
NDS-08
NDS-09
NDS-10
NDS-12
1
2
3
4
5
6
7
8
9
10
12
Dim. "A"
4,22 (.166)
6,44 (.253)
8,98 (.353)
11,52 (.453)
14,06 (.553)
16,60 (.653)
19,14 (.753)
21,68 (.853)
24,22 (.953)
Dim. "B"
7.05
(.277)
5.85
(.230)
1.20
(.047)
2.54
(.100)
A
ON
9.90
(.389)
DIP
9.90
(.389)
7.62
(.300)
3.50
(.137)
CNDS
5.85
(.230)
0.60
(.023)
7.62
(.300)
7.62
(.300)
3.50
(.137)
CNDSR
0.60
(.023)
7.62
(.300)
1.40
(.055)
1.60
(.062)
-
2,54 (.100)
5,08 (.200)
7,62 (.300)
10,16 (.400)
12,70 (.500)
15,24 (.600)
17,78 (.700)
20,32 (.800)
3.20
(.125)
1 2 3 4 5 6 7 8
2.54
(.100)
Ø0.97
(.038 DIA)
26,76 (1.053) 22,86 (.900)
31,84 (1.253) 27,94 (1.100)
B
F
Top tape sealed : add "T" after model number.
Recessed actuator : NDSR
No
Model No pos.
7.05
(.277)
Dim. "A"
4,22 (.166)
6,44 (.253)
2.54
(.100)
A
1.40
(.055)
1.60
(.062)
Dim. "B"
1.20
(.047)
NDSR-01
NDSR-02
3.20
(.125)
1
2
3
4
ON
-
7.62
2,54 (.100)
(.300)
5,08 (.200)
NDSR-04
NDSR-05
9.90
(.389)
11,52 (.453)
14,06 (.553)
DIP
16,60 (.653)
Ø0.97
21,68 (.853)
(.038 DIA)
3.50
(.137)
7,62 (.300)
10,16 (.400)
12,70 (.500)
15,24 (.600)
17,78 (.700)
20,32 (.800)
9.90
(.389)
ON
3.20
(.125)
NDSR-03
8,98 (.353)
0.60
(.023)
2.54
(.100)
A
DIP
5
6
7
8
9
NDSR-06
NDSR-07
NDSR-08
NDSR-09
NDSR-10
NDSR-12
1 2 3 4 5 6 7 8
2.54
(.100)
19,14 (.753)
24,22 (.953)
1 2 3 4 5 6 7 8
2.54
(.100)
Ø0.97
(.038 DIA)
10
12
26,76 (1.053) 22,86 (.900)
B
31,84 (1.253) 27,94 (1.100)
7.62
(.300)
B
Top tape sealed : add "T" after model number.
F-8
www.apem.com
CNDS
APEM
3.20
(.125)

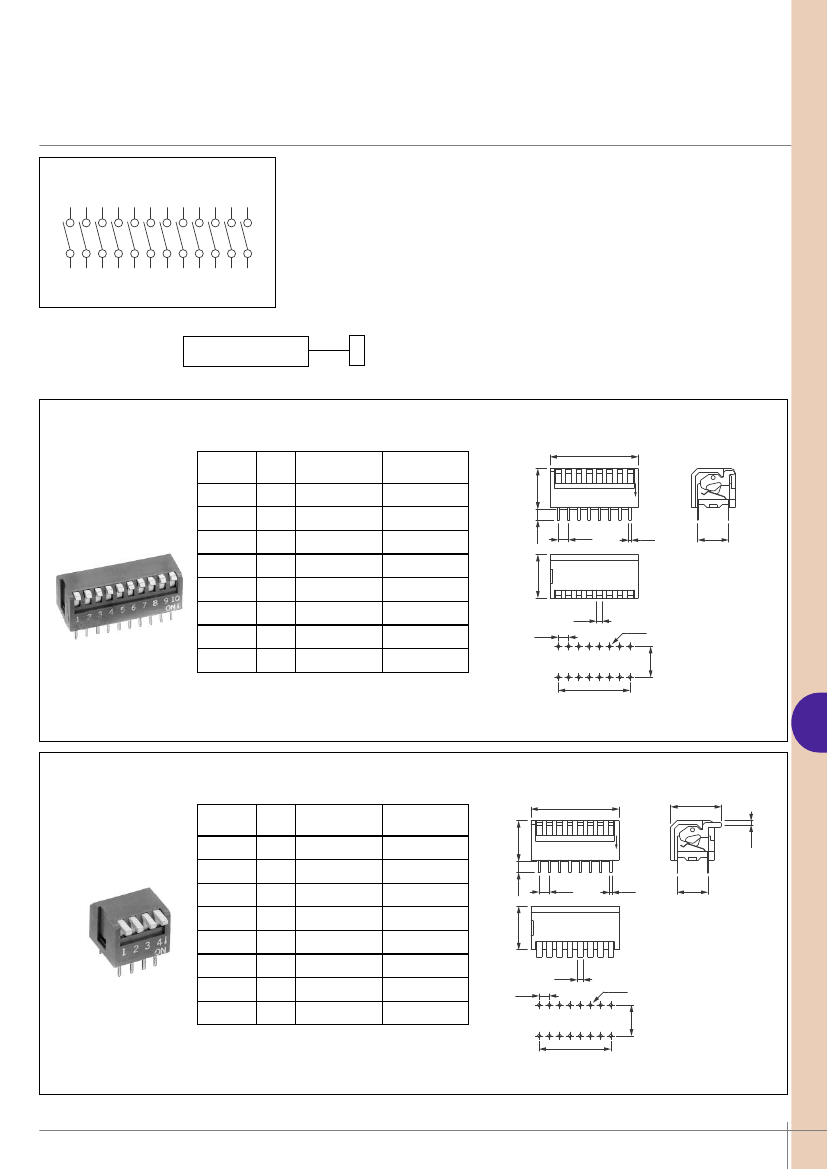

DP/DPL series
Piano DIP switches
•
Short or long actuator
• 2 to 12 positions
1
2
3
4
5
6
7
8
9 10
11 12
Note : Push down for "ON" is our standard type.
Push down for "OFF" is also available on special order,
consult factory.
MODEL
STRUCTURE
Short actuator : DP
No.
Model No pos.
DP-02
DP-03
DP-04
DP-05
DP-06
DP-08
DP-10
DP-12
2
3
4
5
6
8
10
12
Dim "A"
6,44 (.253)
9,18 (.361)
11,72 (.461)
14,26 (.561)
16,80 (.661)
21,88 (.861)
Dim. "B"
2,54 (.100)
5,08 (.200)
7,62 (.300)
10,16 (.400)
12,70 (.500)
17,78 (.700)
2.80
(.110)
1 2
10.20
(.401)
A
3 4 5
2.54
(.100)
6 7 8
ON
0.60
(.023)
7.62
(.300)
10.80
(.425)
26,96 (1.061) 22,86 (.900)
32,04 (1.261) 27,94 (1.100)
2.54
(.100)
1.40
(.055)
Ø0.97
(.038 DIA)
B
7.62
(.300)
Top tape sealed : add "T" after model number.
F
Long actuator : DPL
No.
Model No pos.
DPL-02
DPL-03
DPL-04
DPL-05
DPL-06
DPL-08
DPL-10
DPL-12
2
3
4
5
6
8
10
12
Dim "A"
6,44 (.253)
9,18 (.361)
11,72 (.461)
14,26 (.561)
16,80 (.661)
21,88 (.861)
Dim. "B"
2,54 (.100)
5,08 (.200)
7,62 (.300)
10,16 (.400)
12,70 (.500)
17,78 (.700)
2.80
(.110)
1 2
10.20
(.401)
A
12.57
(.494)
3 4 5
2.54
(.100)
6 7 8
ON
0.60
(.023)
7.62
(.300)
10.80
(.425)
26,96 (1.061) 22,86 (.900)
32,04 (1.261) 27,94 (1.100)
2.54
(.100)
1.40
(.055)
Ø0.97
(.038 DIA)
B
Top tape sealed : add "T" after model number.
APEM
www.apem.com
7.62
(.300)
1.05
(.041)
F-9
