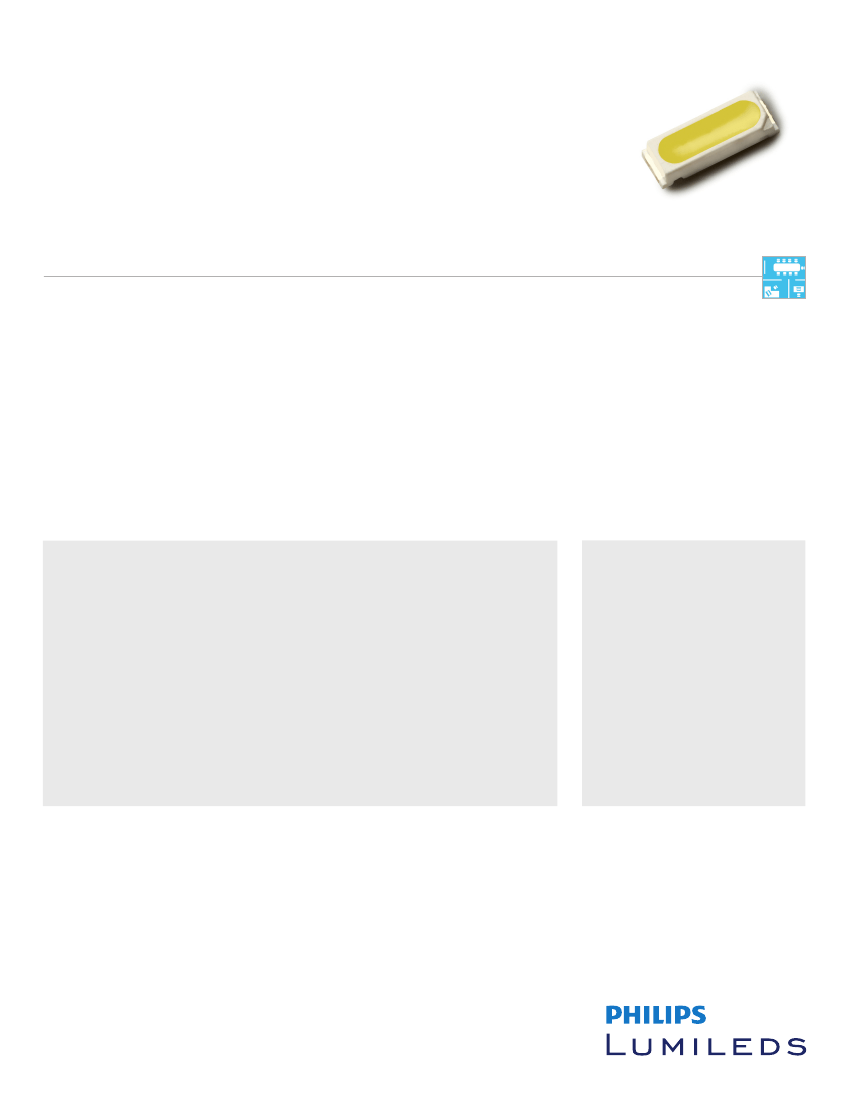

LUXEON 4014
Compact footprint delivering high-efficacy
and just the right amount of light
Introduction
The LUXEON 4014 low-power product is the first of its kind from Philips Lumileds. It’s a compact 4.0 x 1.4 x 0.7 mm
package that delivers the quality of light needed for indoor lighting applications. The LUXEON 4014 offers an ideal
solution when uniformity and a smooth lighting appearance are critical in luminare designs.
Features
•
Unique phosphor technology
•
Rectangular QFN package
design
•
Superior heat dissipation
- Flexible lumen and efficacy
platform
- ANSI color bin
- Efficacy up to 150 lm/W
@ 30 mA
Benefits
•
Enables high efficacy
•
Increases uniformity
•
Enables cost effective thermal
design
•
For added value and performance
roadmap
Key Applications
•
Indoor area lighting
- Wall grazer
- Under cabinet
- Cove
- Integrated lay-in
- Retrofit lamps
- Refrigerator lighting
LUXEON 4014 Datasheet DS205 ©2014 Philips Lumileds Lighting Company.
Table of Contents
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Product Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Average Lumen Maintenance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Product Performance and Characterization Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
JEDEC Moisture Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Reflow Soldering Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Material Information & Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Characteristic Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Typical Forward Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Light Output Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Typical Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Emitter Pocket Tape Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Emitter Reel Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Product Binning and Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Color Bin Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
i
General Information
Product Nomenclature
LUXEON 4014 is tested and binned at T
j
= 25°C and 30 mA DC.
The part number designation is explained as follows:
MXZA–BCDD–00EE
Where:
A
—
B
C
DD
—
—
—
designates minimum CRI (value 8 for 80, 9 for 90)
designates radiation pattern (value P for Lambertian)
designates color (W for White)
designates nominal CCT (27 for 2700K, 30 for 3000K, 35 for 3500K, 40 for 4000K and
50 for 5000K)
designates additional part numbers
EEEE —
Therefore 4000K, 80 CRI LUXEON 4014 product will be:
MXZ8–PW40–0000
Average Lumen Maintenance Characteristics
Lumen maintenance for solid-state lighting devices (LEDs) is typically defined in terms of the percentage of initial
light output remaining after a specified period of time. Philips Lumileds projects that LUXEON 4014 MXZ8-PW40-00
products will deliver, on average, 70% lumen maintenance (L70) at >30,000 hours of operation at a forward current
of up to 30 mA.This
projection and detailed operating condition will be further validated and disclosed.
Observation
of design limits included in this data sheet is required in order to achieve this projected lumen maintenance.
Environmental Compliance
Philips Lumileds is committed to providing environmentally friendly products to the solid-state lighting market.
LUXEON 4014 is compliant to the European Union directives on the restriction of hazardous substances in electronic
equipment, namely the RoHS and REACH directives. Philips Lumileds will not intentionally add the following
restricted material to the LUXEON 4014: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls
(PBB) or polybrominated diphenyl ethers (PBDE).
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
2
Product Performance and Characterization Guide
Typical Product Characteristics at 30 mA and 60 mA
Table 1. Performance Characteristics at T
j
= 25˚C, I
f
Nominal
CCT
5000K
5700K
6500K
2200K
2500K
2700K
3000K
3500K
4000K
5000K
5700K
6500K
2700K
3000K
4000K
5000K
Part Number
MXZ7-PW50
MXZ7-PW57
MXZ7-PW65
MXZ8-PW22
MXZ8-PW25
MXZ8-PW27
MXZ8-PW30
MXZ8-PW35
MXZ8-PW40
MXZ8-PW50
MXZ8-PW57
MXZ8-PW65
MXZ9-PW27
MXZ9-PW30
MXZ9-PW40
MXZ9-PW50
Minimum
CRI
70
70
70
80
80
80
80
80
80
80
80
80
90
90
90 typ.
90 typ.
Luminous Flux @ 30 mA, 25°C
Minimum (lm)
10.0
10.0
10.0
8.5
8.5
8.5
8.5
9.0
10.0
10.0
9.5
9.5
8.5
8.5
10.0
10.0
Typical (lm)
13.0
13.0
13.0
9.7
10.2
10.5
11.0
11.0
12.0
12.0
11.5
11.5
9.0
9.3
11.1
11.1
Luminous Flux @ 60 mA, 25°C
Minimum (lm)
18
18
18
14
14
15
15
16
18
18
17
17
14
14
17
17
Typical (lm)
23
23
23
17
17
18
20
20
22
22
20
20
17
17
20
20
V
f
at 30 mA
Typical
2.9
2.9
2.9
2.9
2.9
2.9
2.9
2.9
2.9
2.9
2.9
2.9
2.9
2.9
2.9
2.9
Notes for Table 1:
1. Philips Lumileds maintains a tolerance of ±7.5% on luminous flux, ±2 on CRI.
2. Production parts are binned at 30 mA, 25°C.
3. Performance at 60 mA, 25°C is for reference only.
Electrical Characteristics
Electrical Characteristics of Low-Power LEDs
Solder Pad Temperature = 25°C, Test Current = 30 mA
Table 2.
Forward Voltage V
f [1]
(V)
Part
Numbers
Minimum
2.7
Typical
2.9
Maximum
3.2
Typ. Temperature Coefficient
of Forward Voltage
[2]
(mV/°C)
DV
f
/
DT
J
-1.6
Typical Thermal Resistance
Junction to Solder Pad (°C/W)
Ru
J-C
45
MXZx-PWXX
Notes for Table 2:
1. Philips Lumileds maintains a tolerance of ± 0.10V on forward voltage measurements.
2. Measured between T
j
= 25°C and T
j
= 110°C.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
3
Absolute Maximum Ratings
Table 3. Operating Condition and Ratings
Parameter
DC Forward Current
[1]
Peak Pulsed Forward Current
Soldering Temperature
Allowable Reflow Cycles
ESD Sensitivity
Storage Temperature
LED Junction Temperature
Operating Case Temperature
Reverse Voltage (Vr)
[3] [4]
[2]
Maximum Performance
90 mA
100 mA
260°C
3
< 2000V Human Body Model (HBM) Class 2 JEDEC JS-001-2012
400V Machine Model (MM) Class C JESD22-A115C
-40°C - 85°C
125°C
85°C
-5V
Notes for Table 3:
1. Ripple current with a frequency of 50-150 Hz is allowed, as long as the average of the current waveform is below 80 mA, and the maximum of the current waveform is lower than 100 mA.
2. At 10% duty cycle and pulse width 10mS.
3. LUXEON low-power LEDs are not designed to be driven in reverse bias.
4. At maximum reverse current of 10 μA.
JEDEC Moisture Sensitivity
Table 4.
Floor Life
Time
2
1 year
Conditions
[
30°C / 60% RH
Time
168 Hrs. + 5 / -0 Hrs.
Soak Requirements
Standard
Conditions
[
85°C / 60% RH
Level
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
4
