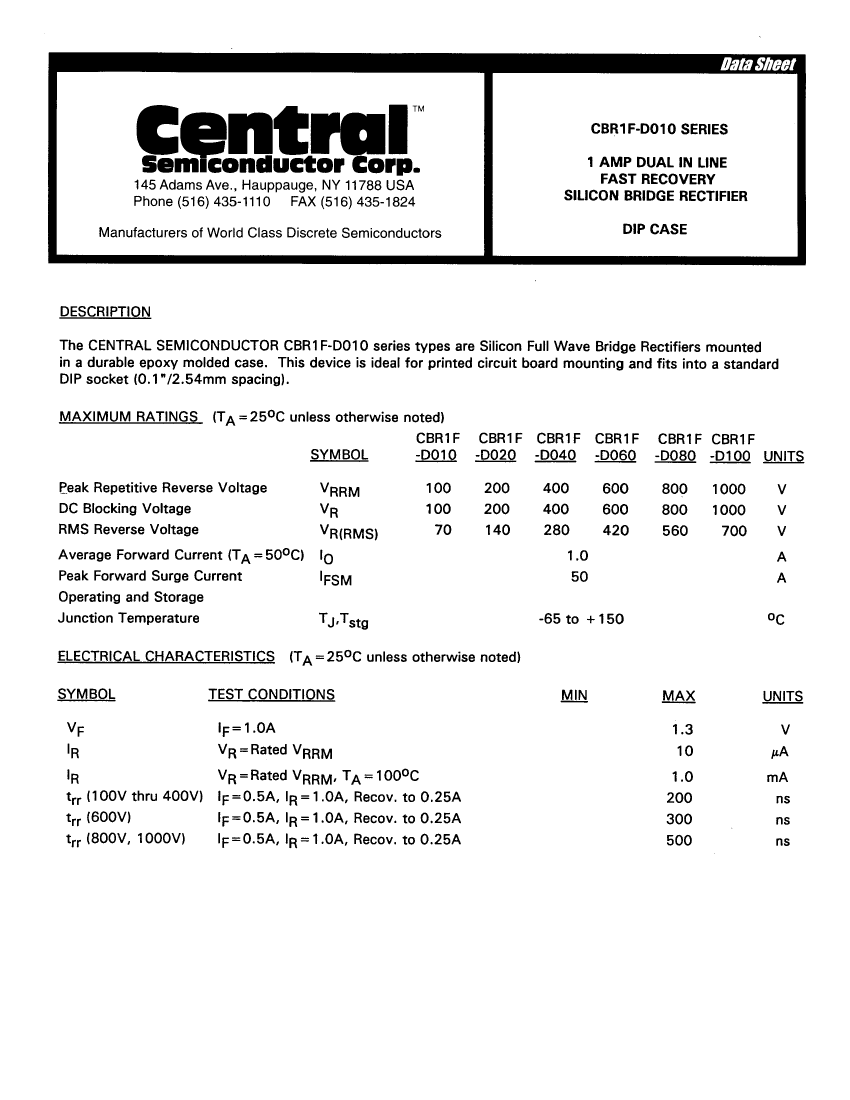

Bridge Rectifier Diode, 1 Phase, 1A, 400V V(RRM), Silicon, PLASTIC, DIP-4
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Central Semiconductor |
| Parts packaging code | DIP |
| package instruction | R-PDIP-T4 |
| Contacts | 4 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Configuration | BRIDGE, 4 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | BRIDGE RECTIFIER DIODE |
| JESD-30 code | R-PDIP-T4 |
| JESD-609 code | e3 |
| Maximum non-repetitive peak forward current | 50 A |
| Number of components | 4 |
| Phase | 1 |
| Number of terminals | 4 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -65 °C |
| Maximum output current | 1 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | 260 |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 400 V |
| surface mount | NO |
| Terminal surface | MATTE TIN (315) |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 10 |
| CBR1F-D040LEADFREE | CBR1F-D100LEADFREE | CBR1F-D060LEADFREE | CBR1F-D010LEADFREE | CBR1F-D020LEADFREE | CBR1F-D080LEADFREE | |
|---|---|---|---|---|---|---|
| Description | Bridge Rectifier Diode, 1 Phase, 1A, 400V V(RRM), Silicon, PLASTIC, DIP-4 | Bridge Rectifier Diode, 1 Phase, 1A, 1000V V(RRM), Silicon, PLASTIC, DIP-4 | Bridge Rectifier Diode, 1 Phase, 1A, 600V V(RRM), Silicon, PLASTIC, DIP-4 | Bridge Rectifier Diode, 1 Phase, 1A, 100V V(RRM), Silicon, PLASTIC, DIP-4 | Bridge Rectifier Diode, 1 Phase, 1A, 200V V(RRM), Silicon, PLASTIC, DIP-4 | Bridge Rectifier Diode, 1 Phase, 1A, 800V V(RRM), Silicon, PLASTIC, DIP-4 |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to |
| Parts packaging code | DIP | DIP | DIP | DIP | DIP | DIP |
| package instruction | R-PDIP-T4 | R-PDIP-T4 | R-PDIP-T4 | R-PDIP-T4 | R-PDIP-T4 | R-PDIP-T4 |
| Contacts | 4 | 4 | 4 | 4 | 4 | 4 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maker | Central Semiconductor | Central Semiconductor | Central Semiconductor | - | Central Semiconductor | Central Semiconductor |
| Configuration | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | - |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | - |
| Diode type | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | - |
| JESD-30 code | R-PDIP-T4 | R-PDIP-T4 | R-PDIP-T4 | R-PDIP-T4 | R-PDIP-T4 | - |
| JESD-609 code | e3 | e3 | e3 | e3 | e3 | - |
| Maximum non-repetitive peak forward current | 50 A | 50 A | 50 A | 50 A | 50 A | - |
| Number of components | 4 | 4 | 4 | 4 | 4 | - |
| Phase | 1 | 1 | 1 | 1 | 1 | - |
| Number of terminals | 4 | 4 | 4 | 4 | 4 | - |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | - |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | - |
| Maximum output current | 1 A | 1 A | 1 A | 1 A | 1 A | - |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | - |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | - |
| Peak Reflow Temperature (Celsius) | 260 | 260 | 260 | 260 | 260 | - |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - |
| Maximum repetitive peak reverse voltage | 400 V | 1000 V | 600 V | 100 V | 200 V | - |
| surface mount | NO | NO | NO | NO | NO | - |
| Terminal surface | MATTE TIN (315) | MATTE TIN (315) | MATTE TIN (315) | MATTE TIN (315) | MATTE TIN (315) | - |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | - |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | - |
| Maximum time at peak reflow temperature | 10 | 10 | 10 | 10 | 10 | - |
