NACP221K4V6.3X4.5TR13F: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 4V, 10% +Tol, 10% -Tol, 220uF, Surface Mount, 2626, 4.6 MMH CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size167KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric Compare View All

NACP221K4V6.3X4.5TR13F Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 4V, 10% +Tol, 10% -Tol, 220uF, Surface Mount, 2626, 4.6 MMH CHIP, ROHS COMPLIANT

NACP221K4V6.3X4.5TR13F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	, 2626
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	220 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	3000 mΩ
high	4.5 mm
JESD-609 code	e6
leakage current	0.0088 mA
length	6.6 mm
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	SMT
method of packing	TR, 13 INCH
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	4 V
ripple current	98 mA
series	NACP(6.3X4.5)
size code	2626
surface mount	YES
Delta tangent	0.4
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal shape	FLAT
width	6.6 mm

Preview

Download Datasheet

View All

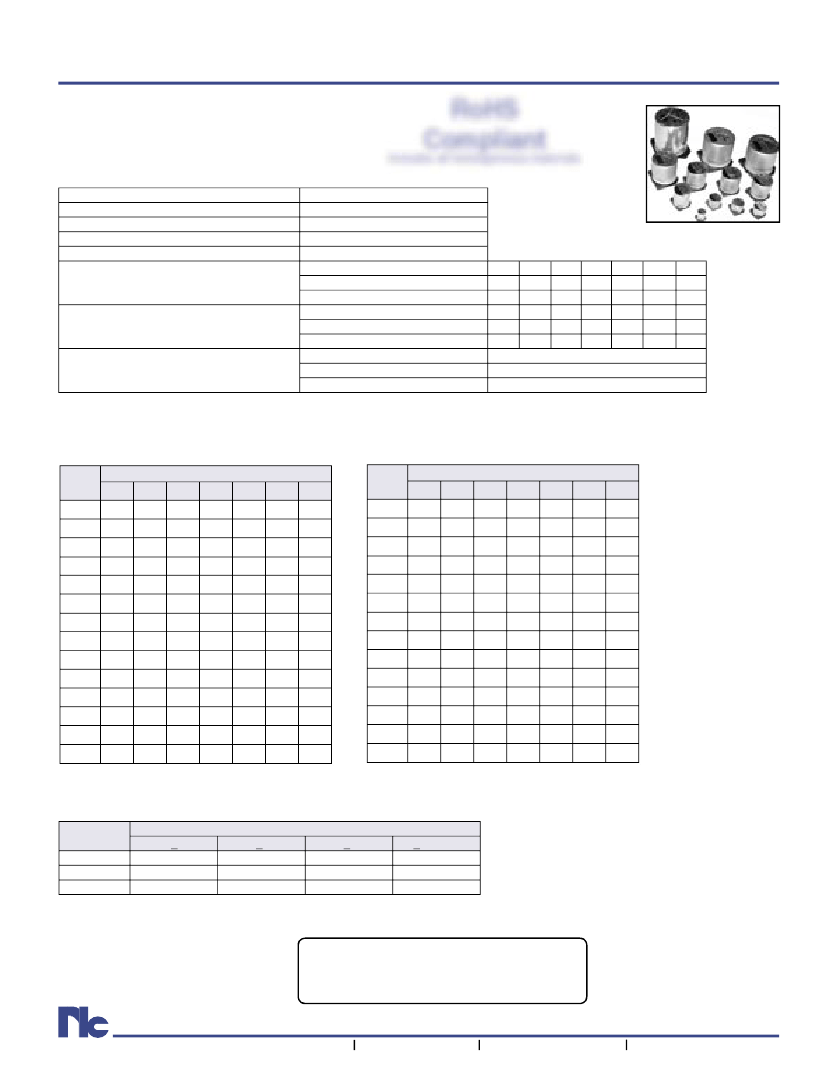

Surface Mount Aluminum Electrolytic Capacitors

FEATURES

• CYLINDRICAL V-CHIP CONTRUCTION

• LOW PROFILE, 4.6mm MAXIMUM HEIGHT

• DESIGNED FOR REFLOW

..SOLDERING

CHARACTERISTICS

Rated Voltage Rating

Rated Capacitance Range

Operating Temperature Range

Capacitance Tolerance

Max. Leakage Current After 2 Minutes at 20°C

Surge Voltage & Max. Tanδ

Low Temperature

Stability

(Impedance Ratio @ 120Hz)

Load Life Test

at Rated W.V.

85°C 1,000 Hours

NACP Series

includes all homogeneous materials

*See Part Number System for Details

RoHS

Compliant

4 ~ 50Vdc

0.1 ~ 220µF

-40° ~ +85°C

±20%(M)

0.01CV or 3µA, whichever is greater

W.V. (Vdc)

4

6.3

10

16

25

35

50

S.V. (Vdc)

5

8.0

13

20

32

44

63

0.40 0.30 0.24 0.20 0.16 0.14 0.12

Tanδ @ 120Hz/20°C

W.V. (Vdc)

4

6.3

10

16

25

35

50

Z-25°C/Z +20°C

7

4

3

2

Z-40°C/Z +20°C

15

10

8

6

4

Capacitance Change

Within ±25% of initial measured value

Less than 200% of specified value

Tanδ

Leakage Current

Less than specified value

MAXIMUM PERMISSIBLE RIPPLE CURRENT

(mA rms AT 120Hz AND 85

O

C)

Cap.

(µF)

0.1

0.22

0.33

0.47

1.0

2.2

3.3

4.7

10

22

33

47

100

220

Working Voltage (Vdc)

4

-

28

33

56

98

6.3

-

28

37

45

70

-

10

-

33

41

53

74

-

16

-

23

37

51

61

-

25

-

17

27

47

57

-

35

-

18

29

49

-

50

1.0

2.0

2.8

4.0

8.4

14

17

21

33

-

MAXIMUM ESR

(Ω AT 120Hz AND 20

O

C)

Cap.

(µF)

0.1

0.22

0.33

0.47

1.0

2.2

3.3

4.7

10

22

33

47

100

220

Working Voltage (Vdc)

4

-

20.1

14.1

6.6

3.0

6.3

-

22.6

15.1

10.6

5.0

-

10

-

18.1

12.6

8.5

3.98

-

16

-

33.2

15.1

10.1

7.1

-

25

-

56.5

26.5

12.1

8.1

-

35

-

49.4

23.2

10.8

-

50

1990

905

603

423

199

90.5

60.3

42.3

19.0

-

RIPPLE CURRENT FREQUENCY CORRECTION FACTOR

Cap. (µF)

0.47 ~ 4.7

10 ~ 33

47 ~ 220

10< f <1KHz

1.0

Frequency

1K< f <10KHz 10K< f >100KHz

1.3

1.5

1.2

1.3

1.1

1.2

>100KHz

2.0

1.45

1.3

®

Please review the notes on correct use, safety and precautions found on

pages T10

&

T11

of NIC’s

Electrolytic Capacitor catalog.

Also found at

www.niccomp.com/precautions

If in doubt or uncertainty, please review your specific application - process details with

NIC’s technical support personnel:

tpmg@niccomp.com

PRECAUTIONS

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

5

NACP221K4V6.3X4.5TR13F Related Products

	NACP221K4V6.3X4.5TR13F	NACPR10K50V4X4.5TR13F	NACP330K4V4X4.5TR13F	NACP220K16V5X4.5TR13F	NACP220K10V5X4.5TR13F	NACP3R3K50V4X4.5TR13F
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 4V, 10% +Tol, 10% -Tol, 220uF, Surface Mount, 2626, 4.6 MMH CHIP, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 10% +Tol, 10% -Tol, 0.1uF, Surface Mount, 1717, 4.6 MMH CHIP, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 4V, 10% +Tol, 10% -Tol, 33uF, Surface Mount, 1717, 4.6 MMH CHIP, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2121, 4.6 MMH CHIP, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2121, 4.6 MMH CHIP, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 10% +Tol, 10% -Tol, 3.3uF, Surface Mount, 1717, 4.6 MMH CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	, 2626	, 1717	, 1717	, 2121	, 2121	, 1717
Reach Compliance Code	compliant	compliant	compliant	compliant	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	220 µF	0.1 µF	33 µF	22 µF	22 µF	3.3 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
ESR	3000 mΩ	1990000 mΩ	20100 mΩ	15100 mΩ	18100 mΩ	60300 mΩ
JESD-609 code	e6	e6	e6	e6	e6	e6
leakage current	0.0088 mA	0.003 mA	0.003 mA	0.00352 mA	0.003 mA	0.003 mA
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	10%	10%	10%	10%	10%	10%
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
method of packing	TR, 13 INCH	TR, 13 INCH	TR, 13 INCH	TR, 13 INCH	TR, 13 INCH	TR, 13 INCH
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	10%	10%	10%	10%	10%	10%
Rated (DC) voltage (URdc)	4 V	50 V	4 V	16 V	10 V	50 V
ripple current	98 mA	1 mA	28 mA	37 mA	33 mA	17 mA
size code	2626	1717	1717	2121	2121	1717
surface mount	YES	YES	YES	YES	YES	YES
Delta tangent	0.4	0.12	0.4	0.2	0.24	0.12
Terminal surface	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)
Terminal shape	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Maker	Nichicon	-	Nichicon	Nichicon	Nichicon	Nichicon
